Features

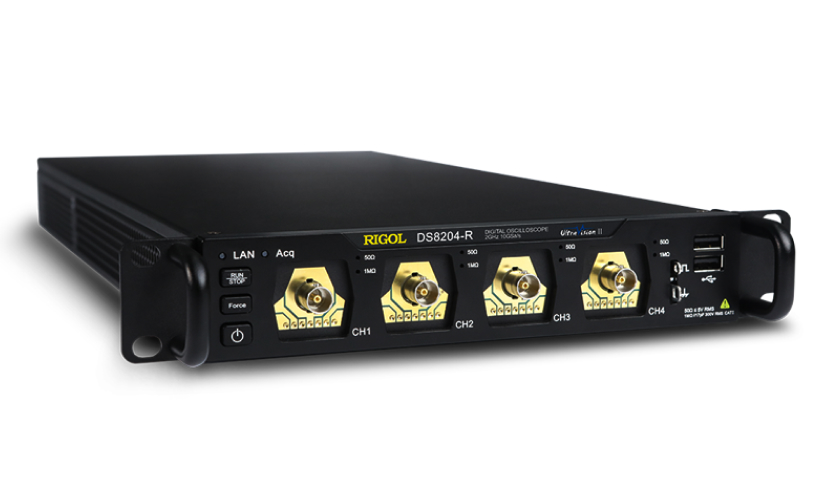

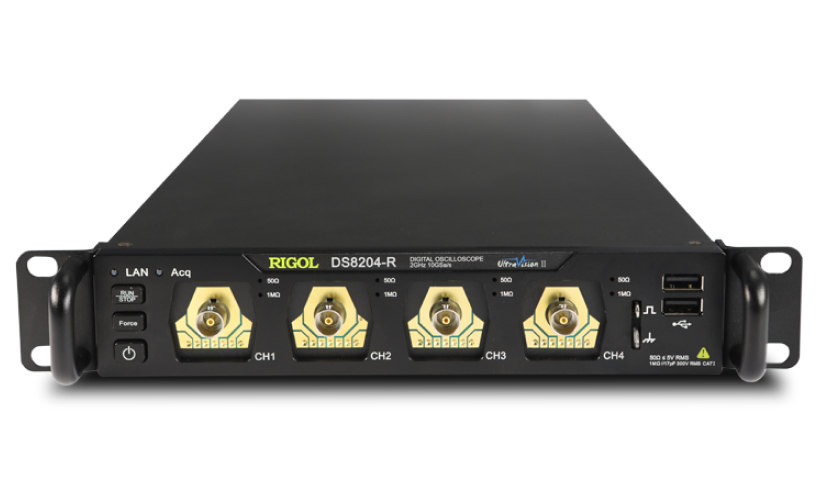

Compact design

Space-saving compact design, small size, 214 mm (width) × 43 mm (height) × 478 mm (depth), which can be placed in a narrow space.

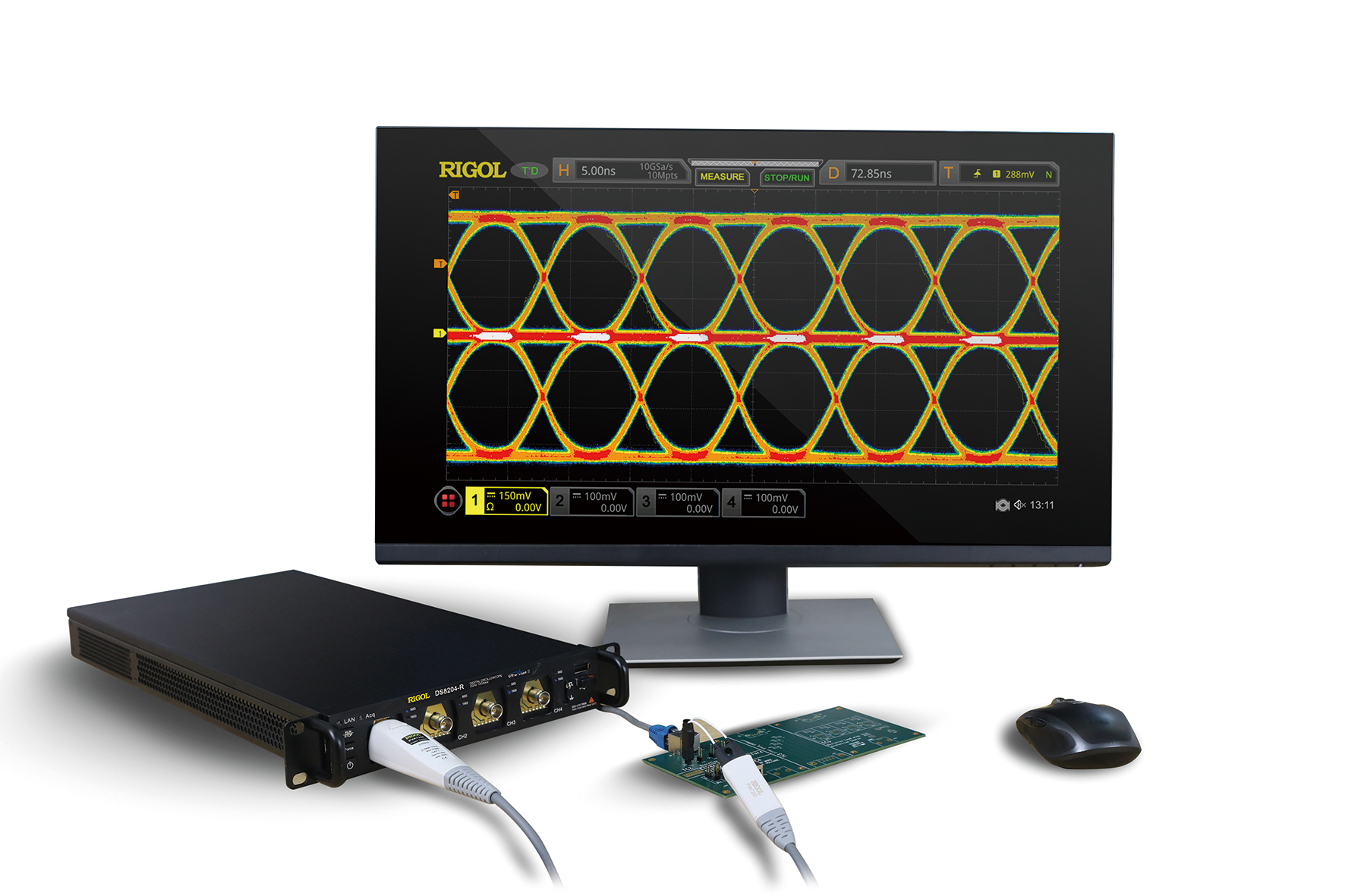

Convenient stand-alone working mode

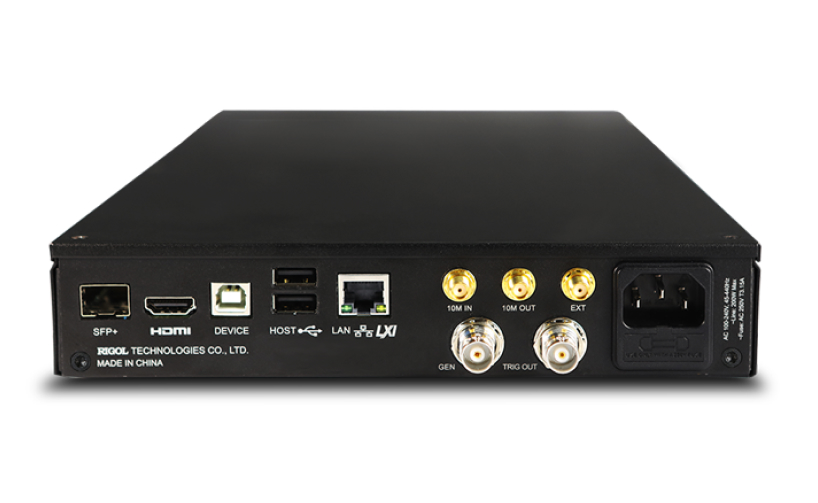

A single device with peripherals can meet traditional oscilloscope applications: connect the display device through the HDMI interface to view the user interface, connect the mouse through the USB Host interface to click and drag, and connect the keyboard to set numbers or strings.

Suitable for low temperature working environment

Without a LCD screen, the minimum working temperature for DS8000R is -40℃, and it can be applied to signal monitoring in special environments.

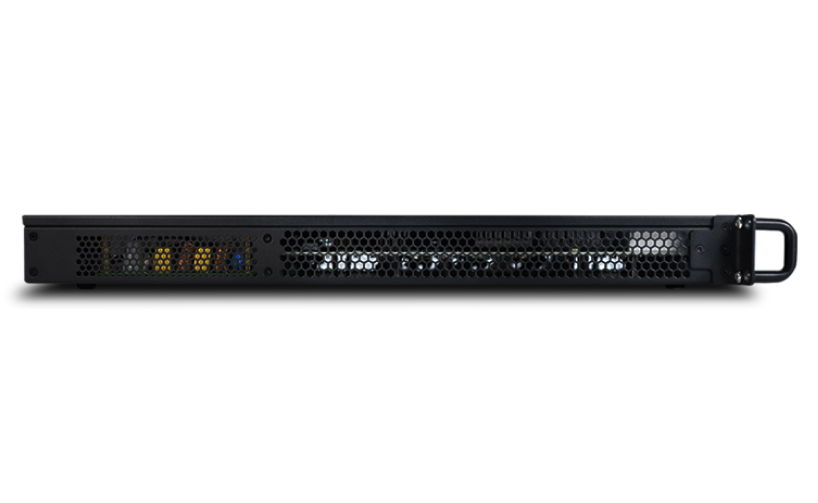

Save the rack space

Half U design helps to save the rack space. 2 units can be installed side by side in a 1U standard rack with a total of 8 channels, which efficiently utilizes valuable rack space

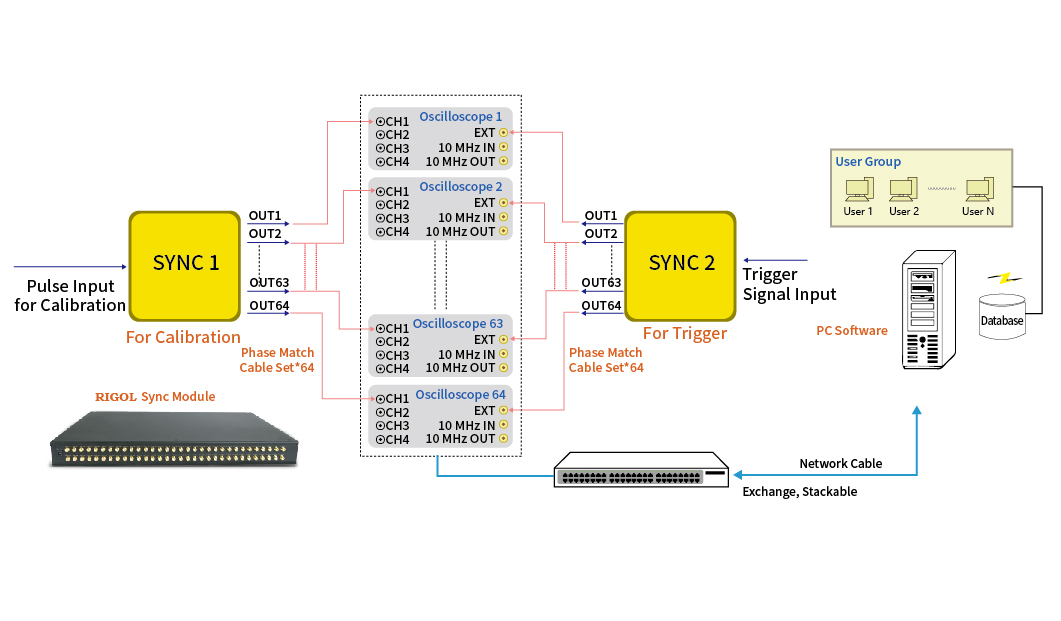

Scalable to 512 channels of synchronous trigger

Using the matching synchronous machine, it can provide a multi-machine synchronous trigger scheme, and can realize on-site calibration to ensure the requirements of multi-channel synchronous observation

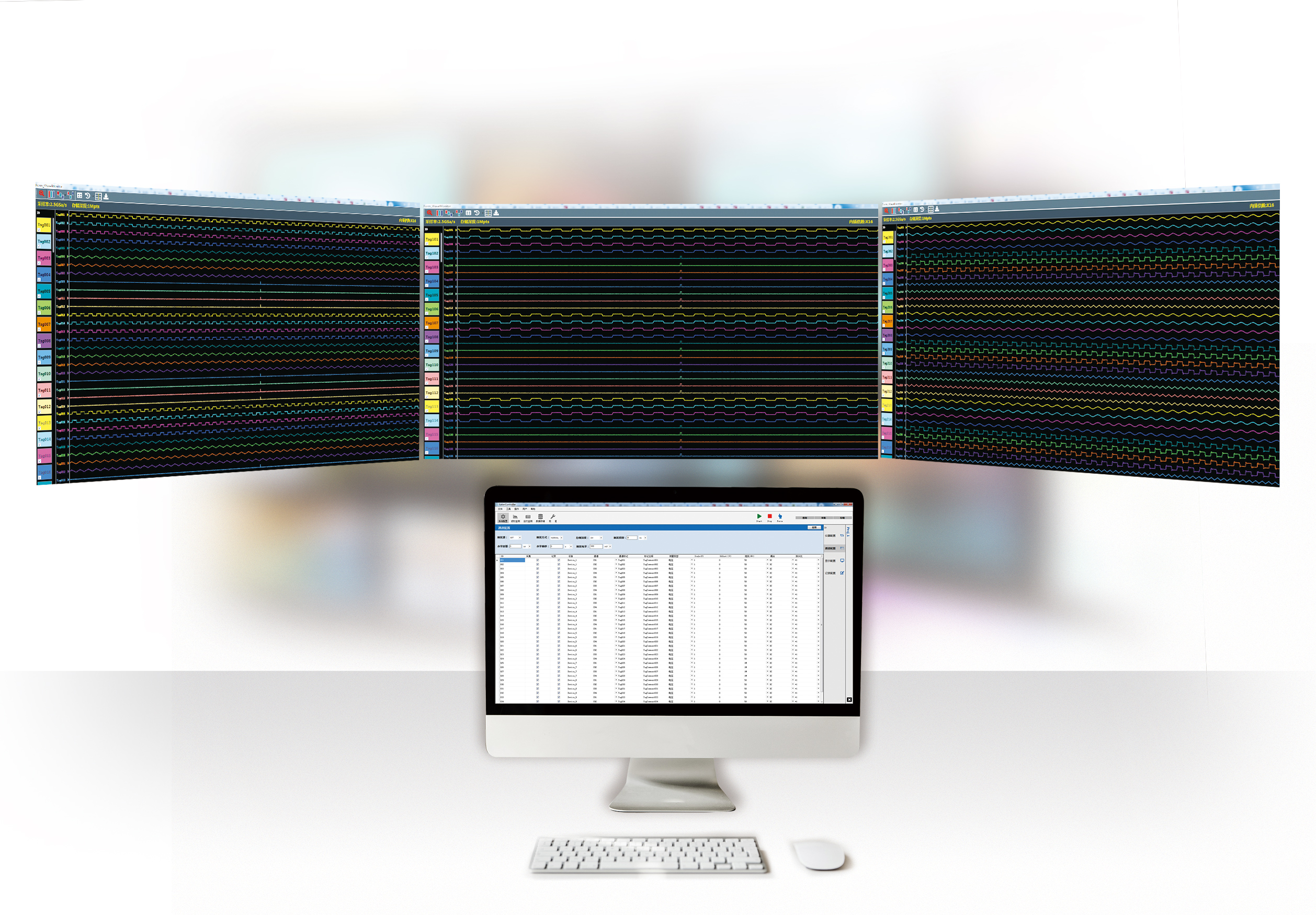

Multi-channel high-speed data acquisition

For multi-channel integration, the optional multi-channel high-speed data acquisition software can meet the configuration of multi-machine and multi-channel, and provide a friendly interface to display the waveforms collected by each channel

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Built-In Source Price
DS8104-R 1 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 1CH (Option) Get a Quote
DS8204-R 2 gHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 1CH (Option) Get a Quote
DS8034-R 350 MHz 4 5 GSa/s 500 Mpts 600,000 wfms/s 1CH (Option) Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description
DS8000-R-HSDC Bandwidth Upgrade options
DS8000-R-JITTER Eye diagram and jitter analysis
DS8000-R-PWR Built-in power analysis
DS8000-R-AWG FlexRay Bus trigger and analysis options
DS8000-R-AERO MIL-STD 1553 Bus trigger and analysis options
DS8000-R-AUDIO I2S Bus trigger and analysis options
DS8000-R-FLEX FlexRay Bus trigger and analysis options
DS8000-R-AUTO CAN/LIN Bus trigger and analysis options
DS8000-R-EMBD I2C/SPI Bus trigger and analysis options
DS8000-R-COMP RS232/UART Bus trigger and analysis options
DS8000-R-BND Bundle option

Accessories

Model Description
DS SYNC64 64-channel synchronization module
RPA246 Power analysis phase difference calibration fixture
DK-DS6000 Demo board

User Manual

Name Version Release Date Download
DS8000-R User Guide V1.0 2021-10-29 Download
DS SYNC64 User Guide V1.0 2021-10-29 Download
RM1011&RM1012 RackmountKit V1.0 2021-11-05 Download

Datasheet

Name Version Release Date Download
DS8000-R Datasheets V1.0 2021-10-29 Download

Performance Verification Manual

Name Version Release Date Download
DS8000-R Performance Verification Guide V1.0 2021-10-29 Download

Programming Manual

Name Version Release Date Download
DS8000-R Programming Guide V1.0 2021-10-29 Download

Quick Guide

Name Version Release Date Download
DS8000-R Quick Guide V1.0 2019-08-29 Download
