DP900 Series

The latest DP900 series, in addition to the advantages of low ripple and high accuracy, also adds a variety of new functions such as one-key series-parallel, full-channel isolation, etc. to meet the new needs of various application fields, and a new model for education is added to users. Provide maximum security, three-way classic, totally new start.

Total Power   : 210W
Channel Number   : 3CH
Ripple   : < 350μVrms

Datasheet

Features

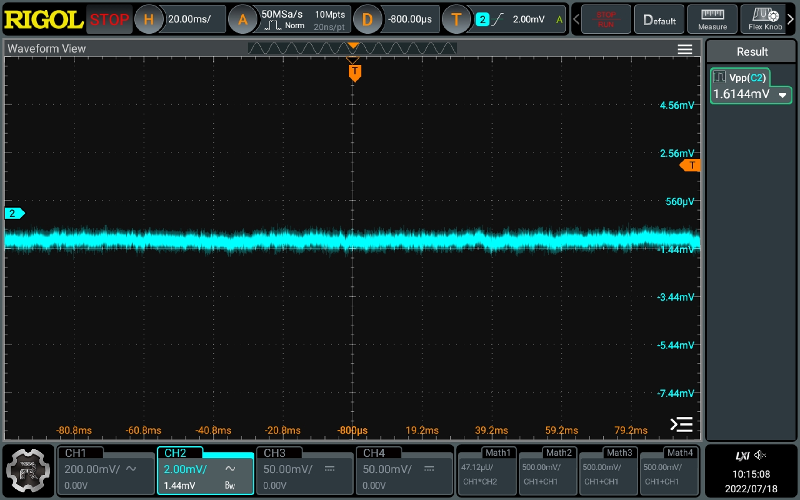

Low Ripple Noise: <350μVrms / 2mVpp

One of the advantages of linear DC power supply is the pure output. In the 20Hz-20MHz bandwidth, the DP900 ripple and noise index is less than 350μVrms or 2 mVpp, ultra-low noise design, purer output, and minimizes any interference to the load. Provides a high-purity signal.

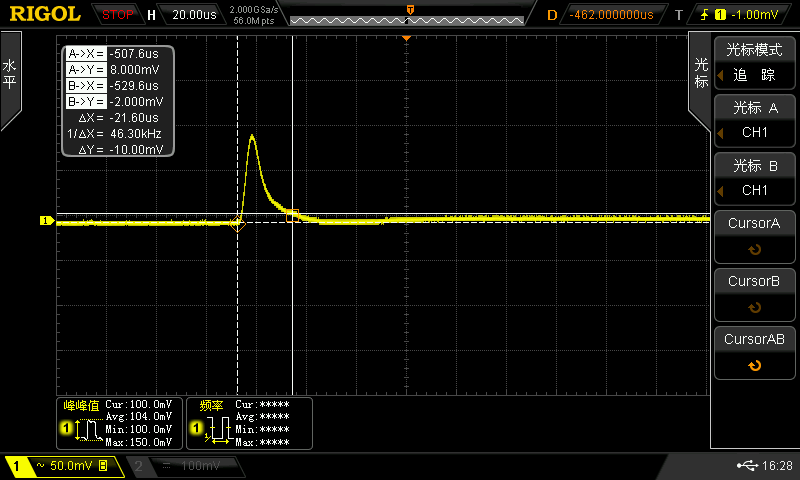

Fast Transient Response Time: < 50us

A high-quality power supply must be able to cope with changing loads well. The DP900 has a transient response capability of less than 50us, which meets the user's needs for rapidly changing voltage waveforms and ensures the smooth progress of the test work.

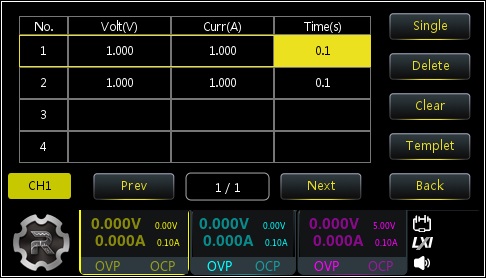

Precise Arbitrary Wave Function: 100ms

The Arb minimum dwell time of DP900 is increased to 100ms, and a variety of basic waveforms are built in, which supports free editing and generation of waveforms, and simulates different application scenarios for testing.

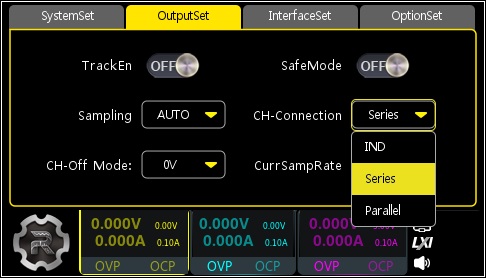

One-Key Series-Parallel, Flexible Testing

Channel 1 and channel 2 of the DP900 have added a one-key series-parallelfunction. The machine can realize serial 64V or parallel 6A output. Say goodbye to external cumbersome wiring and software switching to help your test efficiency.

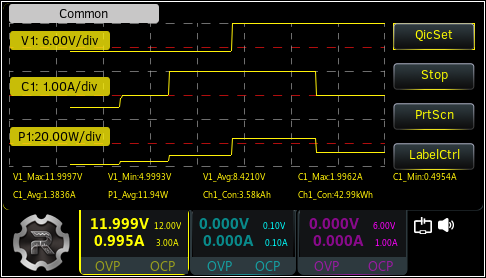

A Variety of Functions, A Wide Range of Applications

DP900 series programmable linear DC power supply also provides various functions such as general analysis, pulse current analysis, monitor, trigger, etc., and is compatible with the standard SCPI ommand set, which can give you higher-level analysis and control capabilities, not only simple power delivery.

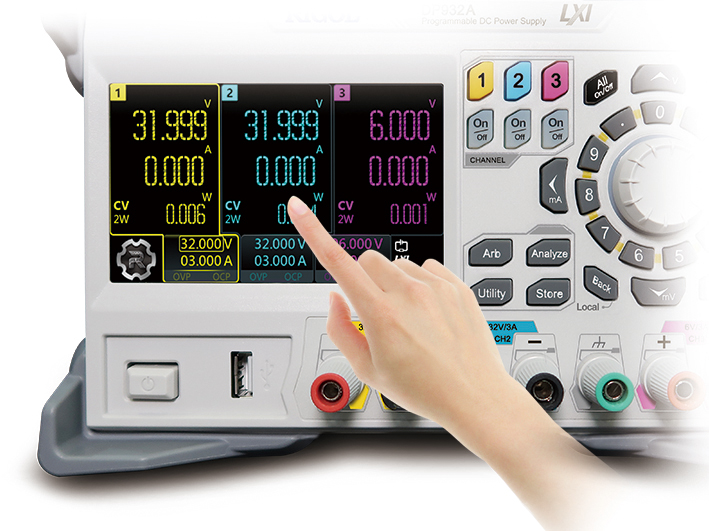

Colorful Appearance, Convenient Operation

The 4.3-inch color touch screen supports two working modes: touch screen and non-touch screen, and smooth touch interaction brings a better experience for your testing.

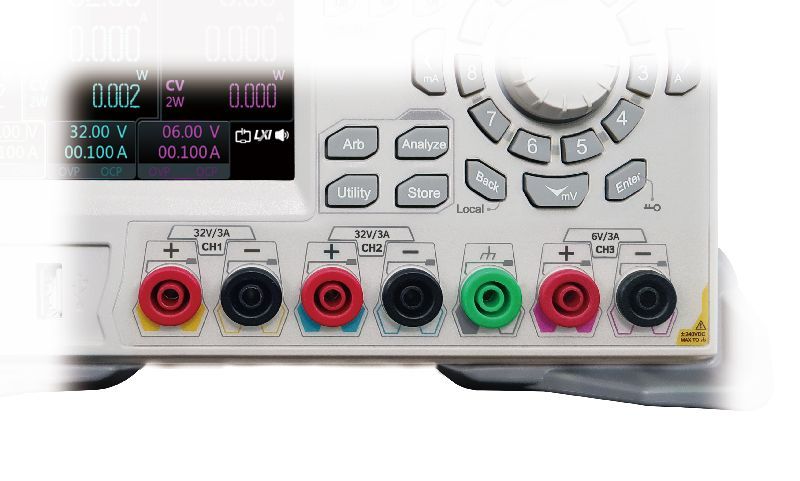

Benefit Education, Safety Terminal

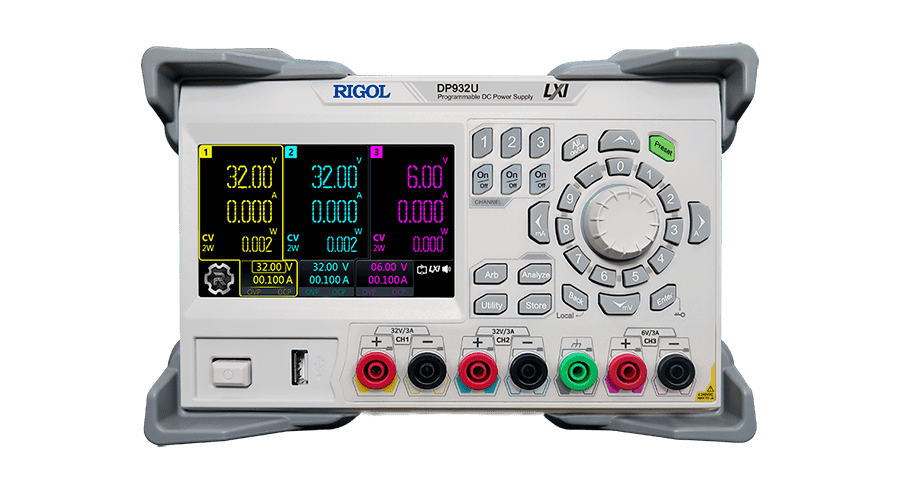

The front panel of the DP932U model of the DP900 series is equipped with safety terminals without exposed metal, which can protect the user's test safety. Sincere price, reliable performance, and safety guarantee are the best choice for your purchase!

Model

Model	Channels	Total Power	Output Per Channel	Programming Resolution	Readnack Resolution	Communication Interface	Price
DP932A	3CH	210W	32V/3A \|\| 32V/3A \|\| 6V/3A	1mV/1mA	0.1mV/0.1mA	USB, LAN, Digital IO	Get a Quote
DP932E	3CH	198W	32V/3A \|\| 32V/3A \|\| 6V/3A	10mV/10mA	10mV/10mA	USB, LAN	Get a Quote
DP932U	3CH	210W	32V/3A \|\| 32V/3A \|\| 6V/3A	10mV/10mA	10mV/10mA	USB, LAN, opt-Digital IO	Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model	Description
DP900-ARB	Arbitrary function with the minimum dwell time of 100 ms
DP900-HIRES	1 mA&1 mV high-resolution setting
DP900-DIGITALIO	4-pin trigger in/out function
