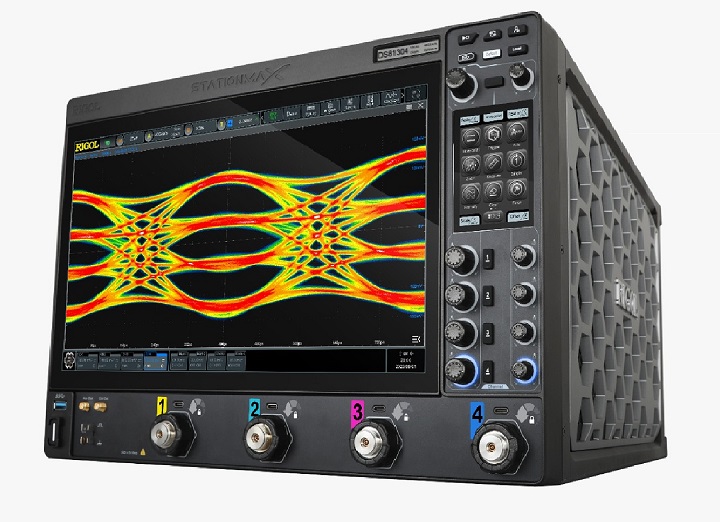

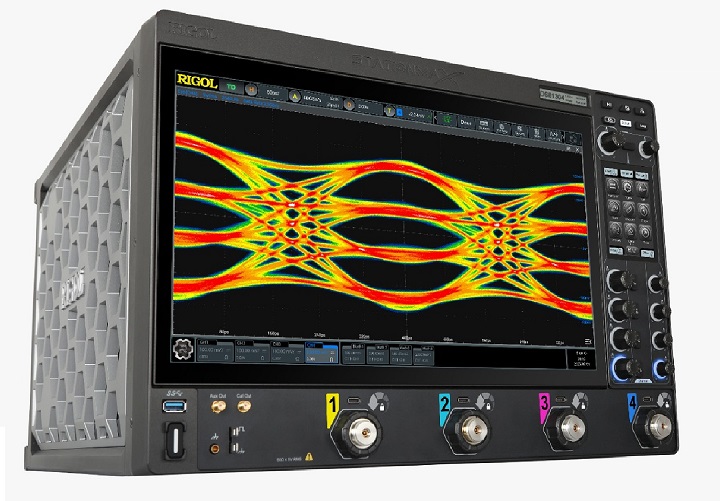

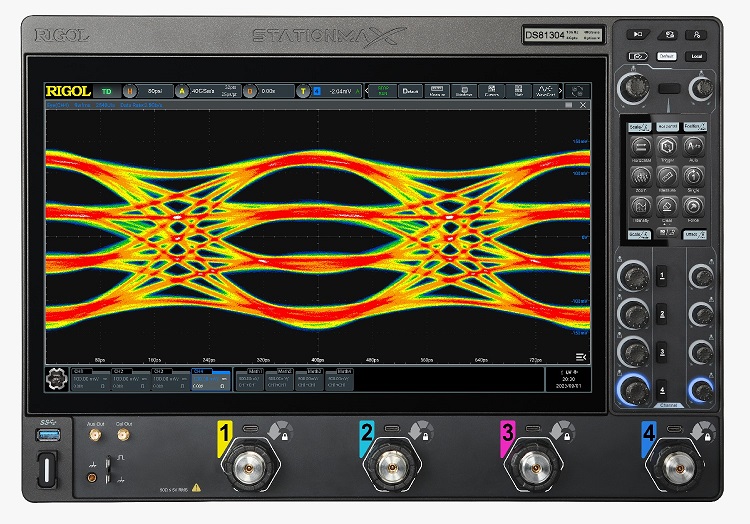

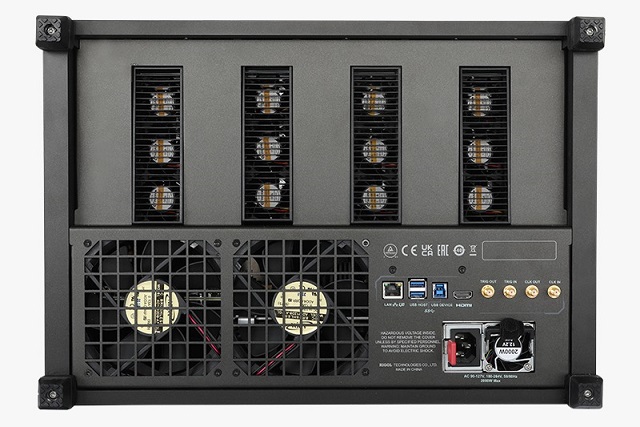

DS80000 Series (NEW)

The DS80000 series digital oscilloscope is the eighth generation digital oscilloscope independently developed by RIGOL. Based on the StationMAX II platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz.

Bandwidth   : 13GHz
Channels   : 4
Real-time Sample Rate   : 40GSa/s
Max. Memory Depth   : 4Gpts(opt.)
Waveform Capture Rate   : 250,000wfms/s

Datasheet

Features

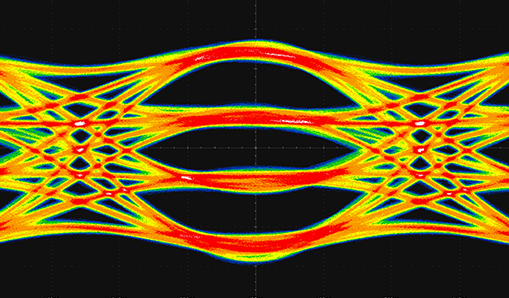

Higher Bandwidth, Higher Sampling

Based on the StationMAX II hardware technology platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz, which can more realistically restore signals and cover more applications.

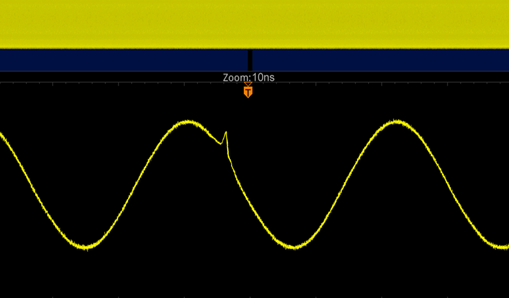

Deep Storage High Fidelity

Based on the RIGOL new generation UltraVision III platform, it achieves a maximum storage depth of 4Gpts, allowing DS80000 to have high-fidelity signal acquisition capability and capture waveforms for longer periods of time at high sampling rates.

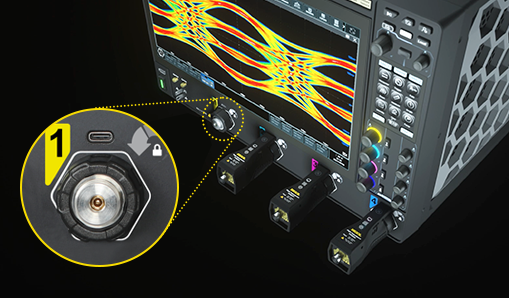

New Interface Design

The DS80000 series adopts the RIGOL SmartProbe 2.0 interface, supports direct signal connection with 3.5mm connectors, and is equipped with RIGOL's self-developed probe adapter. It can also be backward compatible with the previous generation of RIGOL original probes, providing convenience for your use.

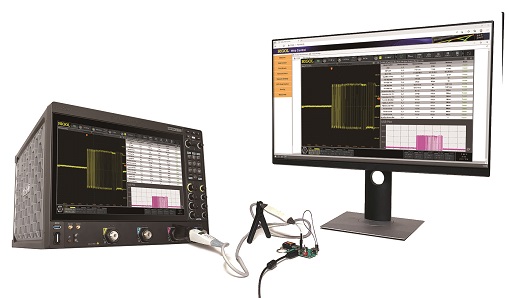

Meet More High-Speed Application Scenarios

DS80000 has a maximum analog bandwidth of 13GHz and a maximum real-time sampling rate of 40GSa/s, which can meet the performance verification of high-speed devices and systems, high-speed bus compliance analysis, DDR debugging and other application scenarios, helping engineers solve more testing challenges.

Model

Model	Bandwidth	Analog Channels	Real-Time Sample Rate	Max. Memory Depth	Waveform Capture Rate
DS70304	3 GHz	4	20 GSa/s	2 Gpts	1,000,000 wfms/s
DS70504	5 GHz	4	20 GSa/s	2 Gpts	1,000,000 wfms/s
DS81304	13 GHz	4	40 GSa/s	4 Gpts (opt.)	250,000 wfms/s
DS81004	10 GHz	4	40 GSa/s	4 Gpts (opt.)	250,000 wfms/s
DS80804	8 GHz	4	40 GSa/s	4 Gpts (opt.)	250,000 wfms/s
DS80604	6 GHz	4	40 GSa/s	4 Gpts (opt.)	250,000 wfms/s

Probe List

Model	Description
BNC Adapter Input 50 Ω	BNC Adapter Input 50Ω
High Impedance Adapter	High Impedance Adapter
PIA1100	1GHz optical isolation probe, standard with one 50x and one 2000x attenuator.
RP1018H	18kV 150MHz High voltage probe
RP1300H	300MHz High voltage probe (2kV)
RP6150A	1.5GHz Passive low resistance probe (500ohm)
RP3500A	500MHz Passive high resistance probe
PVA9100	10GHz Active Differential Voltage Probe
PVA9160	16GHz Active Differential Voltage Probe
PVA8350	3.5GHz Active differential probe
PVA8700	7GHz Active differential probe
PVA7250	2.5GHz Active differential probe
RP7150S	1.5GHz Active single-ended probe
RP7150	1.5GHz Active differential probe
RP7080S	800MHz Active single-ended probe
RP7080	800MHz Active differential probe
PCA1150	Current probe: 10MHz, 150A
PCA1500	2MHz, 500A Current Probe
PCA2030	Current probe: 100MHz, 30A
PCA1030	Current probe: 50MHz, 30A
RP1000P	4CH Power Adapter
RP1001C	300KHz, 100A DC
RP1002C	1MHz, 70A DC
RP1003C	50MHz, 30A
RP1004C	100MHz, 30A
RP1005C	10MHz, 150A
RP1006C	2MHz, 500A
PHA2150	200MHz, 1500V High Voltage Differential Probe
PHA1150	High voltage differential probe, DC-100MHz, 1500V
PHA0150	High voltage differential probe, DC-70MHz, 1500V
RP1100D	High Voltage Differential Probe, 100MHz, 3.5KV
RP1050D	High Voltage Differential Probe, 50MHz, 3.5KV
RP1025D	High Voltage Differential Probe, 25MHz, 700V

Firmware

Name	Version	Release Date
DS70000 Firmware	V00.05.08	2024-01-25

Software

Name	Version	Release Date
Ultra Sigma Help Document	V1.0	2024-01-25
Ultra Sigma patch file for Screenshot	V1.1	2024-01-25
Ultra Sigma (PC) Installer	V00.01.06.01	2024-01-25

Memory Depth Upgrade

Model	Description
DS80000-RLU-40	4G Record length Option

Functional Options

Model	Description
DS80000-JITTA	Jitter and Eye Diagram
DS80000-AUTOENTC	Automotive Enet Test
DS80000-USBC	USB 2.0 Compliance Test
DS80000-USB3C	USB 3.0 Compliance Test
DS80000-ENETC	Ethernet Compliance Test
DS80000-PCIeC	PCIe 2.0 Compliance Test
DS80000-AUTOA	Automotive Bus Decode
DS80000-EMBDA	Embedded Trigger & Decode
DS80000-AUDIOA	I2S Trigger and Decode
DS80000-USBA	USB 2.0 Decoding Option
DS80000-USB3A	USB 3.0 Decoding Option

Compliance Test Fixtures

Model	Description
TF-USBH-STP	USB 2.0 Host Compliance Test Fixture
TF-USBD-STP	USB 2.0 Device Compliance Test Fixture
TF-ENET-STP	10/100/1000M Ethernet Compliance Test Fixture

Datasheet

Name	Version	Release Date	Download
DS80000 Datasheets	V1.0	2025-05-08	Download

User Guide

Name	Version	Release Date	Download
DS80000 User Guide	V1.0	2025-05-08	Download
USB3.0 Compliance Test User Guide	V1.0	2025-07-07	Download

Quick Guide

Name	Version	Release Date	Download
DS80000 Quick Guide	V2.0	2025-05-16	Download

Programming Guide

Name	Version	Release Date	Download
DS80000 Programming Guide	V1.0	2025-05-08	Download
