The DS1000E/U Series is a market-proven economical digital oscilloscope. This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing. The front panel design is clear and intuitive, fully in line with the traditional instrument usage habits, and is convenient for users to operate.
Bandwidth : 50 MHz ~ 100 MHz
Analog Channels : 2
Real-time Sample Rate : 1 GSa/s
Max. Memory Depth : 1 Mpts
Waveform Capture Rate : N/A
Digital Channels : N/A
Start from Rp 6.993.000
Datasheet.jpg)
.jpg)
.jpg)
.jpg)
 kcl.jpg)
 kcl.jpg)
 kcl.jpg)
 kcl.jpg)
| Model | Bandwidth | Analog Channels |
Real-Time Sample Rate |
Max. Memory Depth |
Price |
|---|---|---|---|---|---|

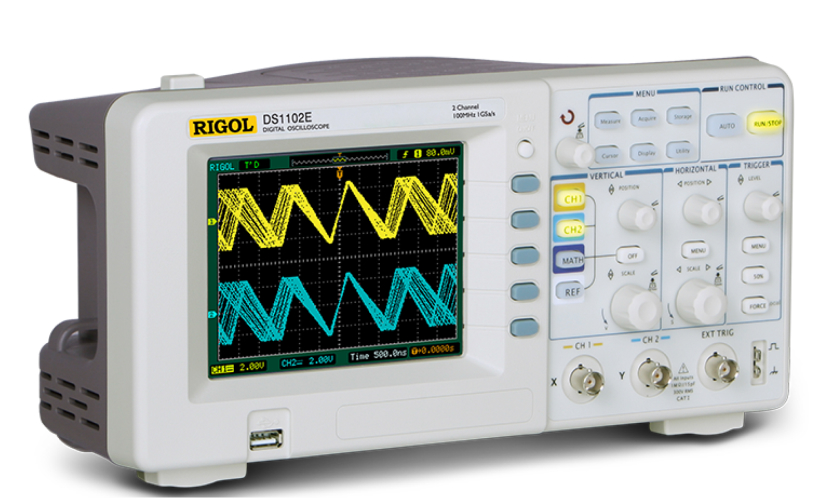

| DS1102E | 100 MHz | 2 | 1 GSa/s | 1 Mpts | Rp7.548.000 |

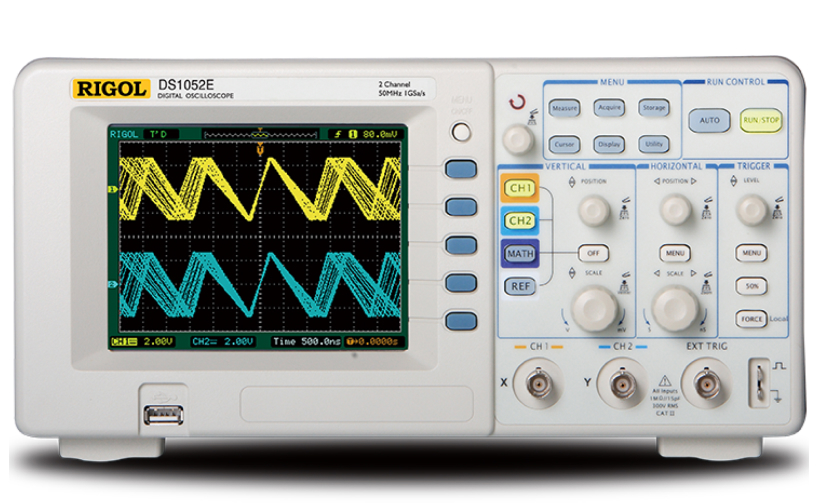

| DS1052E | 50 MHz | 2 | 1 GSa/s | 1 Mpts | Rp7.381.500 |
| *Harga dapat berubah sewaktu-waktu tanpa pemberitahuan | |||||
| Model | Description |
|---|---|
| RM-DS1000B | Rack Mounting Kit for DS1000B |
| CB-USBA-USBB-FF-100 | 50 Ohm impedance adapter for oscilloscopes or generatorsUSB Cable |
| CB-DB9-DB-FF-150 | RS232 Cable, Female to Female, 150cm |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) |
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DS1000E/U User Manual | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DS1000E(D) Datasheets | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DS1000E/U Programming Manual | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DS1000E/U Quick Guide | V1.0 | 2019-08-29 | Download |
