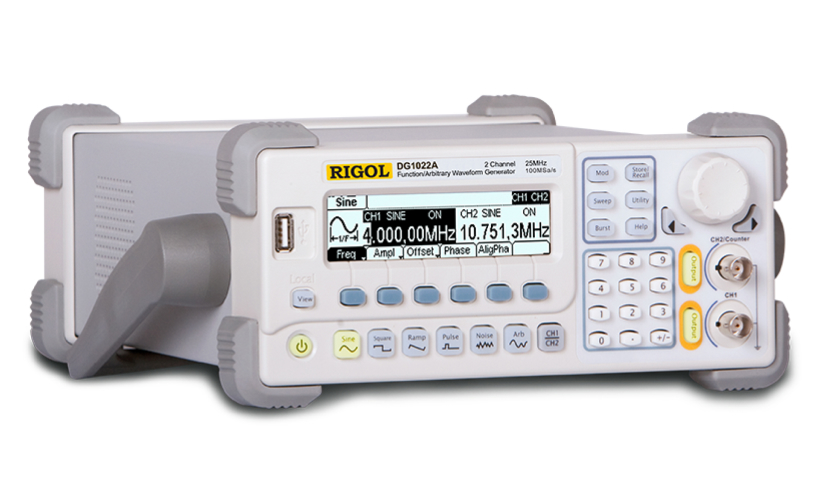

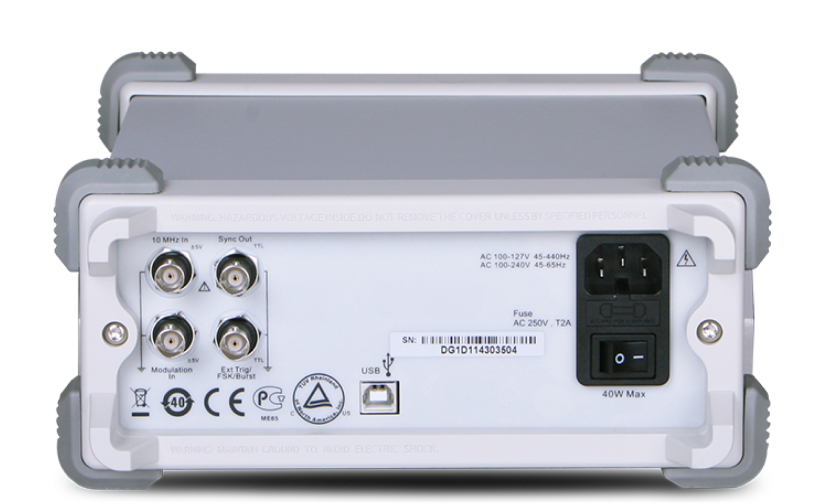

DG1000 Series - RIGOL Waveform Generators

Features

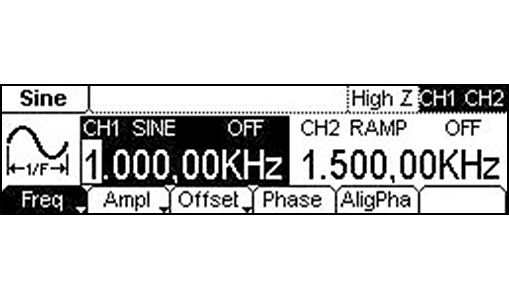

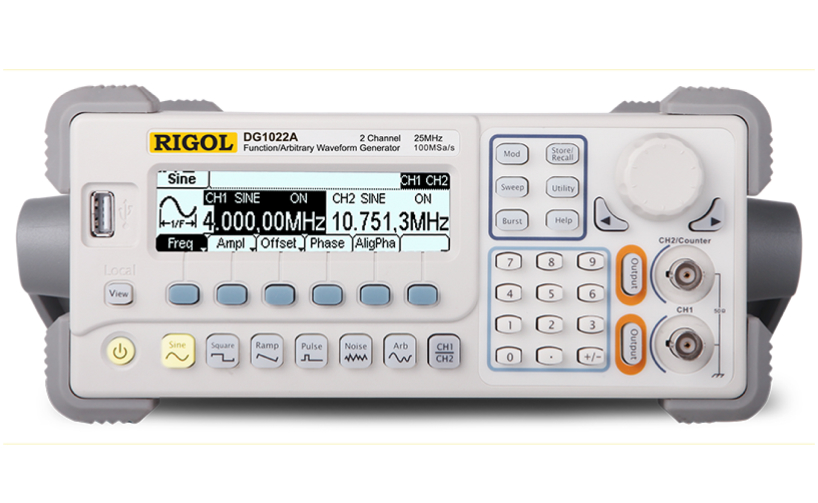

Dual Channel Synchronous Output

The dual channel can output standard waveform and any waveform, and the parameters and output status of the dual channel can be displayed on the screen at the same time

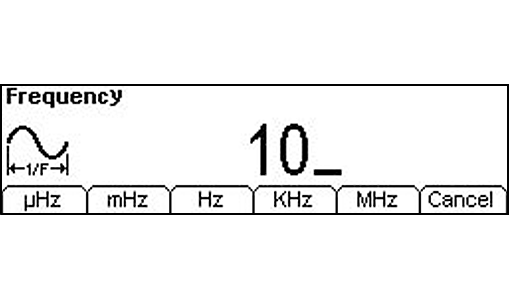

1uhz Frequency Resolution

The minimum frequency resolution is 1uhz. The frequency accuracy within one year is ± 100 ppm

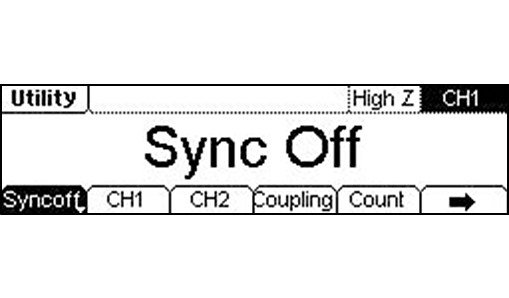

Channel Coupling / Replication

The two channels can carry out frequency or phase coupling and output signals with certain frequency or phase difference. Channel copying can copy the waveform parameters of one channel to another channel

200 Mhz Hardware Counter

The frequency resolution is up to 6 bits / second, and the signal with frequency range of 100MHz ~ 200MHz can be measured. The frequency, period, duty cycle and pulse width of the signal can be measured

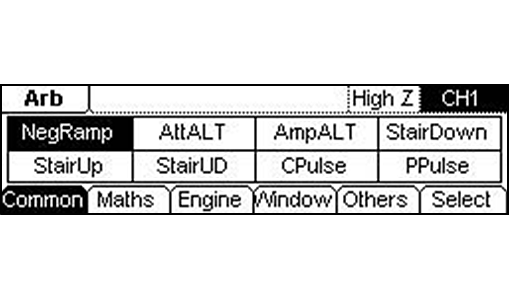

Built in 48 Arbitrary Waveforms

There are 48 kinds of common waveforms in built-in teaching and circuit debugging, which are classified according to common, mathematics, engineering, window function and other categories

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DG1022 25MHz 100MSa/s 14bits 2 4kpts Rp13.431.000
