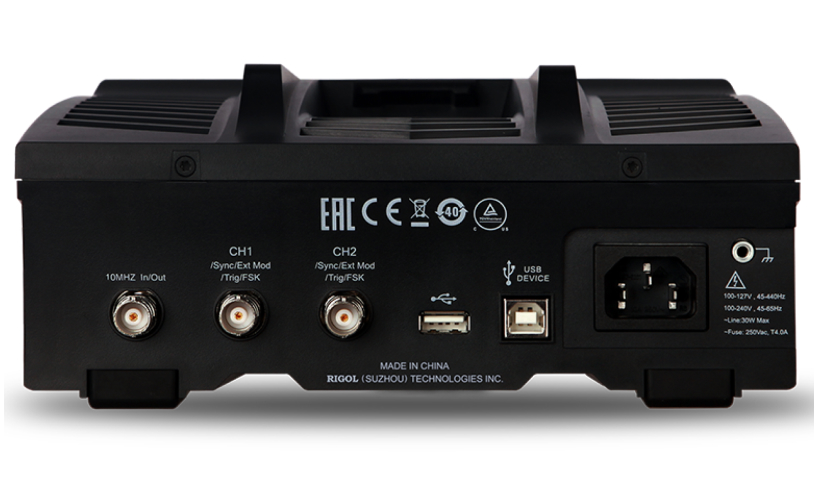

DG900 Series - RIGOL Waveform Generators

Features

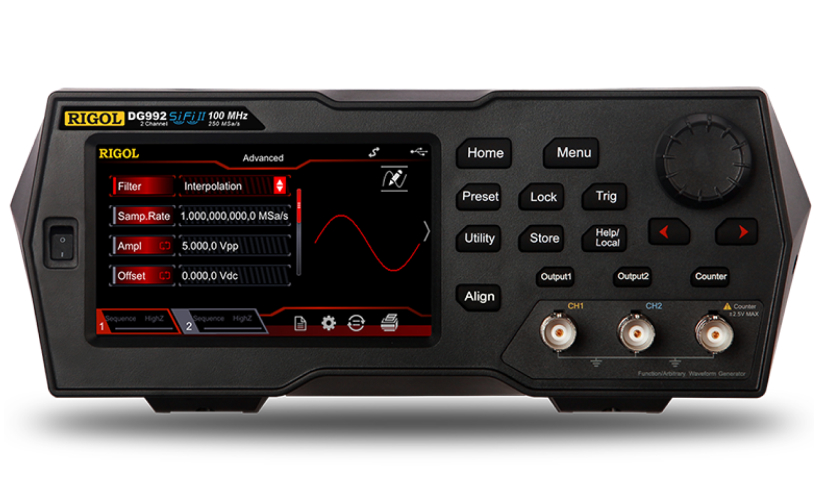

4.3 Inch Touch Screen

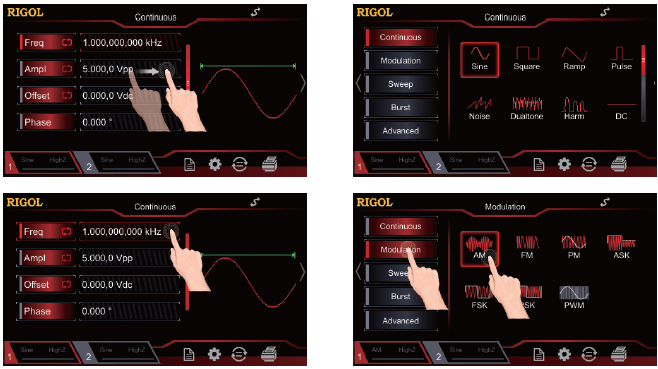

The combination of touch screen control with click and slide and multi-function knob makes it easy to find and update waveform settings; switch between channels, configure each channel, and easily load standard functions or arbitrary waves.

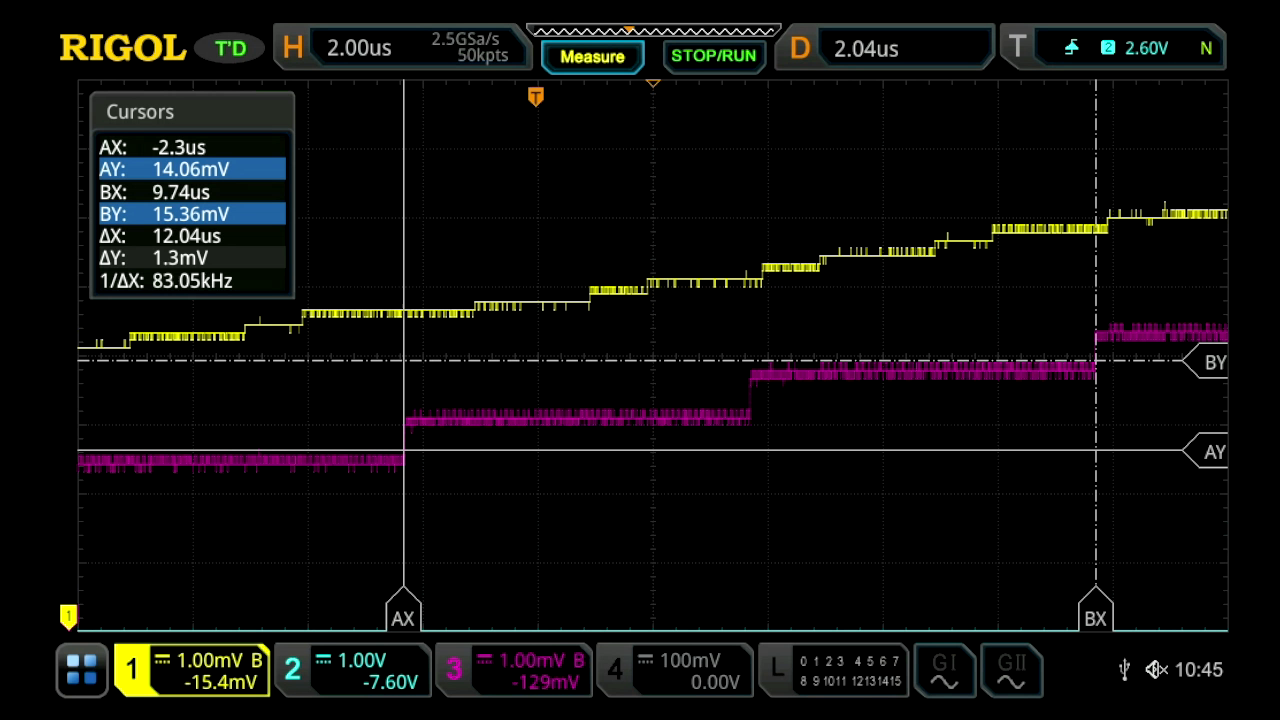

16bit Vertical Resolution

DG900 series generators extend output at 16 bit resolution The resolution of the output voltage is 4 times that of the traditional 14 bit generator. DG900 can reproduce any waveform more reliably and improve the fidelity and performance of the signal.

Signal Jitter As Low As 200ps

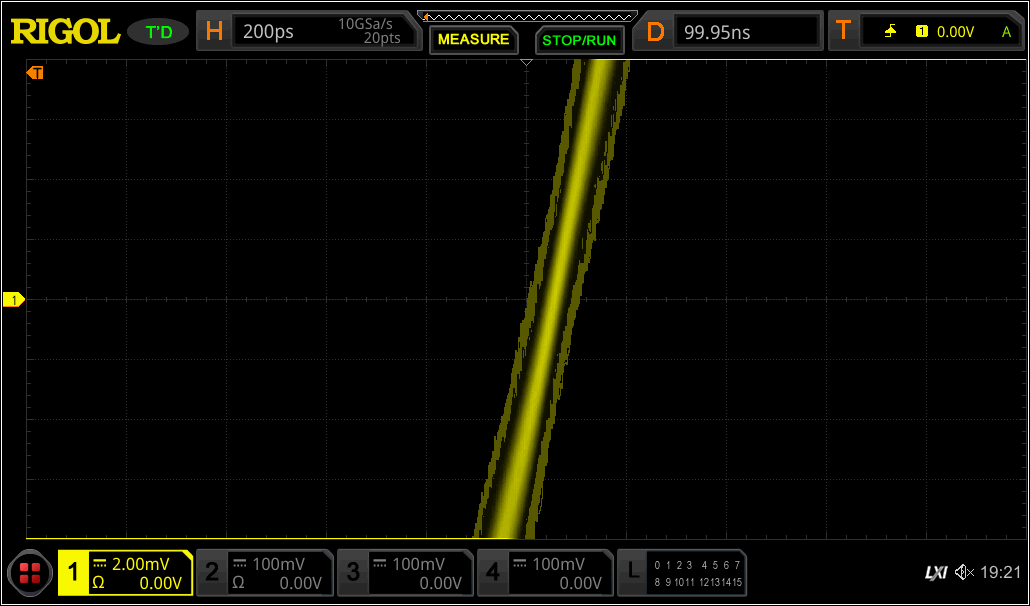

The sampling rate can be adjusted precisely, compared with the traditional DDS signal source, the signal jitter is lower, and the jitter of all output signals is as low as 200ps.

SiFi II Technology

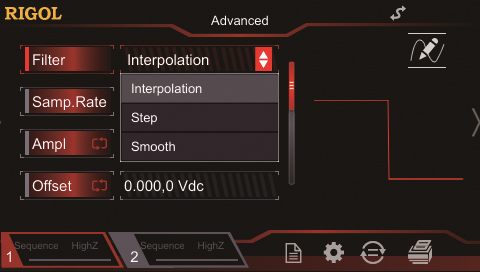

Sifi II technology allows you to output signals flexibly through filtering options such as stepping, smoothing and interpolation These options in the powerful signal sorting function can provide precise roll down control for the signal you select. Combine these flexible playback options or use edge time in interpolation mode to define the range of broadband components in the signal.

Support Multiple Signal Outputs

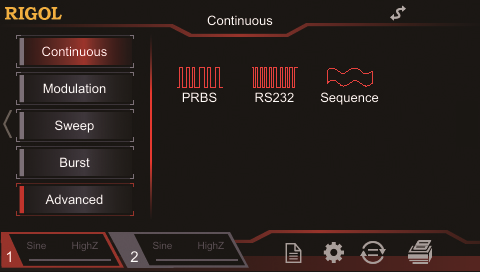

Create and combine complex signal sequences, simulate or analyze faults through finger touch. A wide range of test signals are simulated by combining different waveform types, including dual tone, arbitrary wave and noise DG2000 also has the function of generating RS232 sequence and PRBS, which can be used in test sequence of advanced application.

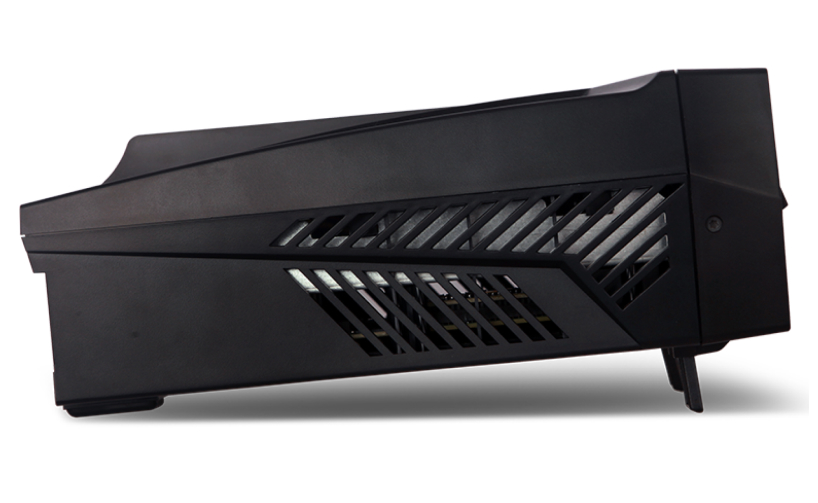

Fanless Silent Operation

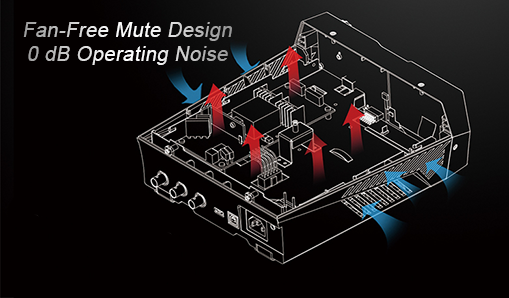

No fan design structure, no noise interference operation.

Harmonic Generator

DG900 has built-in 8-th harmonic generator function and outputs harmonics with specified times, amplitude and phase. It is usually used in the test of harmonic detection equipment or harmonic filter equipment.

Arb Sequencing

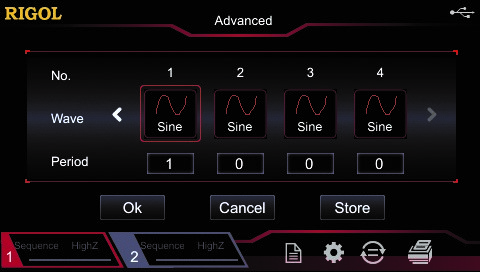

Create and combine complicated sequences of signals for emulation or failure analysis with the touch of a finger. Combine cycles of different waveform types including dual tone, arbitrary waves, and noise to mimic a broad set of test signals.

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DG952 50MHz 250Msa/s 16bits 2CH 16Mpts Get a Quote
DG972 70MHz 250Msa/s 16bits 2CH 16Mpts Get a Quote
DG992 100MHz 250Msa/s 16bits 2CH 16Mpts Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
CB-BNC-AC-100-L BNC-AC Cable
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
RA5040K 40 dB attenuator accessory for oscilloscopes or generators
PA1011 10W power amplifier for waveform generators
USB-LAN USB2.0 to 100Mbps Ethernet Adaptor

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for
DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG900 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DG900 Datasheets V1.0 2020-01-10 Download

Programming Manual

Name Version Release Date Download
DG900 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DG900 Quick Guide V1.0 2019-08-29 Download
DG900 Selection Guide V1.0 2019-08-29 Download

Open Source Acknowledgment

Name Version Release Date Download
DG800&900 Open Source Acknowledgment V1.0 2019-08-29 Download
