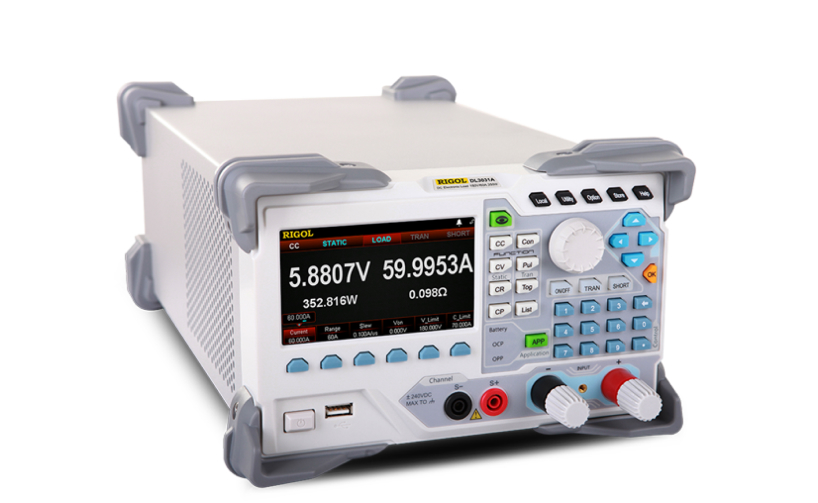

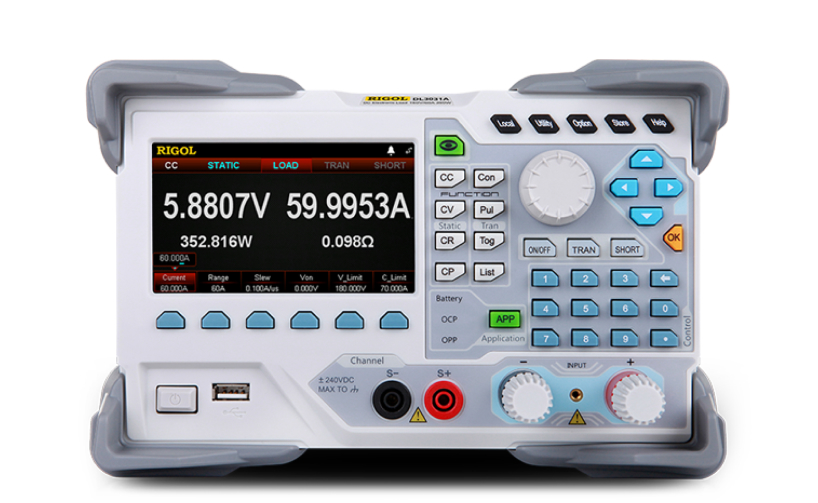

DL3000 Series-RIGOL Programmable DC Load

Features

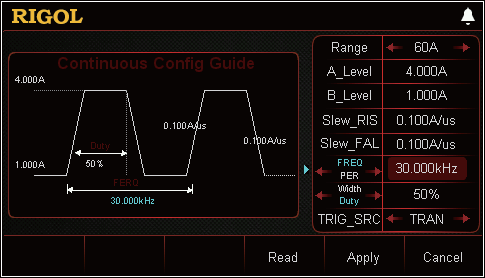

30kHz Dynamic Mode

The advanced DL3000A models provide up to 5 A/us and 30 kHz frequency settings for transient mode testing. Emulate more dynamic real world power demands with this flexibility. That ultimately results in higher reliability and known behavior for batteries and power systems.

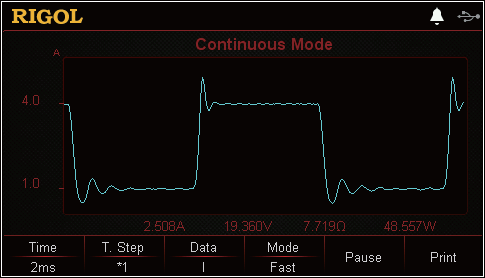

Dynamic Load Performance and Visualization

View the actual load performance on the front panel of the DL3000 in a static or transient mode. Optimize tests with customizable slew rates and frequency adjustments in Power, Voltage, Current, or Resistance modes.

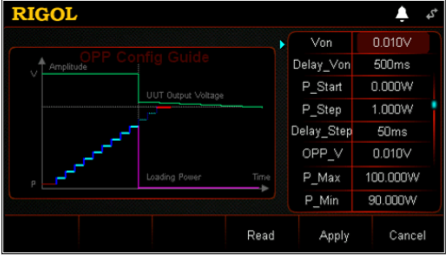

3 Built in application setups for battery testing or Current or Power optimization

Quickly characterize your device with automated battery and power step tests without any programming.

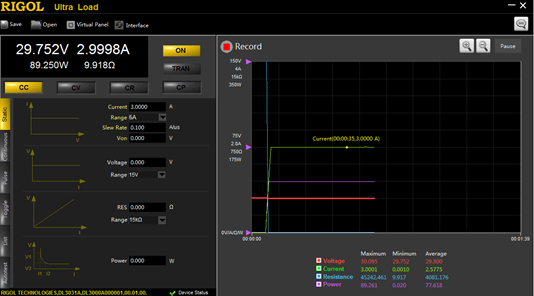

Free UltraLoad Software for remote operation and monitoring

Easily reconfigure or investigate the setup of the DL3000 remotely over USB or Ethernet with the free UltraLoad software. Record captured data over time and save long term test results to characterize and better understand your power system performance.

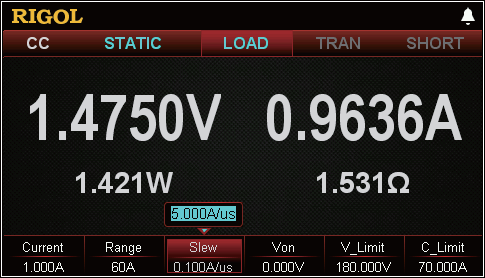

High resolution and accuracy on voltage and current load conditions

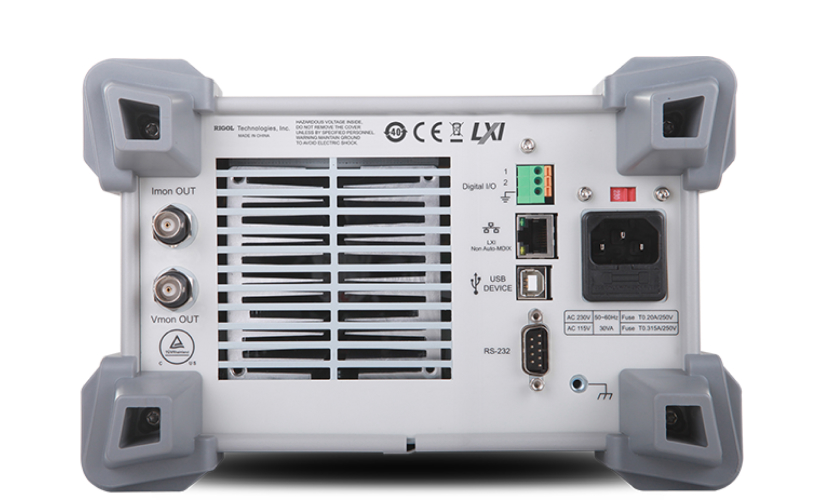

DL3000 Series provide specifications and capabilities that make measuring your power system under different conditions quick and easy. Monitor static conditions from the front panel or software interface and capture transient events with the built in waveform capture or by using an oscilloscope connected to the rear panel pulse shape outputs.

Model

Model Total
Power		 Voltage Curent Highest
Frequency		 Current
Slope		 Current
Readback
Resolution		 Voltage
Readback
Resolution		 Action
DL3021 200W 150V 40A 15kHz 2.5A/us 1mA 1mV Rp10.000.000
DL3021A 200W 150V 40A 30kHz 3.0A/us 0.1mA 0.1mV Rp16.390.000
DL3031 350W 150V 60A 15kHz 2.5A/us 1mA 1mV Rp20.979.000
DL3031A 350W 150V 60A 30kHz 5.0A/us 0.1mA 0.1mV Rp26.924.150
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Bandwidth Option

Model Description
CB-RS232-A 9-Pin RS232 Cable (female-to-female, cross-over)
CB-SENSE Sense Cable
CB-60A-780MM 60A Load Input Cable (30 inch)
CB-40A-780MM 40A Load Input Cable (30 inch)
CB-20A-780MM 20A Load Input Cable (30 inch)
DL-02 Terminal Shield

Functional Option

Model Description
SLEWRATE-DL3 High SlewRate option DL3021 and DL3035
FREQ-DL3 High Frequency Option for DL3021 and DL3034
HIRES-DL3 High reedback resolution option for DL3021 and DL3033
DIGITALIO-DL3 Digital IO option for DL3021 and DL3032
LAN-DL3 LAN Interface option for DL3021 and DL3031

User Manual

Name Version Release Date Download
DL3000 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DL3000 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DL3000 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DL3000 Quick Guide V1.0 2019-08-29 Download
