RF Signal Generators
The RF signal source mainly acts as a stable local oscillator signal in the test, or generates various types of modulated signals, and the two-tone signal is used for signal excitation, receiving sensitivity testing and other applications. When choosing the RF signal source, the frequency range of the signal output, power requirement size, modulation type, frequency stability, amplitude accuracy and many other factors needs to be considered
Product
Series Below

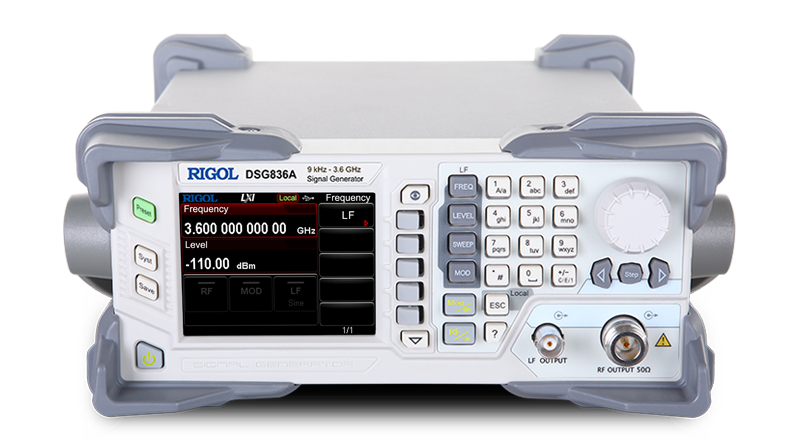

DSG800/A Series
The DSG800A delivers outstanding performance in the same class of economical RF signal sources with full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and newly added IQ modulation. Compared to similar products, the DSG800A has the smallest footprint, light weight and superior portability, making it an excellent choice for educational laboratories, industrial production lines, development and research applications.
Frequency Range : 9 kHz~3.6 GHz
Amplitude Indicators Range : -110 dBm~+13 dBm
Amplitude Accuracy : <0.5dB
SBB Phase Noise : <-112dBc/Hz@1GHz,20KHz offset
Modulation Function : AM/FM/ØM/Pulse/IQ
Start from Rp 47.730.000
Read More Email Us

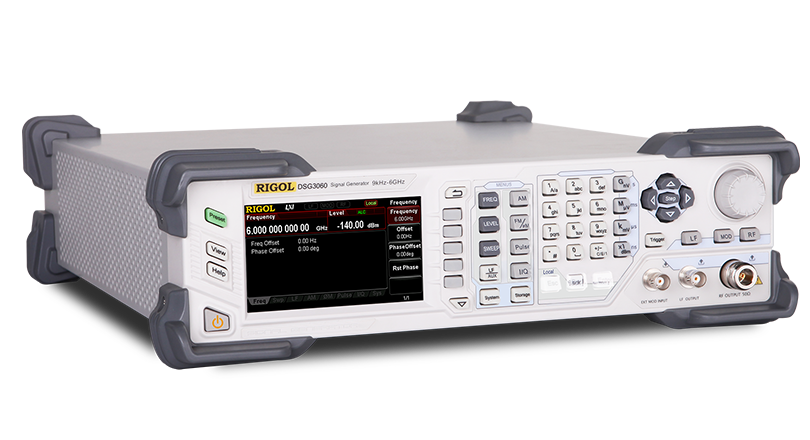

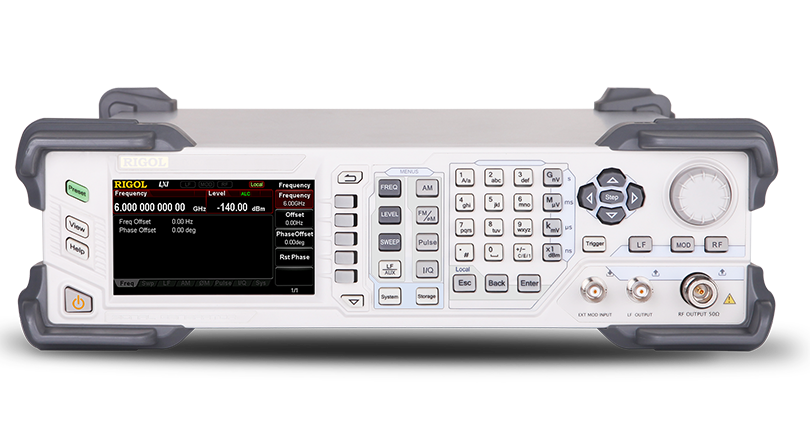

DSG3000 Series Obsolete
High Performance RF signal generation and modulation 3 and 6 GHz models with optional built-in IQ baseband generator and OCXO timebase.
Frequency Range : 9 kHz~3/6 GHz
Amplitude Indicators Range : -130 dBm~+13 dBm
Amplitude Accuracy : <0.5dB
SBB Phase Noise : <-110 dBc/Hz
Modulation Function : AM/FM/ØM/Pulse/IQ

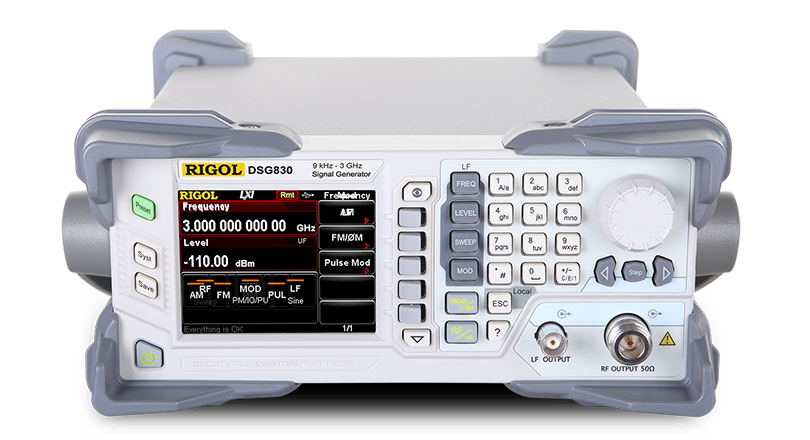

DSG800 Series
The DSG800 delivers outstanding performance in a class of economical RF signal sources with full frequency and power sweep capability, as well as AM/FM/ØM analog modulation and powerful pulse modulation. Compared to similar products, the DSG800 has the smallest footprint, light weight and superior portability, making it the perfect choice for educational laboratories, industrial production lines, development and research applications.
Frequency Range : 9 kHz~1.5/3 GHz
Amplitude Indicators Range : -110 dBm~+13 dBm
Amplitude Accuracy : <0.5dB
SBB Phase Noise : <-105 dBc/Hz
Modulation Function : AM/FM/ØM/Pulse
Start from Rp 38.295.000
Read More Email Us

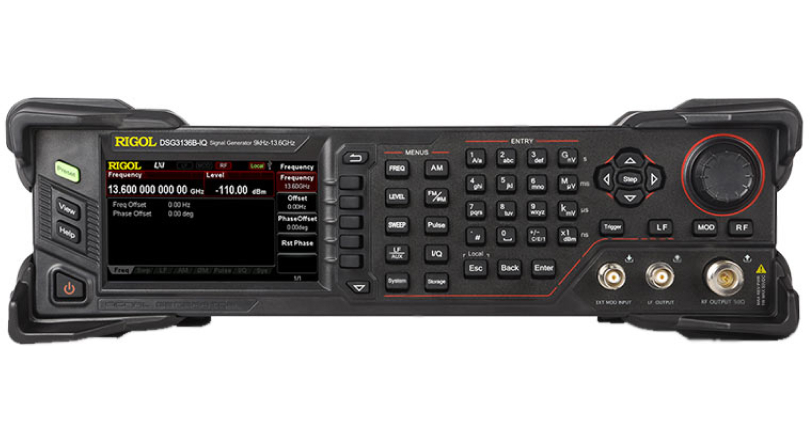

DSG3000B Series
The technical specifications are valid when the instrument is within the calibration period, is stored for at least two hours at the temperature ranging from 0℃ to 50℃ and is warmed up for 40 minutes. Unless otherwise noted, the specifications in this manual include the measurement uncertainty.
Frequency Range : 9 kHz to 13.6 GHz (IQ: 50 MHz to 6.5 GHz)
Amplitude Indicators Range : -130 dBm~+27 dBm
Amplitude Accuracy : <0.5 dB (typical)
SBB Phase Noise : <-116 dBc/Hz
Modulation Function : AM/FM/ØM/Pulse/IQ(Only Available for DSG3065B-IQ and DSG3136B-IQ)
Start from Rp 196.724.000
Read More Email Us
