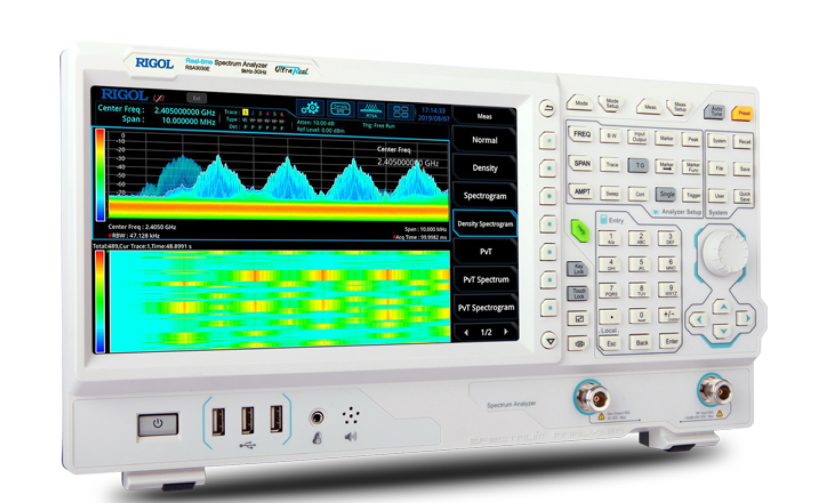

Performance Spectrum Analyzers with exceptional capabilities and an affordable price 1.5 GHz to 7.5 GHz models with tracking generators, Preamps, EMI, VSWR, and more options.
Frequency Range : 9kHz ~ 1.5/3GHz
Max. Real-time Bandwidth : 10MHz
RBW : 1Hz~3MHz

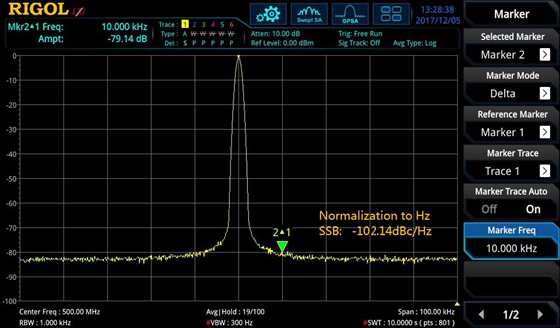

Phase Noise : -102dBc/Hz@10kHz

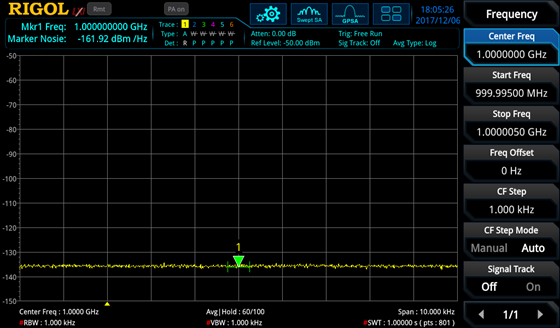

DANL : -161dBm/Hz
Tracking Source : -TG
Start from Rp 35.640.000
Datasheet.jpg)
.jpg)
.jpg)
.jpg)
 kcl.jpg)
 kcl.jpg)
 kcl.jpg)
 kcl.jpg)
| Model | Frequency Range |
Description | Phase Noise |
DANL | Tracking Source |
Price |
|---|---|---|---|---|---|---|
| RSA3015E | 9kHz~1.5GHz | 1Hz~3MHz | -102dBc/Hz@10kHz | -161dBm | N/A | Rp35.640.000 |
| RSA3015E-TG | 9kHz~1.5GHz | 1Hz~3MHz | -102dBc/Hz@10kHz | -161dBm | Yes | Rp44.511.000 |
| RSA3030E | 9kHz~3GHz | 1Hz~3MHz | -102dBc/Hz@10kHz | -161dBm | N/A | Rp59.940.000 |
| RSA3030E-TG | 9kHz~3GHz | 1Hz~10MHz | -102dBc/Hz@10kHz | -161dBm | Yes | Rp80.475.000 |
| *Harga dapat berubah sewaktu-waktu tanpa pemberitahuan | ||||||
| Model | Description |
|---|---|
| RSA3000E-PA | Preamplifier option (for RSA3000E) |

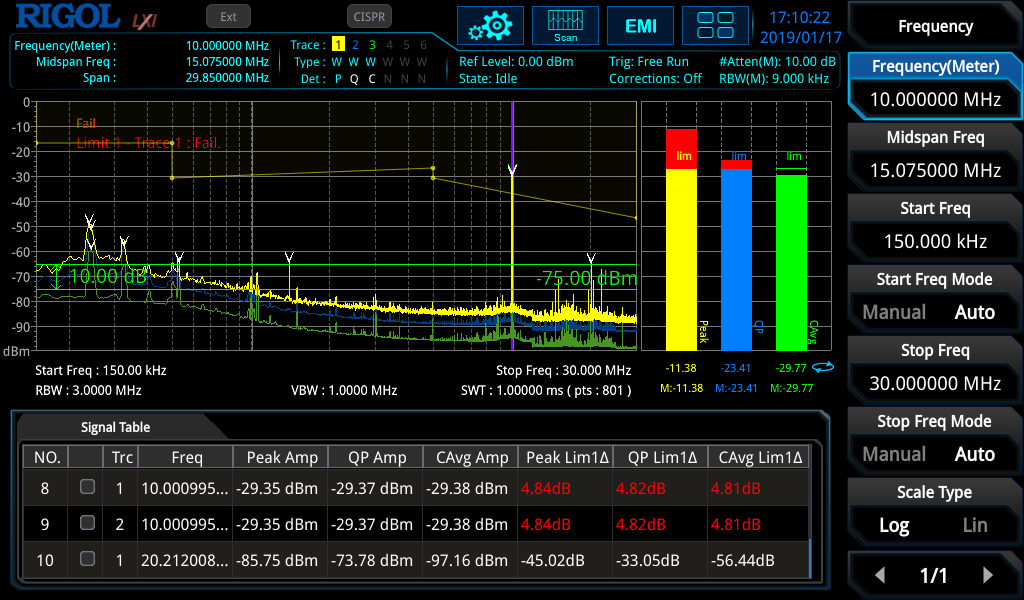

| RSA3000E-EMI | EMI pre-compatible mode function (including filter and detector kit RSA3000E-EMC for RSA3000E) |
| RSA3000E-EMC | EMC Filter and Detector Kit (for RSA3000E) |

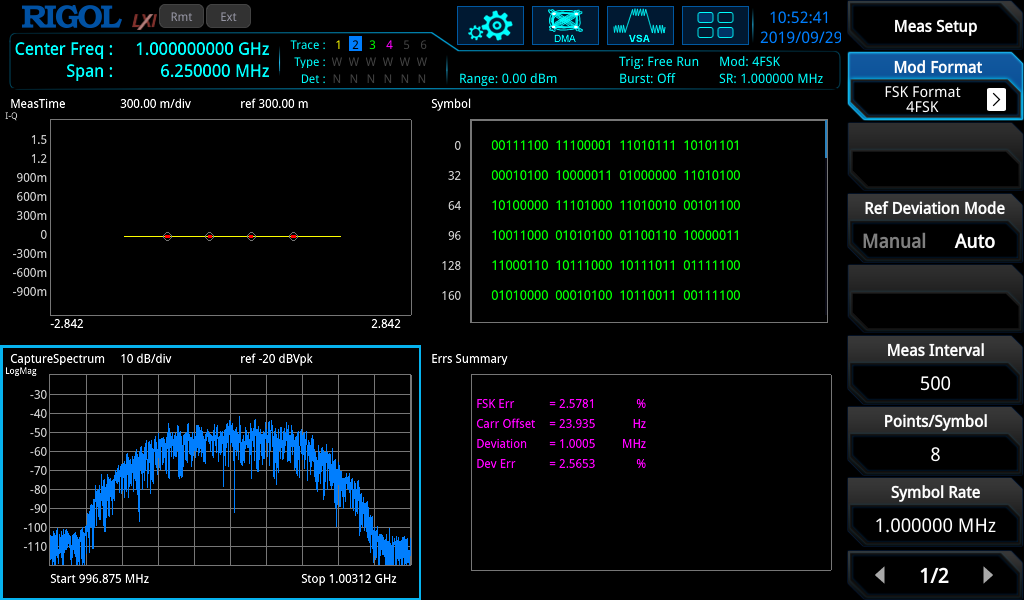

| RSA3000E-ASK/FSK | ASK/FSK Demodulation Analysis Option (for RSA3000E) |
| RSA3000E-AMK | Advanced Measurement Kit (for RSA3000E) |
| Model | Description |
|---|---|
| VB1032 |
"VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: ≥ 30 dB" |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) |
| RF CATV Kit |
Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable |
| RM6041 | Rack Mount Kit for RSA5, RSA3 and DS7000 |
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz |
| DSA Utility Kit |
DSA Accessories Package including：N-SMA Cable，BNC-BNC Cable, N-BNC Adapter，N-SMA Adapter，75Ω-50Ω Adapter，Antenna 2 （900MHz/1.8GHz），Antenna 2 |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier |
| VB1080 | VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. |
| VB1040 | 800 MHz to 4 GHz VSWR Bridge for DSA1030-TG and DSA1030A-TG |
| OCXO-C08 | High Stability Clock |
| Model | Description |
|---|---|
| S1210 | EMI Pre-Compliance Software |
| Ultra Spectrum | Software for the DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package |
| Name | Version | Release Date | Download |
|---|---|---|---|
| RSA3000E User Manual | V1.0 | 2019-09-30 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| RSA3000E Datasheets | V1.0 | 2019-09-30 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| RSA3000E Programming Manual | V1.0 | 2019-09-30 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| RSA3000&3000E&5000 Open Source Acknowledgment | V1.0 | 2019-08-29 | Download |
