DS6000 Series - RIGOL Digital Oscilloscopes

Features

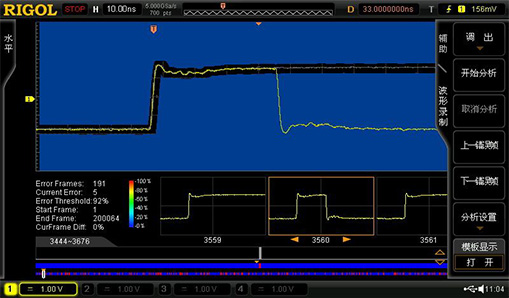

Waveform Record and Playback

Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.

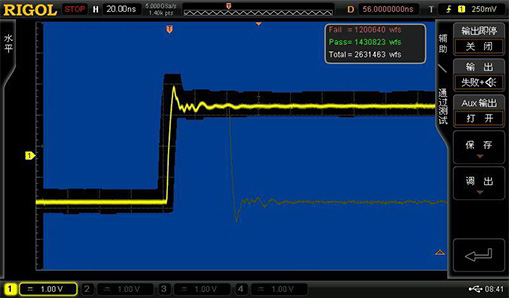

Waveform Template Test Function

Standard template test function, with Pass/Fail statistics, error stop and alarm functions, convenient for production line testing and long-term monitoring applications.

Up to 180,000 wfms/s Waveform Capture rate

Minimize scope “dead time” between trigger events and increases observations of random and sporadic events.

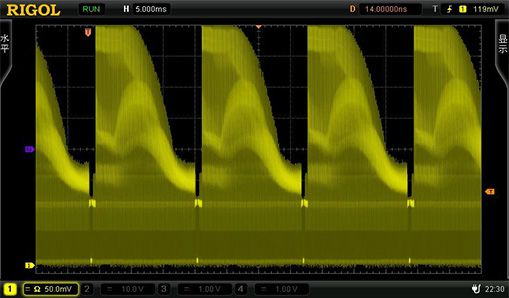

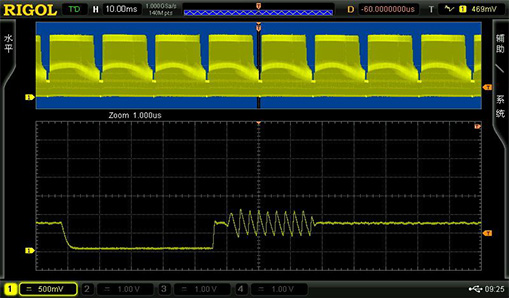

Intensity Color graded display

Observe and highlight signal anomalies even when obscured by other signals.

140Mpts Standard Record Length

Long acquisitions at high sample rates help debug elusive problems in complex digital streams

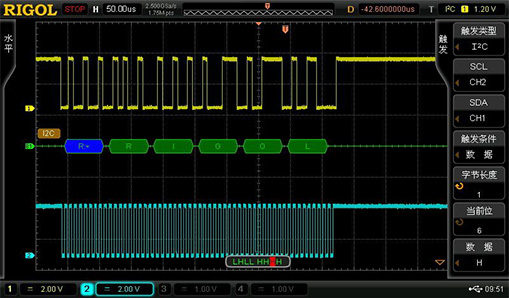

Serial bus triggering and decoding

Standard I2C, SPI, RS232/UART, CAN, USB, FlexRay trigger function, add options to support the above bus decoding (except USB).

Work with battery powered

Work with battery options for off-sites without power and applications where floating test is strictly required.

Model

Model Bandwidth Analog
Channels		 Real-Time
Sample Rate		 Max. Memory
Depth		 Waveform
Capture Rate		 Price
DS6104 1 GHz 4 5 GSa/s 140 Mpts 180,000 wfms/s Get a Quote

Functional Options

Model Description
SD-FlexRay-DS6000 FLEXRAY BUS Serial Decode Option for the DS6000 Oscilloscope
SD-CAN-DS6000 CAN BUS Serial Decode Option for the DS6000 Oscilloscope
SD-I2C/SPI-DS6000 I2C & SPI BUS Serial Decode Option for the DS6000 Oscilloscope.
SPI Decode requires 4 channel oscilloscope
SD-RS232-DS6000 RS232 & UART BUS Serial Decode Option for the DS6000 Oscilloscope

Accessories

Model Description
FPCS-DS6000 Front Panel Cover for DS6000
RM-DS6000 Rack Mounting Kit for DS6000
CK-DS6000 Calibration kit for DS6000
CB-USBA-USBB-FF-100 USB Cable
CB-DB9-DB-FF-150 RS232 Cable, Female to Female, 150cm
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
ARM Arm mount option for a DSA1000 Series or DSA1000A Series
Spectrum Analyzer or DS6000 Series Oscilloscope
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly

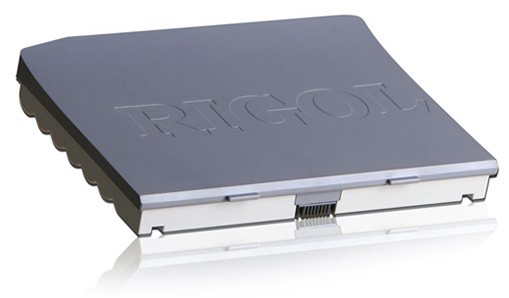

BAT 11.1 V，147 Wh Battery for DS6000
NFP-3 Near Field Probe, Requency Range: 30MHz to 3GHz
RPA246 Power Analysis Calibration Kit
T2R1000 Active probe adaptor for connecting TekProbe-BNC probes
to a DS6000 or MSO/DS4000
DK-DS6000 Demo Board for oscilloscopes
