MHO2000 Series - RIGOL Digital Oscilloscope


Features

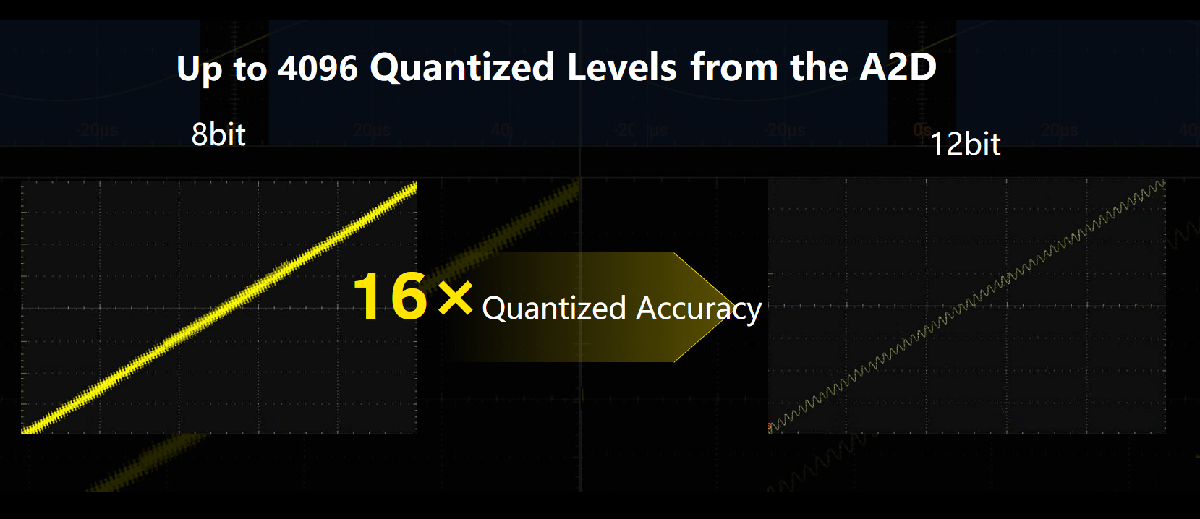

Ultra-high resolution capturing tiny details

The MHO2000 series features excellent 12-bit resolution with up to 4096 quantization levels, greatly improving measurement accuracy. Compared to 8-bit oscilloscopes, it delivers up to 16× detail, capturing subtle signal variations. With vertical sensitivity down to 200 μV/div, it’s ideal for power ripple or medical signal testing, ensuring precise analysis for innovation and reliability.

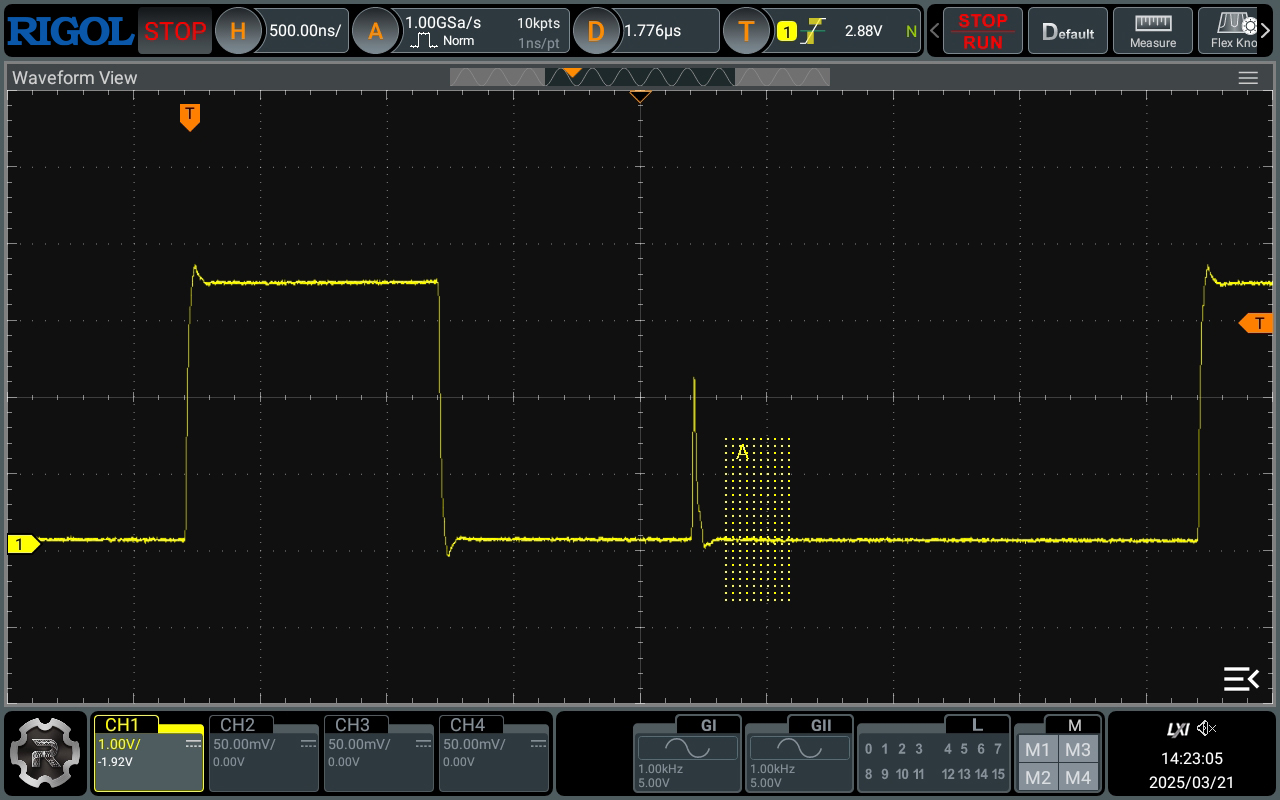

Versatile Triggering and Decoding for Diverse Industries

The MHO2000 series offers multiple trigger types—edge, interval, timeout, video, serial bus, and area trigger—for reliable capture of abnormal signals. It also supports I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553B, and more, meeting bus testing needs across embedded, automotive, and computing industries.

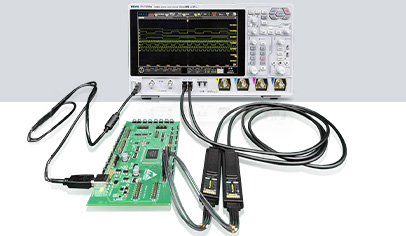

Standard Digital Channel, Stable Signal Transmission

The MHO2000 series comes standard with digital channels and supports the PLA3204 logic probe for efficient analog and digital signal debugging. This setup enables deep digital analysis and precise capture of signal interactions in complex systems, ensuring high efficiency and accuracy in R&D, troubleshooting, and performance optimization to boost project success rates.

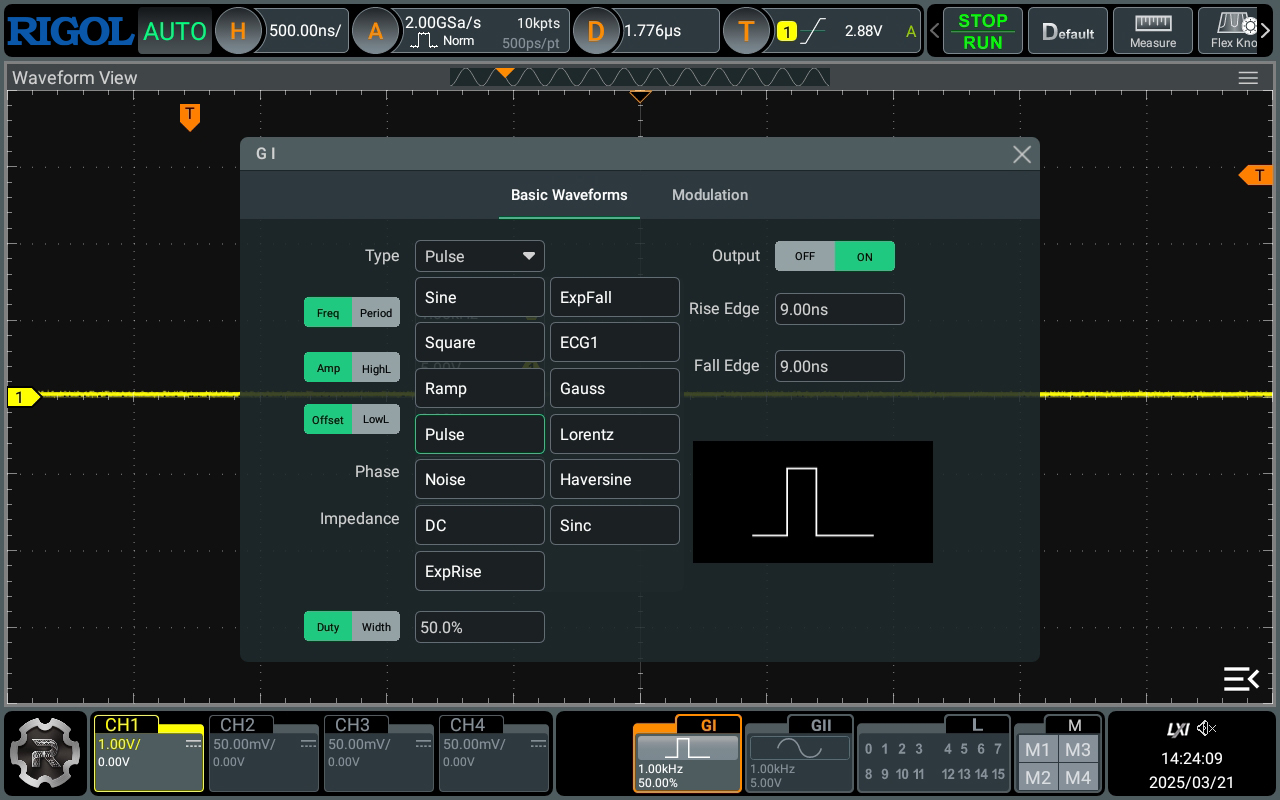

Built-in Function Generator for Advanced Analysis

The MHO2000 series high-resolution digital oscilloscope supports a built-in dual-channel signal generator with 16-bit resolution, providing waveform output up to 50MHz, including sine wave, square wave, triangle wave, pulse wave, noise, DC, and a variety of built-in arbitrary waves, which can be widely used in various scientific experiments and industrial control fields..

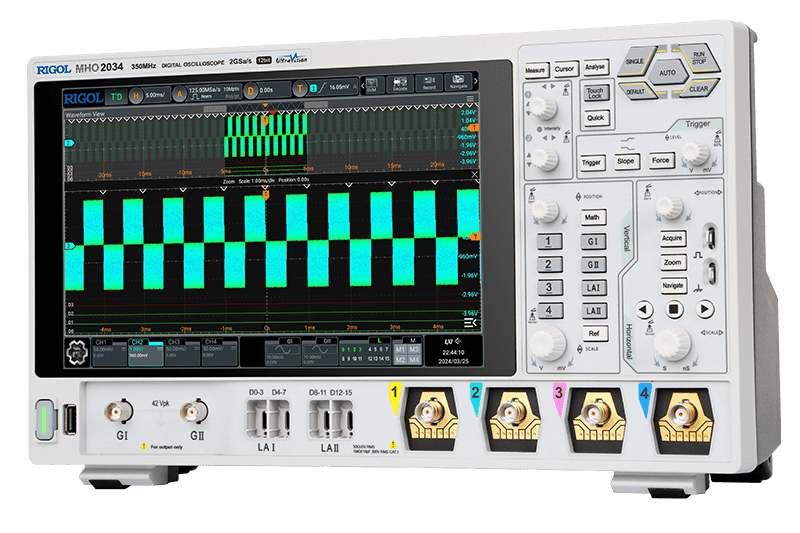

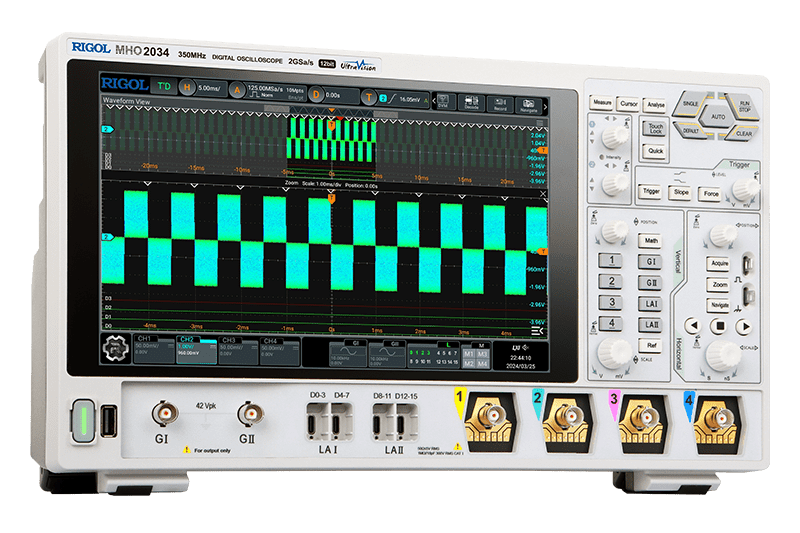

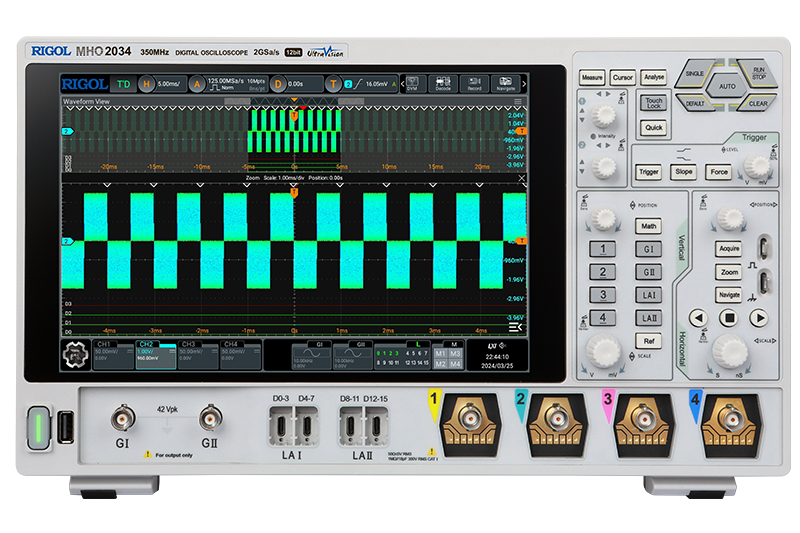

MHO2000 Series

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-in Signal Source
MHO2034 350 MHz 4 2 GSa/s 500 Mpts 1,000,000 wfms/s 16 (Probe opt.) 50 MHz, 2CH (opt.)
MHO2024 200 MHz 4 2 GSa/s 500 Mpts 1,000,000 wfms/s 16 (Probe opt.) 50 MHz, 2CH (opt.)

Passive Probes

Model Description
RP1018H 18 kV 150 MHz High Voltage Probe
RP1300H 300 MHz High Voltage Probe (2 kV)
RP6150A 1.5 GHz Passive Low Resistance Probe (500 Ω)
RP3500A 500 MHz Passive High Resistance Probe

Current Probes

Model Description
RP1006C 2 MHz, 500 A
RP1005C 10 MHz, 150 A
RP1004C 100 MHz, 30 A
RP1003C 50 MHz, 30 A
RP1002C 1 MHz, 70 A DC
RP1001C 300 kHz, 100 A DC
PCA1500 2 MHz, 500 A Current Probe
PCA1150 10 MHz, 150 A Current Probe
PCA2030 100 MHz, 30 A Current Probe
PCA1030 50 MHz, 30 A Current Probe

High Voltage Differential Probes

Model Description
PHA2150 200 MHz, 1500 V High Voltage Differential Probe
PHA1150 DC–100 MHz, 1500 V High Voltage Differential Probe
PHA0150 DC–70 MHz, 1500 V High Voltage Differential Probe
RP1100D 100 MHz, 3.5 kV High Voltage Differential Probe
RP1050D 50 MHz, 3.5 kV High Voltage Differential Probe
RP1025D 25 MHz, 700 V High Voltage Differential Probe

Logic Analyzer Probes

Model Description
PLA3204 Quad-Channel Logic Analyzer Probe

MHO2000 Upgrade Options

Model Description
MHO2000-PWRA Power Analyze option
MHO2000-AUDIOA I2S Audio Bus Trigger and Analysis Option
MHO2000-AUTOA CAN-FD, LIN Bus Trigger and Decode Option
MHO2000-SENTA SENT Trigger and Decode Option
MHO2000-FLEXA FlexRay Trigger and Decode Option
MHO2000-AEROA MIL-STD-1553 Bus Trigger and Decode Option
MHO2000-AWG Built-in Dual-Channel 50MHz Function Signal Generator Option
MHO2000-BND Package Option

MHO2000 Datasheets

Name Version Release Date Download
MHO2000 Datasheets V1.0 2025-05-08 Download

MHO2000 Programming Guide

Name Version Release Date Download
MHO2000 Programming Guide V1.0 2025-05-13 Download
