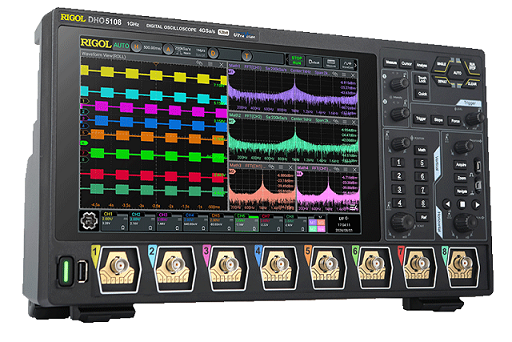

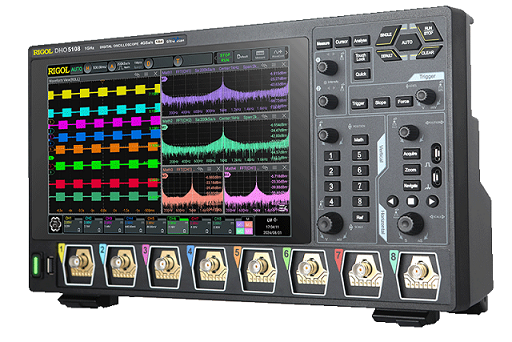

DHO5000 Series

The DHO5000 series is RIGOL's first 8-channel digital oscilloscope, supporting up to 8 analog channel inputs, with a maximum real-time bandwidth of 1 GHz and a maximum real-time sampling rate of 4 GSa/s.

Bandwidth   : 500 MHz to 1 GHz
Sample Rate   : 4 GSa/s
Vertical Resolution   : 12-bit vertical resolution
Channels   : 4 to 6 channels
Arbitary Wave Length   : 500 Mpts

Datasheet

Features

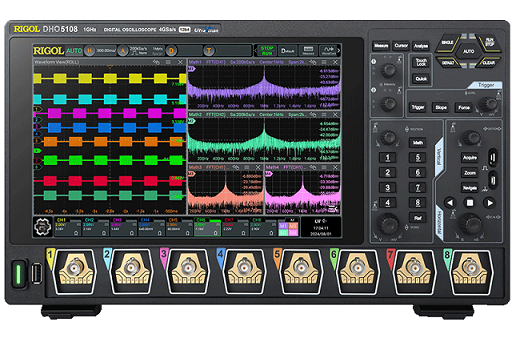

4/6/8 Analog Channel

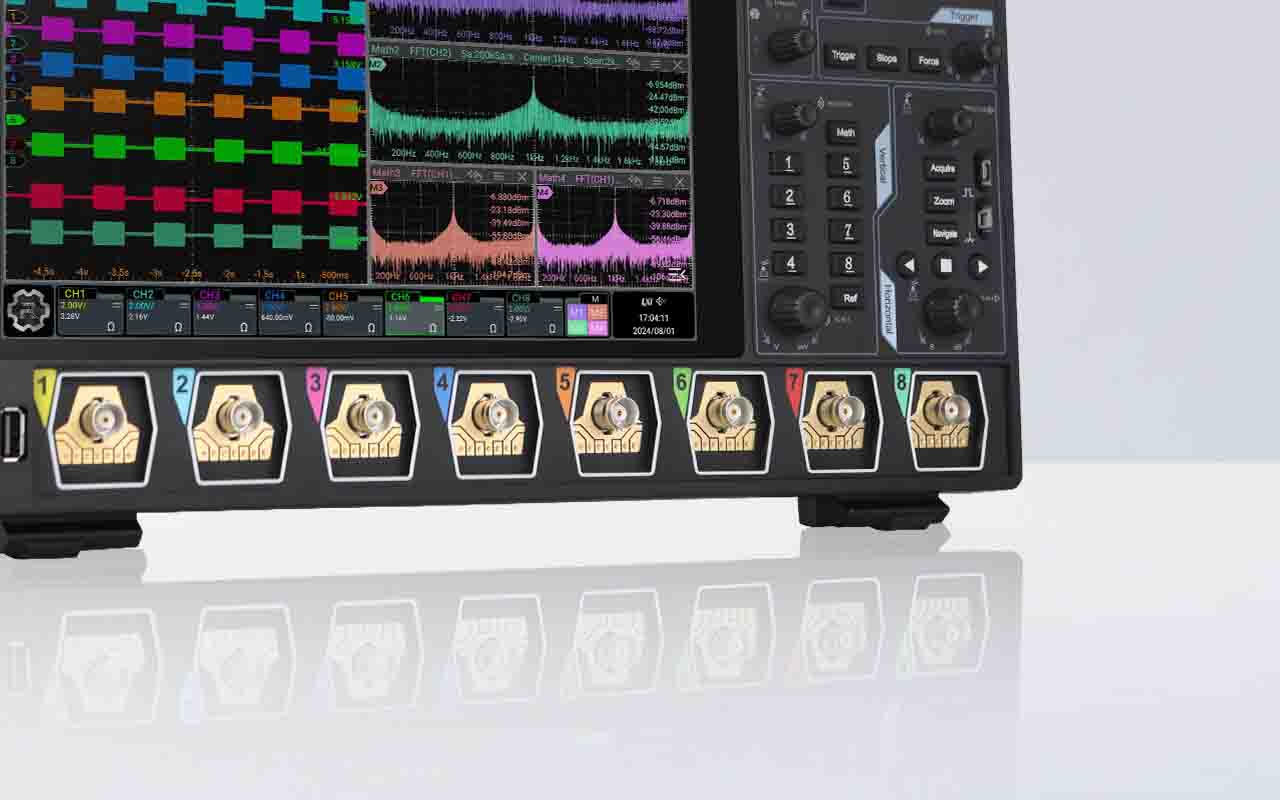

With up to 8 analog input channels on a single device, the DHO5000 series can handle various multi-channel testing applications, such as Power Sequencing Tests, 3-Phase Power Analysis, motor testing, and third-generation semiconductor testing.

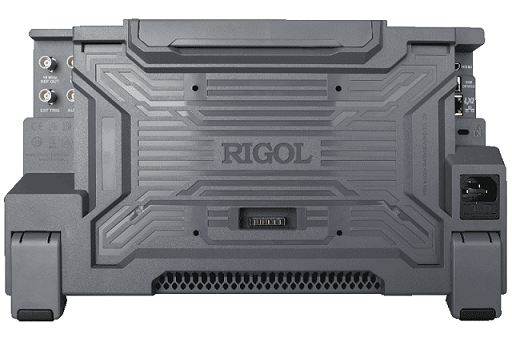

Compact Design

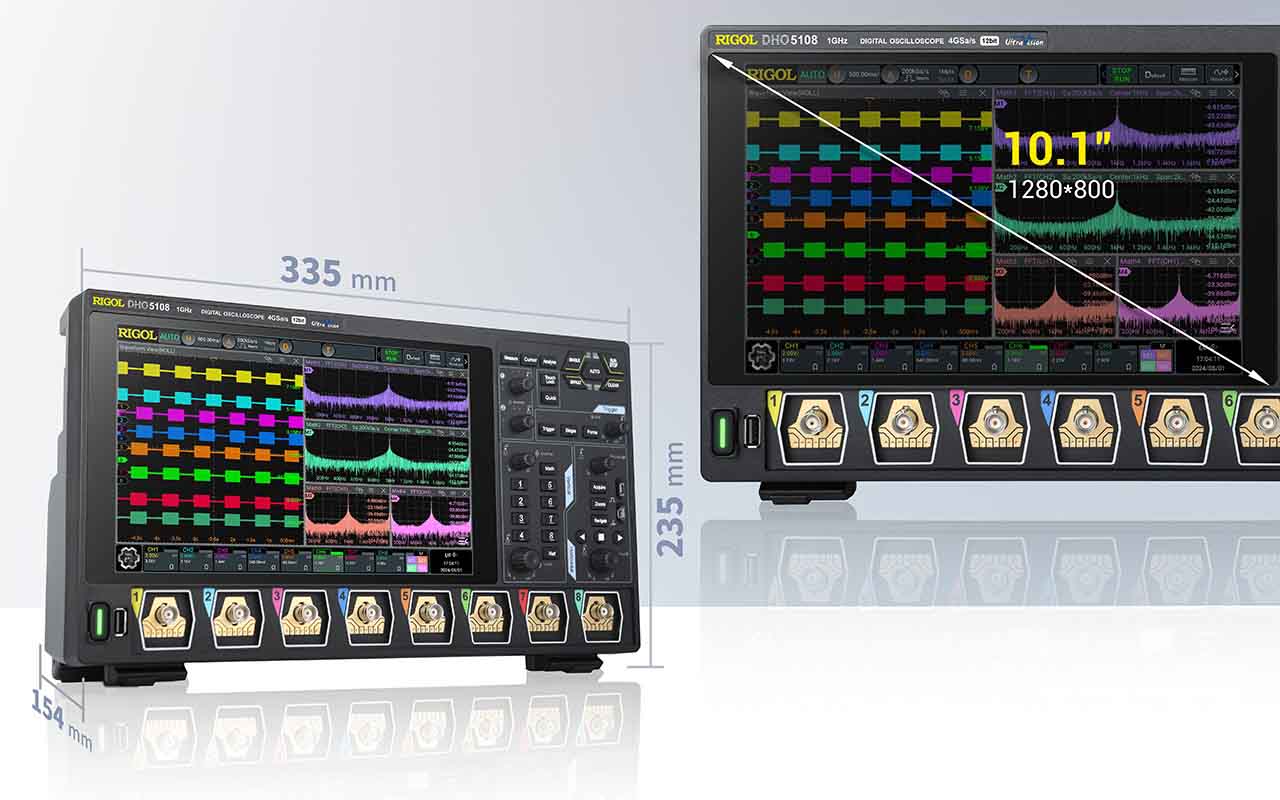

The DHO5000 series features a compact design with dimensions of 335 mm (W) × 235 mm (H) × 154 mm (D), minimizing desktop space usage. Its 5U rack mount height makes it an efficient solution for system integration, improving cabinet utilization and overall compactness..

Outstanding Testing Accuracy

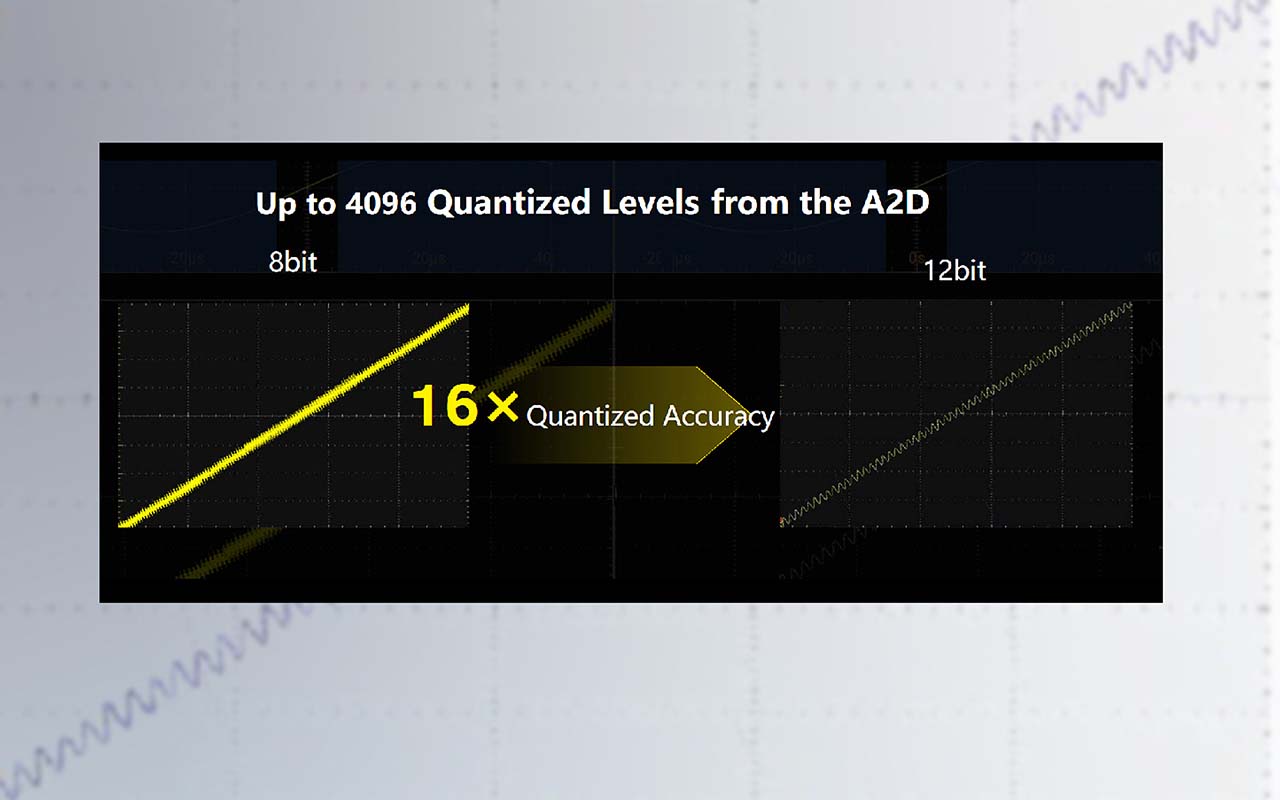

With a 12-bit ADC and up to 4096 vertical levels, 16 times greater than an 8-bit oscilloscope, the DHO5000 significantly enhances measurement accuracy, capturing even the smallest waveform details. Whether testing power supply ripple or analyzing critical applications like medical devices, it helps you efficiently assess signal characteristics, ensuring every measurement is precise, enabling technological innovation.

Battery Pack Support

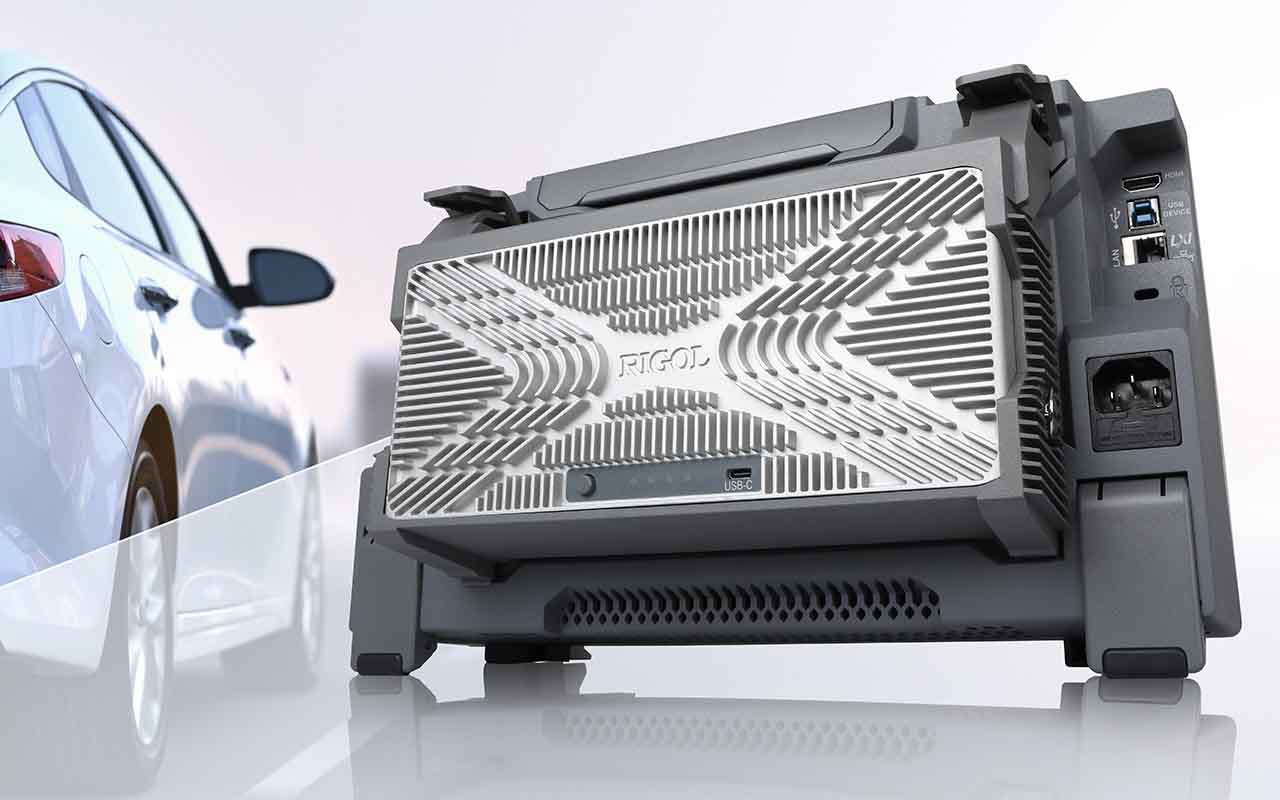

The DHO5000 supports battery pack power, allowing for measurements in locations without AC power. This is ideal for certain outdoor or vehicle-mounted testing. The battery pack also offers clean energy in high-interference environments, minimizing environmental impact on test results.

Model

Model	Bandwidth	Analog Channels	Real-Time Sample Rate	Max Memory Depth	Waveform Capture Rate	Price
DHO5108	1GHz	8	4GSa/s	500Mpts	1,000,000 wfms/s	Get A Code
DHO5106	1GHz	6	4GSa/s	500Mpts	1,000,000 wfms/s	Get A Code
DHO5088	500MHz	8	4GSa/s	500Mpts	1,000,000 wfms/s	Get A Code
DHO5066	500MHz	6	4GSa/s	500Mpts	1,000,000 wfms/s	Get A Code
DHO5104	1GHz	4	4GSa/s	500Mpts	1,000,000 wfms/s	Get A Code
DHO5064	500MHz	4	4GSa/s	500Mpts	1,000,000 wfms/s	Get A Code
DHO5104	1GHz	4	4GSa/s	500Mpts	1,000,000 wfms/s	Get A Code
DHO5064	500MHz	4	4GSa/s	500Mpts	1,000,000 wfms/s	Get A Code
