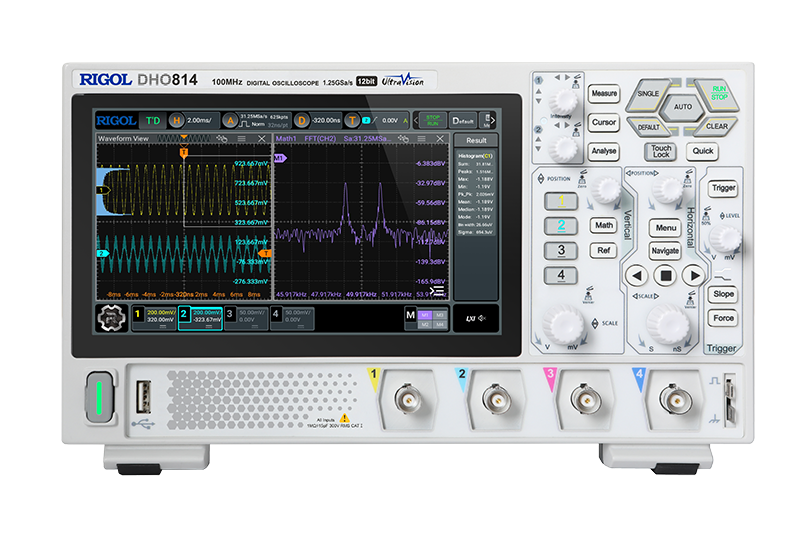

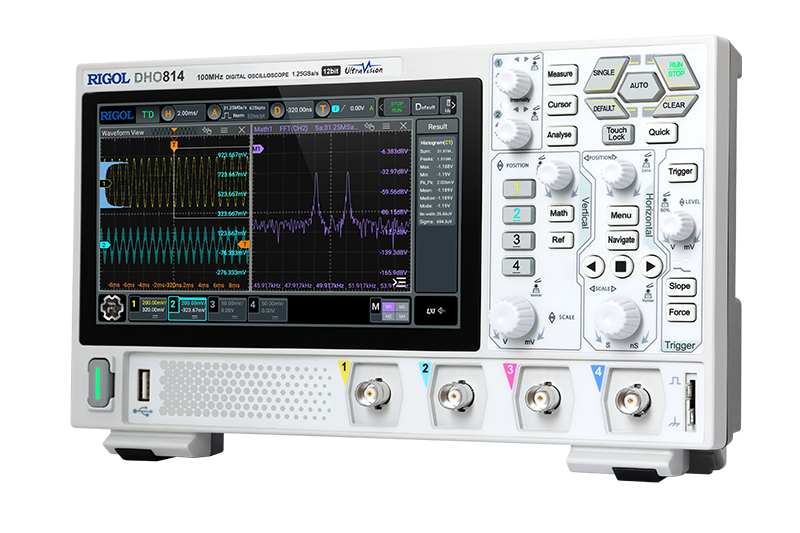

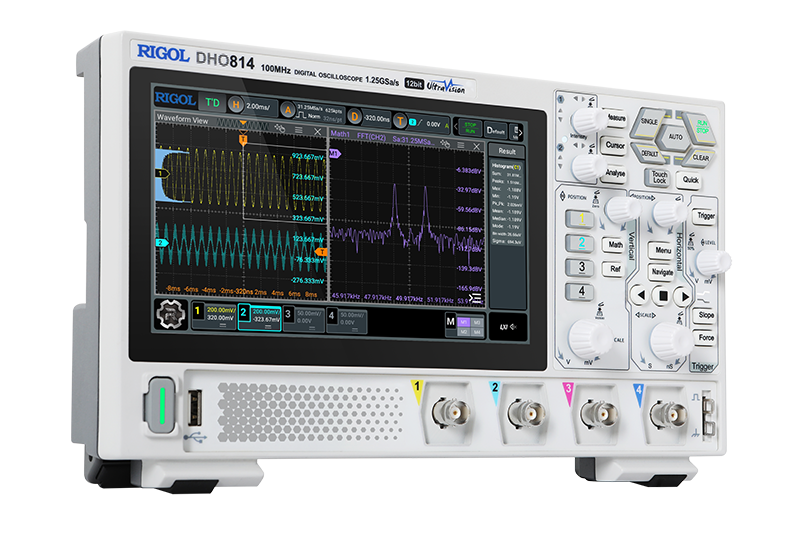

DHO800 Series - RIGOL Digital Oscilloscope


Features

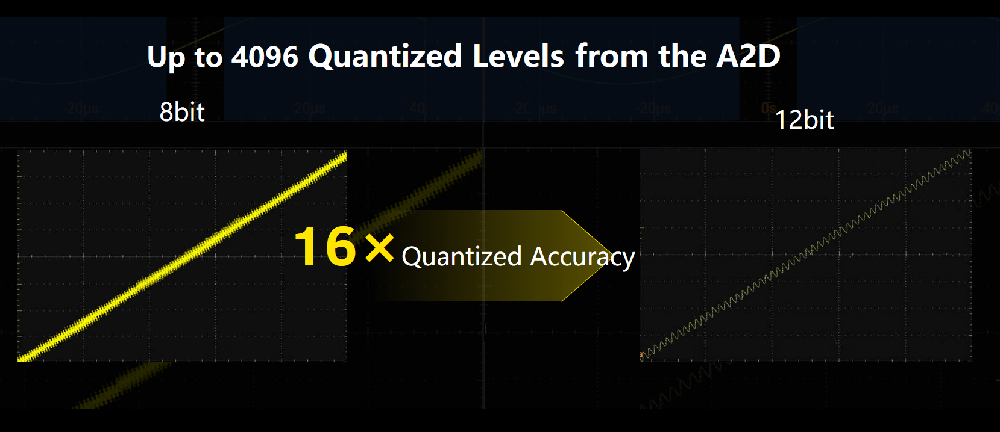

High-resolution 12-bit

The DHO800 series offers a 12-bit vertical resolution with 4096 levels of quantization, 16 times more precise than 8-bit resolution. This upgrade significantly enhances waveform measurement accuracy, particularly in critical applications like power ripple testing and medical equipment detection.

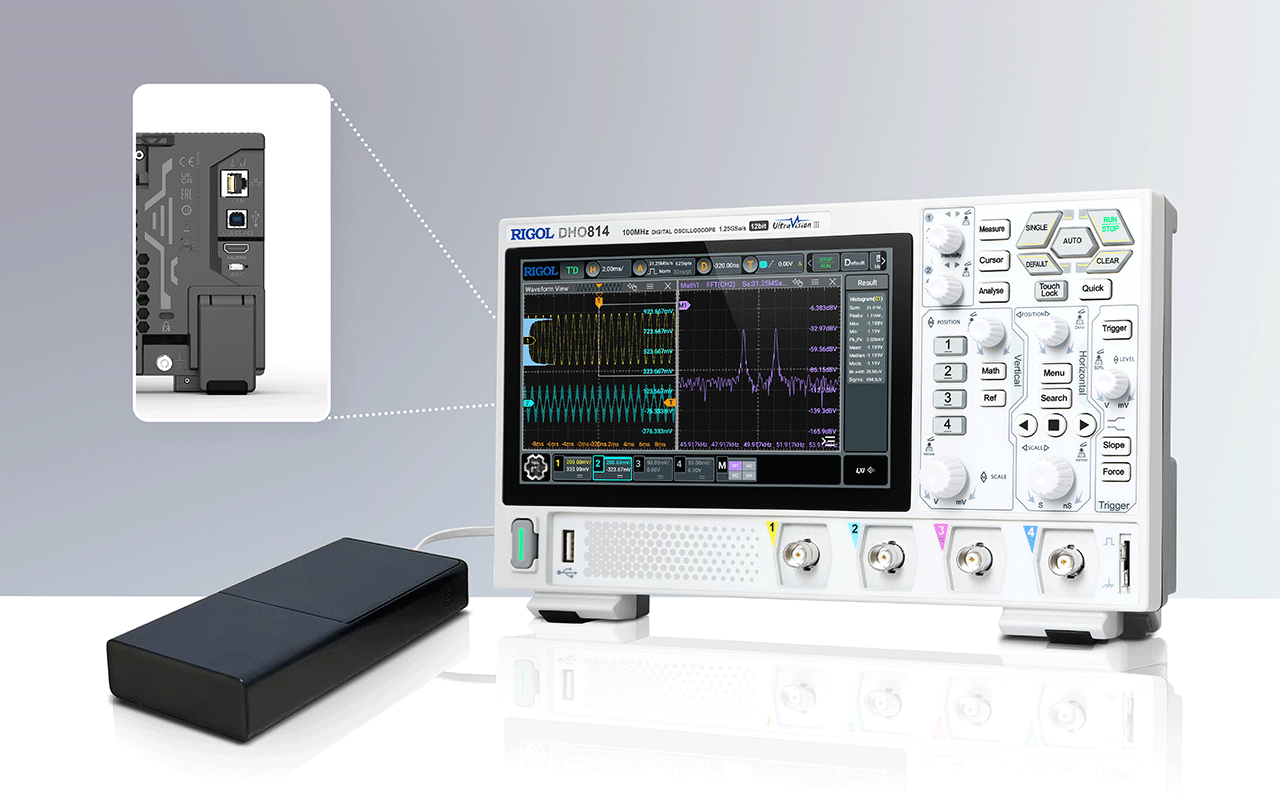

Support Type-C Power

The Type-C power supply interface design of the DHO800 series allows for powering the device with just a portable power bank, meeting the requirements of on-site chip testing and circuit maintenance in outdoor settings.

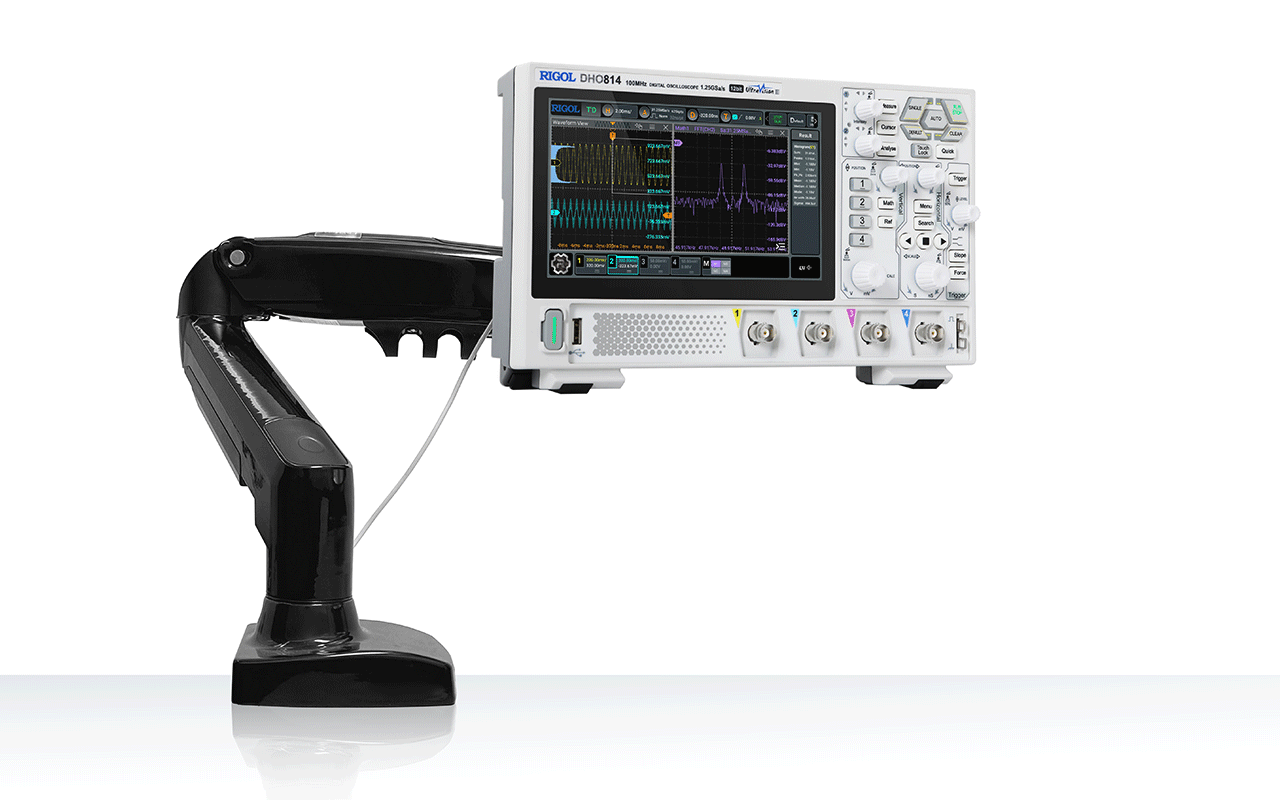

Sleek Desain

The compact and portable design of the DHO800 series effectively reduces the burden of carrying equipment for on-site operations. Additionally, it supports VESA standard monitor mounts, making your desktop more organized and saving workspace.

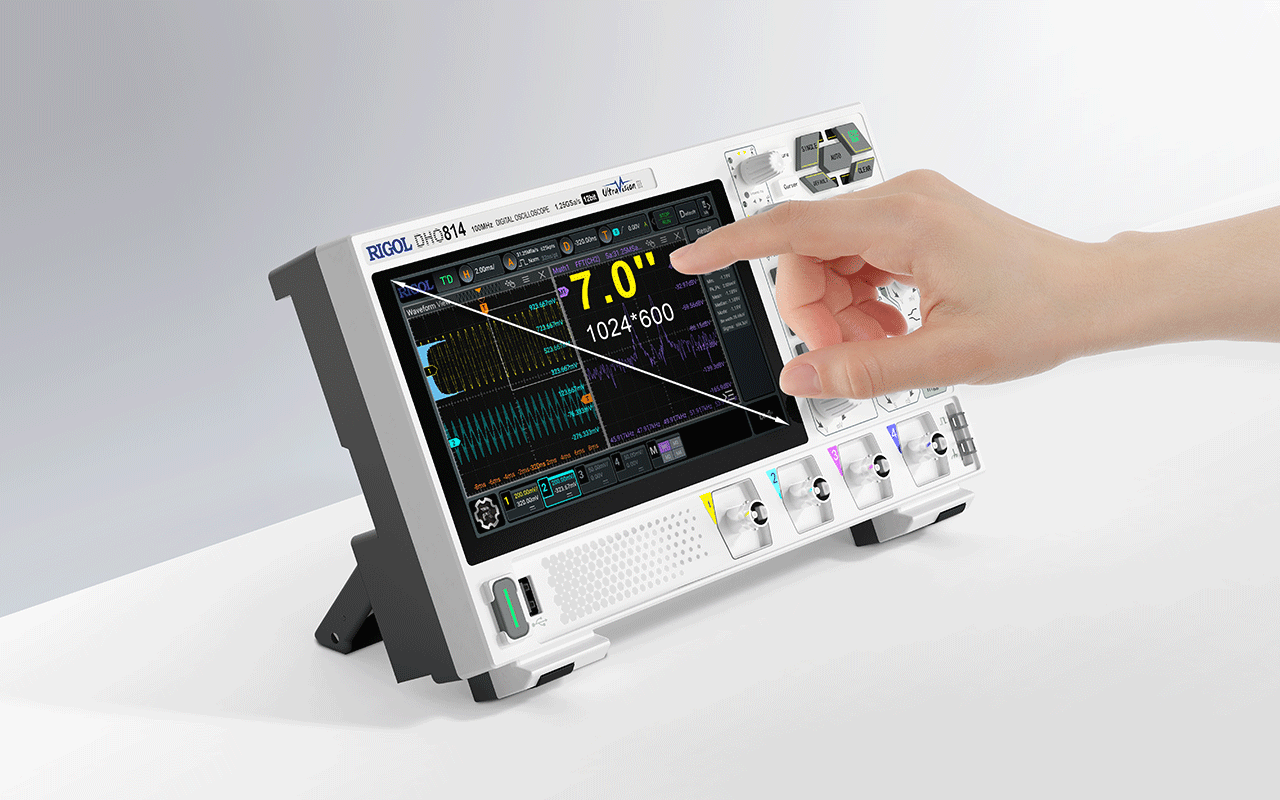

7-inch HD Touchscreen

The DHO800 boasts a 7-inch 1024x600 high-definition touchscreen, offering the perfect blend of compactness and functionality. Despite its small size, this device ensures convenient operation without compromising on screen size, providing ample space for all your tasks.

Support Internal And External IQ Modulation Function

The modulation mode includes 4QAM, 8qam, 16QAM, 32qam, 64QAM, BPSK, QPSK, OQPSK, 8PSK, 16PSK, and supports internal and external modulation sources.

Versatile Interfaces

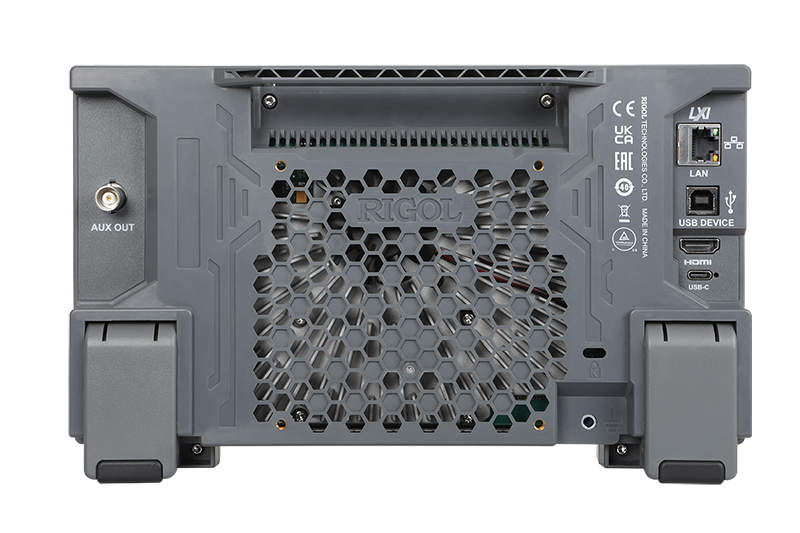

The DHO800 series comes standard with USB, LAN, and HDMI ports, meeting the needs of remote control, conference presentations, teaching, and other applications. This allows for greater display space during collaborative work or teaching, enhancing collaborative efficiency.

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DHO814 100MHz 1.25GSa/s 1,000,000 wfms/s 4 25Mpts Rp8.413.800
DHO812 100MHz 1.25GSa/s 1,000,000 wfms/s 2 128Mpts Rp7.092.900
DHO804 70MHz 1.25GSa/s 1,000,000 wfms/s 4 25Mpts Rp7.548.000
DHO802 70MHz 1.25GSa/s 1,000,000 wfms/s 2 25Mpts Rp6.382.500
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

User Manual

Name Version Release Date Download
DH0800 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DHO800 Datasheets V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DH800 Quick Guide V1.0 2019-08-29 Download
