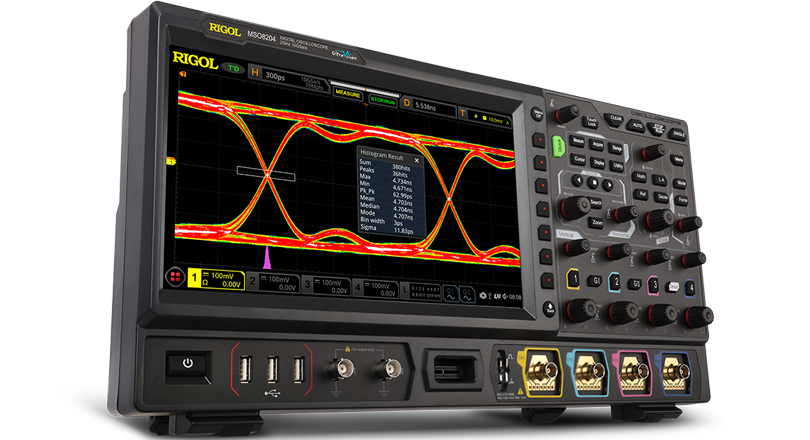

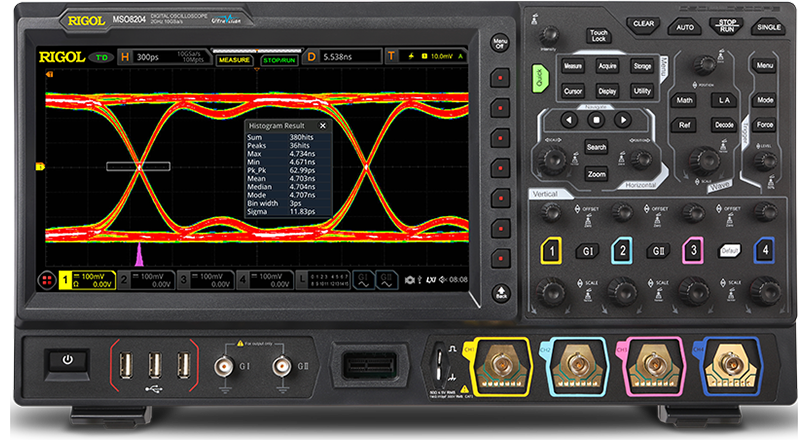

MSO8000 Series

The MSO8000 series digital oscilloscope is a mid- to high-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform.

Bandwidth   : 600 MHz~2 GHz
Analog Channels   : 4
Real-time Sample Rate   : 10 GSa/s
Max. Memory Depth   : 500 Mpts
Waveform Capture Rate   : 600,000 wfms/s
Digital Channels   : 16

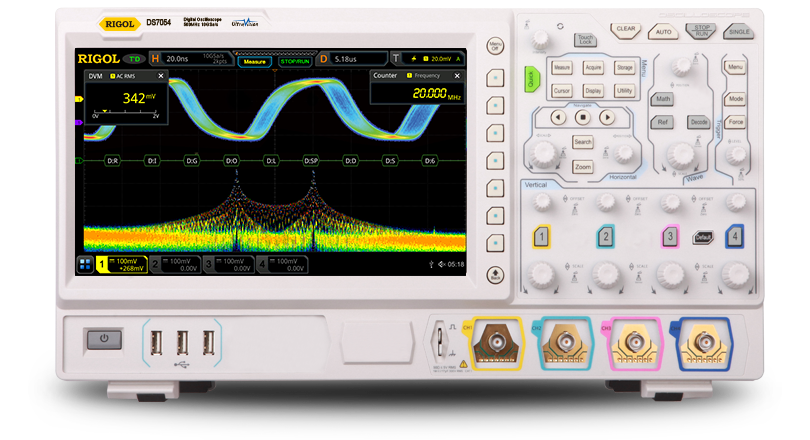

MSO/DS7000 Series

The MSO/DS7000 series digital oscilloscope is a mid-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform.

Bandwidth   : 1000 MHz~500 MHz
Analog Channels   : 4
Real-time Sample Rate   : 10 GSa/s
Max. Memory Depth   : 500 Mpts
Waveform Capture Rate   : 600,000 wfms/s
Digital Channels   : 16 (Only MSO Model)

Start from Rp 59.400.000

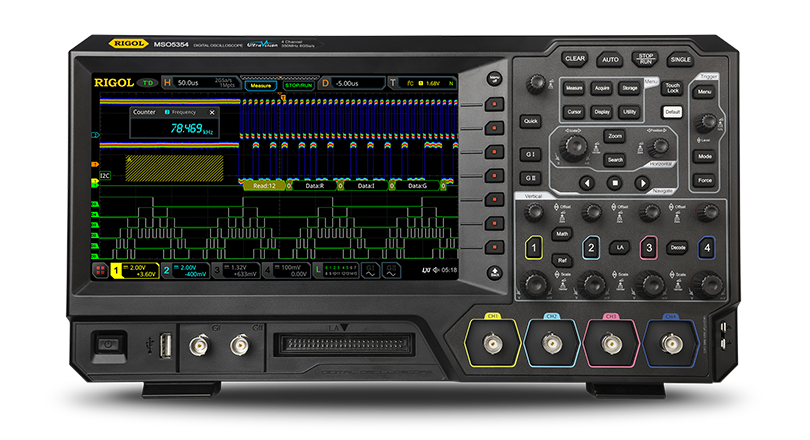

MSO5000 Series

MSO5000 series digital oscilloscope is a high performance and economical digital oscilloscope based on the technology of RIGOL ultravision II generation.

Bandwidth   : 70 MHz~350 MHz
Analog Channels   : 4
Real-time Sample Rate   : 8 GSa/s
Max. Memory Depth   : 200 Mpts
Waveform Capture Rate   : 500,000 wfms/s
Digital Channels   : 16

Start from Rp 19.758.000

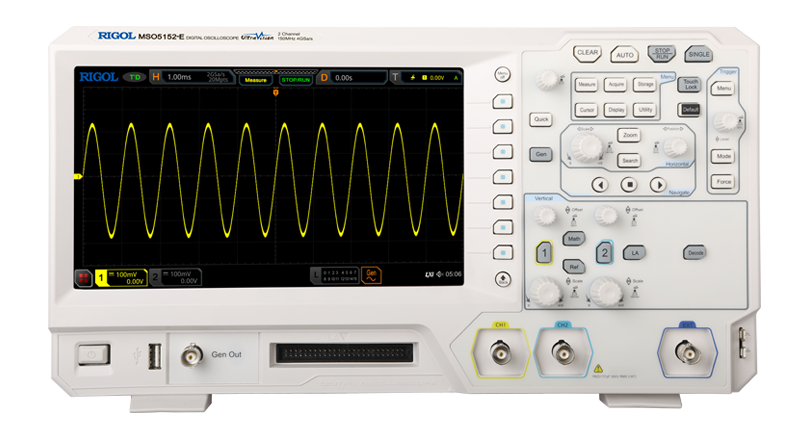

MSO5000-E Series

MSO5000-E series digital oscilloscope is based on the technology of RIGOL ultravision II, which is a high-performance and economical digital oscilloscope specially designed for professional engineers.

Bandwidth   : 150 MHz
Analog Channels   : 2
Real-time Sample Rate   : 4 GSa/s
Max. Memory Depth   : 100 Mpts
Waveform Capture Rate   : 300,000 wfms/s
Digital Channels   : 16

Rp 20.535.000

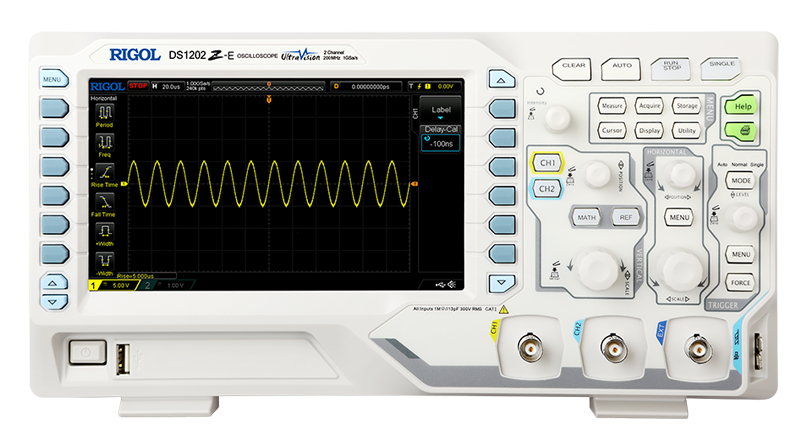

DS1000Z-E Series

DS1000Z-E series digital oscilloscope is designed by RIGOL based on the mainstream demand. It is a high-performance and economic digital oscilloscope specially contributed by e-commerce.

Bandwidth   : 200 MHz
Analog Channels   : 2
Real-time Sample Rate   : 1 GSa/s
Max. Memory Depth   : 24 Mpts
Waveform Capture Rate   : 30,000 wfms/s
Digital Channels   : N/A

Start from Rp 7.492.000

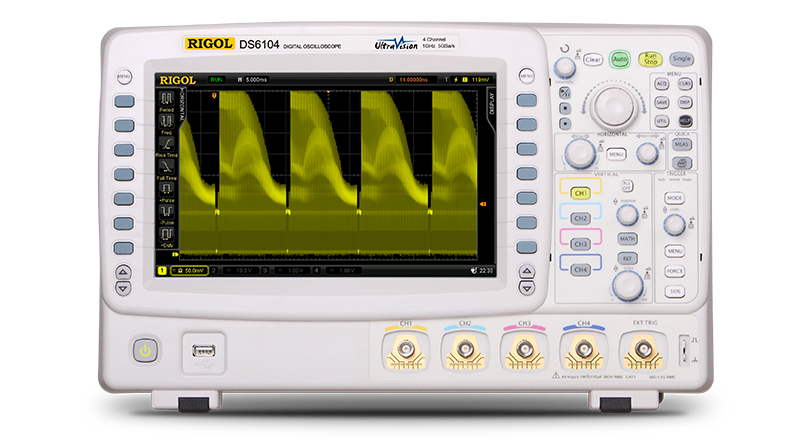

DS6000 Series

The 6000 Series Digital Oscilloscopes have 1 GHz of Bandwidth. Detecting high speed signals and device characteristics including ESD, digital video, and differential signals (using an differential probe accessory) is now easier than ever with our most advanced digital oscilloscope platform.

Bandwidth   : 1 GHz
Analog Channels   : 4
Real-time Sample Rate   : 5 GSa/s
Max. Memory Depth   : 140 Mpts
Waveform Capture Rate   : 180,000 wfms/s
Digital Channels   : N/A

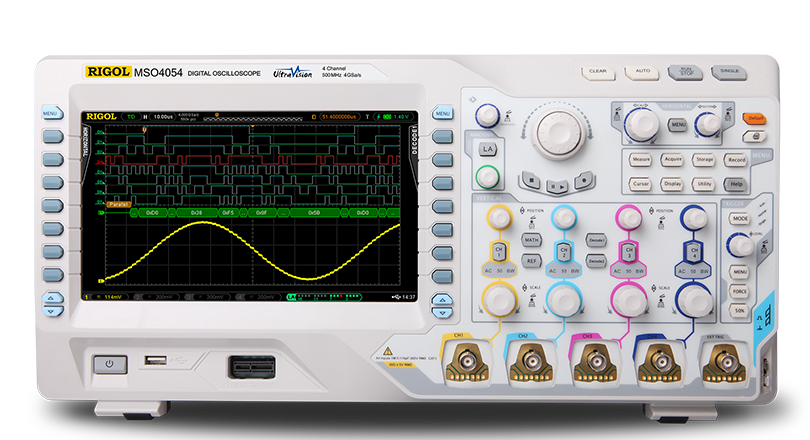

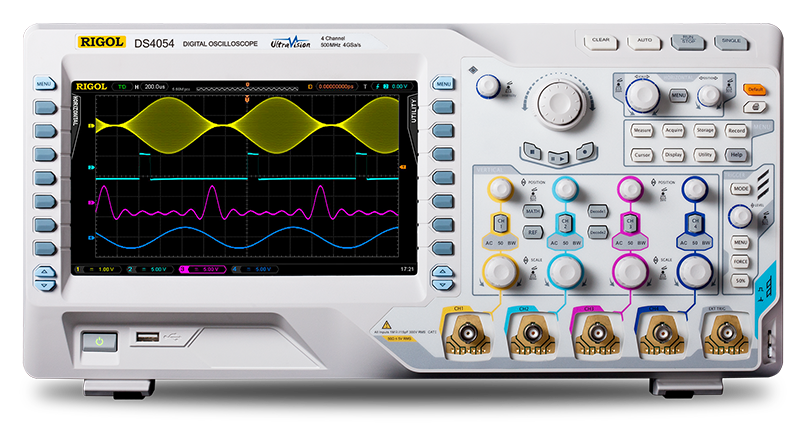

MSO/DS4000 Series

The 4000 series digital oscilloscope is a versatile, high performance mixed signal oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s, 2 or 4 analog channels, and 16 digital logic channels, the 4000 is ideal for a wide variety of engineers working in communications, defense, aerospace, industrial electronics, R&D and educational fields.

Bandwidth   : 100 MHz~500 MHz
Analog Channels   : 2/4
Real-time Sample Rate   : 4 GSa/s
Max. Memory Depth   : 140 Mpts
Waveform Capture Rate   : 110,000 wfms/s
Digital Channels   : 16 (Only MSO Model)

Start from Rp 58.275.000

DS4000E Series Obsolete

The DS4000E series of digital oscilloscopes is a high-performance, economical general-purpose digital oscilloscope with a bandwidth of 100MHz to 200MHz, a sampling rate of up to 2GSa/s, and a 4-channel memory depth of up to 14Mpts. Designed for the design, debug, and test needs of the broadest range of mainstream digital oscilloscope markets, its ultra-high price/performance ratio reinvigorates the economical oscilloscope market and offers more options for low-cost test and measurement solutions.

Bandwidth   : 100 MHz~200 MHz
Analog Channels   : 4
Real-time Sample Rate   : 2 GSa/s
Max. Memory Depth   : 14 Mpts
Waveform Capture Rate   : 60,000 wfms/s
Digital Channels   : N/A

Start from Rp 36.630.000

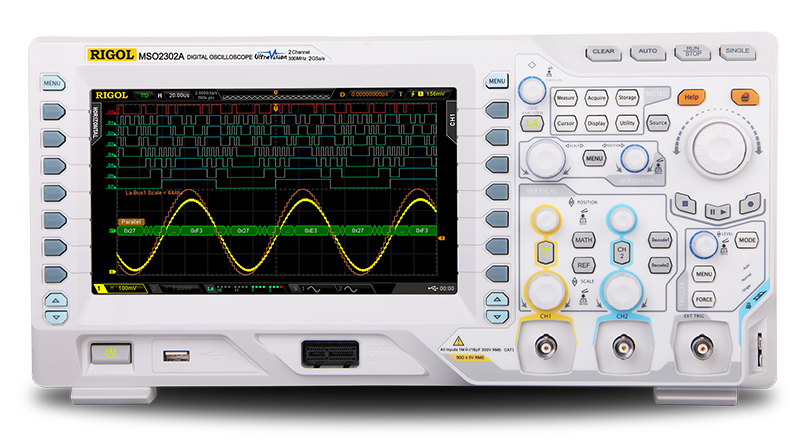

MSO/DS2000A Series

The MSO/DS2000A series of digital oscilloscopes are universal digital oscilloscopes with bandwidths from 100MHz to 300MHz and sampling rates up to 2GSa/s, combined with deep memory depth and high waveform capture rates.

Bandwidth   : 70 MHz~300 MHz
Analog Channels   : 2
Real-time Sample Rate   : 2 GSa/s
Max. Memory Depth   : 56 Mpts
Waveform Capture Rate   : 52,000 wfms/s
Digital Channels   : 16 (Only MSO Model)

Start from Rp 6.490.000

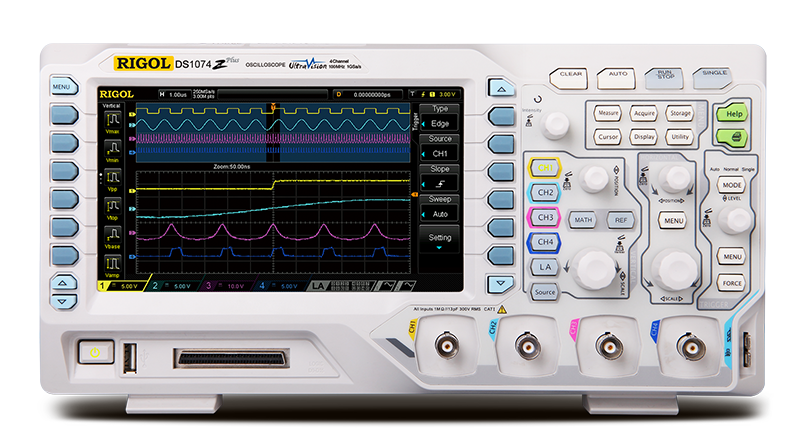

DS1000Z Series

The DS1000Z series of digital oscilloscopes use the Ultravision technology platform, which continues the characteristics of deep storage and high waveform capture rate, and has an excellent cost performance advantage. The innovative DS1000Z Plus series comes standard with a digital channel interface that can be upgraded to a full-featured MSO with the addition of an RPL1116 logic probe.

Bandwidth   : 50 MHz~100 MHz
Analog Channels   : 4
Real-time Sample Rate   : 1 GSa/s
Max. Memory Depth   : 24 Mpts
Waveform Capture Rate   : 30,000 wfms/s
Digital Channels   : 16 (Plus Model)

Start from Rp 7.659.000

DS1000B Series Obsolete

DS1000B series has the highest 200MHz bandwidth, 2 GSA / s real-time sampling rate and 50gsa / s equivalent sampling rate. Its powerful triggering and analysis ability makes it easy to capture and analyze waveforms, clear liquid crystal display and mathematical operation functions, and convenient for users to observe and analyze signals faster and more clearly.

Bandwidth   : 70 MHz~200 MHz
Analog Channels   : 4
Real-time Sample Rate   : 2 GSa/s
Max. Memory Depth   : 16 Kpts
Waveform Capture Rate   :
Digital Channels   : N/A

Start from Rp 26.950.000

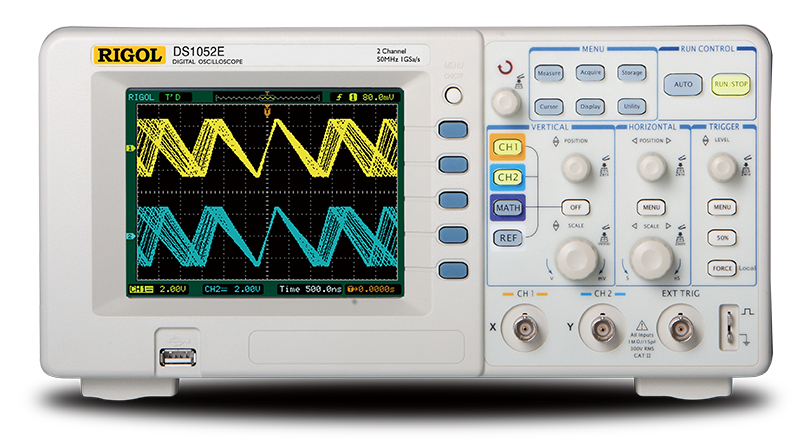

DS1000E Series

The DS1000E/U Series is a market-proven economical digital oscilloscope. This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing. The front panel design is clear and intuitive, fully in line with the traditional instrument usage habits, and is convenient for users to operate.

Bandwidth   : 50 MHz~100 MHz
Analog Channels   : 2
Real-time Sample Rate   : 1 GSa/s
Max. Memory Depth   : 1 Mpts
Waveform Capture Rate   :
Digital Channels   : N/A

Start from Rp 6.993.000
