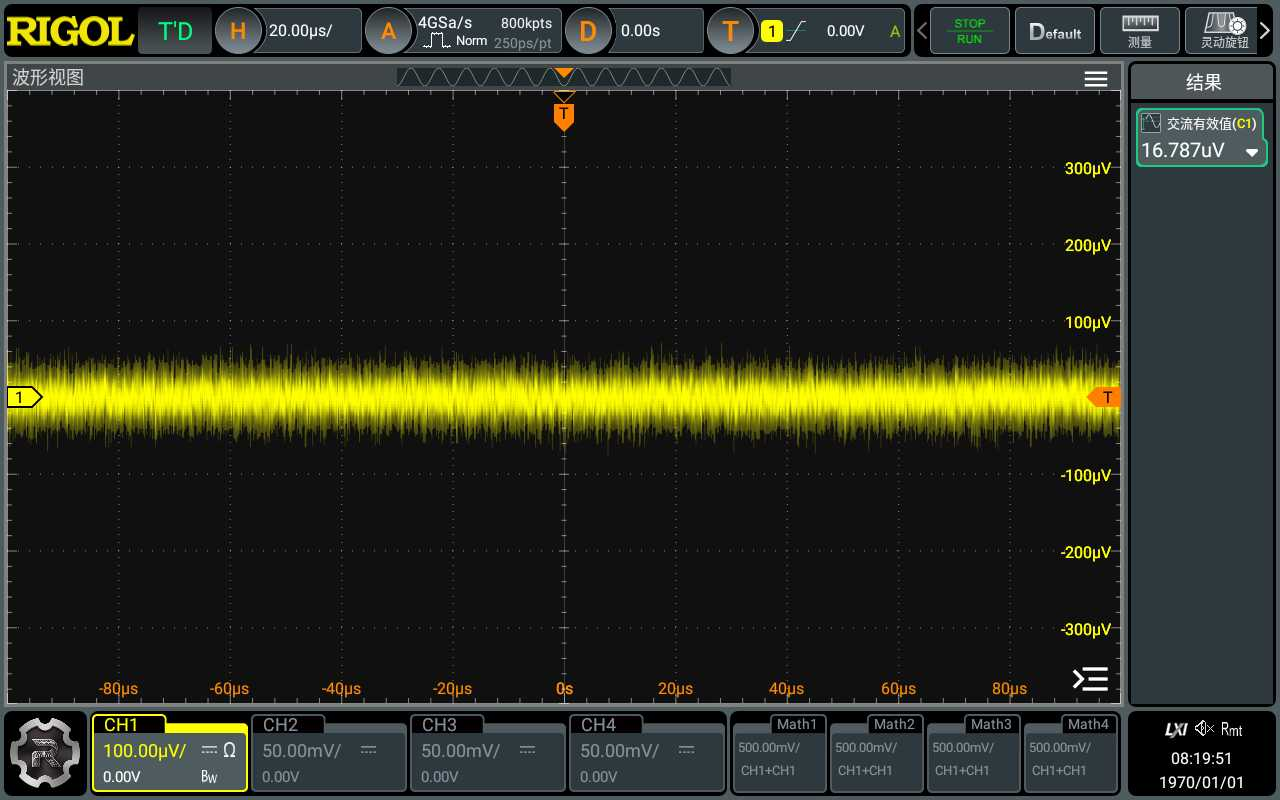

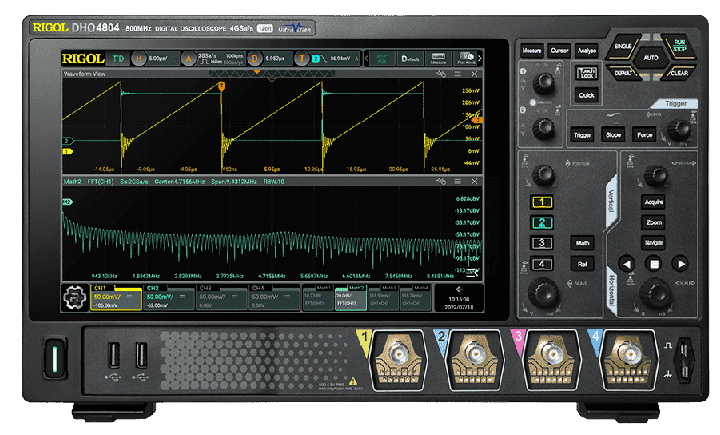

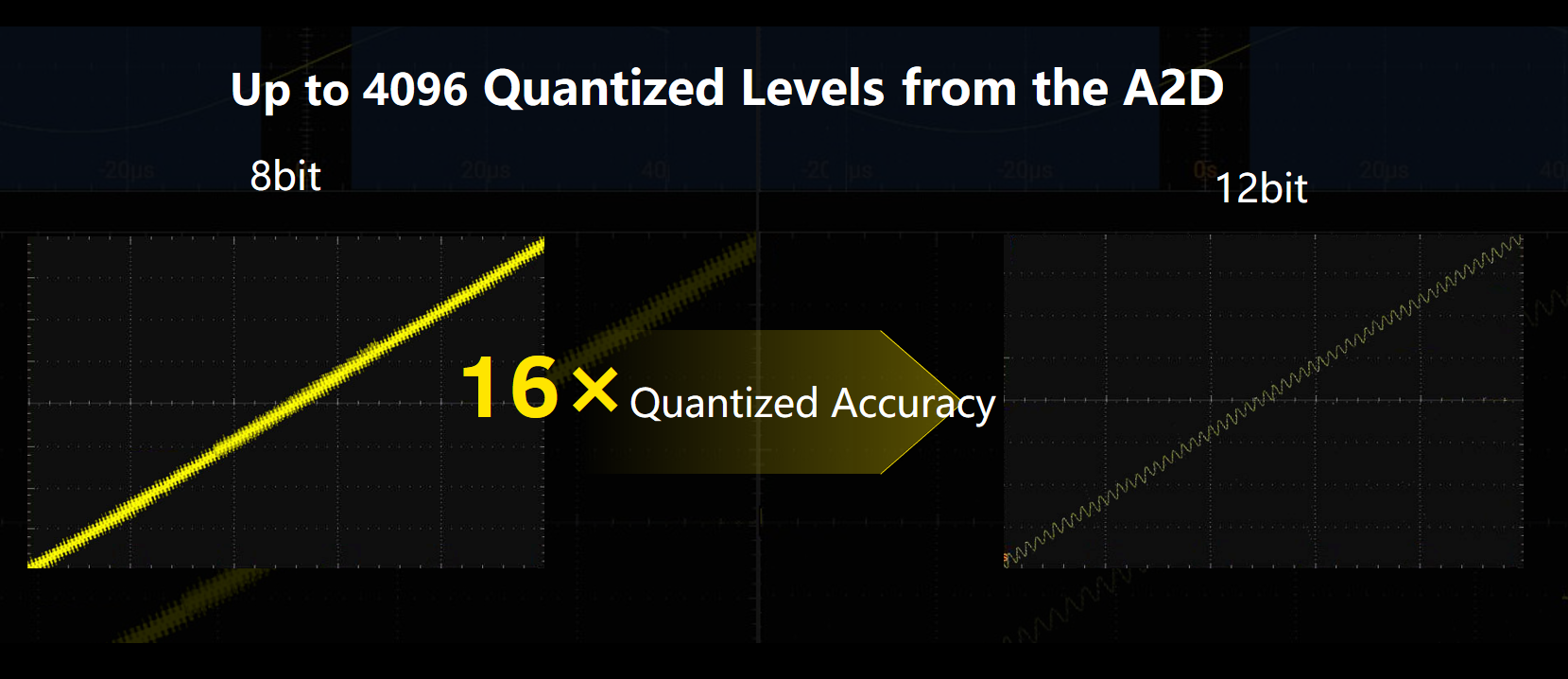

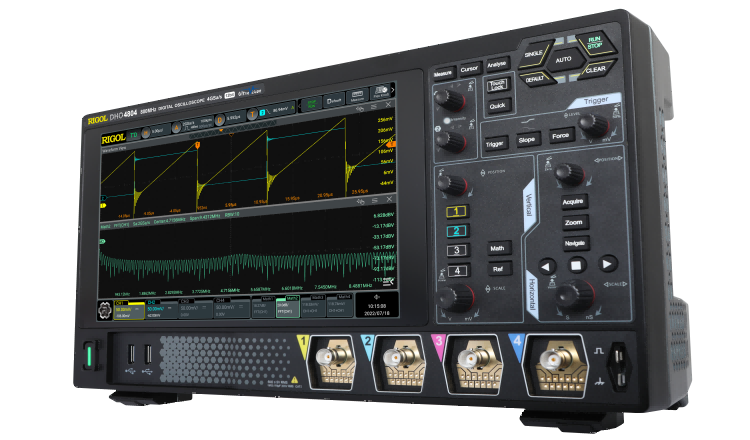

The DHO4000 Series Digital Oscilloscopes are equipped with a second generation chipset developed by RIGOL. With a low noise floor and 12 bits, these high-resolution oscilloscopes are capable of finding the tiniest signals.
Bandwidth : 800MHz
Sample Rate : 4GSa/s
Analog Channels Real-Time : 4
Max. Memmory Depth : 500Mpts(opt.)

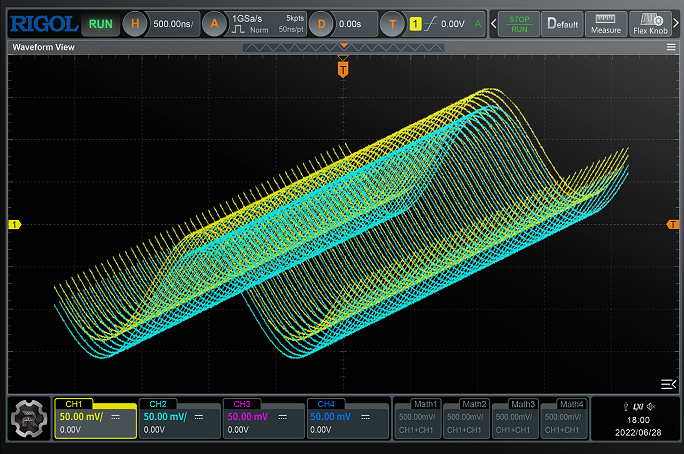

Waveform Capture Rate : 1,500,000wfms/s
.png)
.png)
.png)
.png)
| Model | Bandwith | Analog Channels |
Real-time Sample Rate |
Max. Memory Depth |
Waveform Capture Rate |
Digital Channels |
Built-in Signal Sources |
Price |
|---|---|---|---|---|---|---|---|---|
| DHO4804 | 800MHz | 4 | 4GSa/s | 500Mpts(opt.) | 1,500,000wfms/s | - | - | Get a Quote |
| DHO4404 | 400MHz | 4 | 4GSa/s | 500Mpts(opt.) | 1,500,000wfms/s | - | - | Get a Quote |
| DHO4204 | 200MHz | 4 | 4GSa/s | 500Mpts(opt.) | 1,500,000wfms/s | - | - | Get a Quote |
| Model | Description | Harga |
|---|---|---|
| DHO4000-RLU-05 | 500Mpts storage depth upgrade option | Get a Quote |
| DHO4000-AUTOA | CAN-FD/LIN bus triggering and analysis options | Get a Quote |
| DHO4000-AEROA | MIL-STD1553 bus triggering and analysis options | Get a Quote |
| DHO4000-FLEXA | FlexRay Serial Bus Triggering and Analysis Options | Get a Quote |
| DHO4000-AUDIOA | I2S bus trigger and analysis options | Get a Quote |
| DHO4000-PWRA | Power Analysis Options | Get a Quote |
| DHO4000-BND | DHO4000 Bundle Option | Get a Quote |
| Model | Description | Harga |
|---|---|---|
| DHO4000-BWU2T4 | 200M to 400M bandwidth upgrade option | Get a Quote |
| DHO4000-BWU2T8 | 200M to 800M bandwidth upgrade option | Get a Quote |
| DHO4000-BWU4T8 | 400M to 800M bandwidth upgrade option | Get a Quote |
| Model | Description | Harga | Manual |
|---|---|---|---|
| PVA7250 | 2.5GHzActive differential probe | Get a Quote | Download |
| RP7150S | 1.5GHz Active single-ended probe | Get a Quote | Download |
| RP7150 | 1.5GHzActive differential probe） | Get a Quote | Download |
| RP7080S | 800MHz Active single-ended probe | Get a Quote | Download |
| RP7080 | 800MHzActive differential probe | Get a Quote | Download |
| Model | Description | Harga | Manual |
|---|---|---|---|
| RP1018H | 18kV 150MHzHigh voltage probe | Get a Quote | Download |
| RP1300H | 300MHzHigh voltage probe(2kV) | Get a Quote | Download |
| RP6150A | 1.5GHzPassive low resistance probe（500ohm） | Get a Quote | Download |
| RP3500A | 500MHzPassive high resistance probe | Get a Quote | Download |
| Model | Description | Harga | Manual |
|---|---|---|---|
| RP1006C | 2MHz，500A | Get a Quote | Download |
| RPCA1500 | 2MHz, 500A Current Probe | Get a Quote | Download |
| PCA1150 | Current probe：10MHz，150A/td> | Get a Quote | Download |
| RP1002C | 1MHz，70ADC | Get a Quote | Download |
| PCA1030 | Current probe：50MHz，30A | Get a Quote | Download |
| RP1000P | 4CHPower Adapter | Get a Quote | - |
| RP1005C | 10MHz,150A | Get a Quote | - |
| RP1004C | 100MHz,30A | Get a Quote | - |
| RP1003C | 50MHz,30A | Get a Quote | - |
| RP1002C | 1MHz，70ADC | Get a Quote | - |
| RP1001C | 300KHz，100A DC | Get a Quote | - |
| Model | Description | Harga | Manual |
|---|---|---|---|
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | Get a Quote | - |
| PHA1150 | High voltage differential probe，DC-100MHz，1500V | Get a Quote | Download |
| PHA0150 | High voltage differential probe，DC-70MHz，1500V | Get a Quote | Download |
| RP1100D | 100MHz,6.5KV | Get a Quote | Download |
| RP1050D | 50MHz，6.5KV | Get a Quote | Download |
| RP1025D | 25MHz,1.4KV | Get a Quote | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DHO4000 Firmware | 00.02.13.00.07 | 2024-06-18 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| Ultra Sigma HelpDocument | V1.0 | 2021-11-01 | Download | Ultra Sigma patch file for MSO8000 | V1.1 | 2021-11-01 | Download | Ultra Sigma (PC)Installer | V00.01.06.01 | 2021-11-01 | Download | Ultra Scope Software | V00.01.02.13 | 2021-11-01 | Download | DHO4000 IVI Driver | V1.0 | 2024-04-11 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DHO4000 Datasheetss | V1.0 | 2023-01-10 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DHO4000 Programming Manual | V1.0 | 2023-01-10 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DHO4000 Quick Guide | V1.0 | 2023-01-10 | Download |
