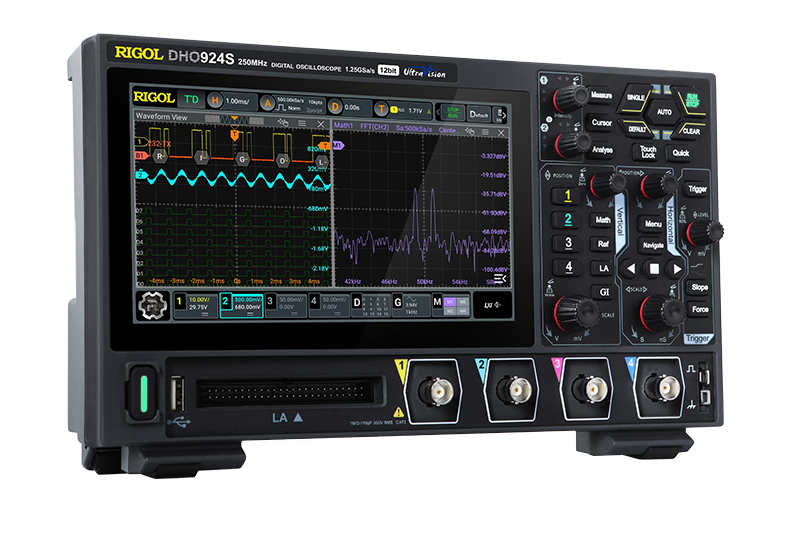

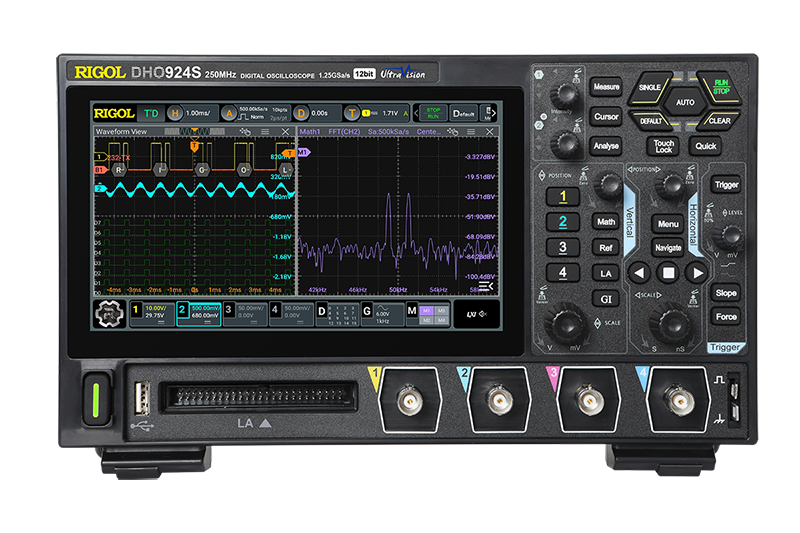

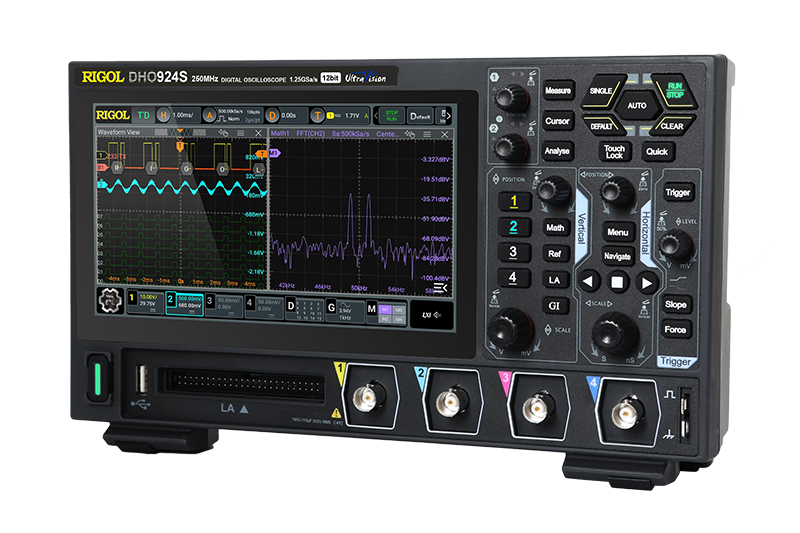

DHO900 Series - RIGOL Digital Oscilloscope


Features

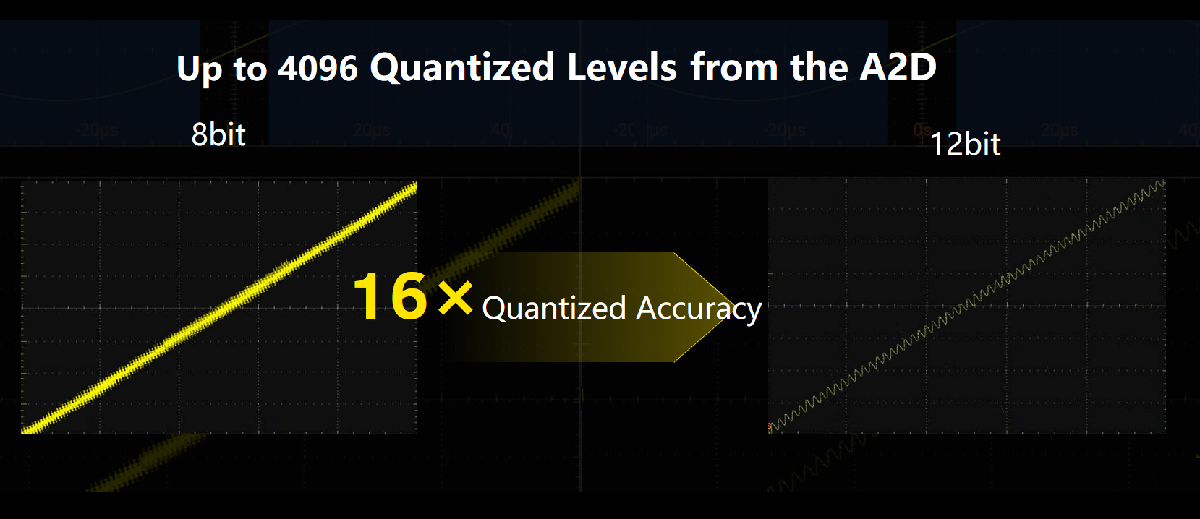

High-resolution 12-bit

The DHO900 series offers a 12-bit vertical resolution with 4096 levels of quantization, 16 times more precise than 8-bit resolution. This upgrade significantly enhances waveform measurement accuracy, particularly in critical applications like power ripple testing and medical equipment detection.

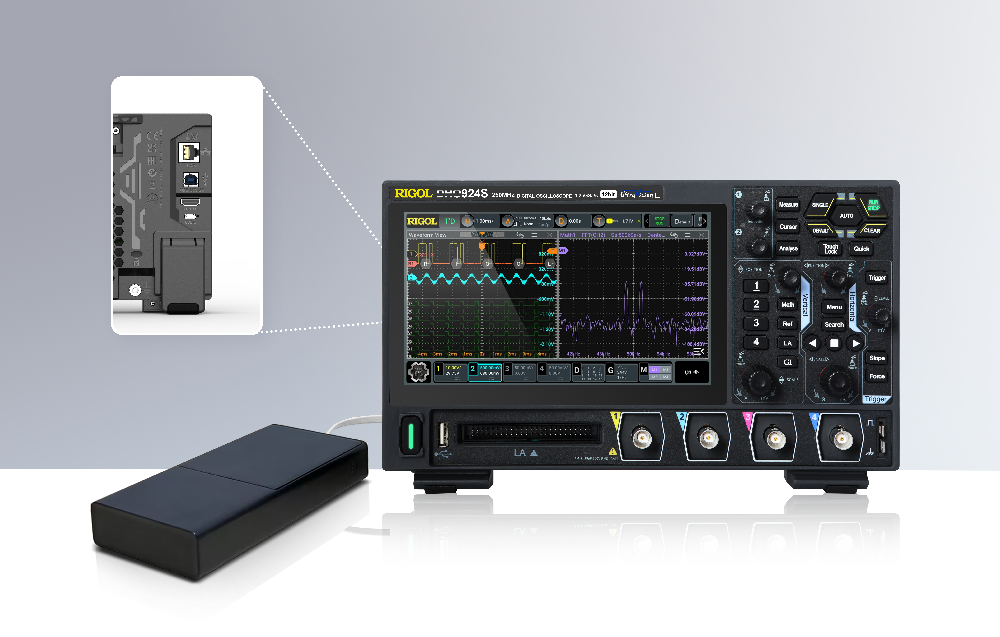

Support Type-C Power

The Type-C power supply interface design of the DHO900 series allows the device to be powered by a single portable power bank, meeting the requirements of on-site chip testing and circuit maintenance, among other applications.

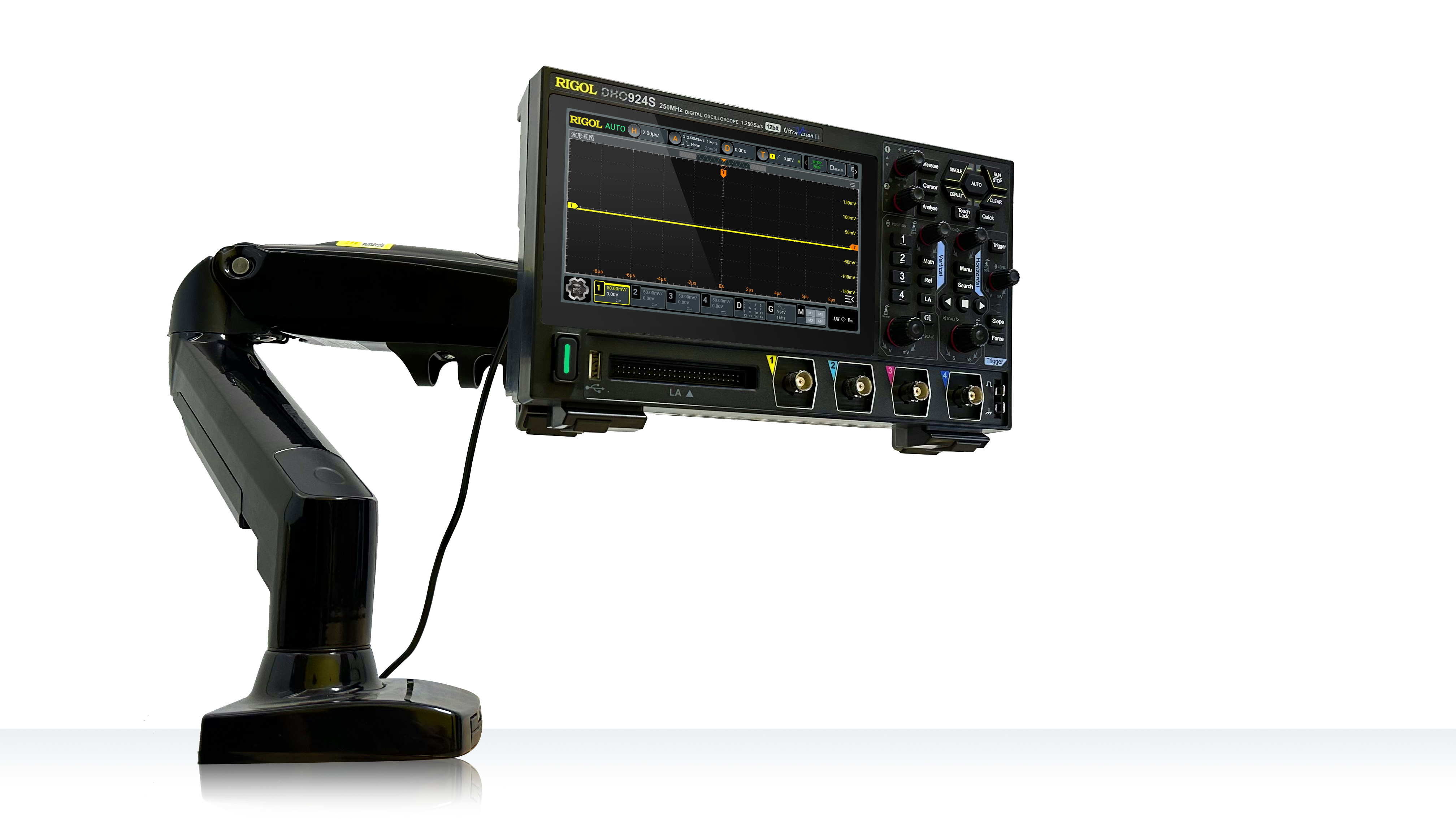

Sleek Design

The DHO900 series is compact and portable, effectively reducing the burden of carrying equipment for on-site operations. Additionally, it supports VESA standard monitor mounts, making your desktop more organized and saving workspace.

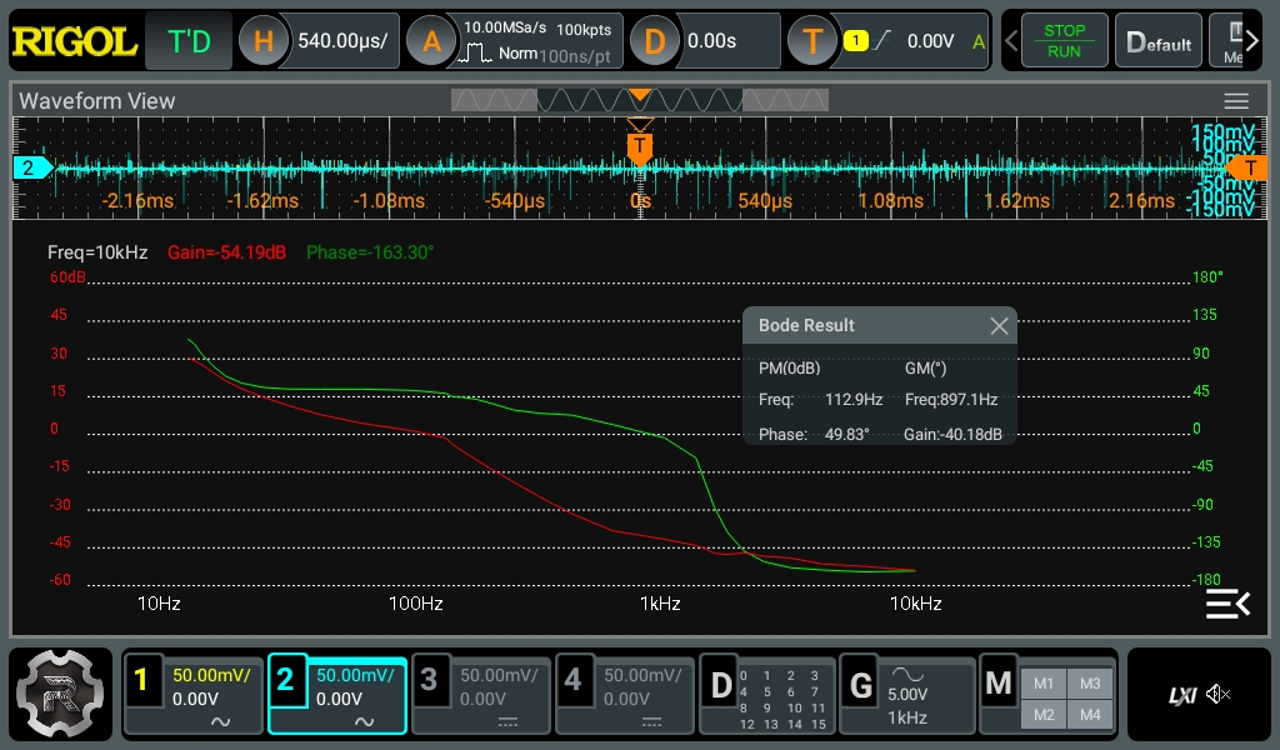

Supports Bode Plot Analysis

The DHO900S is equipped with the Bode diagram loop analysis function, facilitating switch-mode power supply loop analysis and amplitude-frequency response testing of components. This advanced feature enhances the device's capabilities, allowing for comprehensive analysis and optimization of power supply systems and component performance.

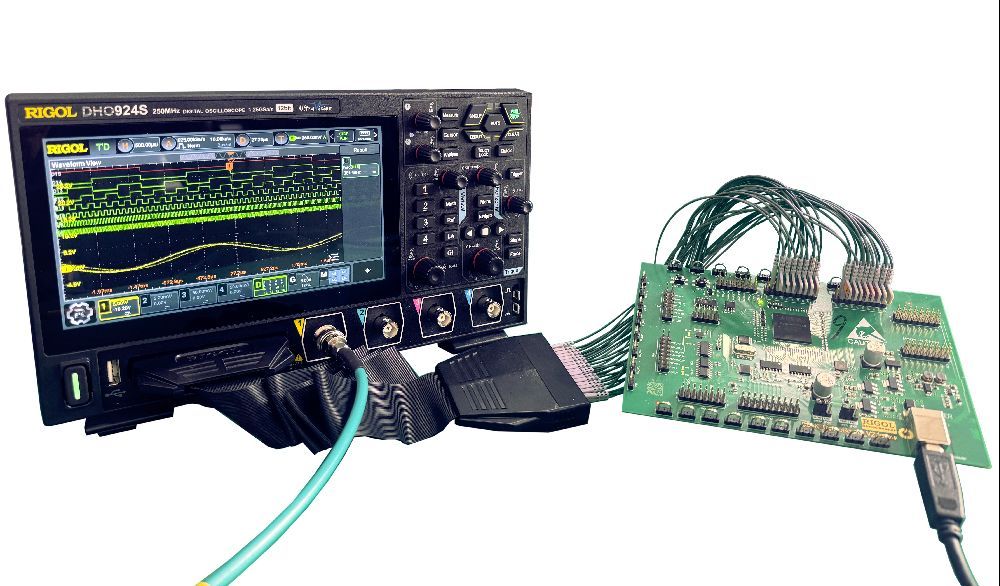

Standard Digital Channels

The entire DHO900 series comes standard with digital channels, which, when paired with the PLA2216 logic analysis probe, enables digital signal analysis. This solves the problem of simultaneous analog and digital signal debugging needs in electronic design.

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DHO924S 250MHz 1.25GSa/s 1,000,000 wfms/s 4 50 Mpts Rp15.262.000
DHO914S 125MHz 1.25GSa/s 1,000,000 wfms/s 4 50 Mpts Rp13.986.000
DHO924 250MHz 1.25GSa/s 1,000,000 wfms/s 4 50 Mpts Rp12.598.500
DHO914 125MHz 1.25GSa/s 1,000,000 wfms/s 4 50 Mpts Rp11.377.500
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

User Manual

Name Version Release Date Download
DHO900 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DHO900 Datasheets V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DHO900 Quick Guide V1.0 2019-08-29 Download
