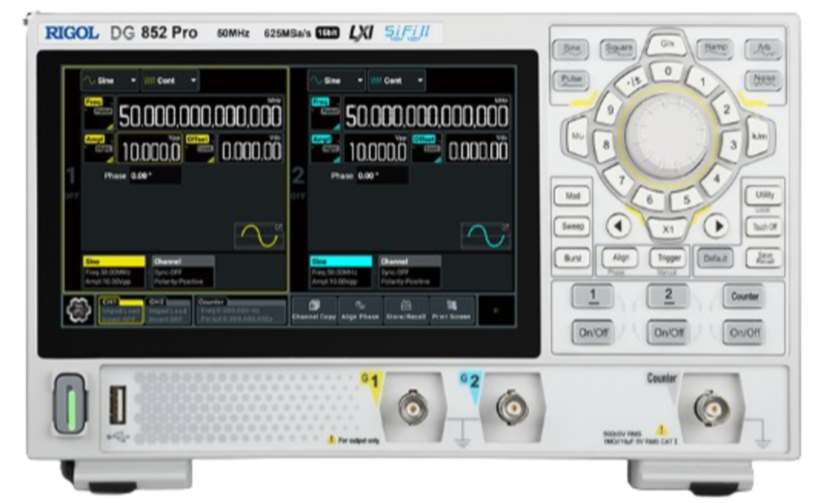

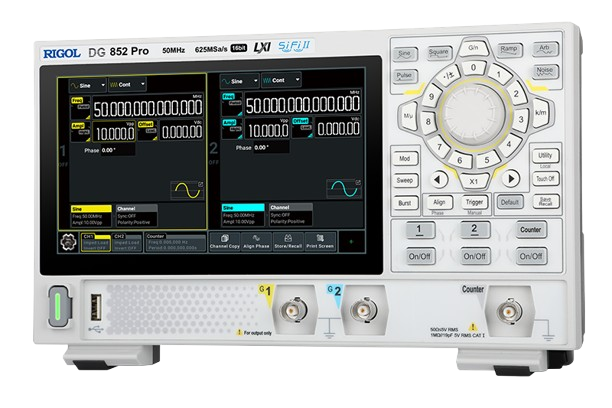

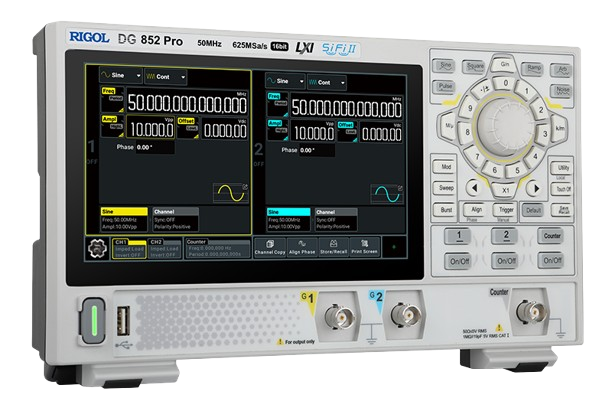

DG800 Pro Series - RIGOL Waveform Generators

Features

Outstanding Accuracy

625MSa/s maximum sampling rate, 16bit vertical resolution, more accurate waveform output, and cost-effective choice for entry-level signal sources.

7-inch Color Touch Screen Display

7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

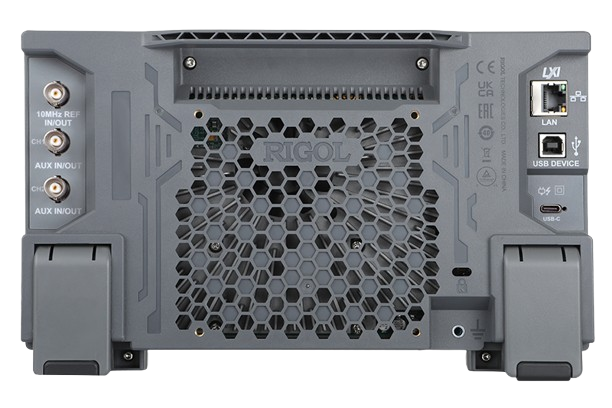

Equipped with Type-C Connector

Type-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient.

Smart Appearance

The 266mm (width) x 165mm (height) x 63mm (depth) DG800 Pro weight only 1.78kg. With its ultra portable design,compact size,and supported by standard display stand, saves your workspace space.

Fast Rising Edge

40MHz square wave and 25MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

Ultra Low Signal Jitter

Based on RIGOL's SIFI ll technology, the DG800 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable. Compared to traditional DDS signal sources,the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).

Rich Modulation Functions

Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

Sequence function

NSupport up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

Maximum 20th Harmonic Generation Function

Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices

High Resolution Frequency Meter

A 7-bit 500MHz frequency meter that can measure parameters such as frequency, period, duty cycle, positive and negative pulse width from external input signals, and supports statistical analysis of measurement results

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DG821 Pro 25MHz 625MSa/s 16bits 1CH 2M(8M opt.) Get a Quote
DG822 Pro 25MHz 625MSa/s 16bits 2CH 2M(8M opt.) Get a Quote
DG852 Pro 50MHz 125Msa/s 16bits 2CH 2Mpts(8Mpts opt.) Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description Harga
DG800 Pro-DCH 2 channel upgrade option Get a Quote
DG800 Pro-3RL 8M upgrade option Get a Quote

User Manual

Name Version Release Date Download
DG800 Pro User Manual V1.0 2024-02-18 Download
Ultra Station (PC) Software & UserGuide 00.02.00.00.14 2024-10-10 Download

Datasheet

Name Version Release Date Download
DG800 Pro Datasheet V3.0 2024-03-14 Download

Programming Manual

Name Version Release Date Download
DG800 Pro Programming Manual V1.0 2024-02-18 Download

Quick Guide

Name Version Release Date Download
DG800 Pro QuickGuide V1.0 2024-02-18 Download

Open Source Acknowledgment

Name Version Release Date Download
DG800 Pro Open Source Acknowledgment V1.0 2024-01-12 Download

Firmware

Name Version Release Date Download
DG800 Pro Firmware V00.01.00 2024-02-18 Download
Ultra Station (PC) Software & UserGuide 00.02.00.00.14 2024-10-10 Download
