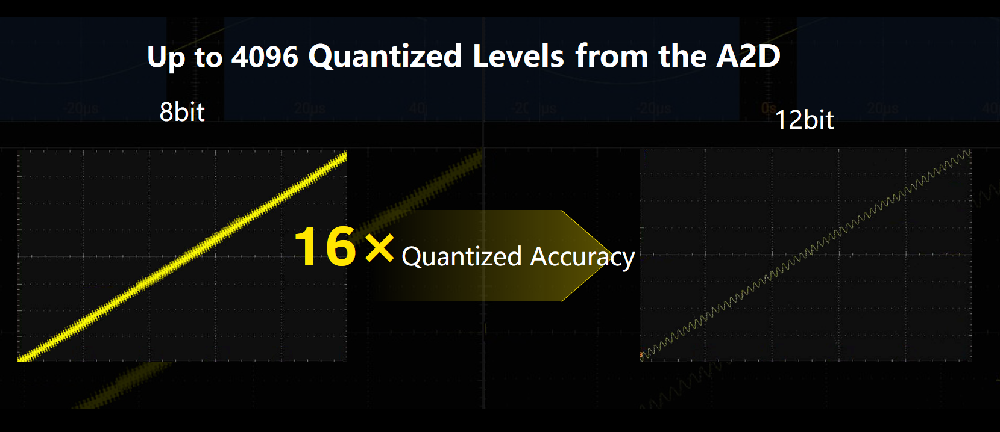

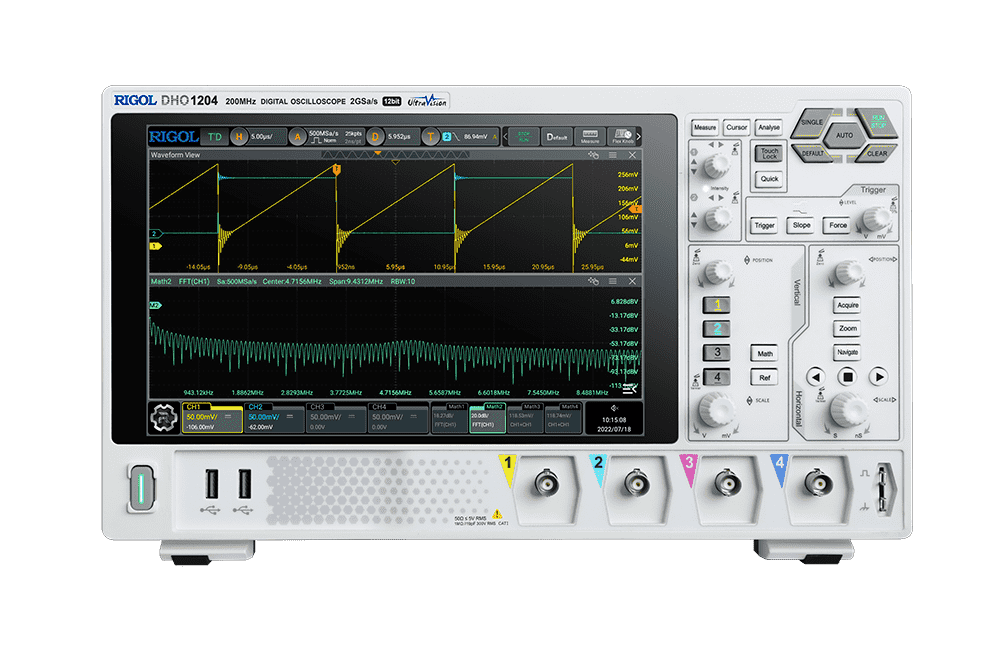

The DHO1000 Series Digital Oscilloscopes are equipped with a second generation chipset developed by RIGOL. With a low noise floor and 12 bits, these high-resolution oscilloscopes are capable of finding the tiniest signals.
Bandwidth : 200 MHz
Sample Rate : 2GSa/s
Vertical Resolution : 1,500,000wfms/s
Channels : 4 Channels
Arbitary Wave Length : 100 Mpts
| Series | Max. Output Frequency |
Sample Rate |
Vertical Resolution |
Channels | Arbitary Wave Length |
Price |
|---|---|---|---|---|---|---|
| DHO1204U | 200MHz | 1Gsa/s2GSa/s | 500,000wfms/s | 4 | 50 Mpts | Get a Quote |
| DHO1202U | 200MHz | 2GSa/s | 500,000wfms/s | 2 | 50 Mpts | Get a Quote |
| DHO1204 | 200MHz | 2GSa/s | 1,500,000wfms/s | 4 | 100 Mpts | Get a Quote |
| DHO1202 | 200MHz | 2GSa/s | 1,500,000wfms/s | 2 | 100 Mpts | Get a Quote |
| DHO1104 | 100MHz | 2GSa/s | 1,500,000wfms/s | 4 | 100 Mpts | Rp34.354.700 |
| DHO1102 | 100MHz | 2GSa/s | 1,500,000wfms/s | 2 | 100 Mpts | Get a Quote |
| DHO1072 | 70MHz | 2GSa/s | 1,500,000wfms/s | 2 | 100 Mpts | Get a Quote |
| DHO1074 | 70MHz | /2GSa/s | 1,500,000wfms/s | 4 | 100 Mpts | Rp24.531.000 |
| *Harga dapat berubah sewaktu-waktu tanpa pemberitahuan | ||||||
| Name | Version | Release Date | Download |
|---|---|---|---|
| DHO1000 User Manual | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DHO1OOO Datasheets | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DG5000 Quick Guide | V1.0 | 2019-08-29 | Download |
