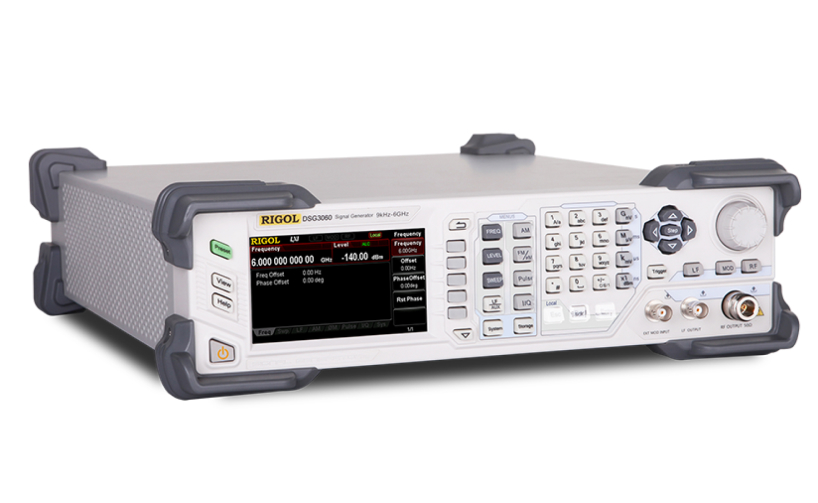

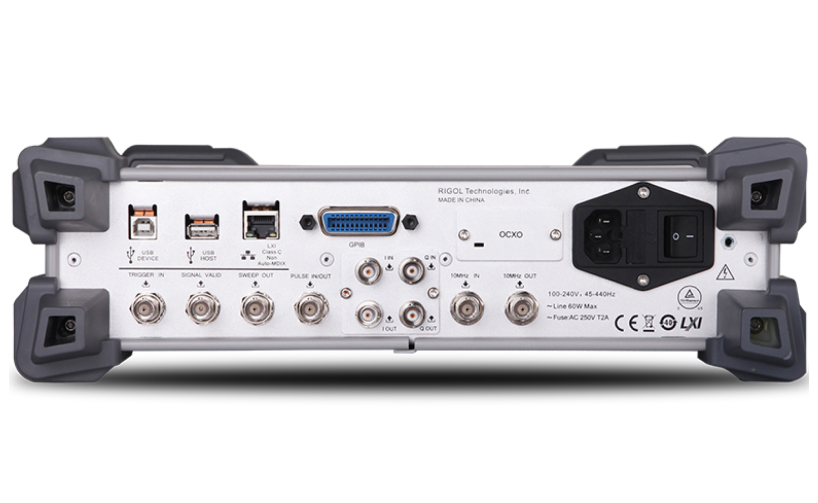

DSG3000 Series - RIGOL RF Signal Generators

Features

Signal Output Function

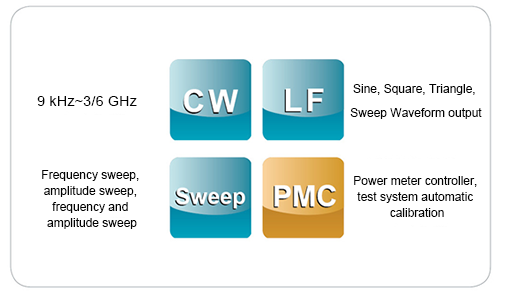

DSG3000 output signal frequency up to 12GHz, can produce continuous wave, various forms of low frequency signals and a variety of parameters can be set frequency / amplitude scanning signal, the output signal is accurate and reliable, and provides automatic calibration through the power meter.

High Power Signal Generation Capability

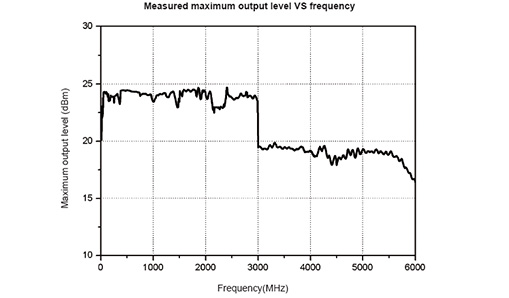

The maximum output amplitude is +13dBm (nominal value), which can be set to +25dBm, which meets the non-linearity test of the amplifier.

Pulse Modulation, Providing Up to 80dB Switching Ratio

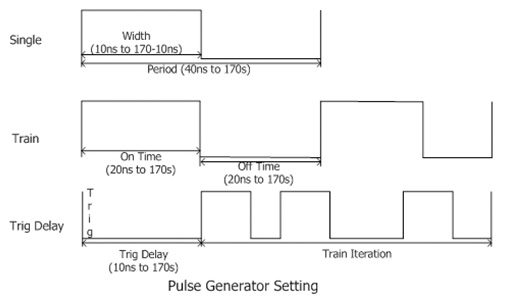

Standard pulse modulation, pulse on/off ratio up to 80dB, optional custom pulse sequence, can generate single pulse, double pulse and arbitrary pulse sequence, with analog modulation external modulation input function, can easily realize ASK, FSK, Simple digitally modulated output such as PSK.

Internal and External IQ Modulation

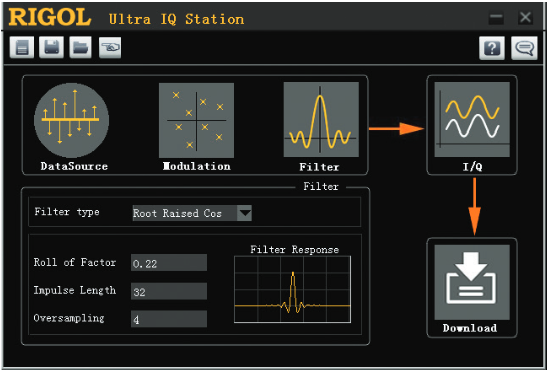

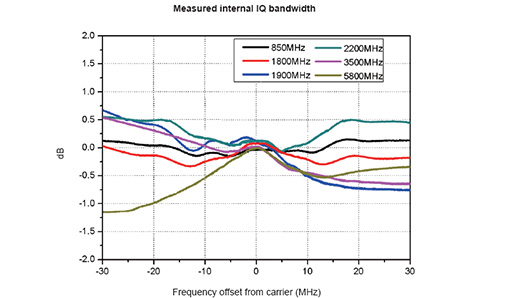

Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM < 0.7%, external I+Q modulation bandwidth 240MHz, EVM < 0.8% (typical), and Ultra IQ Station for convenience Generated vector signal waveform.

Reliable Output Amplitude Stability

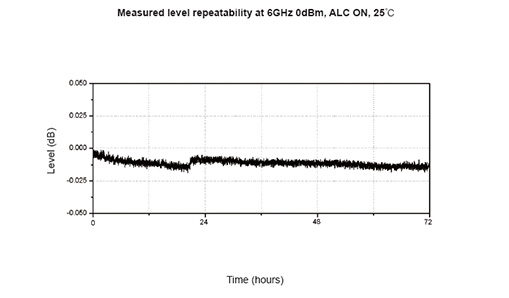

Excellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB.

Multiple Modulation Methods

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources.

Phase Noise Metric

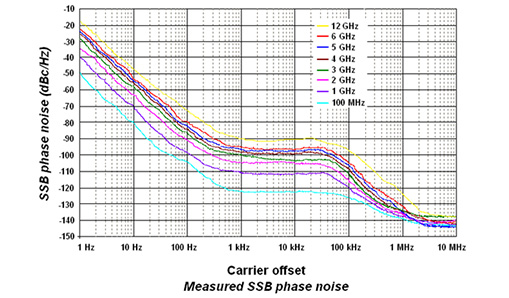

High signal purity, phase noise typical value <-110dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index.

Small Signal Output Capability

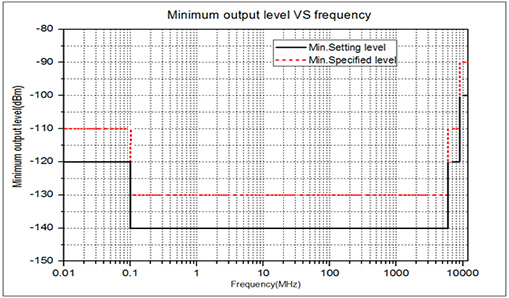

Minimum output amplitude of -130dBm (can be set to -140dBm) for demanding receiver sensitivity testing.

Model

Model Frequency
Range		 Description Phase
Noise		 DANL Tracking
Source		 Price
DSG3030 9 kHz 至 3 GHz -130dBm ~ +13dBm < 0.5dB <-110dBc/Hz@20kHz AM/FM/ØM/Pulse Get a Quote
DSG830-IQ 9 kHz 至 3 GHz -130dBm ~ +13dBm < 0.5dB <-110dBc/Hz@20kHz AM/FM/ØM/Pulse/IQ Get a Quote
DSG3060 9 kHz 至 6 GHz -130dBm ~ +13dBm < 0.5dB <-110dBc/Hz@20kHz AM/FM/ØM/Pulse Get a Quote
DSG3060-IQ 9 kHz 至 6 GHz -130dBm ~ +13dBm < 0.5dB <-110dBc/Hz@20kHz AM/FM/ØM/Pulse/IQ Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description
PUG-DSG3000 Pulse Train Generator option for DSG3000 Signal Generators
PMC-DSG3000 Power Meter Control option for DSG3000 Signal Generators

Accessories

Model Description
RF Attenuator Kit Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
RM-DSG3000 Rack Mount kit for DSG3000 Signal Generators
OCXO-A08 High Stable OCXO Reference Clock option for DSG3000
Signal Generators
CB-USBA-USBB-FF-150 USB Cable
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
ATT03301H 30dB High Power Attenuator, Max Power 100W
RF Adaptor Kit Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs),
N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs),
SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs),
BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs),
50 Ω BNC Impedance Adapter (1pcs)
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable

User Manual

Name Version Release Date Download
DSG3000 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DSG3000 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DSG3000 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DSG3000 Quick Guide V1.0 2019-08-29 Download
