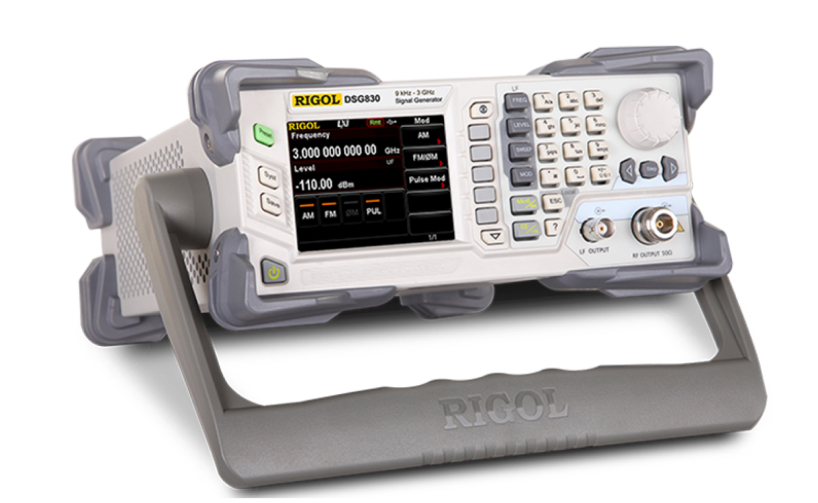

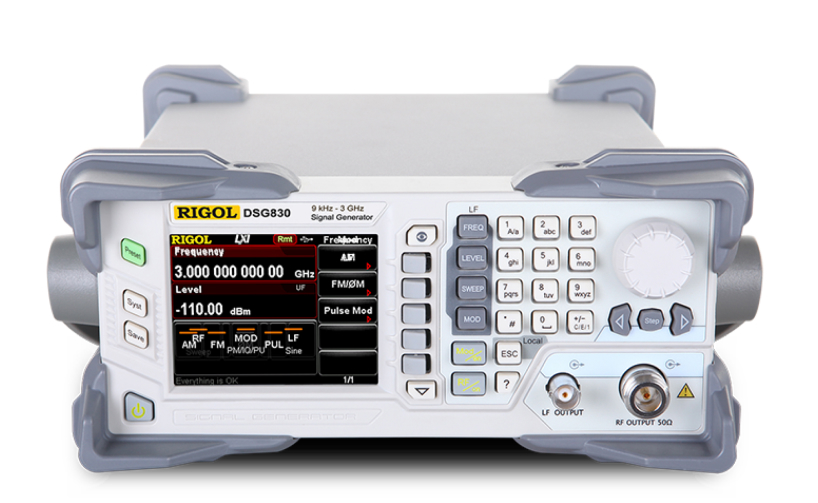

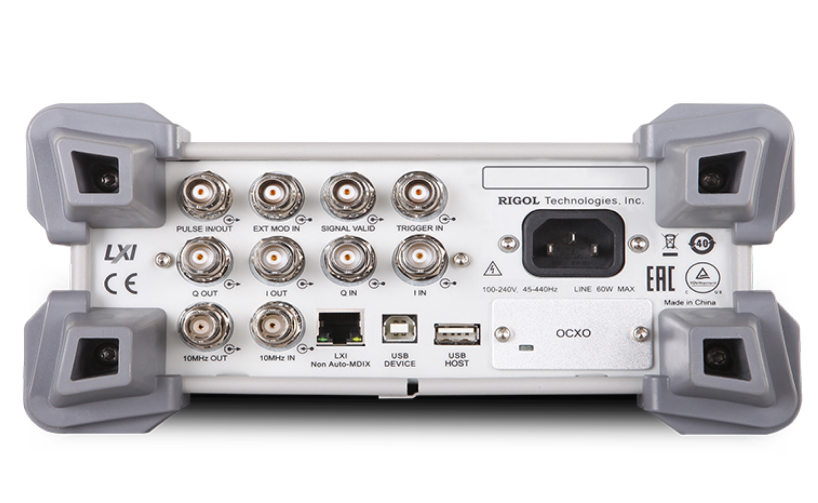

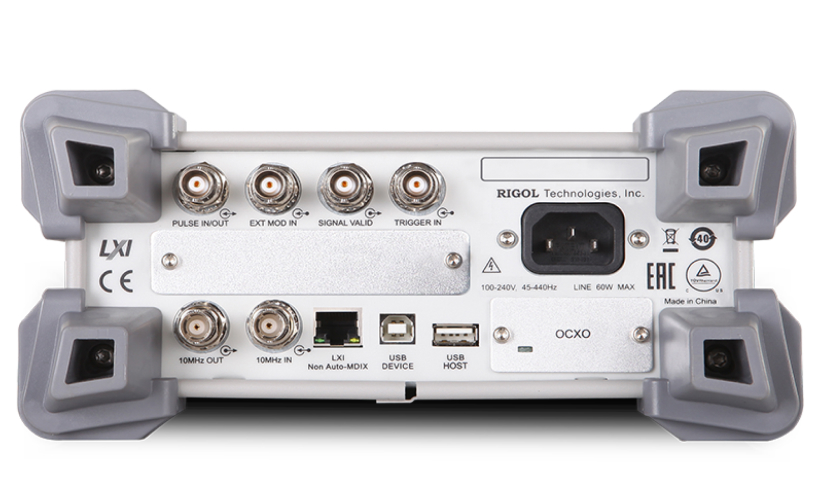

DSG800 Series - RIGOL RF Signal Generators

Features

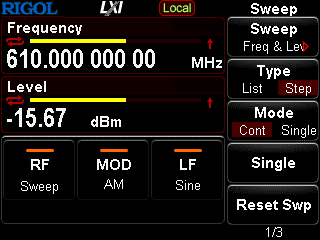

Complete AM/FM/ØM Analog Modulation

DSG800 provides a variety of analog modulation functions such as AM/FM/ØM, which is suitable for signal simulation requirements in various applications such as FM radio and wireless microphone.

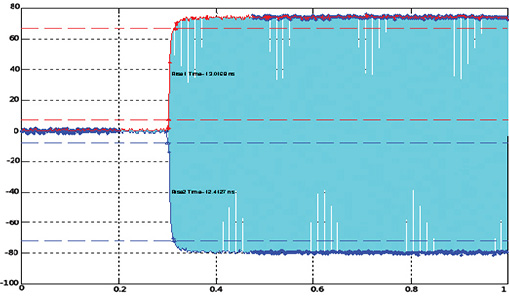

Pulse Modulation

It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator.

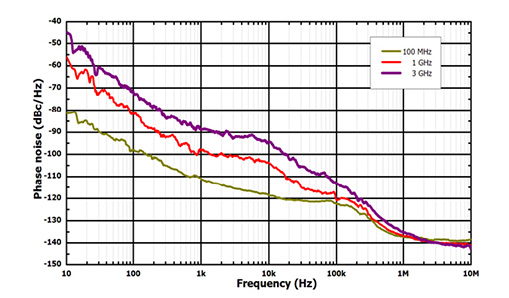

Low Phase Noise

High signal purity, phase noise typical value <112dBc/Hz@20kHz; better high-stability clock reference with better near-phase noise capability.

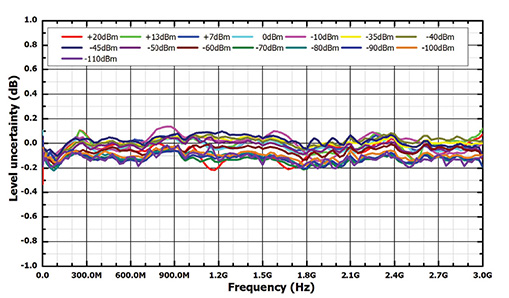

High Amplitude Accuracy

The output amplitude accuracy is typically 0.5 dB, providing users with accurate excitation signals.

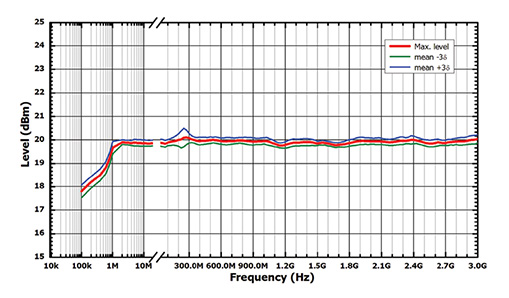

Wide Range of High Power Output

The maximum output amplitude is +13dBm (nominal value), and can be set to +20dBm to meet the nonlinearity test of the amplifier.

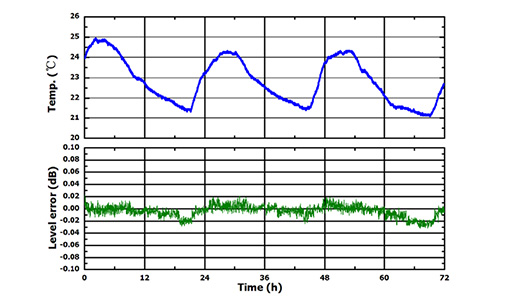

Amplitude Stability

Reliable repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB.

Model

Model Frequency
Range		 Description Phase
Noise		 DANL Tracking
Source		 Price
DSG815 9kHz ~ 1.5GHz -110dBm~+13dBm <0.5dB -105dBc/Hz@20kHz AM/FM/ØM/Pulse Rp38.295.000
DSG830 9kHz~3GHz < 0.5dB <-105dBc/Hz@20kHz AM/FM/ØM/Pulse Rp75.480.000
DSG836 3.60 GHz < 0.5dB <-112 dBc/Hz AM/FM/ØM/Pulse Rp81.141.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description
DSG800-PUM Pulse modulation option for the DSG800 Series RF signal sources
DSG800-PUG Pulse Train Generator option for the DSG800 Series RF signal sources.
Includes DSG800-PUM license automatically.

Accessories

Model Description
RM-2-DG1000Z Rack Mounting Kit for two DG1000Z
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
RM-1-DG1000Z Rack Mounting Kit for one DG1000Z
OCXO-B08 High stability timebase option for the DSG800 Series RF signal sources
CB-USBA-USBB-FF-150 USB Cable
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
ATT03301H 30dB High Power Attenuator, Max Power 100W
RF Adaptor Kit Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs),
N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs),
SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs),
BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs),
50 Ω BNC Impedance Adapter (1pcs)
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable

User Manual

Name Version Release Date Download
DSG800 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DSG800 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DSG800 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DSG800 Quick Guide V1.0 2019-08-29 Download
