Features

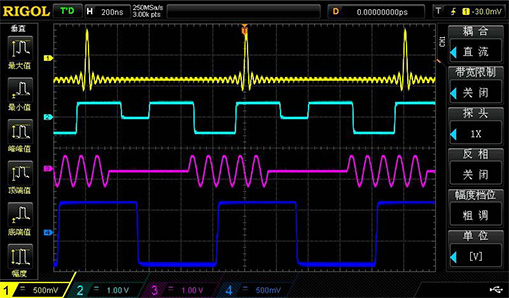

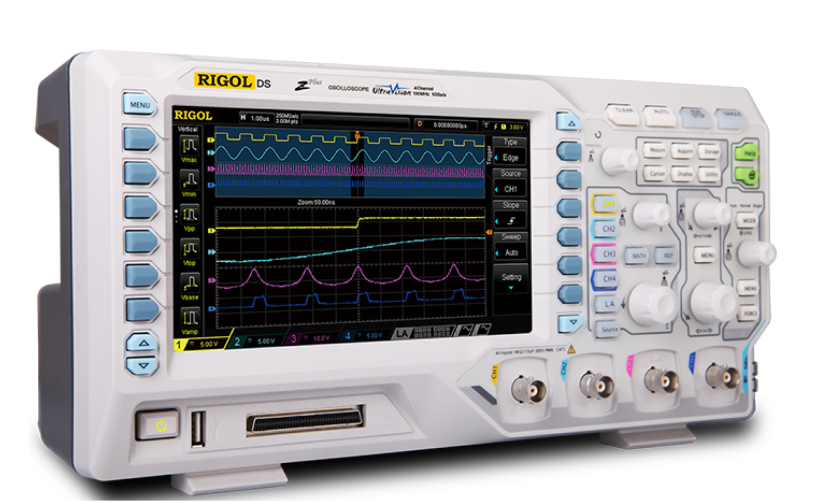

4 Channels As Standard

The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals

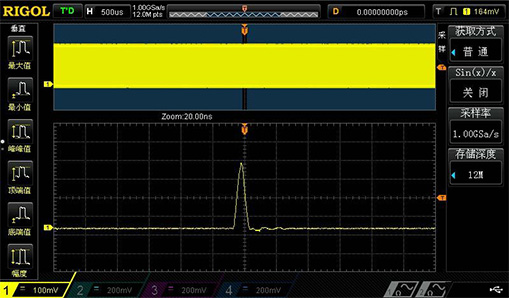

12Mpts Storage Depth

Standard with 12M, optional with 24m super long storage depth. (standard configuration of digital channel 6m, optional 12m) allows the user to give full consideration the overall situation and details of the waveform, maintain the highest sampling rate in a longer period of time, without missing any waveform changes

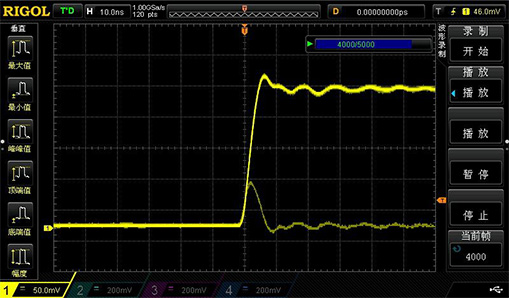

Hardware Waveform Recording and Playback Function

Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location

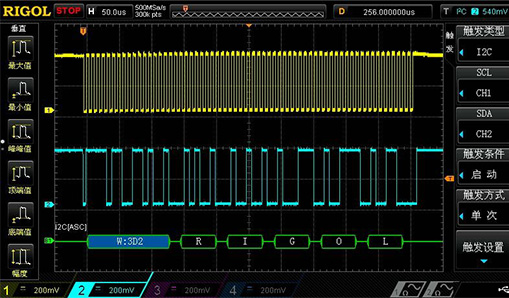

Serial Bus Triggering and Decoding

Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus

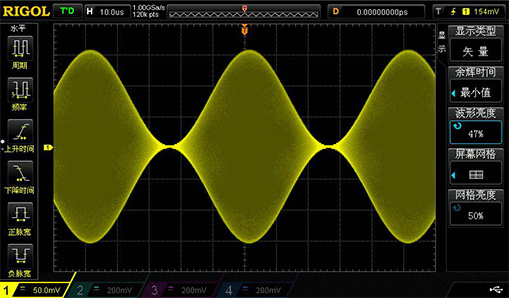

Digital Fluorescent Display

Gray level display capability, similar to fluorescent display effect, with minute change of waveform

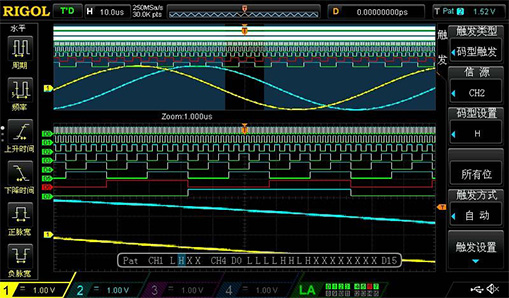

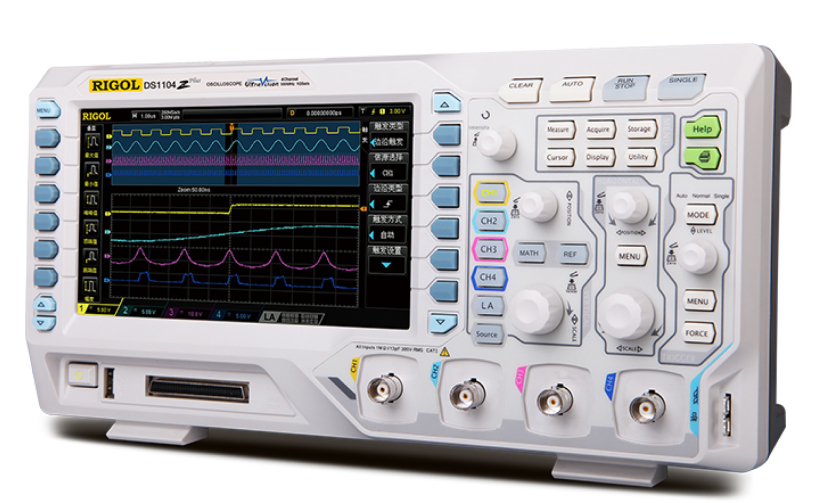

Mixed Signal Analysis Capability

The plus model provides 16 digital logic channels, which makes it more convenient to test multiple analog and digital signals at the same time and analyze logic signals more conveniently. DS1000z plus can be upgraded to MSO

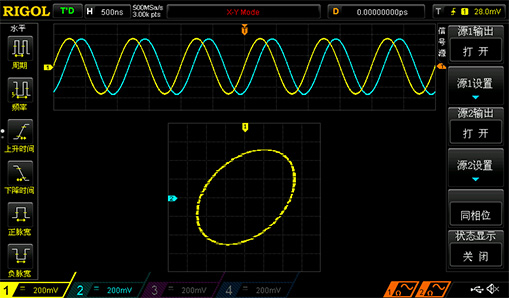

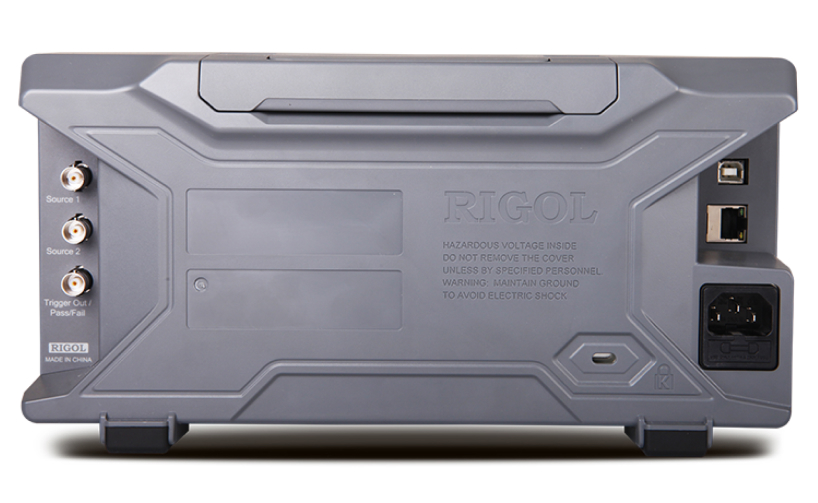

Two 25MHz Signal Sources

With two 25MHz arbitrary waveform generator models, the oscilloscope, logic analyzer and signal source are combined to give you a more efficient test experience

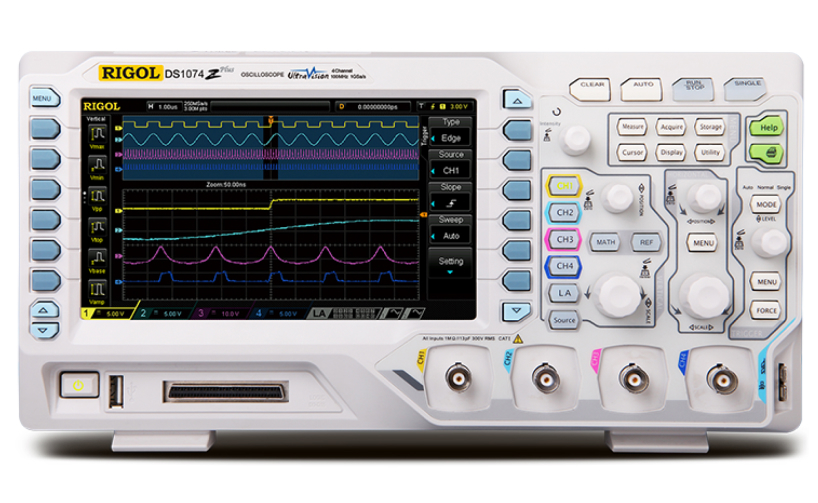

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price
DS1054Z 50 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s - - Rp.7.381.500
DS1074Z Plus 70 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s 16(Need to configure logic probe) - Rp9.825.500
DS1074Z-S Plus 70 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s 16(Need to configure logic probe) 2CH Rp13.986.000
DS1104Z Plus 100 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s 16(Need to configure logic probe) - Rp13.986.000
DS1104Z-S Plus 100 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s 16(Need to configure logic probe) 2CH Rp14.874.000
