DS70000 Series - RIGOL Digital Oscilloscopes

Features

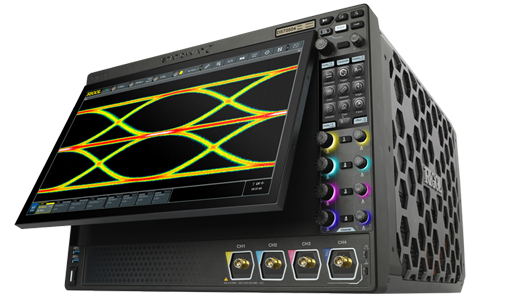

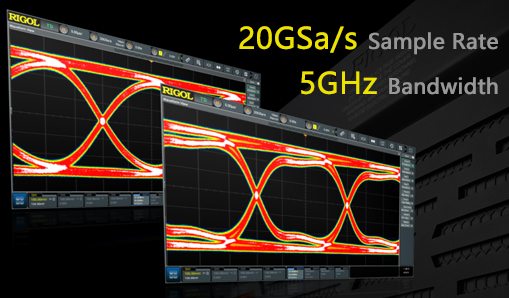

Digital Oscilloscope with Real­-Time Spectrum Analysis to 5 GHz

Up to 5 GHz Bandwidth and 20 GSa/sec Sample Rate.

Waveform Capture Rate

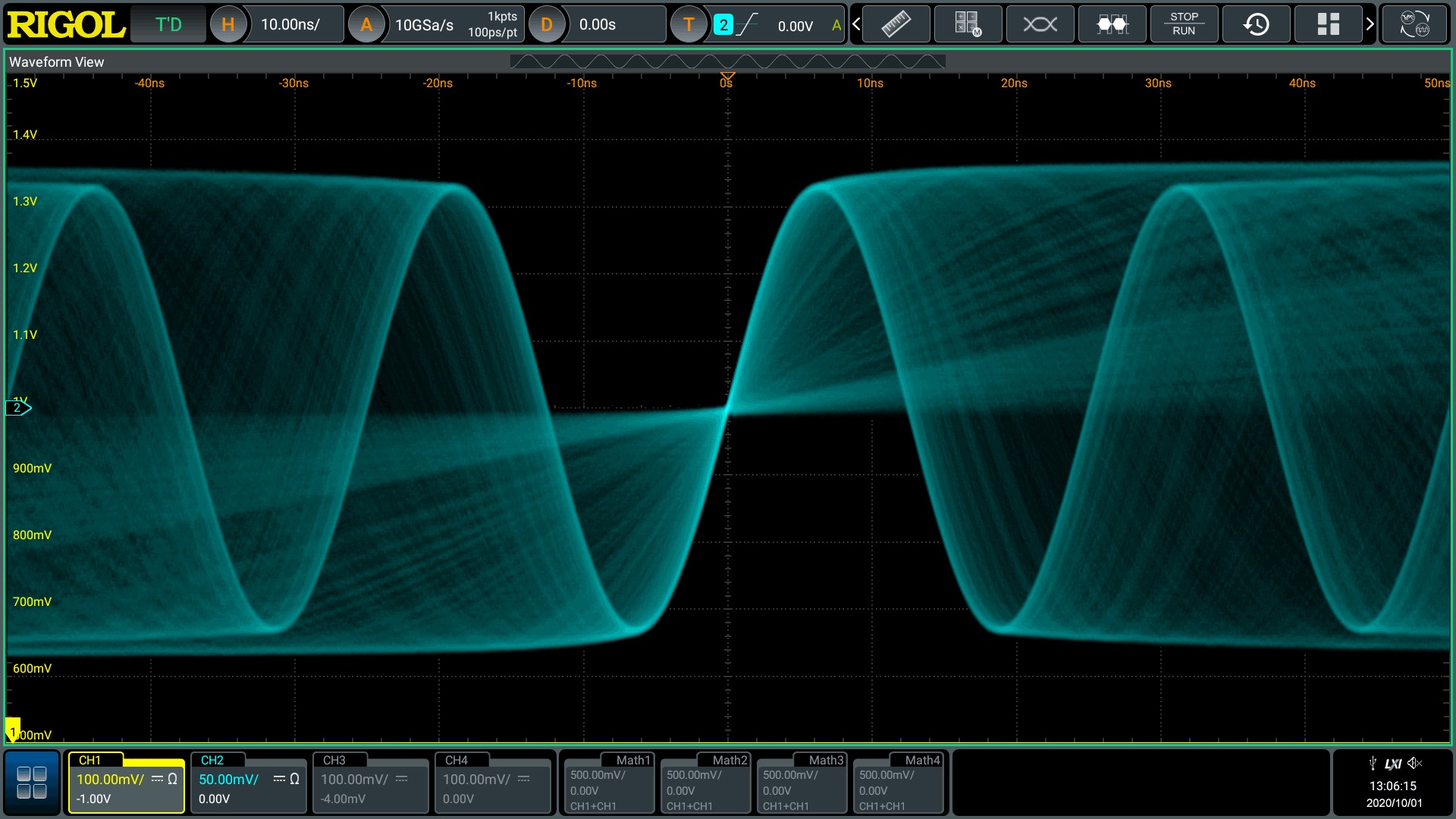

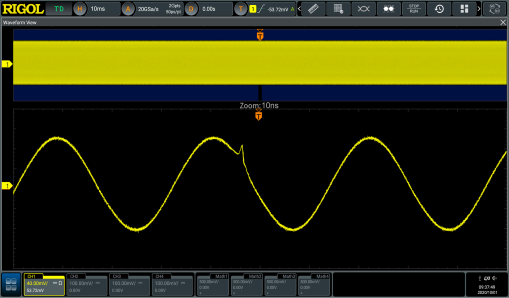

View infrequent anomalies and small signal details quickly and precisely with up to 1 Million waveforms visualized on the screen every second.

2 Billion Points of Memory

500 Mpts memory depth is standard and can be upgraded to 2 Gpts memory depth (Half-channel 1 Gpts) Full 100 millisecond capture at max sampling rate of 20 GSamples per second Capture half a Billion periods of a 5 GHz signal in one continuous data stream Memory can also be segmented to record up to 2 Million frames in record mode

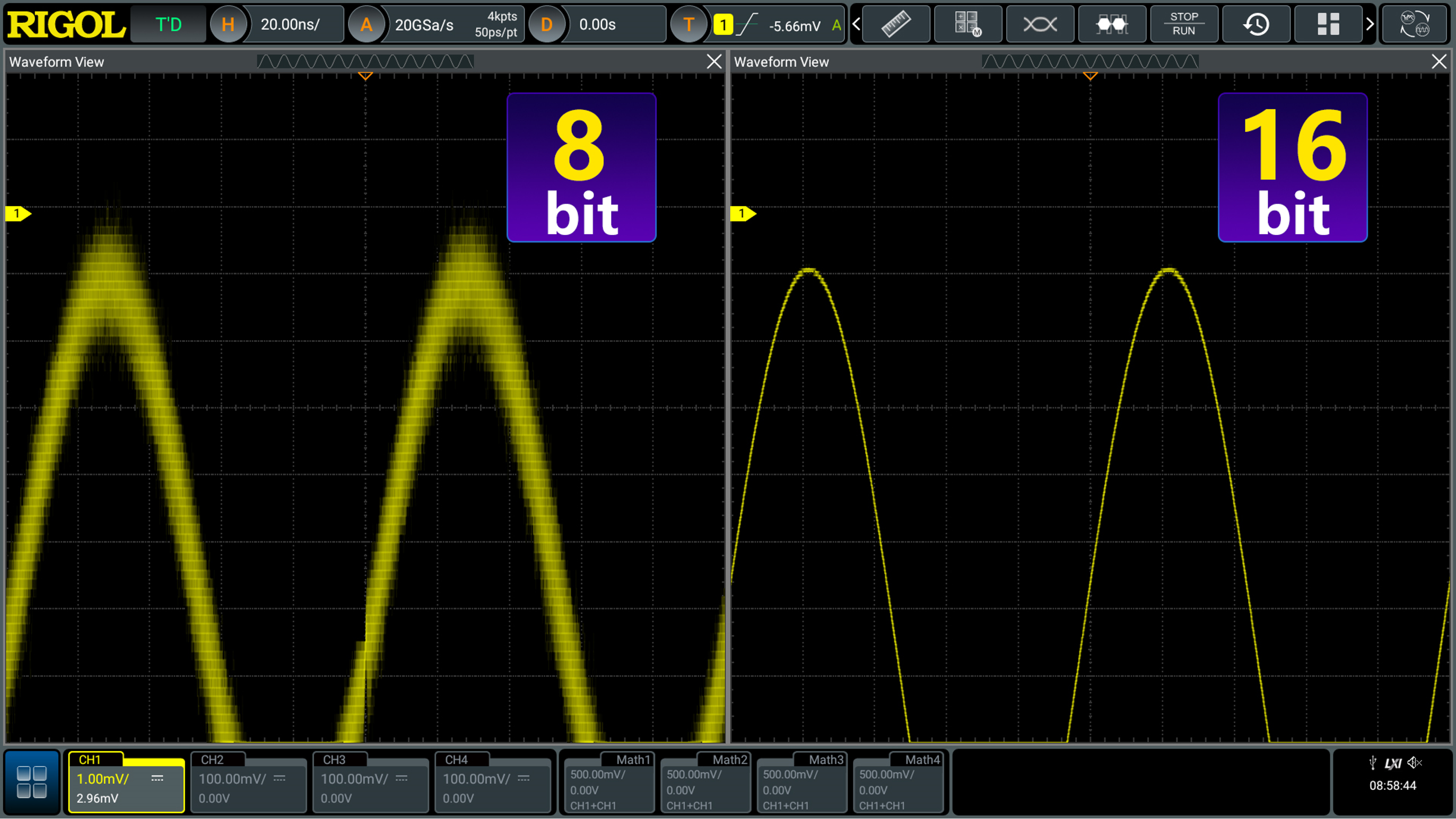

16 bits Vertical Resolution

Up to 16 bit resolution High resolution mode: 9-16 bits Directly select the number of bits

Multiple Touchscreens for efficient visualization

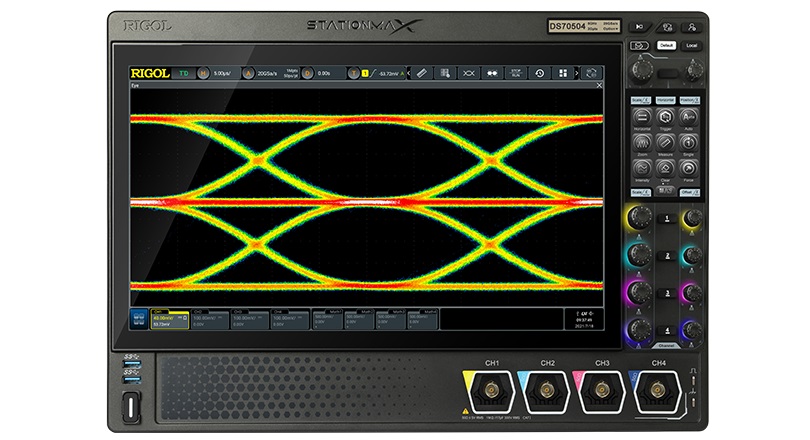

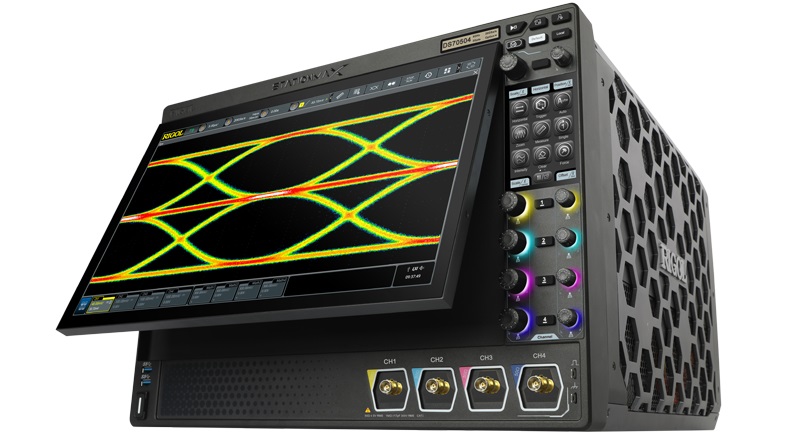

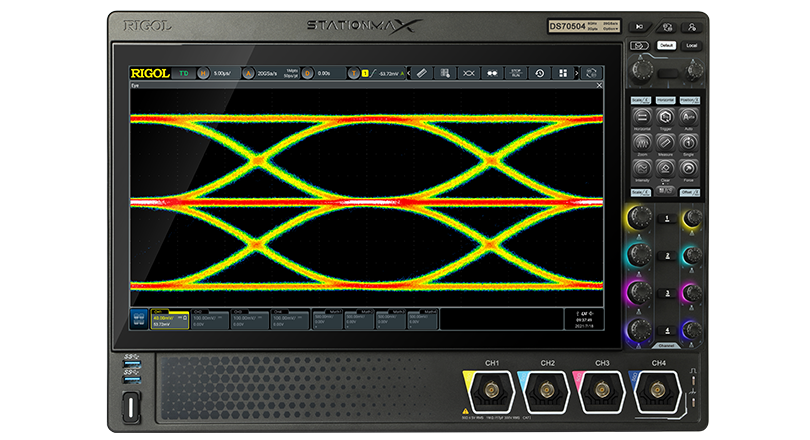

15.6” auto-tilt primary touchscreen display Secondary touchscreen reserves main screen for analysis

Over 600K wfms/s Waveform Capture rate

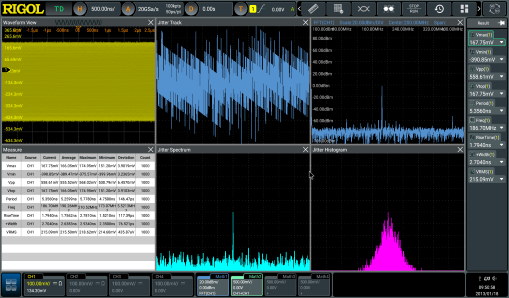

Analysis tools and functions open in separate windows that optimize scale and axis settings Measurements open in separate sidebar

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price
DS70304 3GHz 4 20 GSa/s 2 Gpts 1,000,000 wfms/s - - -
DS70504 5GHz 4 20GSa/s 2Gpts 1,000,000 wfms/s - - -

User Manual

Name Version Release Date Download
DS70000 User Manual V1.0 2022-02-28 Download

Quick Guide

Name Version Release Date Download
DS70000 QuickGuide V1.0 2022-02-28 Download

Datasheet

Name Version Release Date Download
DS70000 Datasheets V1.0 2022-02-28 Download

Programming Manual

Name Version Release Date Download
DS70000 Programming Manual V1.0 2022-02-28 Download

Open Source Statement

Name Version Release Date Download
DS70000 Open Source Statement V1.0 2024-01-25 Download

Passive Probe

Model Description Harga Manual
RP1018H 18kV 150MHzHigh voltage probe - Download
RP1300H 300MHzHigh voltage probe (2kV) - Download
RP6150A 1.5GHz Passive low resistance probe (500ohm) - Download
RP3500A 500MHz Passive high resistance probe - Download

Active Probe

Model Description Harga Manual
PVA8350 3.5GHzActive differential probe - Download
PVA8700 7GHzActive differential probe - Download
PVA7250 2.5GHzActive differential probe - Download
RP7150S 1.5GHz Active single-ended probe - Download
RP7150 1.5GHzActive differential probe - Download
RP7080S 800MHz Active single-ended probe - Download
RP7080 800MHzActive differential probe - Download

Current Probe

Model Description Harga Model
PCA1150 Current probe：10MHz，150A - Download
PCA2030 Current probe：100MHz，30A - Download
PCA1030 Current probe：50MHz，30A - Download
RP1000P 4CHPower Adapter - -
RP1001C 300KHz，100A DC - Download
RP1002C 1MHz，70ADC - Download
RP1003C 50MHz,30A - Download
RP1004C 100MHz,30A - Download
RP1005C 10MHz,150A - Download
RP1006C 2MHz，500A - Download

High Voltage Differential Probe

Model Description Harga Manual
PHA1150 High voltage differential probe, DC-100MHz, 1500V - Download
PHA0150 High voltage differential probe, DC-70MHz, 1500V - Download
RP1100D 100MHz, 6.5KV - Download
RP1050D 50MHz, 6.5KV - Download
RP1025D 25MHz, 1.4KV - Download

Logic Probe

Model Description Harga Manual
RPL2316 MSO4000/2000A Logic probe, 16CH - Download

Firmware

Name Version Release Date Download
DS70000 Firmware V00.05.08/td> 2024-01-25 Download

Software

Name Version Release Date Download
Ultra Sigma Help Document V1.0 2024-01-25 Download
Ultra Sigma patch file for Screenshot V1.1 2024-01-25 Download
Ultra Sigma (PC) Installer V00.01.06.01 2024-01-25 Download
