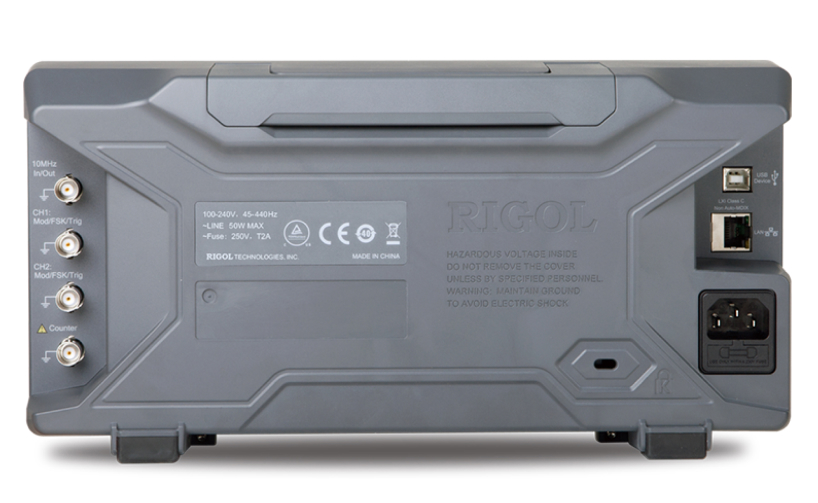

DG4000 Series - RIGOL Waveform Generators

Features

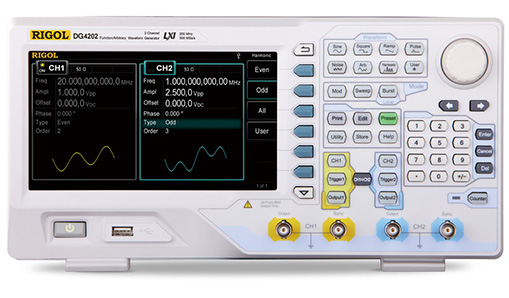

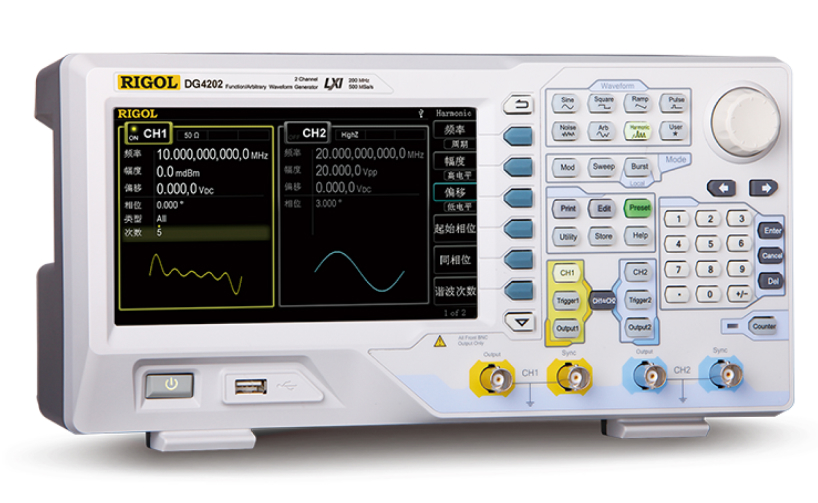

Wide Screen, Novel Appearance

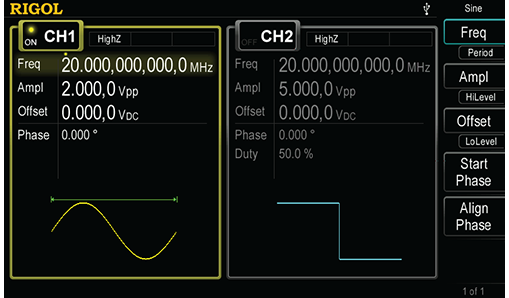

The parameter setting value, waveform shape and output configuration of the channel are clearly displayed, so that the user can see the current output state of the instrument at a glance.

Dual Channels With Equal Performance And Precise Phase Adjustment Between

The dual channel performance is the same, including basic wave, arbitrary wave, modulation wave, scanning, pulse series and other waveform output. Between channels, waveform or state can be copied, and frequency / amplitude / phase coupling can also be performed. The phase between channels can be adjusted accurately.

Built In 150 Arbitrary Waveforms

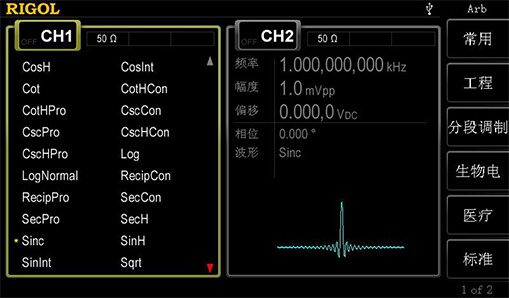

Various common waveforms in built-in teaching and circuit debugging are classified according to common, engineering, subsection modulation, bioelectricity, medical treatment, standard, mathematics, trigonometric function, anti trigonometric function and window function. Special user key is provided on the panel to quickly call out specified arbitrary waves.

Rich Analog And Digital Modulation Functions

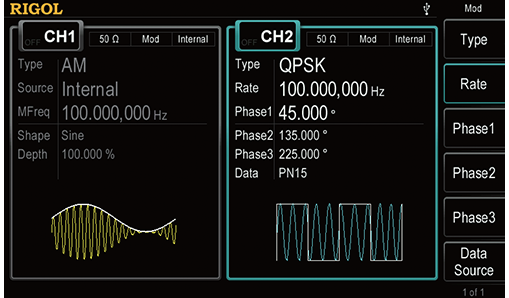

Modulation types include am, FM, PM, ask, FSK, 3fsk, 4FSK, PSK, BPSK, QPSK, PWM and OSK, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

Multiple Sweep Modes

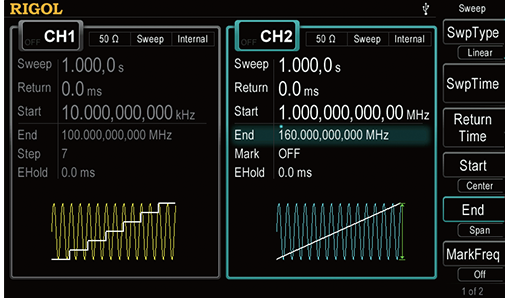

DG4000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications.

Noise Generation Function And Burst Mode Function

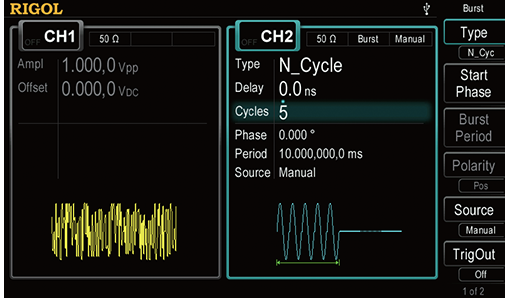

DG4000 can generate white noise with a maximum bandwidth of 120mhz. In addition, it has the function of noise superposition, which supports the superposition of a Gaussian noise on the main output signal. It can be used to test the anti noise performance of the equipment. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.

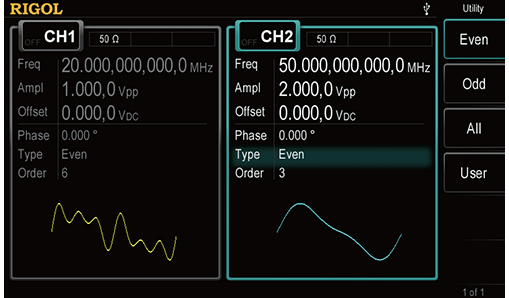

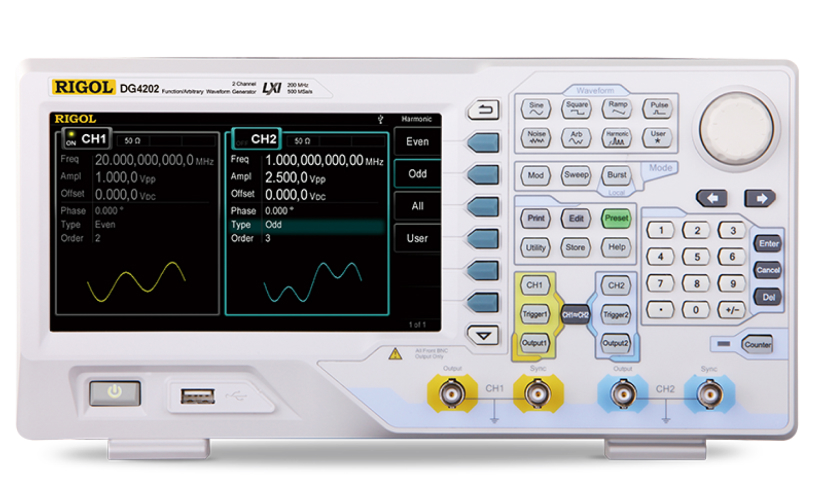

Up To 16th Harmonic Output Function

The output harmonic with specified frequency, amplitude and phase is usually used in the test of harmonic detection equipment or harmonic filter equipment.

High Resolution Function Of Frequency Meter

DG4000 provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DG4202 200MHz 500Msa/s 14bits 2 16 kpts Rp33.880.000
DG4162 160MHz 500Msa/s 14bits 2 16 kpts Rp27.196.000
DG4102 100MHz 500Msa/s 14bits 2 16 kpts Rp21.367.000
DG4062 60MHz 500Msa/s 14bits 2 16 kpts Rp17.160.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM-DG4000 Rack Mounting Kit for a DG4000or DS1000Z
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
CB-SMB(F)-BNC(F)-100 SMB(F) - BNC(F) Cable
CB-SMB(F)-SMB(F)-100 SMB(F) - SMB(F)Cable
CB-SMB(F)-BNC(M)-100 SMB (F) - BNC (M) Cable
RA5040K 40 dB attenuator accessory for oscilloscopes or generators
PA1011 10W power amplifier for waveform generators
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
CB-BNC-AC-100-L BNC-AC Cable

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for
DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG4000 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DG4000 Datasheets V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DG4000 Quick Guide V1.0 2019-08-29 Download
