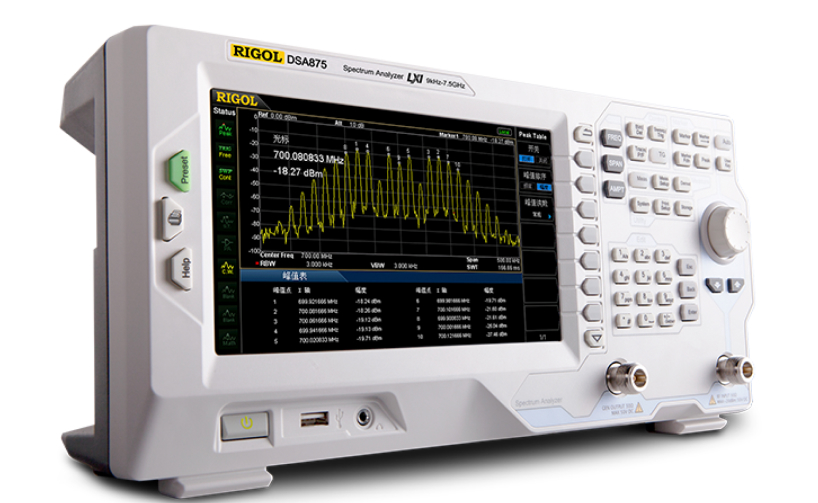

Performance Spectrum Analyzers with exceptional capabilities and an affordable price 1.5 GHz to 7.5 GHz models with tracking generators, Preamps, EMI, VSWR, and more options.
Frequency Range : 9kHz ~ 1.5/3.2/7.5GHz
Max. Real-time Bandwidth : /
RBW : 10Hz~1MHz
Phase Noise : -98dBc/Hz@10kHz

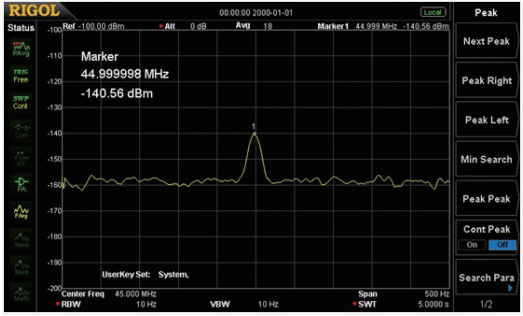

DANL : -161dBm/Hz
Tracking Source : -TG
Start from Rp 25.300.000
Datasheet.jpg)
.jpg)
.jpg)
.jpg)
 kcl.jpg)
 kcl.jpg)
 kcl.jpg)
 kcl.jpg)
| Model | Frequency Range |
Description | Phase Noise |
DANL | Tracking Source |
Price |
|---|---|---|---|---|---|---|

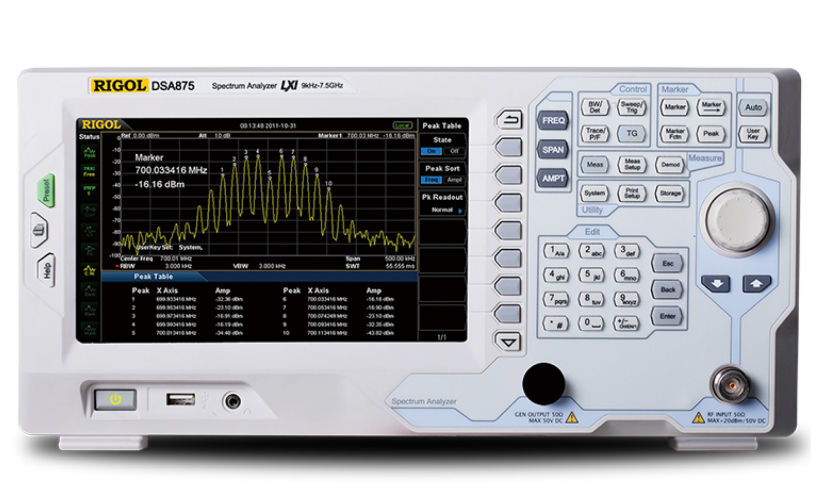

| DSA875 | 9kHz~7.5GHz | 10Hz~1MHz | -98dBc/Hz@10kHz | -161dBm | N/A | Rp117.660.000 |
| DSA875-TG | 9kHz~7.5GHz | 10Hz~1MHz | -98dBc/Hz@10kHz | -161dBm | Yes | Rp137.307.000 |
| DSA832 | 9kHz~3.2GHz | 10Hz~1MHz | -98dBc/Hz@10kHz | -161dBm | N/A | Rp83.361.000 |
| DSA832-TG | 9kHz~3.2GHz | 10Hz~1MHz | -98dBc/Hz@10kHz | -161dBm | Yes | Rp103.563.000 |
| DSA832E | 9kHz~3.2GHz | 10Hz~1MHz | -90dBc/Hz@10kHz | -161dBm/Hz（typ.) | N/A | Rp39.960.000 |
| DSA832E-TG | 9kHz~3.2GHz | 10Hz~1MHz | -90dBc/Hz@10kHz | -161dBm/Hz（typ.) | Yes | Rp51.948.000 |
| DSA815 | 9kHz~1.5GHz | 10Hz~1MHz | -80dBc/Hz@10kHz | -161dBm/Hz（typ.) | N/A | Rp25.300.000 |
| DSA815-TG | 9kHz~1.5GHz | 10Hz~1MHz | -80dBc/Hz@10kHz | -161dBm/Hz（typ.) | Yes | Rp50.235.000 |
| *Harga dapat berubah sewaktu-waktu tanpa pemberitahuan | ||||||
| Model | Description |
|---|---|
| SSC-DSA | 2FSK Spectrum measurement and analysis |
| 2FSK Spectrum measurement and analysis |
Preamplifier option, 100kHz to 7.5GHz (only for DSA875 or DSA8375-TG) |
| PA-DSA832 | Preamplifier option, 100kHz to 3.2GHz (only for DSA832 or DSA832-TG) |
| AMK-DSA800 | Advanced Measurement Kit(DSA815Only) |

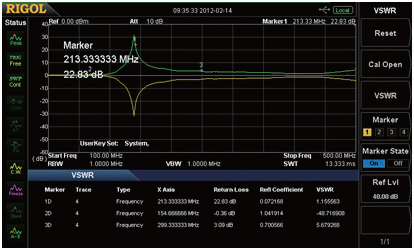

| VSWR-DSA800 | VSWR Measurement Kit (DSA815 Only) - Software only. Consider software with bridge under part number VB1020 instead. |

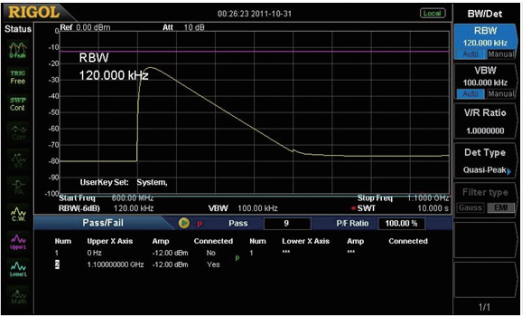

| EMI-DSA800 | EMI Filter & Quasi-Peak Detector Kit(DSA815 Only) |
| Model | Description |
|---|---|
| VB1032 |
"VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: ≥ 30 dB" |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) |
| RF CATV Kit |
Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable |
| RM6041 | Rack Mount Kit for RSA5, RSA3 and DS7000 |
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz |
| DSA Utility Kit |
DSA Accessories Package including：N-SMA Cable，BNC-BNC Cable, N-BNC Adapter，N-SMA Adapter，75Ω-50Ω Adapter，Antenna 2 （900MHz/1.8GHz），Antenna 2 |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier |
| VB1080 | VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. |
| VB1040 | 800 MHz to 4 GHz VSWR Bridge for DSA1030-TG and DSA1030A-TG |
| OCXO-C08 | High Stability Clock |
| Model | Description |
|---|---|
| S1220 | ASK-FSK Demodulation Analysis Software |
| S1210 | EMI Pre-Compliance Software |

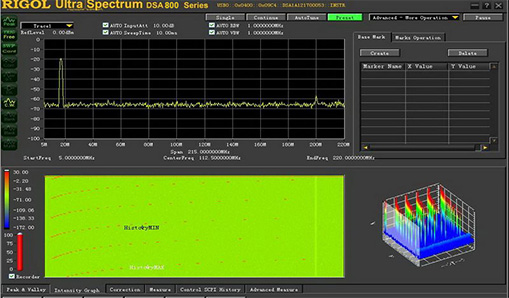

| Ultra Spectrum | Software for the DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DSA800(E) User Manual | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DSA800(E) Datasheets | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DSA800(E) Programming Manual | V1.0 | 2019-08-29 | Download |
