RSA5000 Series - Spectrum Analyzers

Features

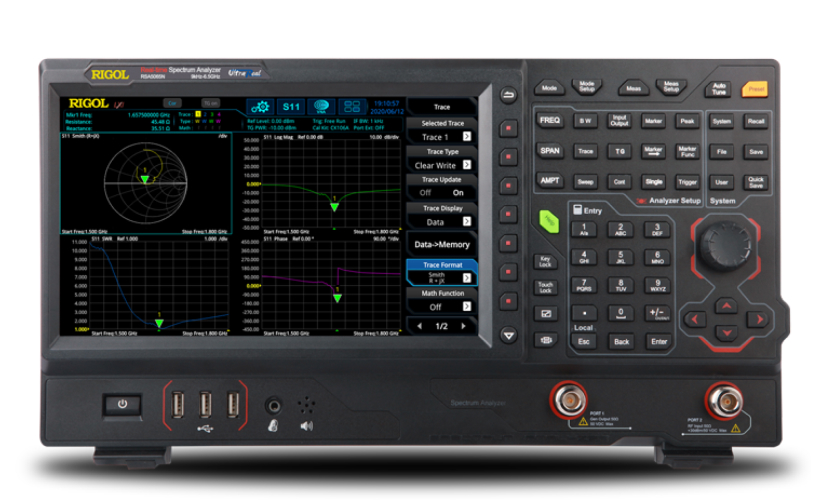

Built-in Vector Network Analysis mode

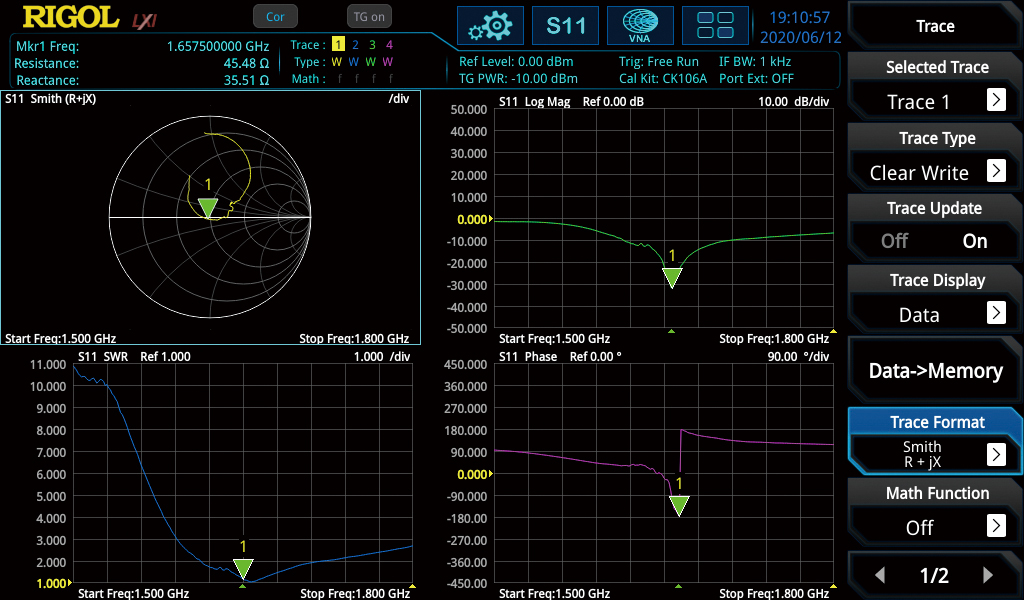

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.

Discover Transient Anomalies Through Ultra Real Technology

The RSA5000 delivers up to 40MHz of real-time bandwidth using the original Ultra Real technology. In the real-time bandwidth range, transient signals exceeding 7.45us duration can be guaranteed to be 100% captured and accurately measured.

Discover Problems in Design with Vector Analysis

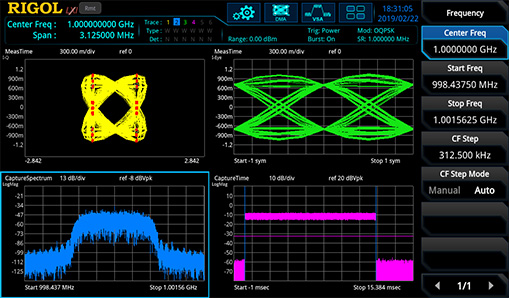

Vector Signal Analysis Function The VSA supports a variety of digital modulation formats such as QAM, PSK, MSK, ASK, FSK, etc. This function is used to quickly demodulate and display multi-dimensional data such as its constellation, eye diagram (baseband signal), spectrogram, demodulation data, etc., to discover problems in the design.

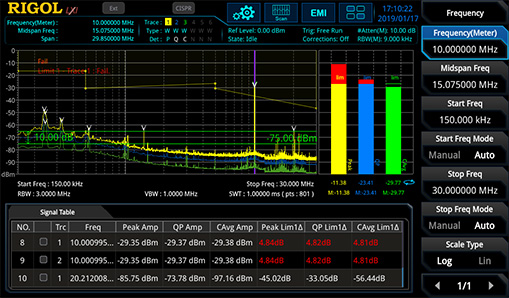

Conduction/radiation Pre-testing with Built-in Emi Test Software

The RSA5000's built-in EMI pre-test application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.

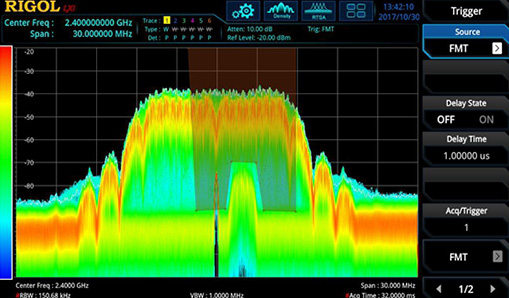

Signal Triggering and Monitoring Via FMT Template

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range. You can use the RSA5000 to provide a 10.1-inch multi-touch capacitive screen for quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

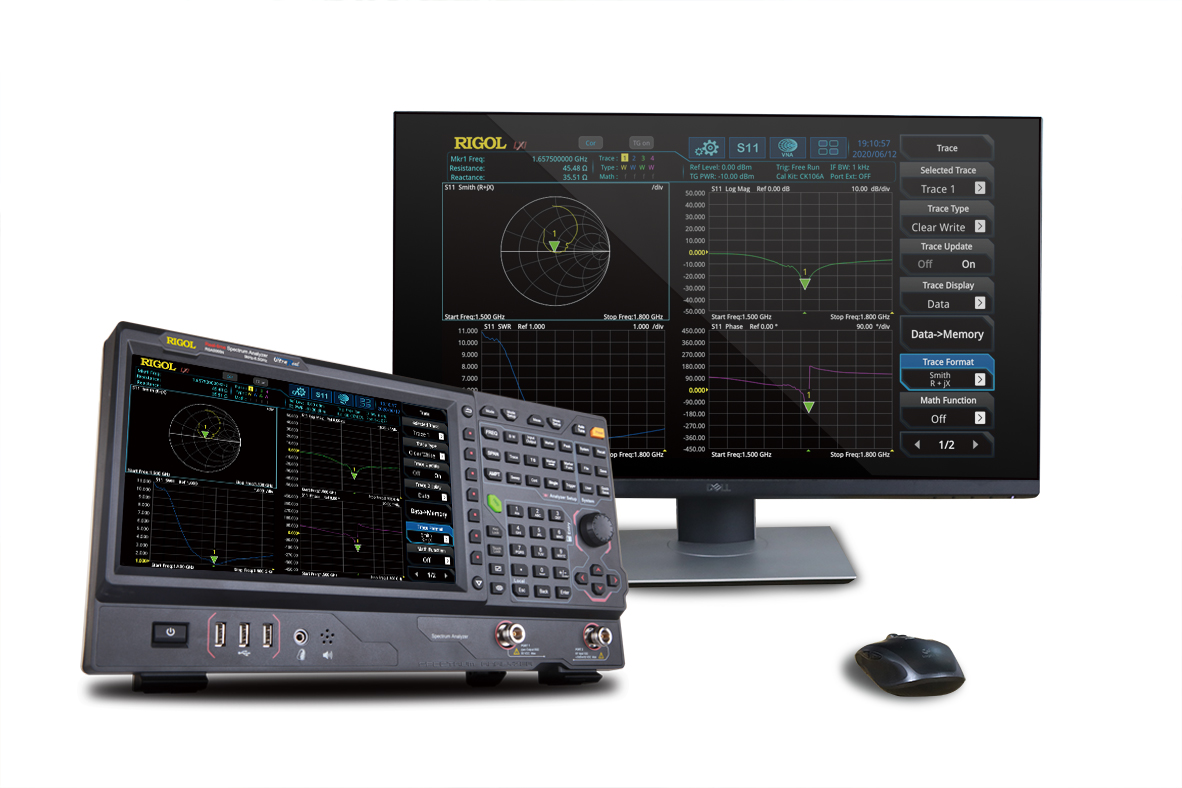

Multiple interfaces to improve the connectivity of the instruments

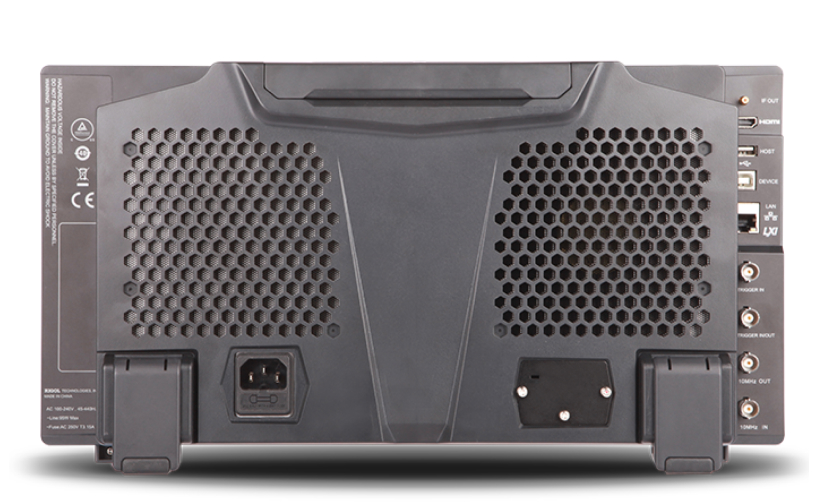

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.

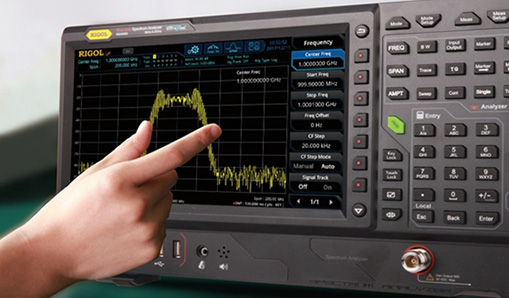

Quickly Complete Operations with a Multi-touch Screen

You can use the RSA5000 to provide a 10.1-inch multi-touch capacitive screen for quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

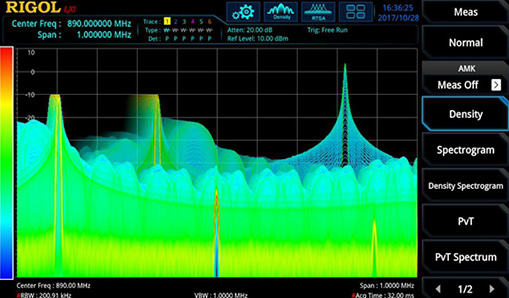

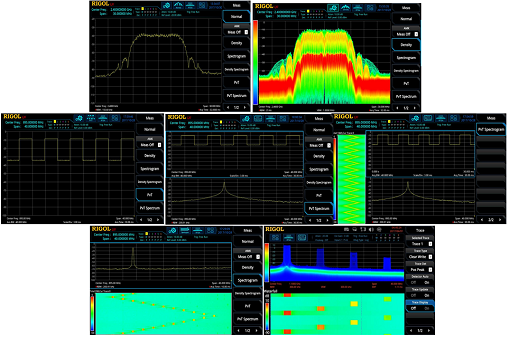

7 Real-time Display Modes

The RSA5000's seven real-time signal display modes make it easier to capture, isolate and analyze RF signals and systems. The power vs. time and spectrograms show how the signal varies with the acquisition time or continuous acquisition time. Combining these presentations with markers and triggers in different modes makes the RSA5000 a flexible tool for real-time RF analysis and debugging.

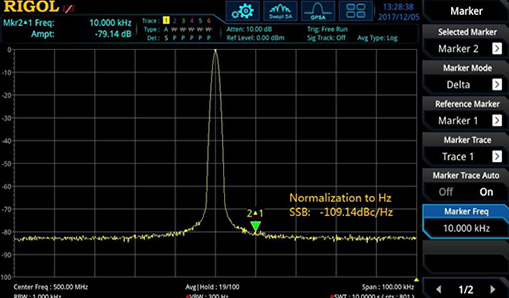

Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -108dBc/Hz.

Model

Model Frequency
Range		 Description Phase
Noise		 DANL Tracking
Source		 Price
RSA5065 9kHz~6.5GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm N/A Get a Quote
RSA5065-TG 9kHz~6.5GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes Get a Quote
RSA5032 9kHz~3.2GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm N/A Get a Quote
RSA5032-TG 9kHz~3.2GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes Get a Quote
RSA5065N 9kHz~6.5GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes Get a Quote
RSA5032N 9kHz~3.2GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Bandwidth Upgrade

Model Description
RSA5000-B40 Realtime Bandwidth Upgrade to 40MHz

Functional Options

Model Description
RSA5000-EMI EMI Analysis Mode Option for the RSA5000
RSA5000-VSA Vector Signal Analysis Mode Option for RSA5000
RSA5000-AMK Advanced Measurement Kit
RSA5000-PA Preamplifier option

Accessories

Model Description
VB1032 "VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included
Frequency range: 1 MHz - 3.2 GHz,
Typical Directivity: ≥ 30 dB"
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
ATT03301H 30dB High Power Attenuator, Max Power 100W
RF CATV Kit Kit Includes 50 Ω to 75 Ω Adaptor (2pcs)
RF Attenuator Kit Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)
RF CATV Kit Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs),
N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs),
SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs),
BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs),
50 Ω BNC Impedance Adapter (1pcs)
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable
RM6041 Rack Mount Kit for RSA5, RSA3 and DS7000
NFP-3 Near Field Probe, Requency Range: 30MHz to 3GHz
DSA Utility Kit DSA Accessories Package including：N-SMA Cable，BNC-BNC Cable,
N-BNC Adapter，N-SMA Adapter，75Ω-50Ω Adapter，Antenna 2
（900MHz/1.8GHz），Antenna 2
TX1000 RF Demonstration board with built in
1 GHz Oscillator, mixer, filters, and amplifier
VB1080 VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers.
The VB1080's range is from 2-8 GHz.
VB1040 800 MHz to 4 GHz VSWR Bridge for DSA1030-TG and DSA1030A-TG
OCXO-C08 High Stability Clock

Software

Model Description
S1210 EMI Pre-Compliance Software
Ultra Spectrum Software for the DSA1000 and DSA1000A series spectrum analyzers to be
used within the UltraSigma package

User Manual

Name Version Release Date Download
RSA5000 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
RSA5000 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
RSA5000 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
RSA5000 Quick Guide V1.0 2019-08-29 Download

Open Source Acknowledgment

Name Version Release Date Download
RSA3000&3000E&5000 Open Source Acknowledgment V1.0 2019-08-29 Download
