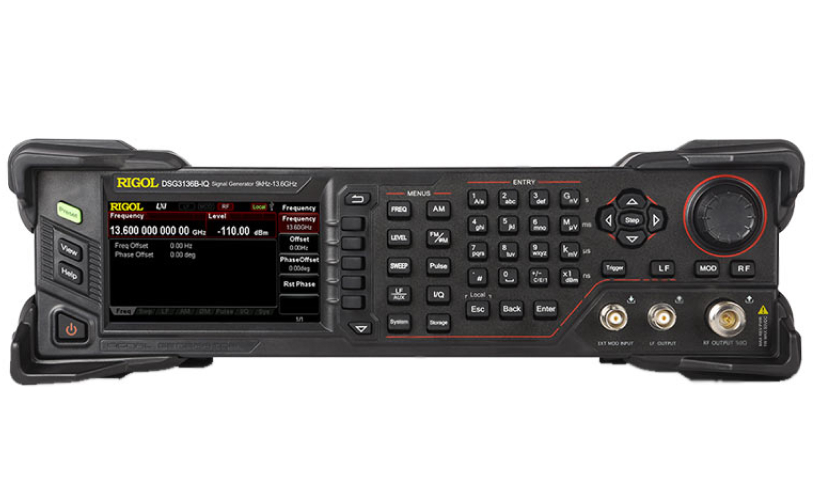

Features

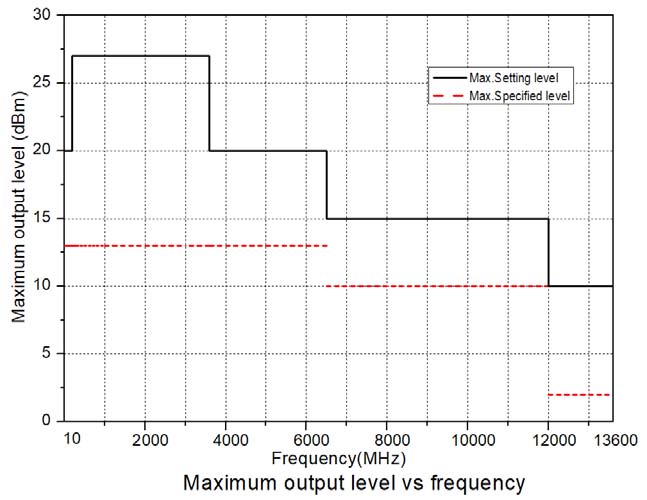

High Power Signal Generation Capability

RIGOL's innovative Sifi technology can generate any waveform point by point, undistorted restore signal, accurate and a djustable sampling rate, reduce the signal jitter generated by traditional DDS signal source, and the jitter can be as low as 200ps.The maximum output amplitude is +27dBm， which meets the non-linearity test of the amplifier.

Phase Noise Metric

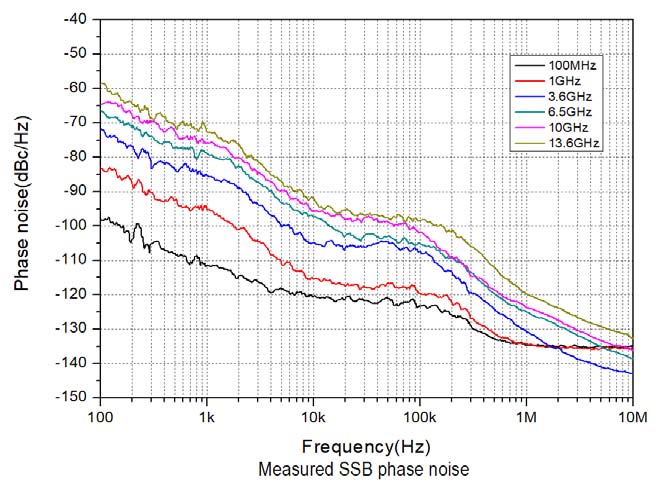

High signal purity, phase noise typical value <-116dBc/Hz@20kHz ; better high-stability clock reference can get better near-phase noise indexz

Support pulse modulation; on/off ratio up to 70 dB

Support pulse modulation; on/off ratio up to 70 dB

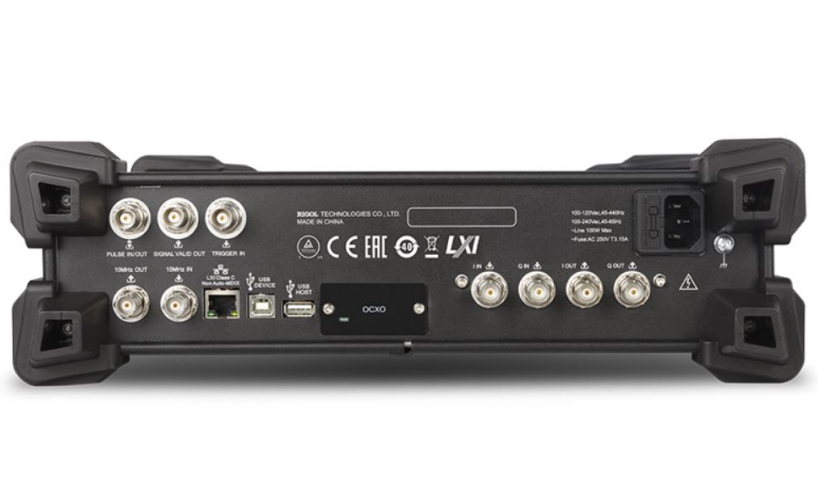

Internal and External IQ Modulation

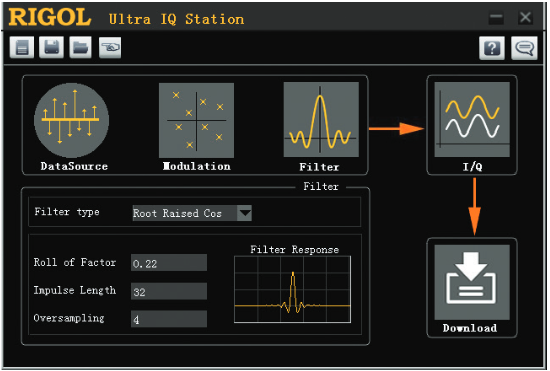

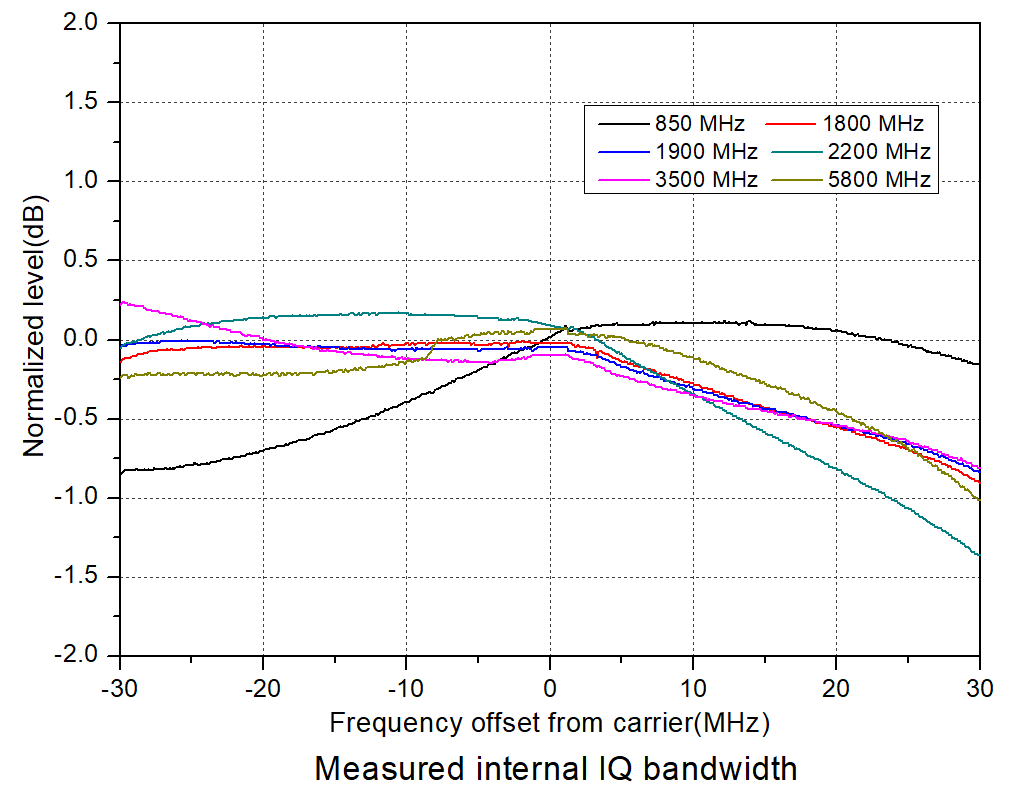

Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM < 0.7%, external I+Q modulation bandwidth 240MHz, EVM < 2% (typical), and Ultra IQ Station for convenience Generated vector signal waveform

Multiple Modulation Methods

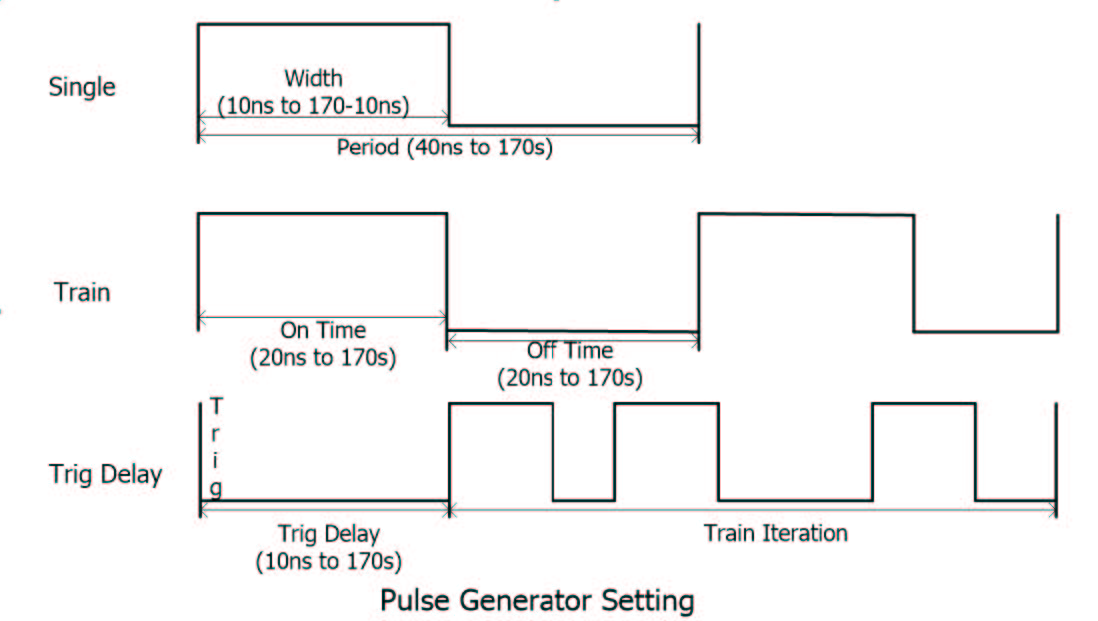

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources

Model

Model Frequency Range Amplitude Indicators Range SSB Phase Noise Modulation Function Price

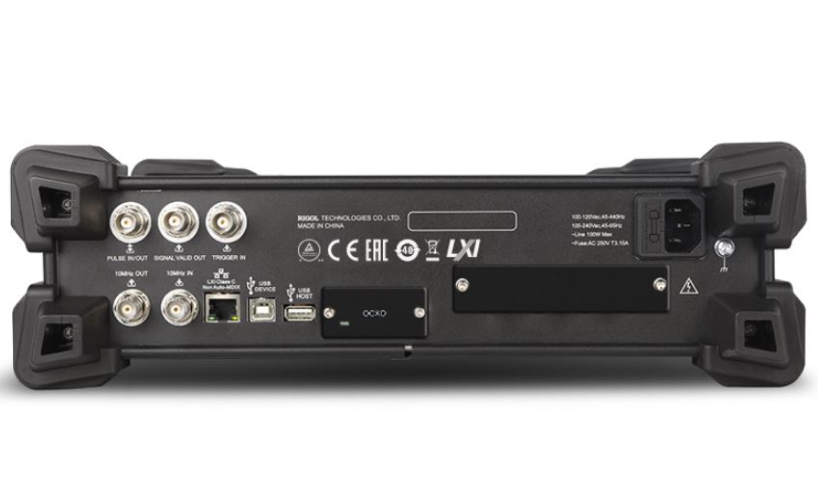

DSG3136B 9kHz~13.6GHz -110dBm~+20dBm <-116dBc/Hz@1GHz,20kHz offset AM/FM/ØM/Pulse Get a Quote
DSG3136B-IQ 9kHz~13.6GHz -110dBm~+20dBm <-116dBc/Hz@1GHz,20kHz offset AM/FM/ØM/Pulse/IQ Get a Quote
DSG3065B-IQ 9kHz~6.5GHz -110dBm~+20dBm <-116dBc/Hz@1GHz,20kHz offset AM/FM/ØM/Pulse/IQ Get a Quote
DSG3065B 9kHz~6.5GHz -110dBm~+20dBm <-116dBc/Hz@1GHz,20kHz offset AM/FM/ØM/Pulse Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan
