DS4000 Series - RIGOL Digital Oscilloscopes

Features

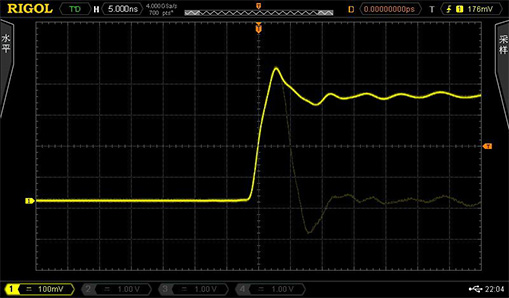

Up to 110,000 wfms/s Waveform Capture rate

Minimize scope “dead time” between trigger events and increases observations of random and sporadic events.

140Mpts Standard Record Length

Long acquisitions at high sample rates help debug elusive problems in complex digital streams.

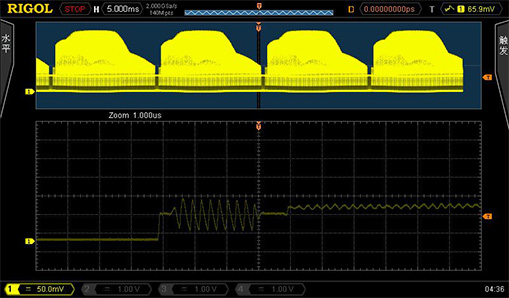

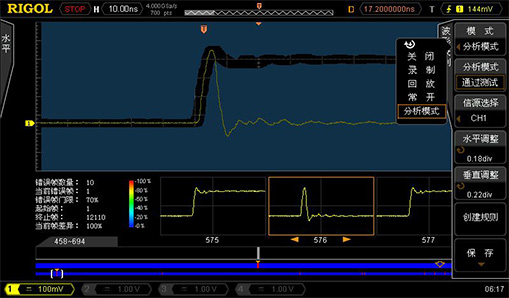

200,000-frame waveform recording, preview and analysis

The real-time recording function record up to 200,000 frames of waveforms, and the dedicated data analysis navigation knob makes possible to quickly view the recorded content, conveniently play back, analyze and compare the waveforms to find out the fault.

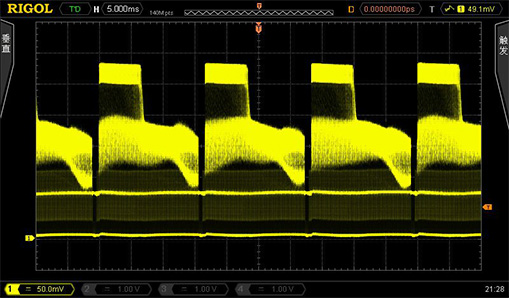

Intensity Color graded display

With RIGOL’s advanced color graded display engineers can visualize signal anomalies in an intensity color grading even when overlapping with other signals artifacts in the current trigger mode.

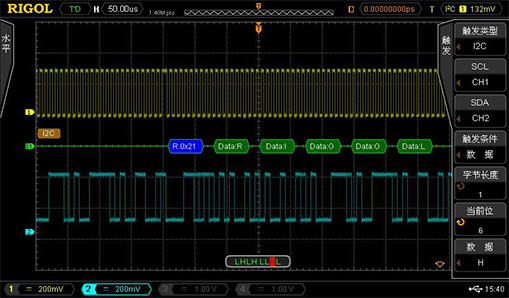

Serial bus triggering and decoding

Comes with I2C, SPI, RS232, CAN/LIN, Flexray trigger function, add options to support the above bus decoding as standard offer.

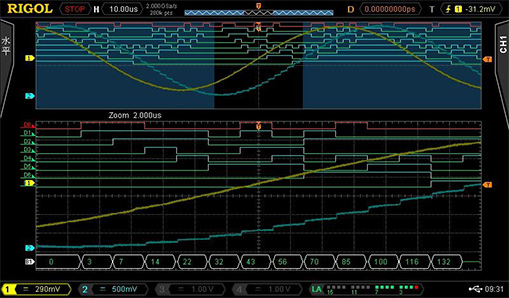

Mixed signal analysis capability

The MSO model with 16 digital logic channels works for easier simultaneous testing of multiple analog and digital signals for easier digital logic and mixed-signal analysis.

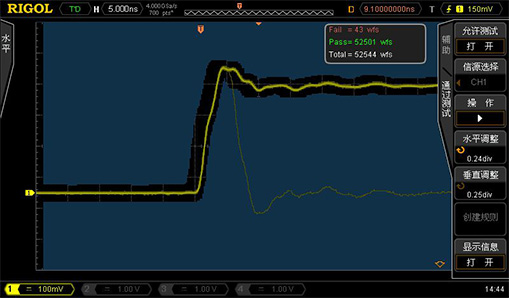

Standard waveform template test function

Standard template test function, with Pass/Fail statistics, error stop and alarm functions, convenient for production line testing and long-term monitoring applications.

Model

Model Bandwidth Analog
Channels		 Real-Time
Sample Rate		 Max. Memory
Depth		 Waveform
Capture Rate		 Digital
Channels		 Price
DS4054 500 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4052 500 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4034 350 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4032 350 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4024 200 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4022 200 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4014 100 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4012 100 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
MSO4054 500 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4052 500 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4034 350 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4032 350 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4024 200 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4022 200 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4014 100 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4012 100 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
