DP2000 Series - RIGOL Waveform Generators


Features

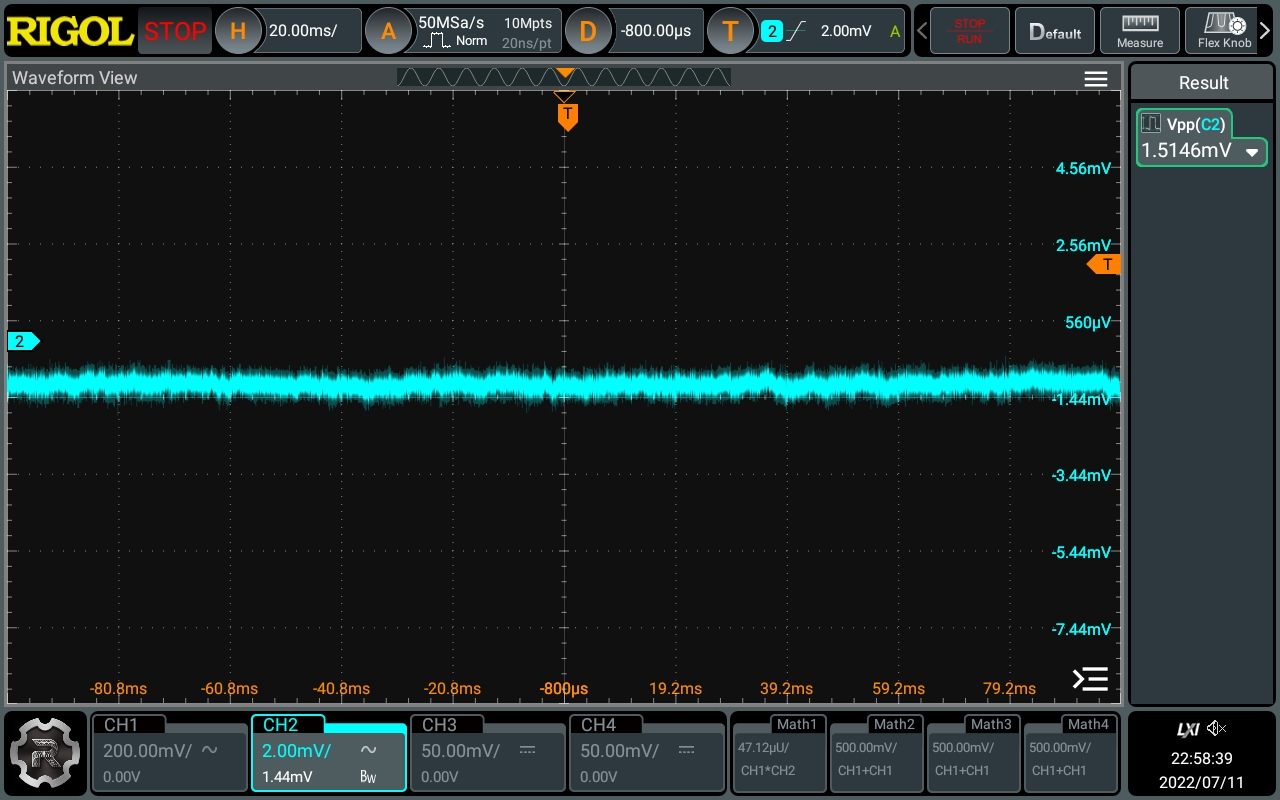

Low ripple noise: <350uVrms / 2mVpp

One of the major advantages of linear DC power supply is the output purity. In the bandwidth of 20Hz-20MHz, DP2000 ripple and noise index is less than 350μVrms or 2 mVpp, ultra-low noise design, purer output, minimizing any interference to the load and providing high purity signal to your equipment.

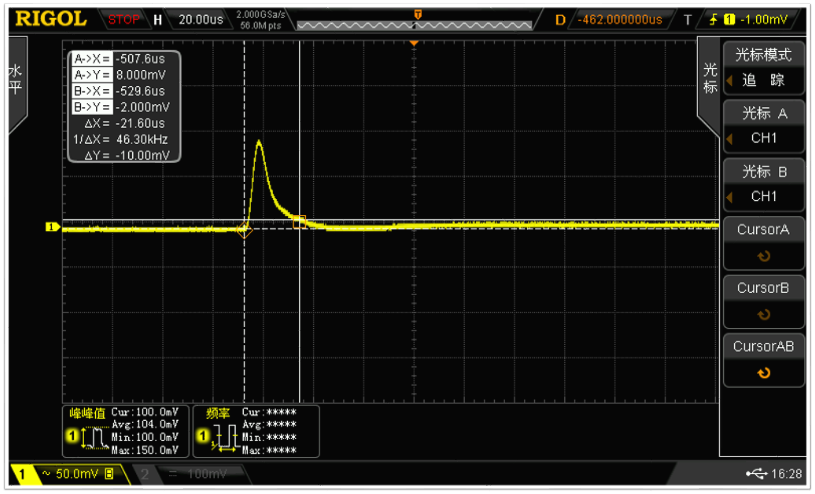

Fast transient response time: <50us

With a transient response capability of less than 50us, the DP2000 is able to cope with changing loads and protect your tests.

High Speed Arb Mode

Emulate dynamic power signals for reliability and robustness testing Emulate dynamic power signals for reliability and robustness testing With high-speed arbitrary mode, engineers can create a function or waveform of up to 512 points with a minimum dwell time as low as 1 millisecond. Create sine waves, pulses, ramps, or custom shapes to output on the power supply channel in either voltage or current. Set up the waveform to repeat or trigger using the digital IO or bus communication. Combine high speed arb mode and sampling for complete analysis of a test device’s power performance.

Automatic Series & Parallel Connections

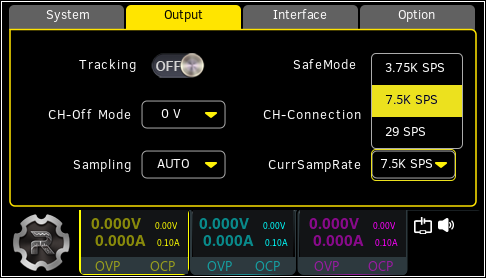

Simplified wiring and connections for fast and easy setup Simplified wiring and connections for fast and easy setup Channels 1 & 2 can be internally connected via the utility menu either in parallel or series. This allows engineers to get voltage or current from both channels with only a connection to the channel 1 terminals. With all 3 fully isolated channels it is easy to configure the instrument for your application.

Model

Model Channels Total Power Outout per
Channel		 Programming
Resolutions		 Display
Resolutions		 Readback
Resolutions		 Communications
Interface		 Price
DP2031 3CH 222W 32V/3A || 32V/3A || 6V/5A 1mV/0.1mA 1mV/0.1mA 0.1mV/0.1mA USB, LAN
RS232, Digital IO		 Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description Harga
DP2000-HADC 7.5k/s current option Get a Quote
DP2000-10A Third channel 10A option Get a Quote

Accessories

Model Description Harga
10A-Testing-Cable Banana jack to alligator clip test lead(Current rating:10A) Get a Quote
DP2000-GPIB GPIB module option Get a Quote

Firmware

Name Version Release Date Download
DP2000 Firmware 00.01.01 2024-01-30 Download
DP2000 Firmware - GPIB 00.01.00 2024-09-04 Download

Software

Name Version Release Date Download
Ultra Sigam(HelpDocument) V1.0 2021-10-27 Download
Ultra Sigma(PC)Installer 00.01.06.01 2021-10-27 Download

User Manual

Name Version Release Date Download
DP2000 USER GUIDE V5.0 2024-09-03 Download

Datasheet

Name Version Release Date Download
DP2000 DATASHEET V4.0 2024-09-03 Download

Quick Guide

Name Version Release Date Download
DP2000 QUICK GUIDE V4.0 2024-09-03 Download
