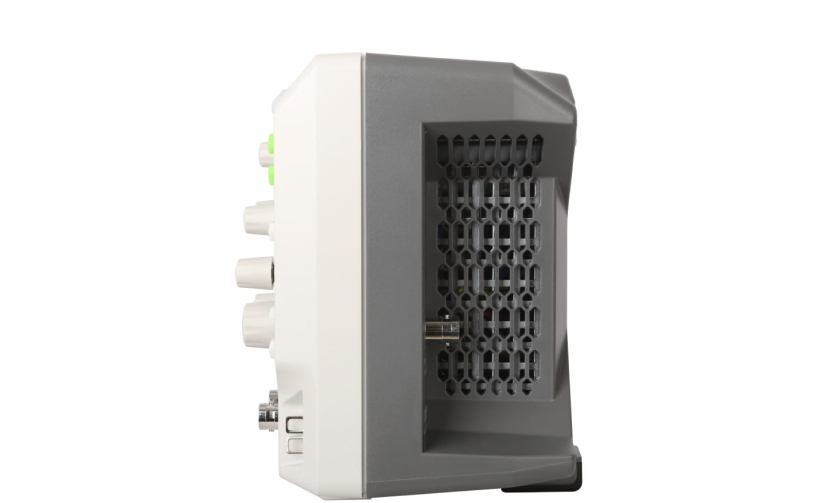

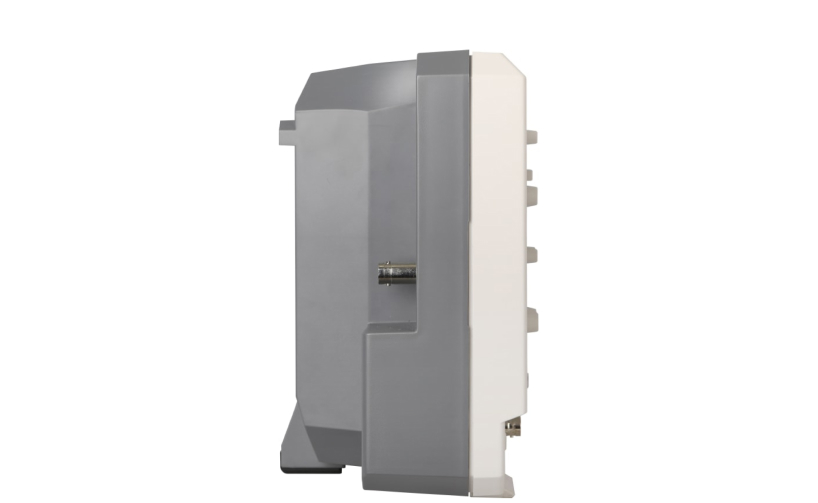

MSO5000-E Series - RIGOL Digital Oscilloscopes

Features

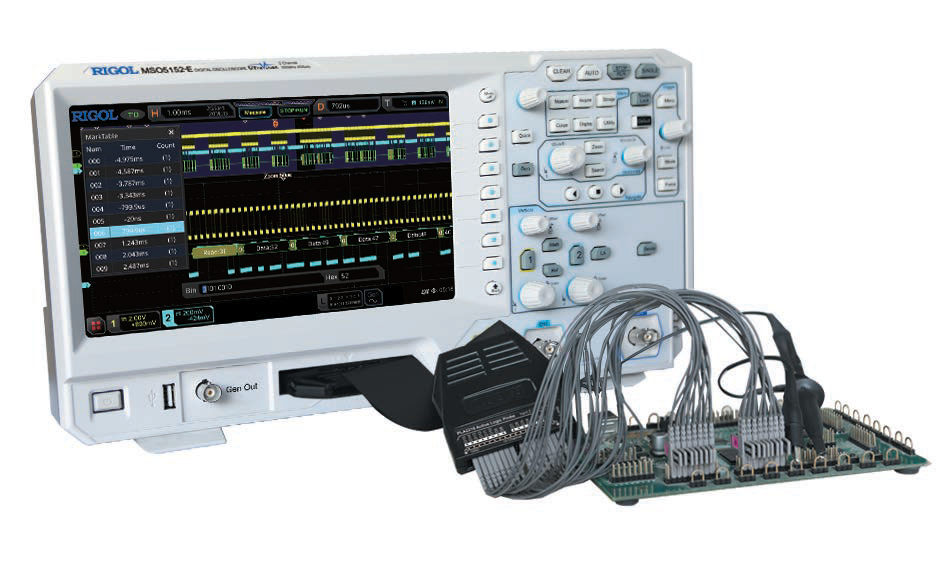

7 in 1 Product Design

MSO5000-E series digital oscilloscope integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.

Super High Sampling Bandwidth Ratio

MSO5000-E series provides a real-time sampling rate of up to 4 GSA / s under 150 MHz bandwidth, 26 times of the sampling bandwidth ratio makes it a leader in the oscilloscope products of the same level, and at the same time, it has an ultra long waveform storage depth of 100 mpts.

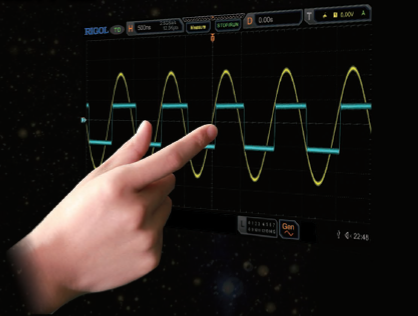

9 "Multi Touch Capacitive Screen

9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience.

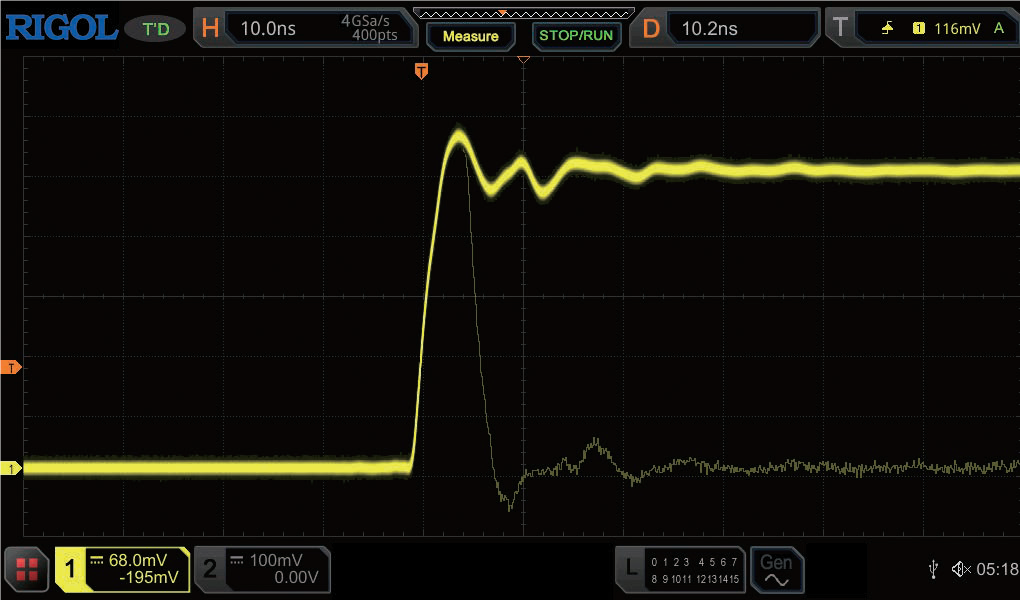

Waveform Capture Rate Up to 300000 Times Per Second

With a waveform capture rate of up to 300000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers.

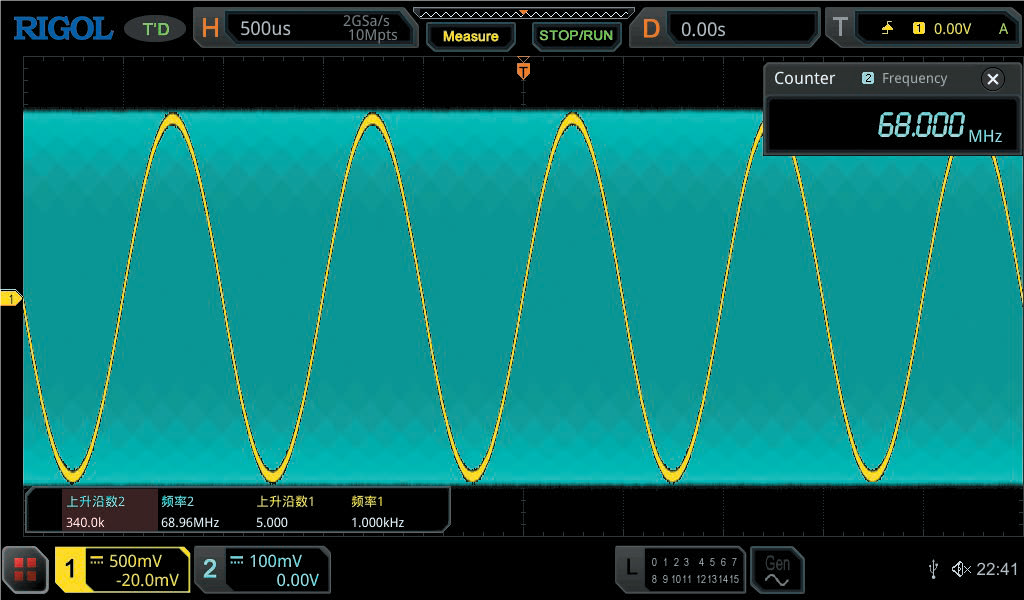

Full Memory Hardware Measurement

At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edges.

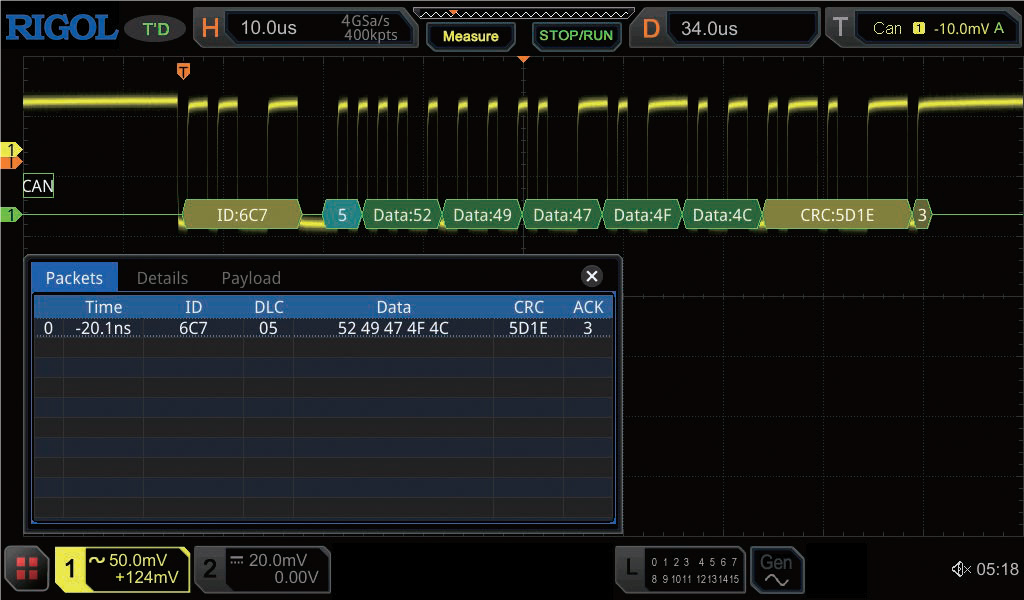

Rich Trigger and Protocol Decoding

Rich serial protocol decoding can decode 4 serial buses at the same time, and full memory data analysis and decoding event table display can help engineers quickly find system faults and locate the error waveform, greatly improving the debugging efficiency of the overall system signal.

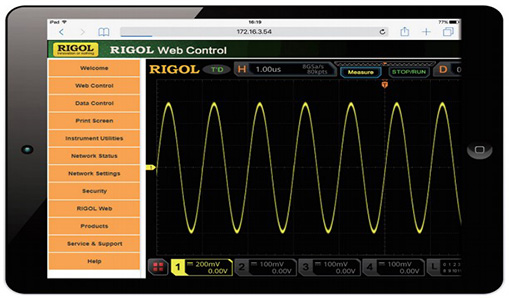

Convenient Web Control Remote Control

The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price

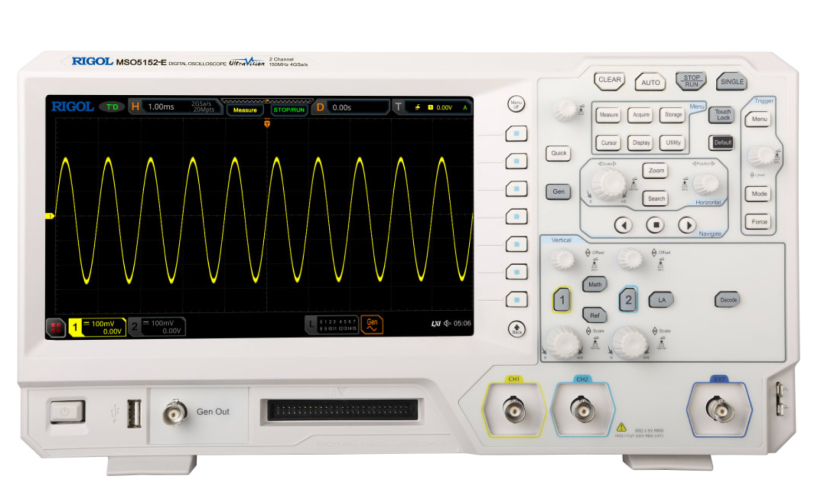

MSO5152-E 150 MHz 2 4 GSa/s 100 Mpts (option) 300,000 wfms/s 16 (Need to
configure
logic probe)		 1CH Rp22.921.500
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description
MSO5000-E-BND Application Bundle，includes all serial protocol analysis,
measurement, and app options for MSO5000-E
MSO5000-E-1RL Record Length Upgrade to 100Mpts
MSO5000-E-AWG Dual Channel 25MHz Waveform Generator
MSO5000-PWR Integrated Power Analysis
MSO5000-FLEX FlexRay serial bus trigger and analysis (FlexRay) for MSO5000
MSO5000-EMBD Embedded Serial Triggering and Analysis(I2C, SPI) for MSO5000
MSO5000-COMP Computer Serial Triggering and Analysis(RS232/UART) for MSO5000
MSO5000-AUTO Automotive Serial Triggering and Analysis(CAN/LIN) for MSO5000
MSO5000-AUDIO Audio Serial Triggering and Analysis(I2S) for MSO5000
MSO5000-AERO MIL-STD 1553 Serial Triggering and Analysis for MSO5000

Accessories

Model Description
MSO5000-E-FPC Front panel cover for MSO5000-E
MSO5000-RM Rack Mounting Kit for MSO5000
CB-USBA-USBB-FF-100 USB Cable
CB-DB9-DB-FF-150 RS232 Cable, Female to Female, 150cm
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
NFP-3 Near Field Probe, Requency Range: 30MHz to 3GHz
RPA246 Power Analysis Calibration Kit
DK-DS6000 Demo Board for oscilloscopes

Software

Model Description
UPA-DS Power Analysis Software for MSO/DS2000, MSO/DS4000, MSO8000,
MSO/DS7000, MSO5000 series oscilloscopes

User Manual

Name Version Release Date Download
MSO5000E User Manual V2.0 2020-05-01 Download

Datasheet

Name Version Release Date Download
MSO5000E Datasheets V2.0 2020-05-23 Download

Programming Manual

Name Version Release Date Download
MSO5000E Programming Manual V2.0 2020-05-01 Download

Open Source Acknowledgment

Name Version Release Date Download
MSO5000E Open Source Acknowledgment V1.0 2019-08-29 Download
