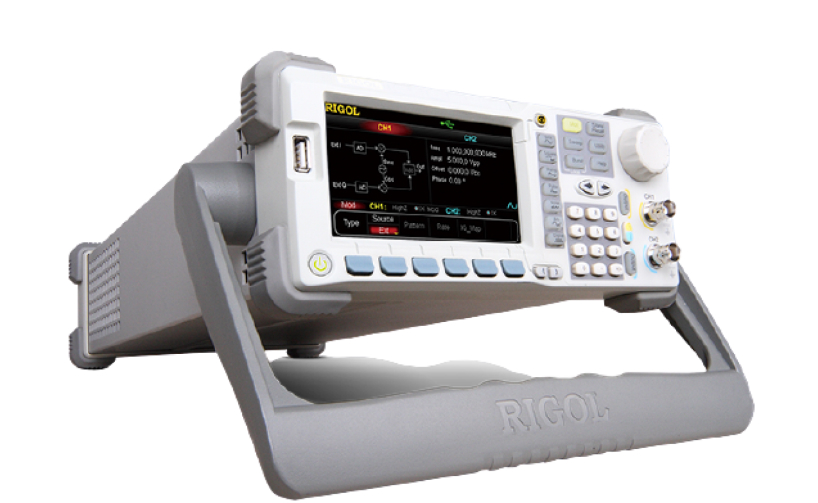

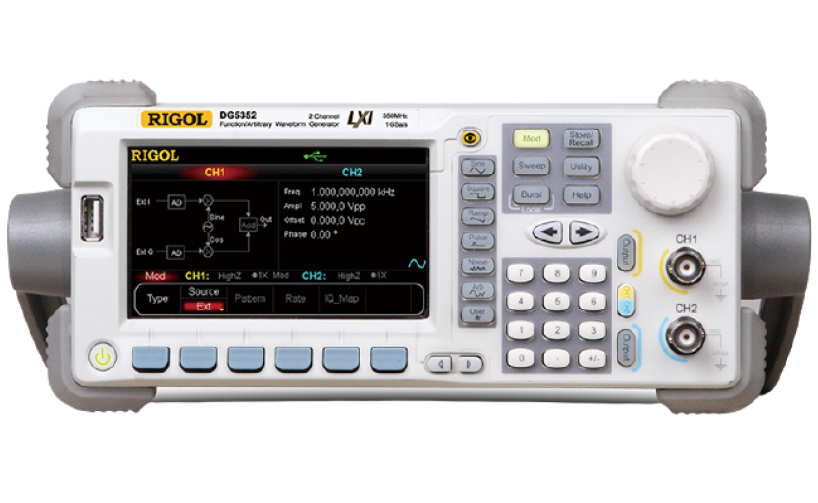

DG5000 Series - RIGOL Waveform Generators


Features

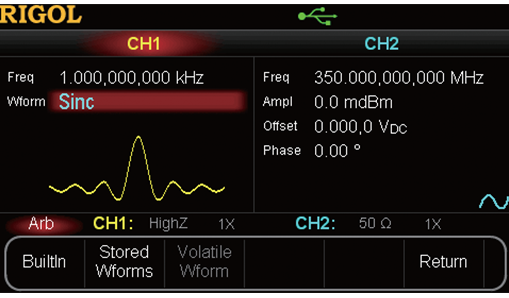

1GSa/s Sampling Rate, 14Bits Vertical Resolution

The frequency of any wave is up to 50MHz, and the sampling rate can be adjusted in the playback mode. The amplitude accuracy reaches 1% ± 1mvpp of ± setting value.

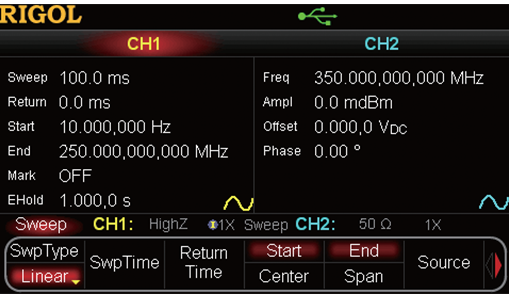

Rich Sweep Function

DG5000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications.

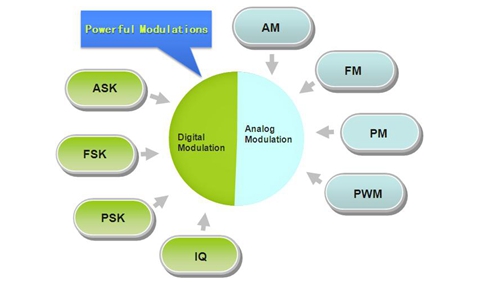

Rich Analog / Digital Modulation Functions

Modulation types include am, FM, PM, ask, FSK, PSK, PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

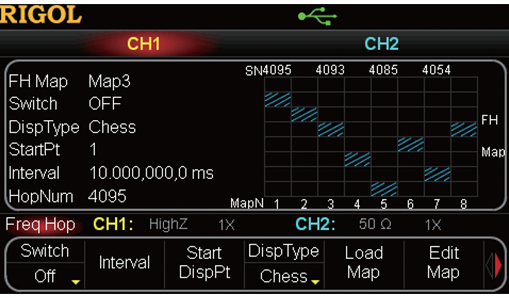

Support Frequency Hopping Function

The minimum frequency hopping interval is 80ns, and 4096 frequency hopping points can be edited at most. It can meet the common needs of FH communication teaching and related tests.

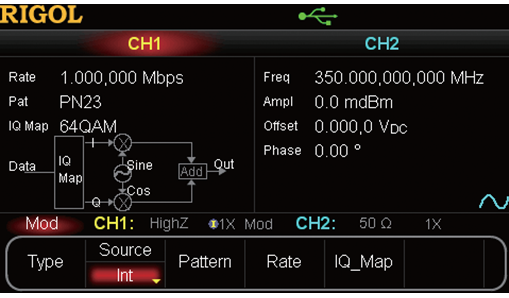

Support Internal And External IQ Modulation Function

The modulation mode includes 4QAM, 8qam, 16QAM, 32qam, 64QAM, BPSK, QPSK, OQPSK, 8PSK, 16PSK, and supports internal and external modulation sources.

Rich Interfaces

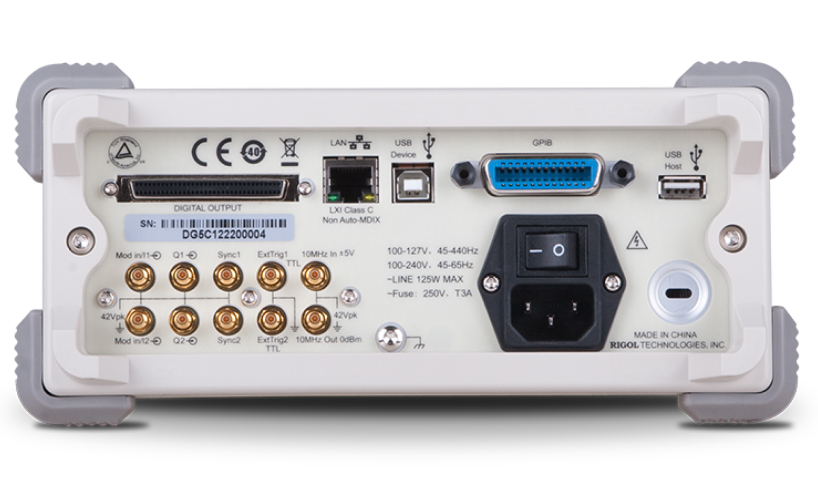

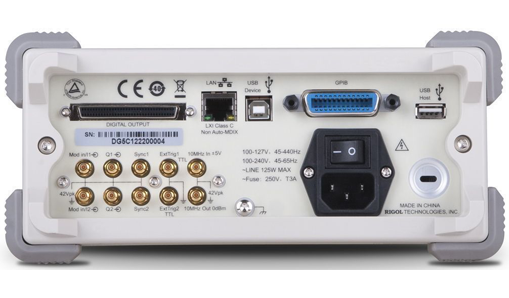

It provides standard USB, GPIB, LAN (LXI) remote communication interface and adopts standard visa driver, which is convenient for system integration customer's test requirements. 16 channels of digital signals can be output by selecting digital logic output module dg-pod-a to realize the function of analog mixed signal generator.

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DG5352 350MHz 1Gsa/s 14bits 2 128Mpts Get a Quote
DG5351 350MHz 1Gsa/s 14bits 1 128Mpts Get a Quote
DG5252 250MHz 1Gsa/s 14bits 2 128Mpts Get a Quote
DG5251 250MHz 1Gsa/s 14bits 1 128Mpts Get a Quote
DG5102 100MHz 1Gsa/s 14bits 2 128Mpts Rp 98.290.500
DG5101 100MHz 1Gsa/s 14bits 1 128Mpts Rp 77.000.000
DG5072 70MHz 1Gsa/s 14bits 2 128Mpts Get a Quote
DG5071 70MHz 1Gsa/s 14bits 1 128Mpts Get a Quote
