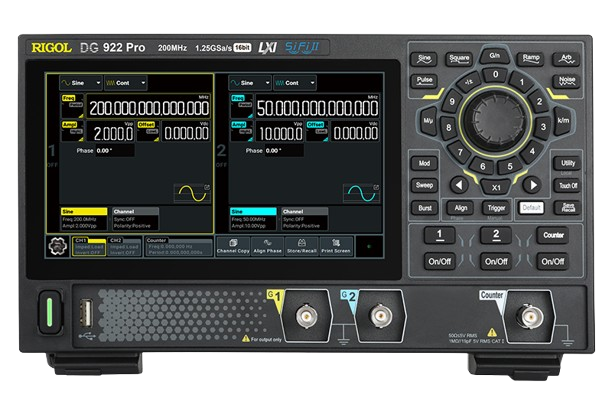

DG900 Pro Series

DG900 Pro Series is a multifunctional signal generator that integrates functions such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, frequency meter, etc. The brand new appearance and user-friendly interface design bring a friendly user experience..

Bandwidth   : 200MHz
Sample Rate   : 1.25Gsa/s
Vertical Resolution   : 16bits
Channels   : 2CH
Arbitary Wave Length   : 16M(32M opt.)

Datasheet

Features

Outstanding Accuracy

1.25GSa/s sampling rate, 16-bit vertical resolution, easy creation of high fidelity signals

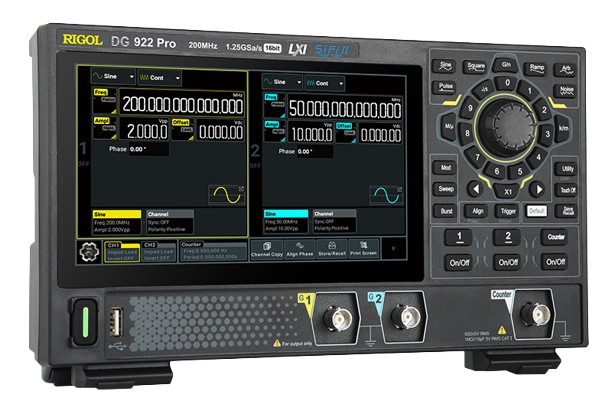

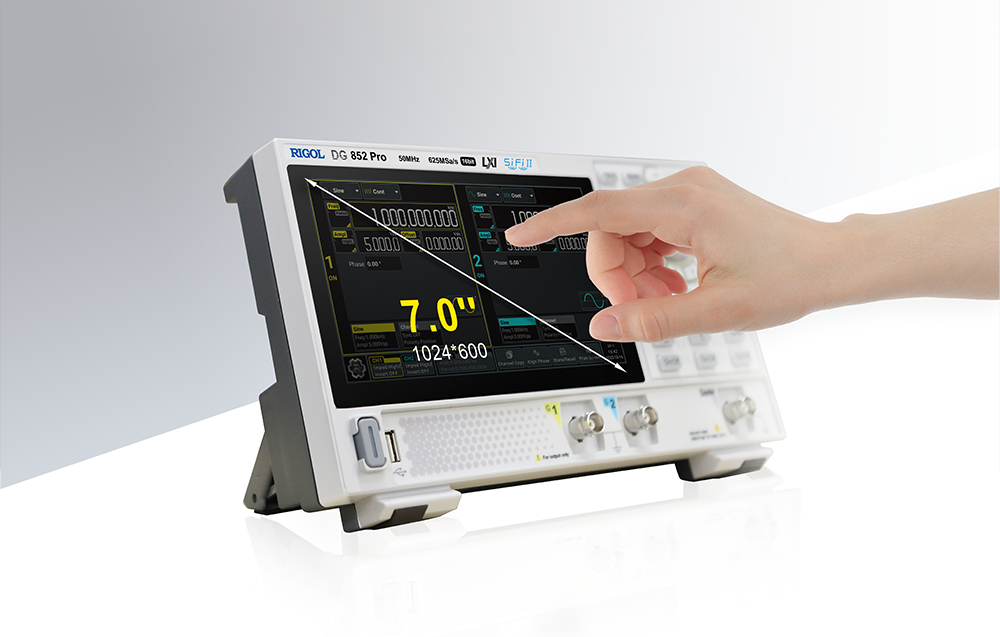

7-inch Color Touch Screen Display

7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

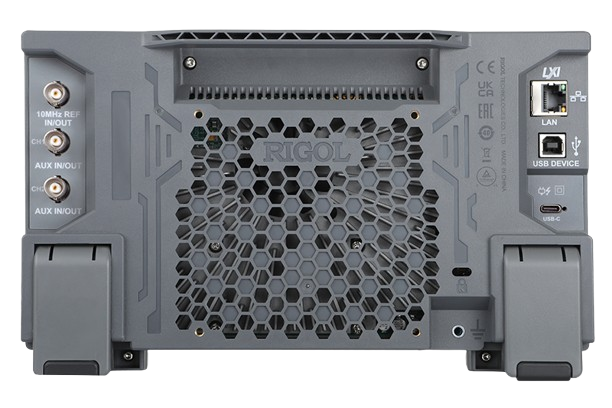

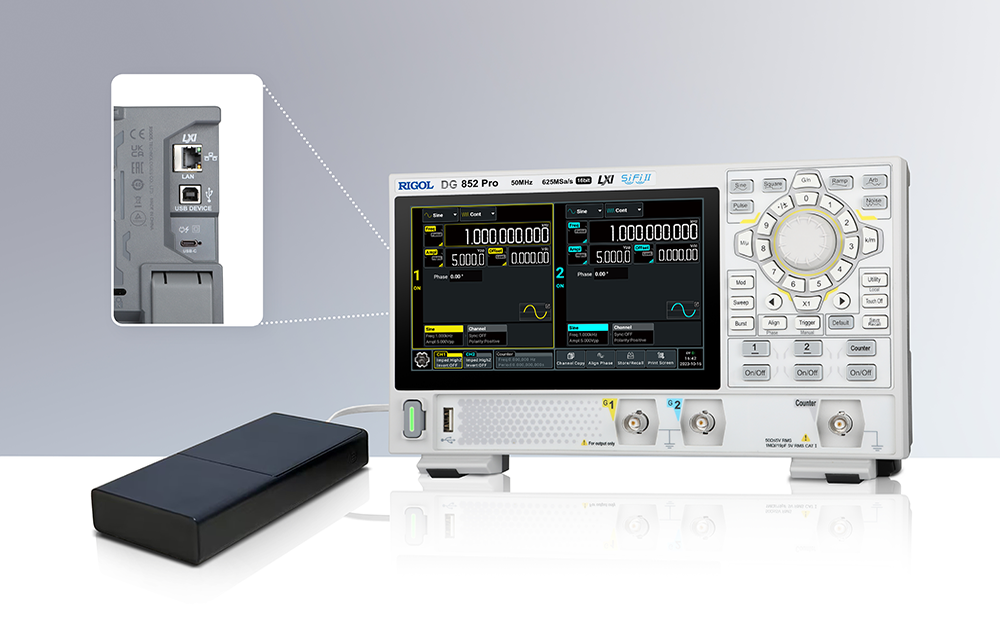

Equipped with Type-C Connector

Type-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient.

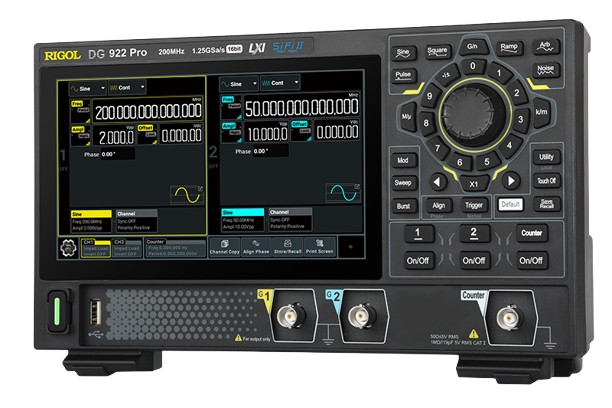

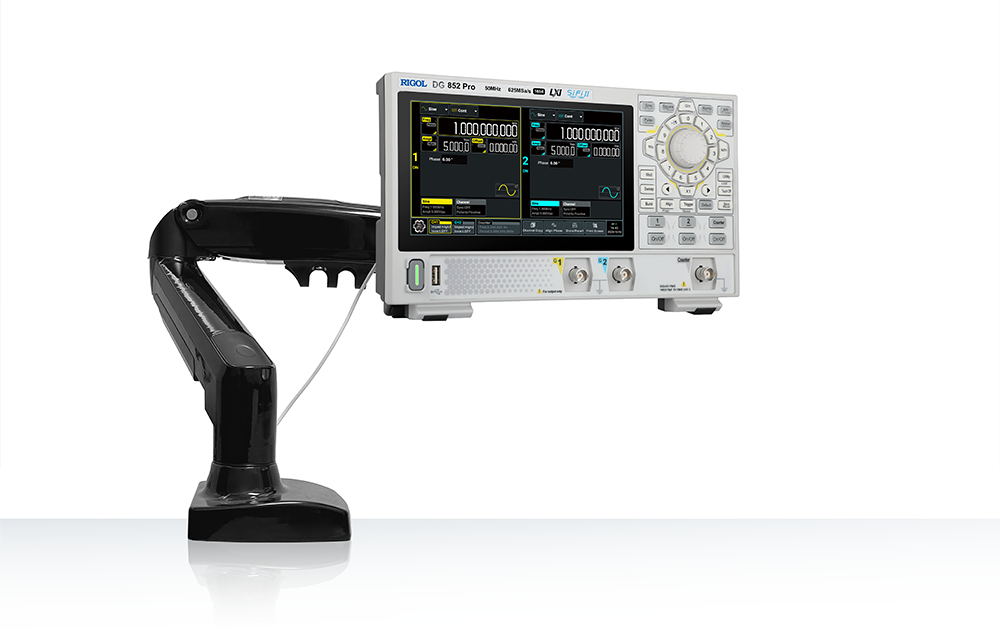

Smart Appearance

The 266mm (width) x 165mm (height) x 63mm (depth) DG800 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.

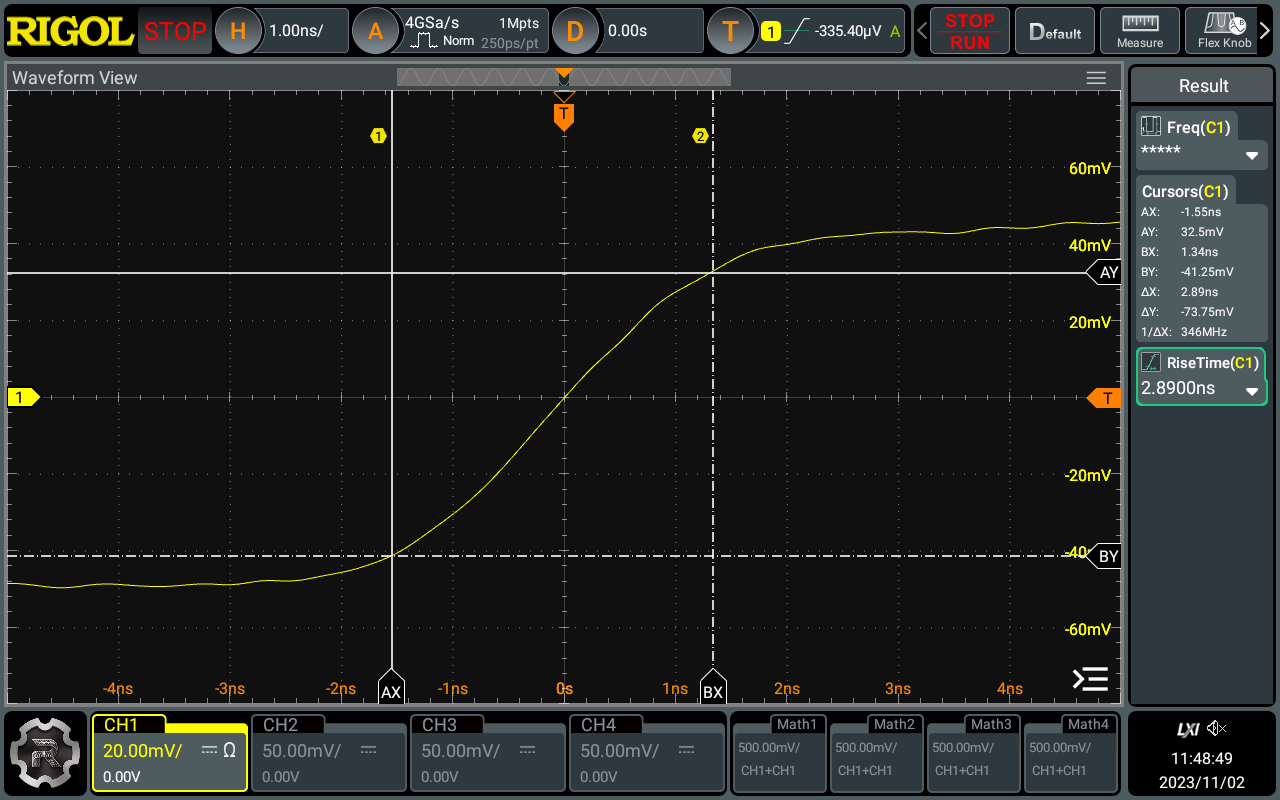

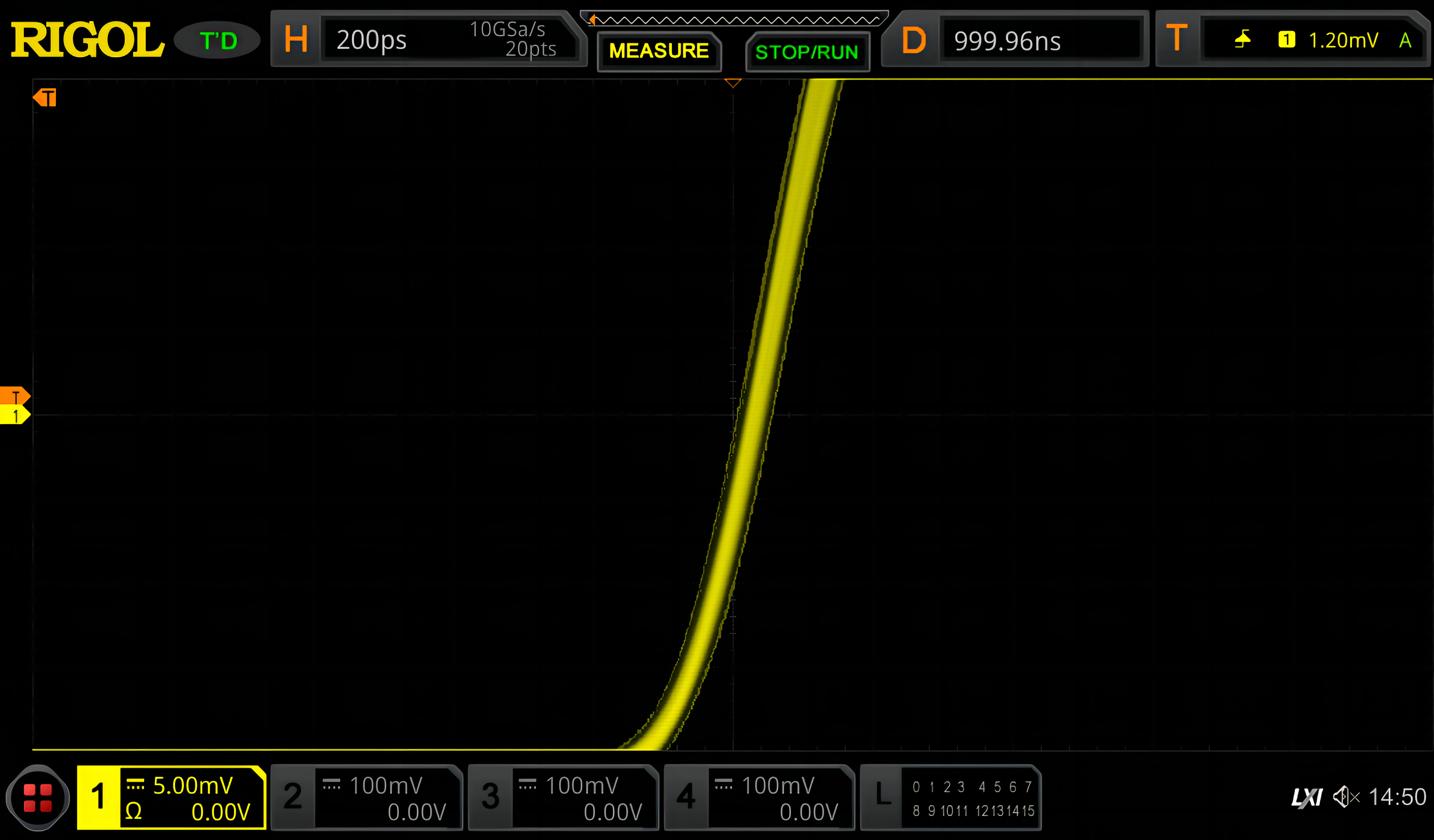

Fast Rising Edge

60MHz square wave and 50MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

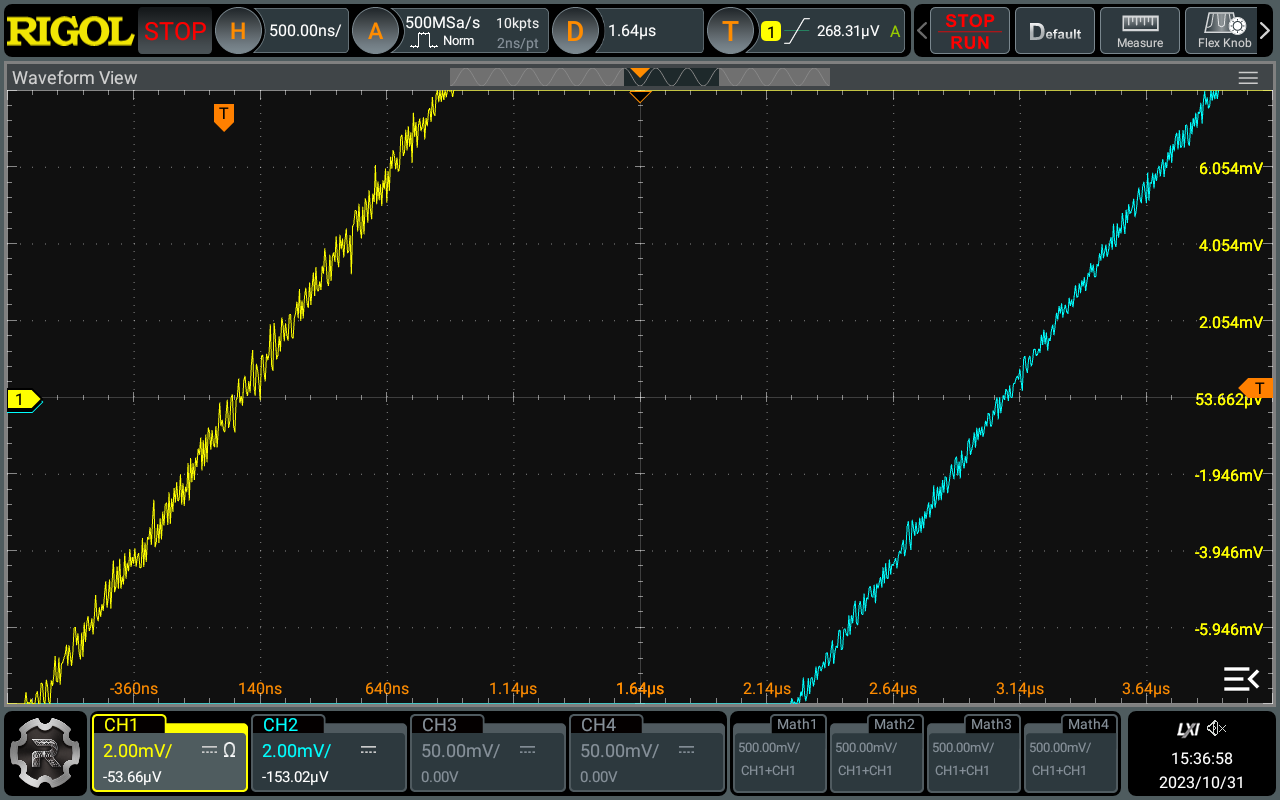

Ultra Low Signal Jitter

Based on RIGOL's SIFI ll technology, the DG900 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable, Compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).

Rich Modulation Functions

Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

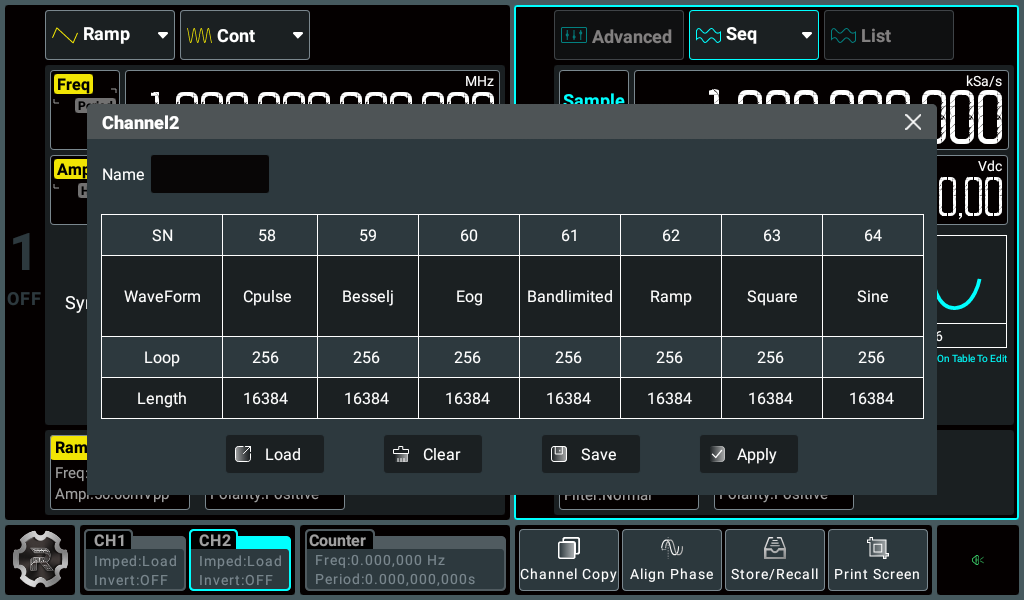

Sequence function

Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

Maximum 20th Harmonic Generation Function

Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices

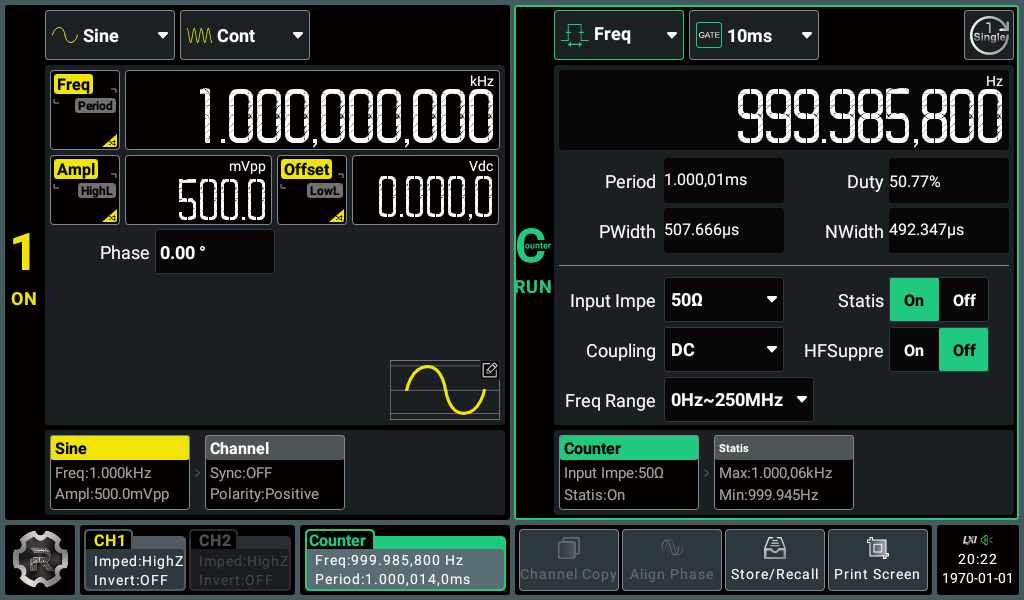

High Resolution Frequency Meter

A 7-bit 1GHz frequency meter can measure the frequency of common high-frequency signals such as VHF and UHF, facilitating relevant debugging

Model

Series	Max. Output Frequency	Sample Rate	Vertical Resolution	Channels	Arbitary Wave Length	Price
DG902 Pro	70MHz	1.25Gsa/s	16bits	2CH	16M(32M opt.)	Get a Quote
DG912 Pro	150MHz	1.25Gsa/s	16bits	2CH	16M(32M opt.)	Get a Quote
DG922 Pro	200MHz	1.25Gsa/s	16bits	2CH	16M(32M opt.)	Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model	Description	Harga
DG900 Pro-3RL	32M upgrade option	Get a Quote

User Manual

Name	Version	Release Date	Download
DG900 Pro User Manual	V1.0	2024-02-19	Download

Datasheet

Name	Version	Release Date	Download
DG900 Pro Datasheet	V3.0	2024-03-14	Download

Programming Manual

Name	Version	Release Date	Download
DG900 Pro Programming Manual	V1.0	2024-02-19	Download

Quick Guide

Name	Version	Release Date	Download
DG900 Pro QuickGuide	V1.0	2024-02-19	Download

Open Source Acknowledgment

Name	Version	Release Date	Download
DG900 Pro Open Source Acknowledgment	V2.0	2024-02-19	Download

Firmware

Name	Version	Release Date	Download
DG900 Pro Firmware	V00.01.00	2024-02-18	Download
Ultra Station (PC) Software & UserGuide	00.02.00.00.14/td>	2024-10-10	Download
