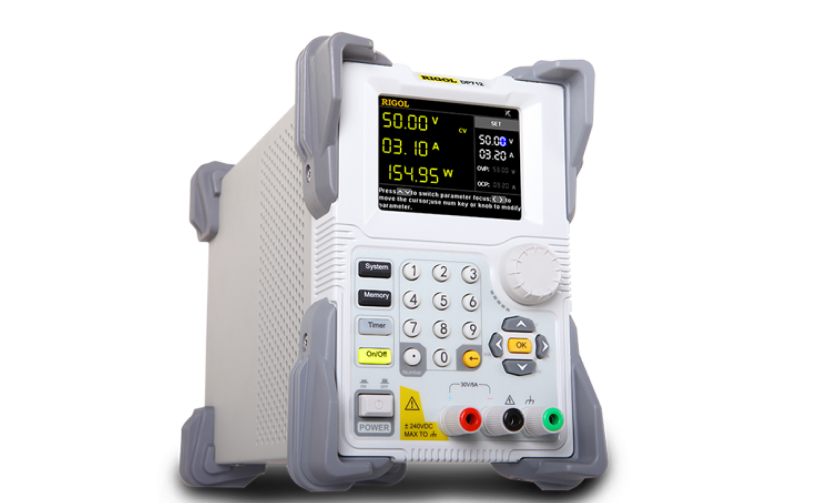

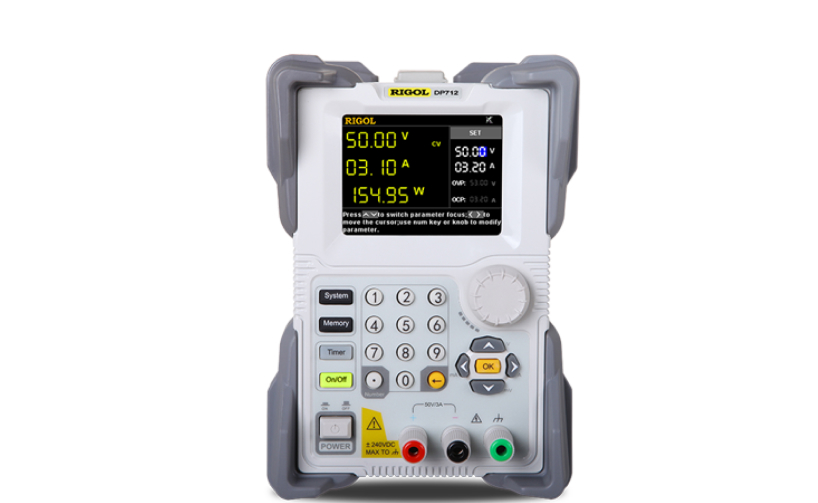

DP700 Series - RIGOL DC Power Supplies

Features

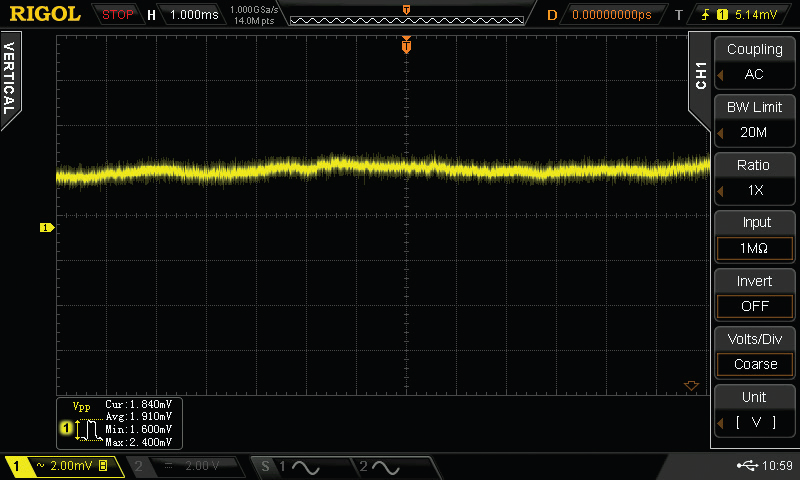

Low Ripple Noise

Ultra low noise design (< 500uvrms / 3mvpp), to meet the user's demand for high purity power supply.

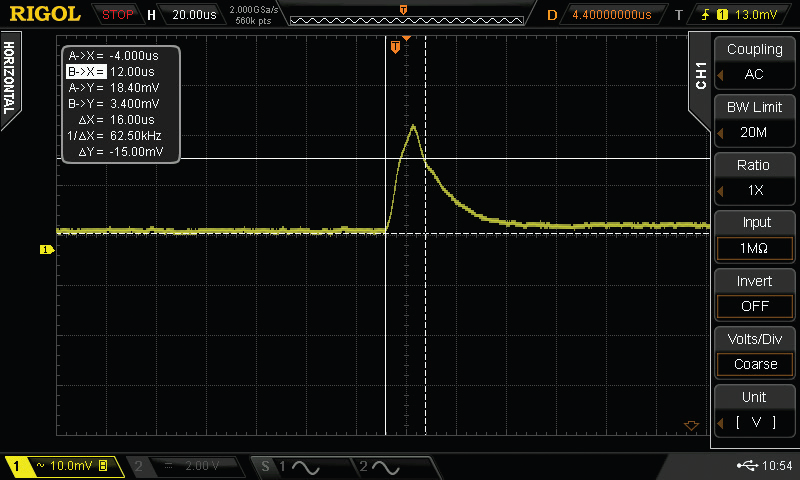

Fast transient response

When the transient response time is less than 50 μ s, when the load current changes, the output voltage can quickly return to the set value to ensure the output quality.

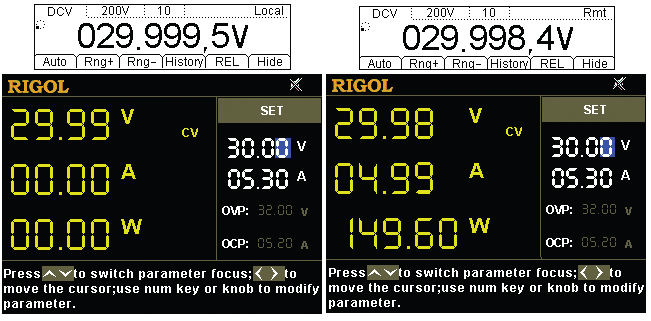

Excellent power & load regulation

0.01% power regulation rate and load regulation rate to ensure the stability and safety of output.

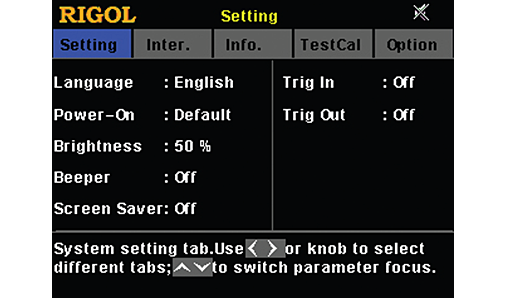

Convenient trigger function

When multiple power supplies are connected in series or in parallel, the external trigger function can make multiple power supplies output synchronously.

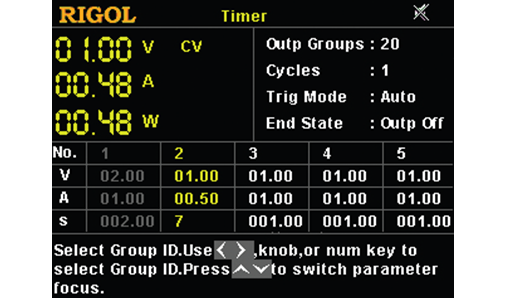

Timing output function

When the timing output is on, the voltage and current values of different periods can be configured according to the preset timer parameters to provide varying voltage and current output for the load.

OVP & OCP

Perfect over-voltage / over-current protection (OVP / OCP), the user can set the limit value of over-voltage and over-current protection, when over-voltage or over-current occurs, the power will automatically shut down the output and give a prompt message.

Model

Model Channels Total
Power		 Output Per Channel Load Regulation Power Regulation Action
DP711 1 150W 30V/5A Voltage: < 0.01% + 2mV,
Current: < 0.01% + 2mA		 Voltage: < 0.01% + 2mV,
Current: < 0.01% + 2mA		 Rp6.382.500
DP712 1 150W 50V/3A Voltage: < 0.01% + 2mV,
Current: < 0.01% + 2mA		 Voltage: < 0.01% + 2mV,
Current: < 0.01% + 2mA		 Rp6.105.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Option

Model Description
TIMER-DP700 Options for Timer
TRIGGER-DP700 External trigger in and Internal trigger out
HIRES-DP700 1mV/1mA resolution option

Accessories

Model Description
RM-3-DP700 Rack Mount Kit for three units
RM-2-DP700 Rack Mount Kit for two units
RM-1-DP700 Rack Mount Kit for one unit
CB-DB9-DB9-F-F-150 RS232 Cable, Female to Female, 150cm

User Manual

Name Version Release Date Download
DP700 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DP700 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DP700 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DP700 Quick Guide V1.0 2019-08-29 Download
