MSO8000 Series - RIGOL Digital Oscilloscopes

MSO8000 Series

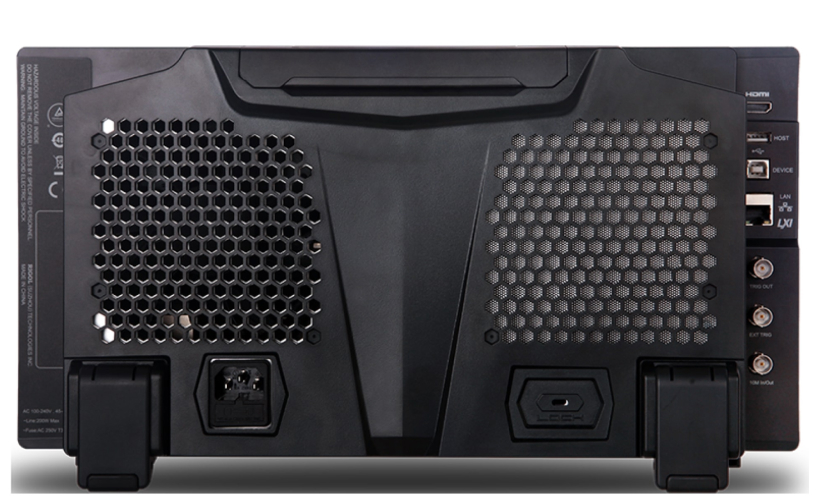

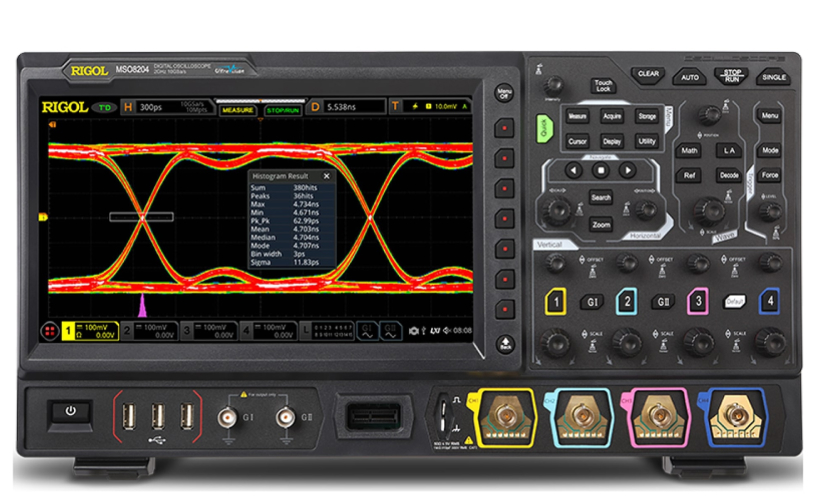

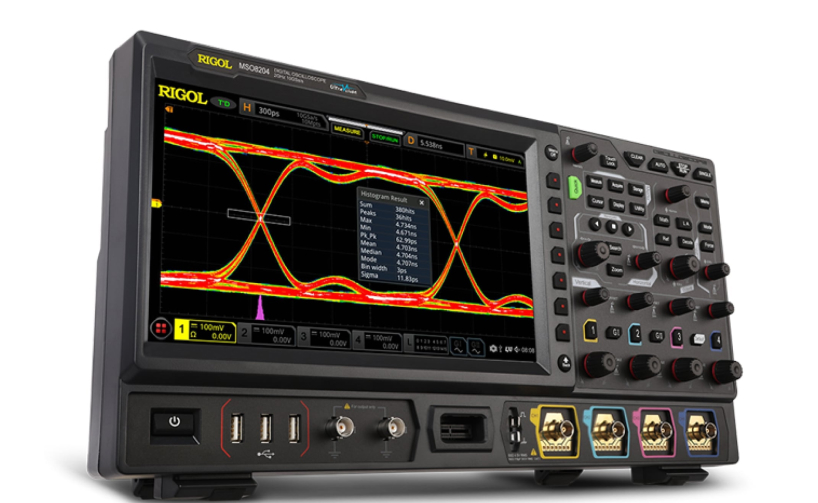

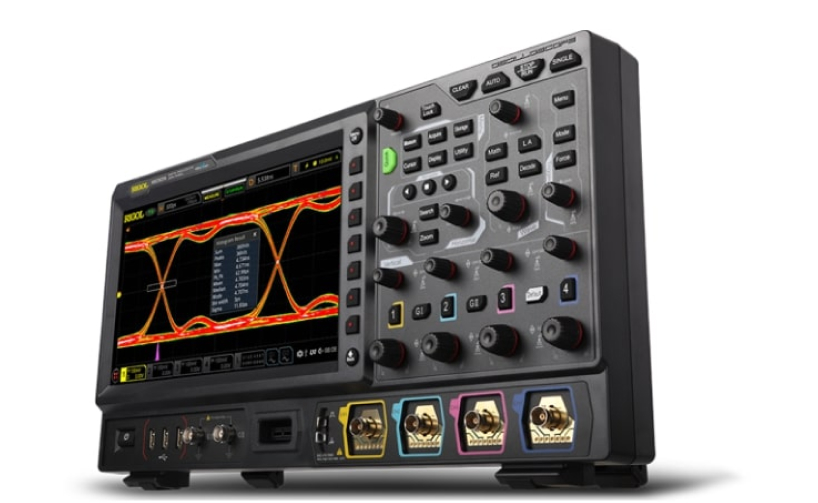

The MSO8000 series digital oscilloscope is a mid- to high-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform.

Bandwidth   : 600 MHz ~ 2 GHz
Analog Channels   : 4
Real-time Sample Rate   : 10 GSa/s
Max. Memory Depth   : 500 Mpts
Waveform Capture Rate   : 600,000 kwfms/s
Digital Channels   : 16

Datasheet

Features

Economical and Practical Eye Diagram Pretest

Eye diagram measurement with an oscilloscope can help users visually display the transmission quality of digital signals, thereby understanding the strength of crosstalk between codes in the system, and making improvements in system design. For those who often need to verify the quality of digital signals, the MSO8000 digital oscilloscope with eye diagram function is your wise choice.

Support for Dither Analysis of Diverse Displays

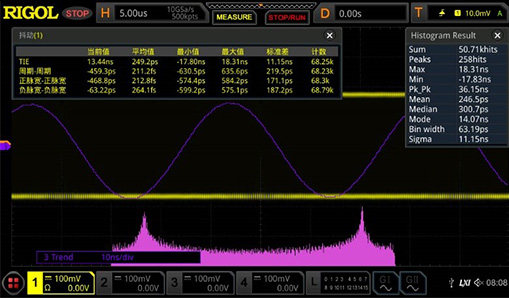

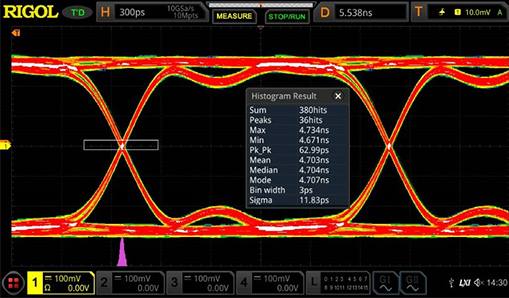

The MSO8000 Series with the MSO8000-JITTER option enables Jitter and Real-Time Eye analysis. Debug subtle timing effects in your high speed clock and digital data lines by visualizing error sources with the eye diagram, histogram, and jitter trend. Combine these visualization tools with direct measurements of the most common jitter and eye parameters.

Full Memory Hardware Measurement

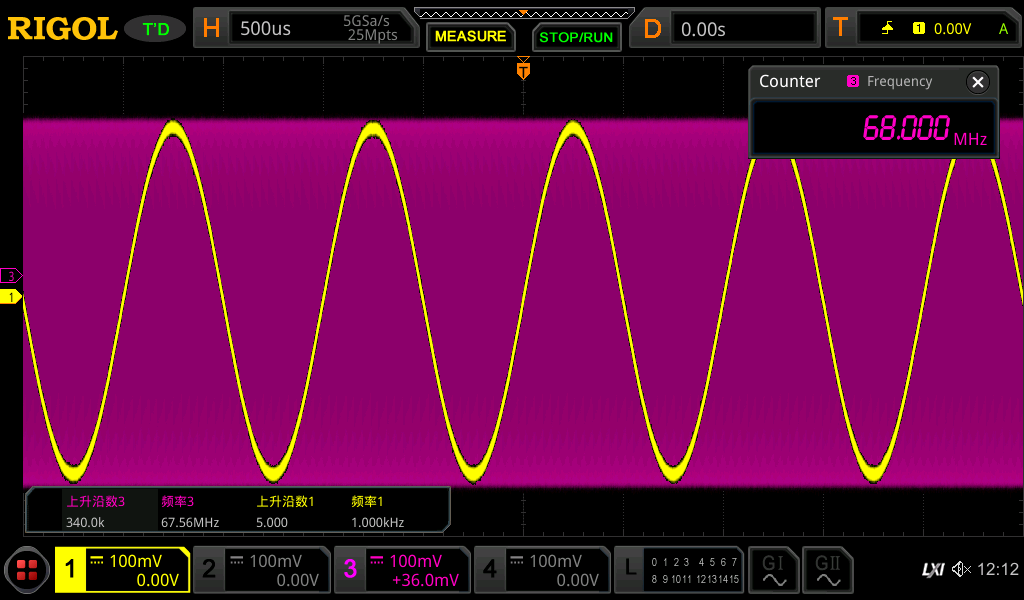

No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.

Trigger, decode, and visualize serial bus traffic to speed

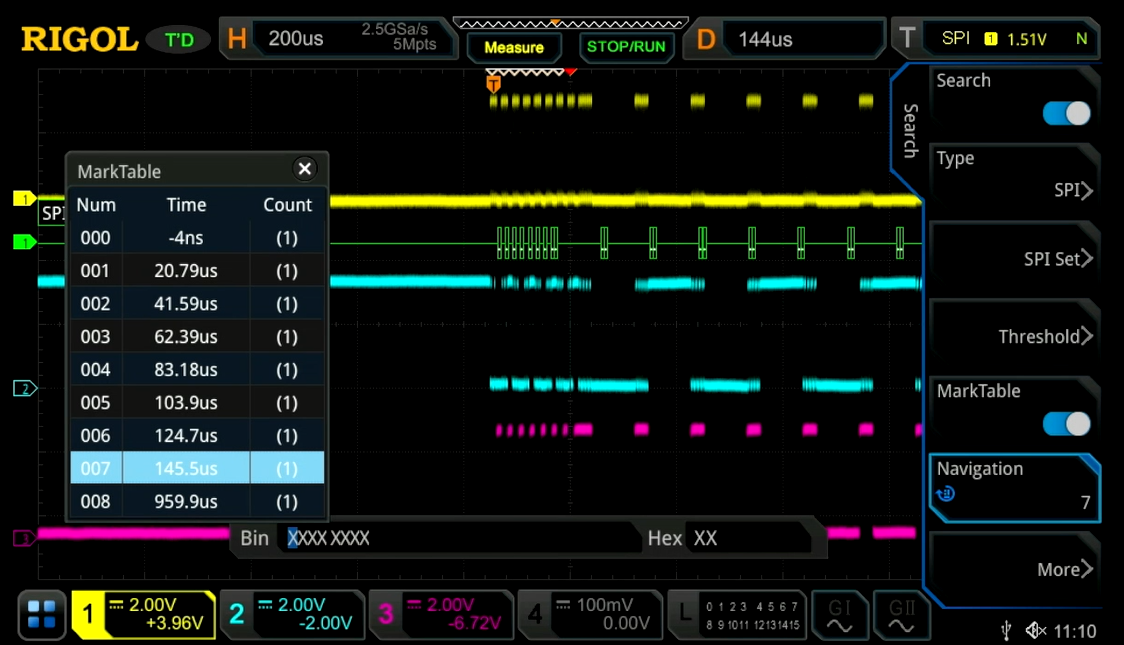

The MSO8000 Series provides decoding on up to 4 serial buses simultaneously. The MSO8000 provides the option of viewing traffic in a comprehensive event table. Choose from our expanded bus list including RS232/UART, I2C, SPI, LIN, CAN, FlexRay, I2S, and MIL-STD-1553. Add to that search and mark capabilities for the most common serial buses to debug systems quickly and easily.

Minimize scope “dead time” between trigger events and increases

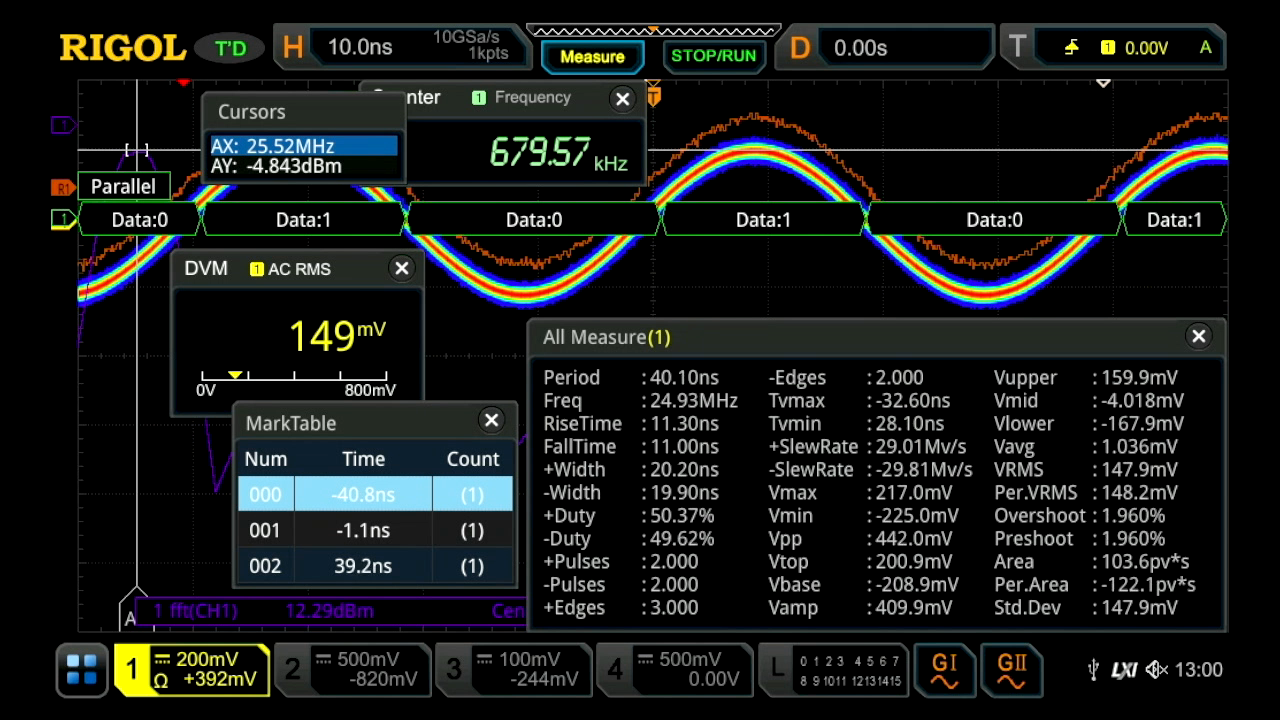

Faster capture times reduce the time it takes to visualize these transient effects. Most of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.

Find exclusive problems in complex digital streams with Find elusive problems in complex digital streams with long acquisitions at high

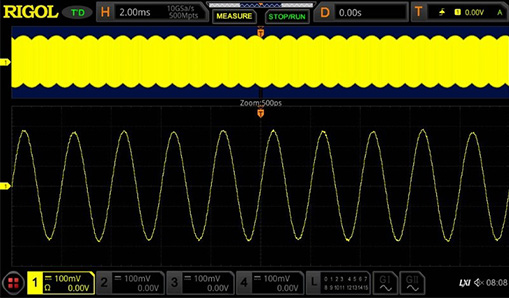

The MSO8000 provides up to 500 Mpt record lengths while making it easier than ever to utilize these samples. The MSO8000 provides complete search navigation and wave recording capabilities to harness the value of our deeper memory.

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price
MSO8064 600 MHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Need to configure logic probe) 2CH (option) Get a Quote
MSO8104 1 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Need to configure logic probe) 2CH (option) Get a Quote
MSO8204 2 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Need to configure logic probe) 2CH (option) Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Bandwidth Upgrade

Model Description
MSO8000-BW10T20 Bandwidth upgrade from 1GHz to 2GHz for MSO8000
MSO8000-BW6T10 Bandwidth upgrade from 600MHz to 1GHz for MSO8000

Functional Options

Model Description
MSO8000-JITTER Eye diagram and jitter for MSO8000
MSO8000-PWR Power Analysis Measurements
MSO8000-AWG Dual Channel 25MHz Generator
MSO8000-AERO MIL-STD-1553 Protocol Trigger and Analysis
MSO8000-AUDIO I2S Protocol Trigger and Analysis
MSO8000-FLEX FlexRay Protocol Trigger and Analysis
MSO8000-AUTO CAN and LIN Protocol Trigger and Analysis
MSO8000-EMBD I2C and SPI Protocol Trigger and Analysis
MSO8000-COMP RS232/UART Protocol Trigger and Analysis
MSO8000-BND Application Bundle，includes all serial protocol analysis,
measurement, and app options for MSO8000

Accessories

Model Description
MSO8000-FPC Front panel cover
NFP-3 Near Field Probe, Requency Range: 30MHz to 3GHz
RPA246 Power Analysis Calibration Kit
RM6041 Rack Mounting Kit for MSO/DS7000, MSO8000
DK-DS6000 Demo Board for oscilloscopes

User Manual

Name Version Release Date Download
MSO8000 User Manual V1.0 2019-08-29 Download
MSO8000 RackmountKit Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
MSO8000 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
MSO8000 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
MSO8000 Quick Guide V1.0 2019-08-29 Download

Open Source Acknowledgment

Name Version Release Date Download
MSO&DS7000&8000 Open Source Acknowledgment V1.0 2019-08-29 Download

Video

【Performance】RIGOLs MSO8000 Series Digital Oscilloscope

【Performance】MSO8000s Performance Bandwidth and Risetime Measurement Capability

【Performance】MSO8000s Advanced Jitter Analysis Capability

【Performance】MSO8000s Real-Time Eye Analysis Capability
