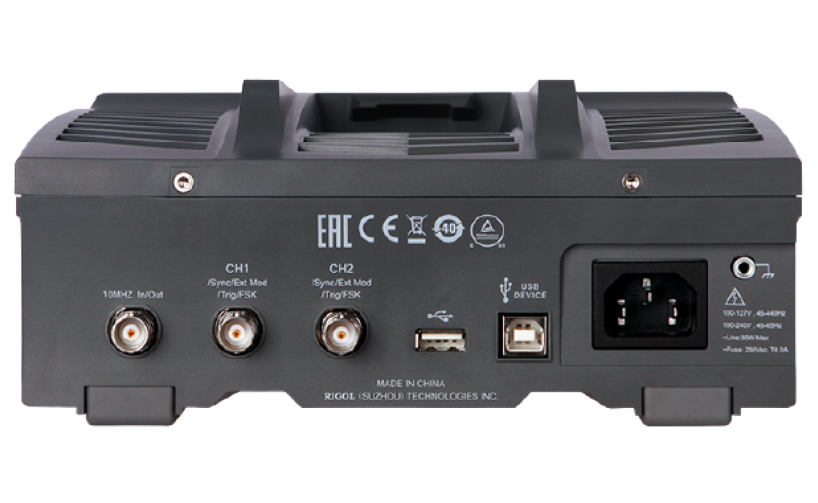

DG800 Series - RIGOL Waveform Generators

Features

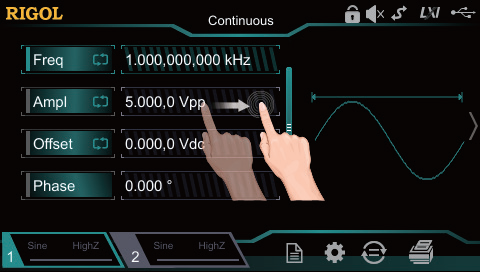

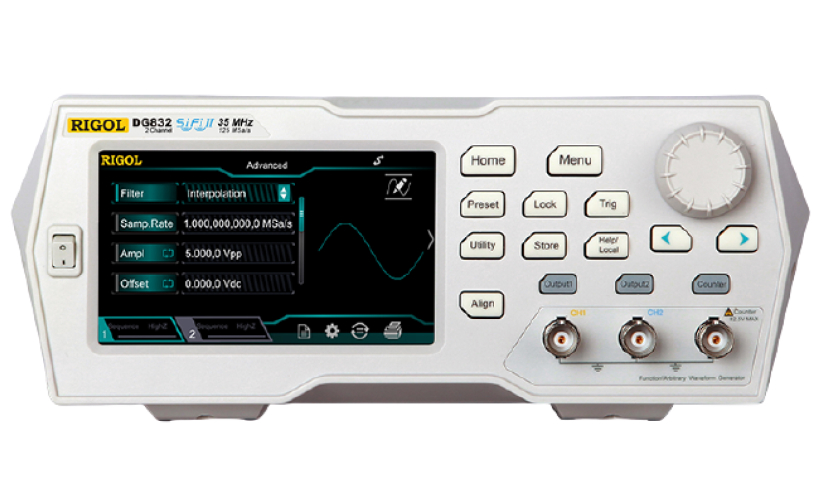

4.3 Inch Touch Screen

4.3-inch TFT color touch screen, new UI design

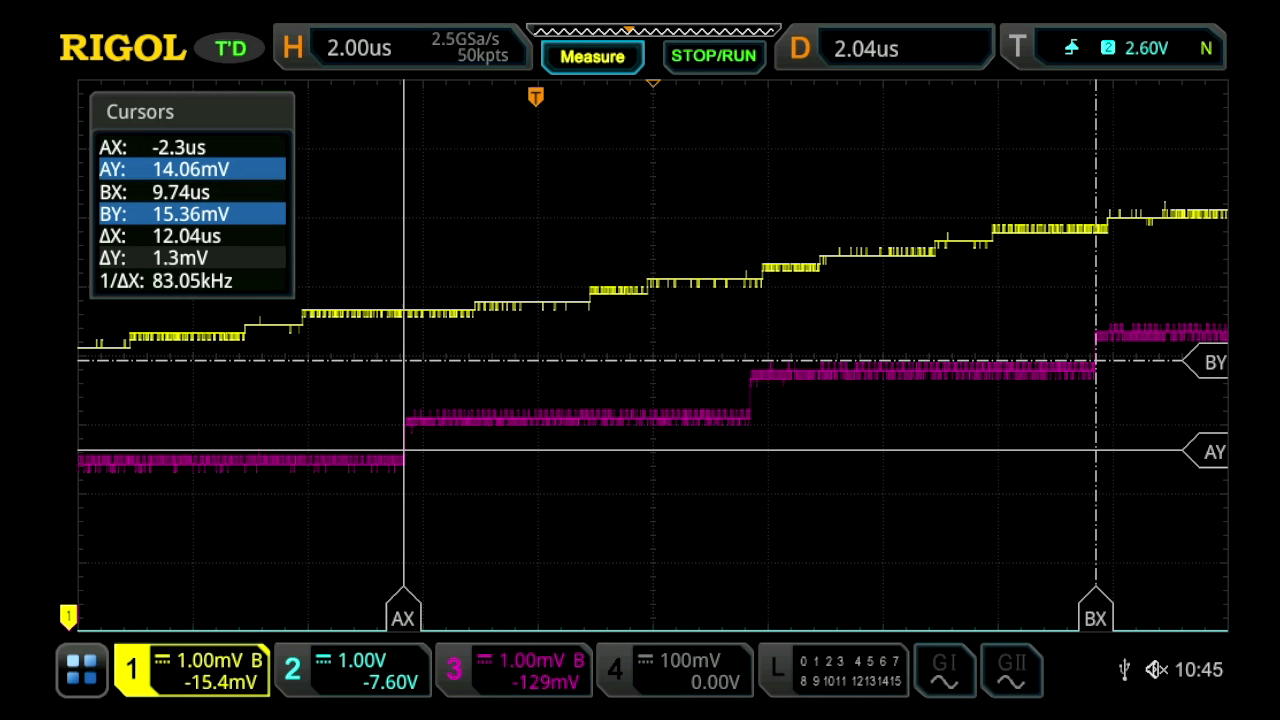

16bit Vertical Resolution

DG800 series generators extend output at 16 bit resolution The resolution of the output voltage is 4 times that of the traditional 14 bit generator. DG2000 can reproduce any waveform more reliably and improve the fidelity and performance of the signal.

Signal Jitter As Low As 200ps

The sampling rate can be adjusted precisely, compared with the traditional DDS signal source, the signal jitter is lower, and the jitter of all output signals is as low as 200ps.

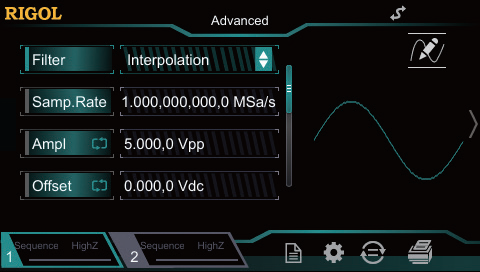

SiFi II Technology

Sifi II technology allows you to output signals flexibly through filtering options such as stepping, smoothing and interpolation These options in the powerful signal sorting function can provide precise roll down control for the signal you select. Combine these flexible playback options or use edge time in interpolation mode to define the range of broadband components in the signal.

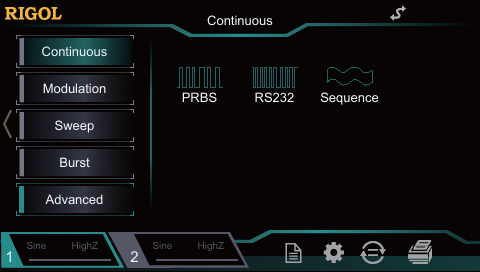

Support Multiple Signal Outputs

Support PRBS, RS232 and sequence output.

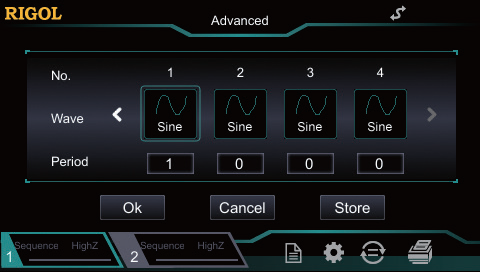

Arb Sequencing

Create and combine complicated sequences of signals for emulation or failure analysis with the touch of a finger. Combine cycles of different waveform types including dual tone, arbitrary waves, and noise to mimic a broad set of test signals.

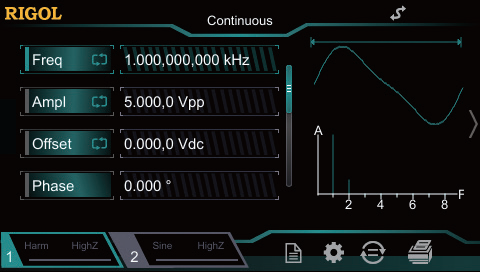

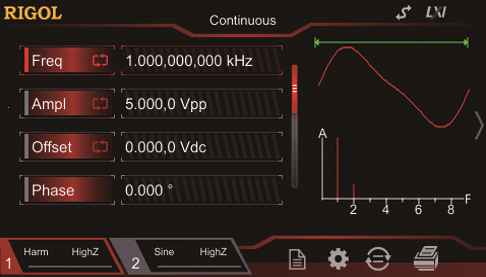

Harmonic Generator

DG800 has built-in 8-th harmonic generator function and outputs harmonics with specified times, amplitude and phase. It is usually used in the test of harmonic detection equipment or harmonic filter equipment.

Fanless Silent Operation

No fan design structure, no noise interference operation.

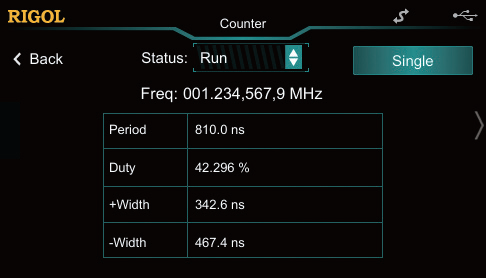

200 Mhz Hardware Counter

It provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DG811 10MHz 125Msa/s 16bits 1CH 2Mpts(8Mpts opt.) Rp6.875.000
DG812 10MHz 125Msa/s 16bits 2CH 2Mpts(8Mpts opt.) Rp7.548.000
DG821 25MHz 125Msa/s 16bits 1CH 2Mpts(8Mpts opt.) Rp7.381.000
DG822 25MHz 125Msa/s 16bits 2CH 2Mpts(8Mpts opt.) Rp8.214.000
DG831 35MHz 125Msa/s 16bits 1CH 2Mpts(8Mpts opt.) Get a Quote
DG832 35MHz 125Msa/s 16bits 2CH 2Mpts(8Mpts opt.) Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description
DG800-ARB8M DG800 Memory upgrade to 8M
DG800-DCH Single Channel to Dual Channel Upgrade

Accessories

Model Description
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
CB-BNC-AC-100-L BNC-AC Cable
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
RA5040K 40 dB attenuator accessory for oscilloscopes or generators
PA1011 10W power amplifier for waveform generators
USB-LAN USB2.0 to 100Mbps Ethernet Adaptor
BAG-G1 Instrument Carry Case for a DSA800 Spectrum Analyzer,
DG4000 generator, or DS2000 scope.

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for
DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG800 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DG800 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DG800 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DG800 Quick Guide V1.0 2019-08-29 Download
DG800 Selection Guide V1.0 2019-08-29 Download

Open Source Acknowledgment

Name Version Release Date Download
DG800&900 Open Source Acknowledgment V1.1 2019-08-29 Download
