RIGOL Spectrum Analyzers
From entry level swept spectrum analyzers to advanced real-time analysis RIGOL provides unprecedented value. Whether you are doing simple signal visualization, integrating wireless technologies into your IoT design, characterizing component performance, preparing for emissions compliance testing or working with complex modulated signals RIGOL has a Spectrum Analyzer to fit your need and budget
Product
Series Below

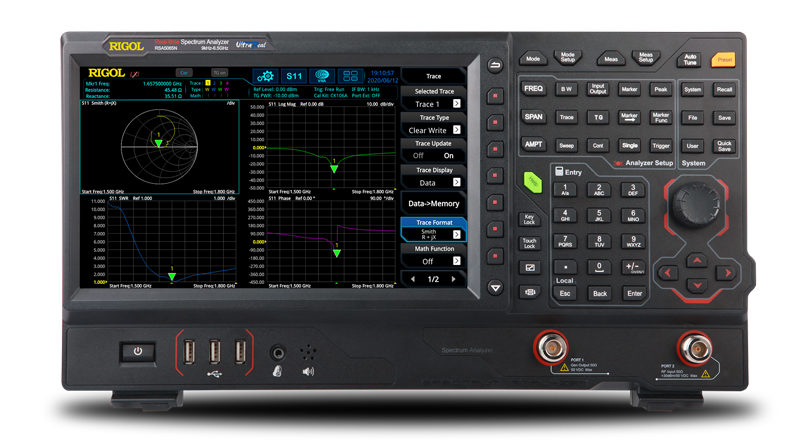

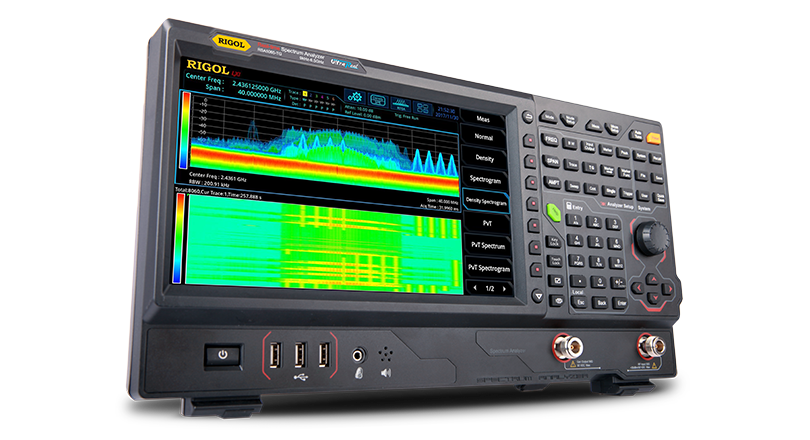

RSA5000 Series
The RSA5065 real-time spectrum analyzer with real-time analysis and sweep analysis, optional vector signal analysis application software (VSA) and EMI measurement application software (EMI), with excellent performance and specifications. Its frequency range is 9kHz to 3.2GHz, and it is available with the tracking source "-TG" model, which can be widely used in enterprise R&D, factory production, education and teaching.
Frequency Range : 9 kHz~3.2/6.5 GHz
Max. Real-time Bandwidth : 40 MHz
RBW : 1 Hz~10 MHz
Phase Noise : -108dBc/Hz@10kHz
DANL : -165dBm/Hz
Tracking Source : -TG

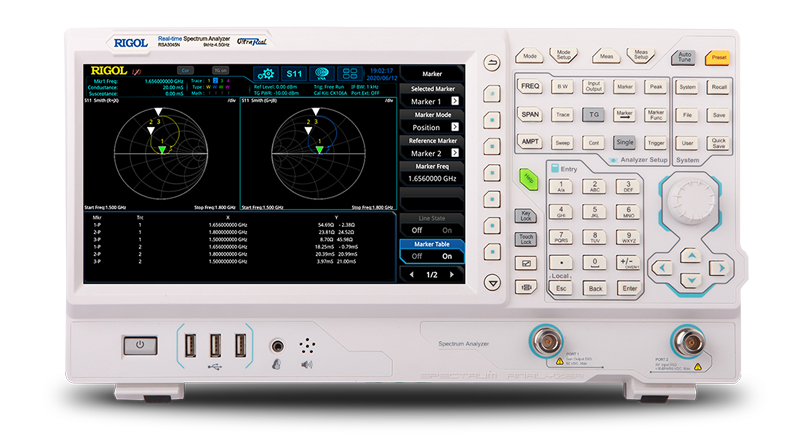

RSA3000 Series
The RSA3000 real-time spectrum analyzer with real-time analysis and sweep analysis capabilities, optional EMI measurement application software (EMI), with excellent performance and specifications. Its frequency range is 9kHz to 3.2GHz, and it is available with the tracking source "-TG" model, which can be widely used in enterprise R&D, factory production, education and teaching.
Frequency Range : 9 kHz~3/4.5 GHz
Max. Real-time Bandwidth : 40 MHz
RBW : 1 Hz~10 MHz
Phase Noise : -102dBc/Hz@10kHz
DANL : -161dBm/Hz
Tracking Source : -TG
Start from Rp 48.174.000
Read More Email Us

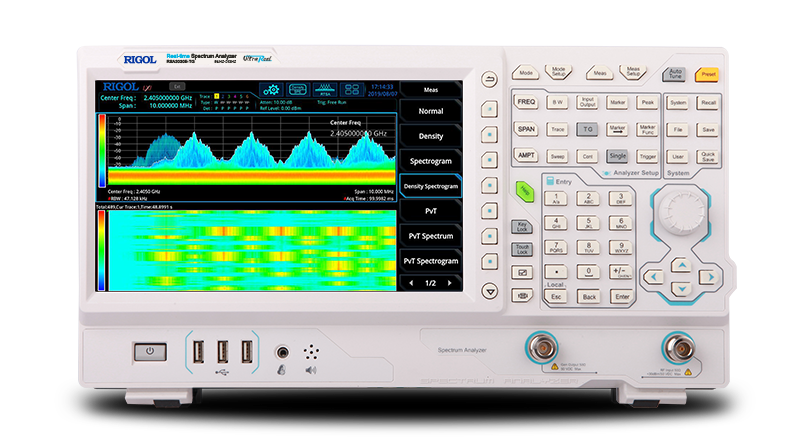

RSA3000E Series
The RSA3000E is a 5-in-1 spectrum analyzer with sweep spectrum, real-time spectrum, scalar network analyzer (-TG model), EMI receiver and digital demodulation. Its frequency range is 9kHz to 1.5/3GHz, and it is available with the tracking source "-TG" model, which can be widely used in enterprise R&D, factory production, education and teaching.
Frequency Range : 9 kHz~1.5/3 GHz
Max. Real-time Bandwidth : 10 MHz
RBW : 1 Hz~3 MHz
Phase Noise : -102dBc/Hz@10kHz
DANL : -161dBm/Hz
Tracking Source : -TG
Start from Rp 35.640.000
Read More Email Us

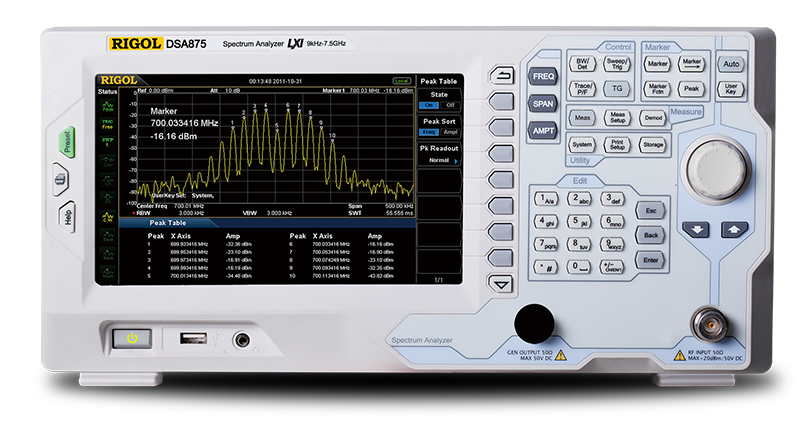

DSA800/E Series
Performance Spectrum Analyzers with exceptional capabilities and an affordable price 1.5 GHz to 7.5 GHz models with tracking generators, Preamps, EMI, VSWR, and more options.
Frequency Range : 9 kHz~1.5/3.2/7.5 GHz
Max. Real-time Bandwidth : /
RBW : 10 Hz~1 MHz
Phase Noise : -98dBc/Hz@10kHz
DANL : -161dBm/Hz
Tracking Source : -TG
Start from Rp 25.300.000
Read More Email Us

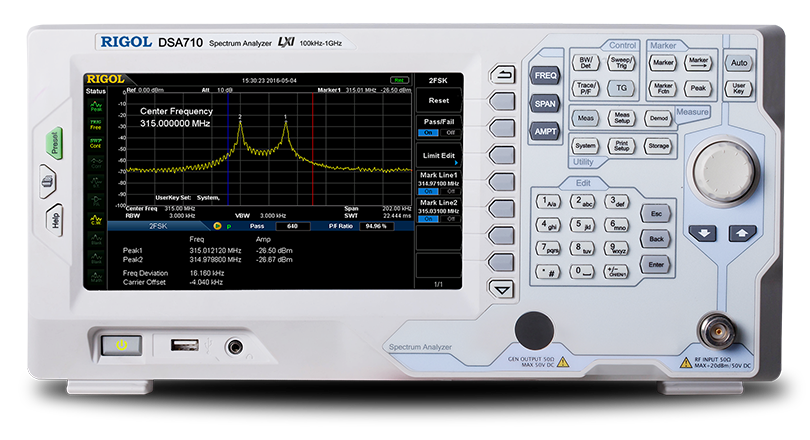

DSA700 Series
Entry level spectrum analyzers for education, IoT, hobby, and radio applications 500 MHz and 1 GHz models with option for Seamless Signal Capture, EMI, and more.
Frequency Range : 100 kHz~500M/1 GHz
Max. Real-time Bandwidth : /
RBW : 100 Hz~1 MHz
Phase Noise : -80dBc/Hz@10kHz
DANL : -130dBm
Tracking Source : N/A
Start from Rp 22.660.000
Read More Email Us
