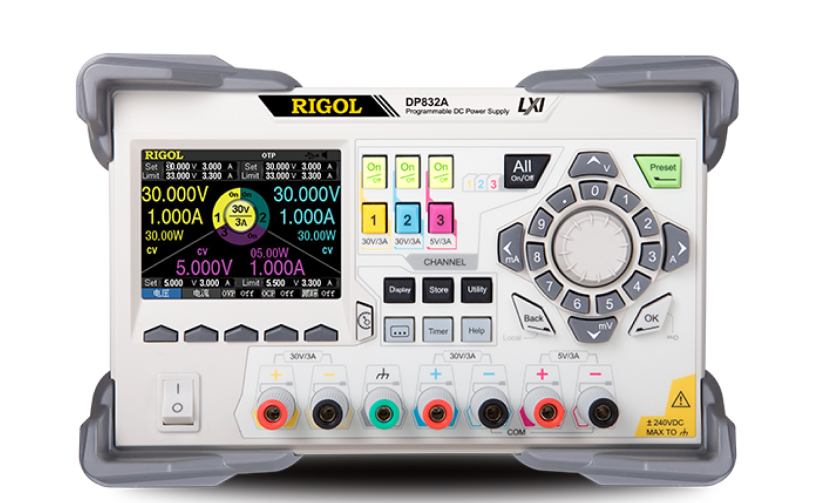

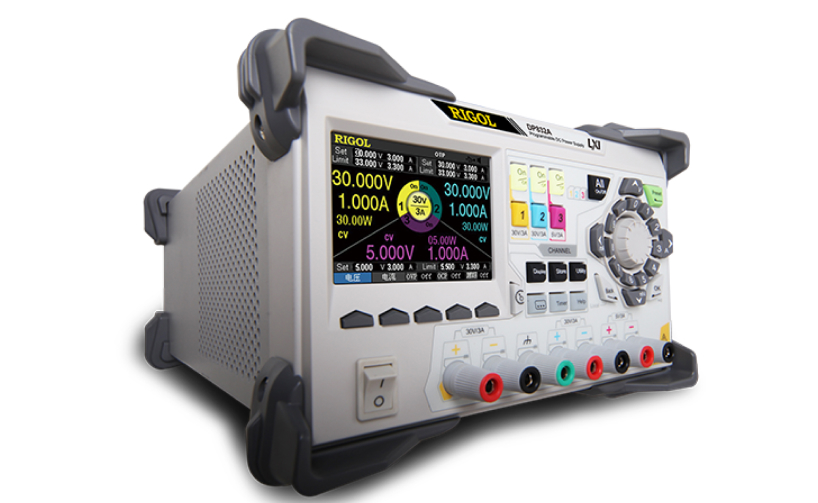

DP800 Series

DP800 series includes single output, two output and three output programmable linear DC power supply. They have pure output, excellent performance indicators, multiple analysis functions, rich interfaces, and can meet the diverse testing needs.

Channels   : 3/2/1CH
Total power   : Max 200W
Output Per Channel   : 30V/3A || 30V/3A , 5V/3A
Programming Accuracy   : 1mV/1mA
Readback Accuracy   : 0.1mV/0.1mA
Display Resolution   : 1mV/1mA

Start from Rp 11.710.500

Datasheet

Features

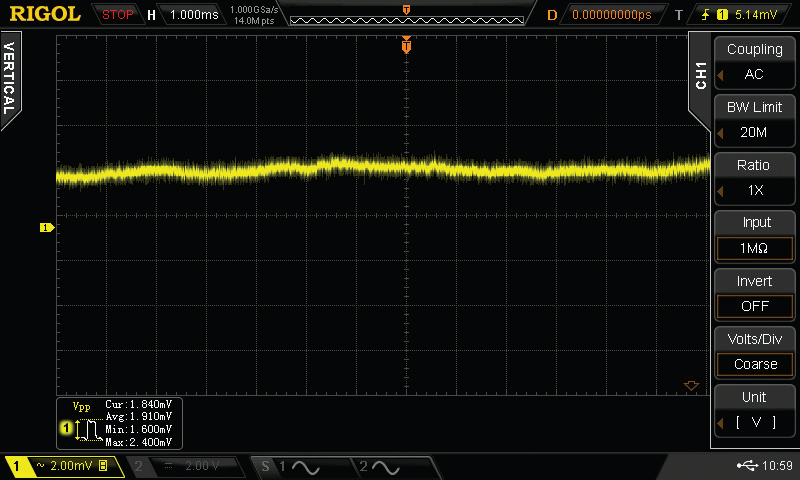

Low Ripple Noise: < 350uvrms / 2mvpp

Ultra low noise design to meet the user's demand for high purity power supply.

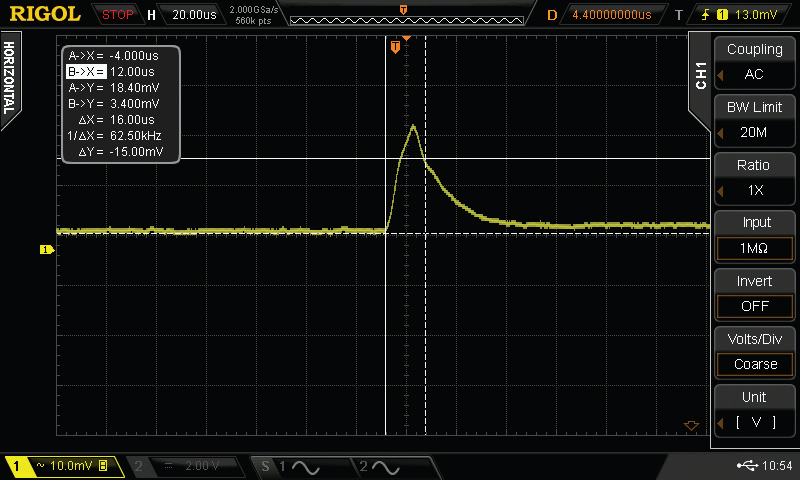

Fast Transient Response Time: < 50us

The response time of the power supply shall not exceed 50uS, so as to meet the user's demand for rapidly changing voltage waveform.

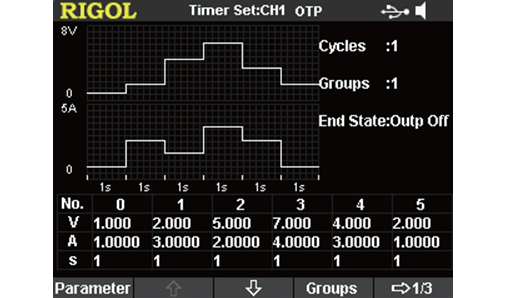

Standard Timing Output

When the timer is on, the instrument will output preset voltage and current (up to 2048 groups). The user can set the number of output groups of the timer, and set the output voltage, current and timing time of each group. (take dp831a as an example)

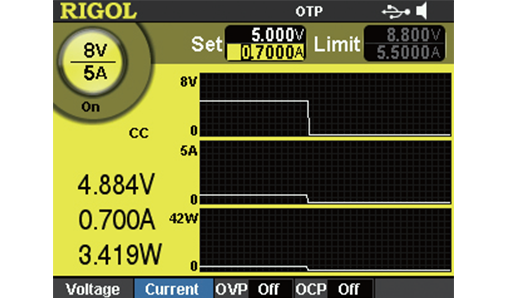

Built in V / A / W Measurement and Waveform Display

Real time measurement and display the change trend of V / A / W parameters at the same time. (take dp831a as an example).

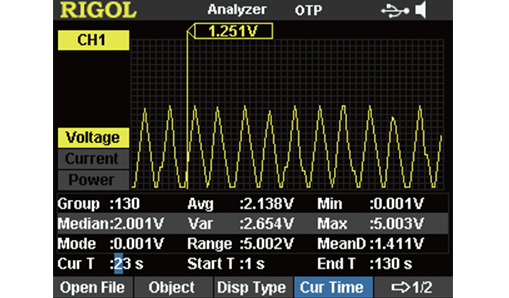

Output Analysis, Monitoring, Setting Preset and Other Functions

It has the functions of output analysis, monitoring, setting preset, etc. to realize all-round monitoring analysis (take dp831a as an example).

Original 3.5-inch Tft Wide Screen Display

Traditional numerical interface and instrument panel interface can be switched, easy to operate, intuitive and clear.

Model

Model	Channels	Total Power	Output Per Channel	Load Regulation	Power Regulation	Price
DP832A	3	195W	30V/3A \|\| 30V/3A , 5V/3A	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Rp19.092.000
DP832	3	195W	30V/3A \|\| 30V/3A , 5V/3A	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Rp13.164.000
DP831A	3	160W	8V/5A \|\| 30V/2A , -30V/2A	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Rp14.960.000
DP831	3	160W	8V/5A \|\| 30V/2A , -30V/2A	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Rp12.987.000
DP822A	2	180W	20V/5A\|\|5V/16A	Voltage: ≤0.01% + 2mV； Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV； Current: ≤0.01% + 250uA	Rp16.095.000
DP822	2	180W	20V/5A\|\|5V/16A	Voltage: ≤0.01% + 2mV； Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV； Current: ≤0.01% + 250uA	Rp13.986.000
DP821A	2	140W	8V/10A\|\|60V/1A	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Rp14.874.000
DP821	2	140W	8V/10A\|\|60V/1A	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Rp11.710.500
DP813A	1	200W	8V/20A（Low Range）, 20V/10A（High Range）	Voltage: ≤0.01% + 2mV； Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV； Current: ≤0.01% + 250uA	Rp15.762.000
DP813	1	200W	8V/20A（Low Range）, 20V/10A（High Range）	Voltage: ≤0.01% + 2mV； Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV； Current: ≤0.01% + 250uA	Rp13.320.000
DP811A	1(two ranges)	200W	20V/10A (Low Range) , 40V/5A (High Range)	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Rp15.540.000
DP811	1(two ranges)	200W	20V/10A (Low Range) , 40V/5A (High Range)	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV; Current: ≤0.01% + 250uA	Rp11.710.500
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Option

Model	Description
HIRES-DP800	1mV/1mA Resolution Option for DP832, DP811, DP821, DP831
DIGITALIO-DP800	Four channels for trigger in & out option for DP832, DP811, DP821, DP831
AFK-DP800	Detect and Analyzer option for DP832, DP811, DP821, DP831
INTERFACE-DP800	RS-232 and LAN interface option for DP832, DP811, DP821, DP831

Accessories

Model	Description
RM-1-DP800	Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads
SPR-DP800	Red safety connector
SPB-DP800	Black safety connector
RM-2-DP800	Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads
CB-DB9-DB9-F-F-150	RS232 Cable, Female to Female, 150cm
