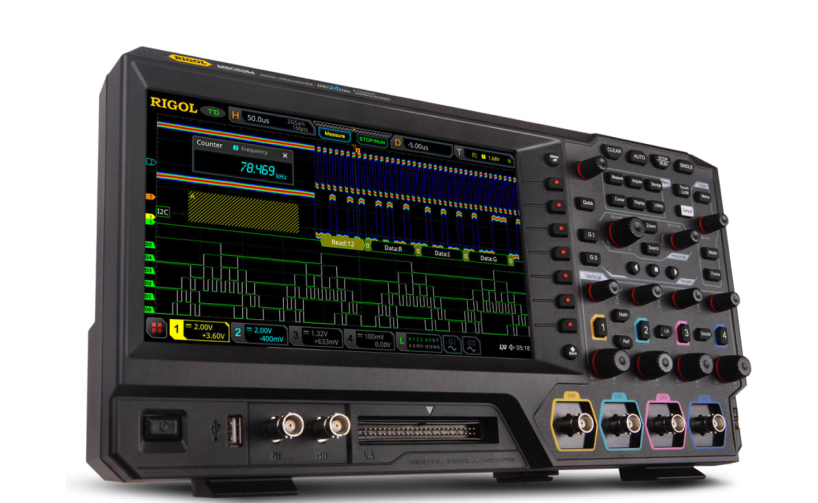

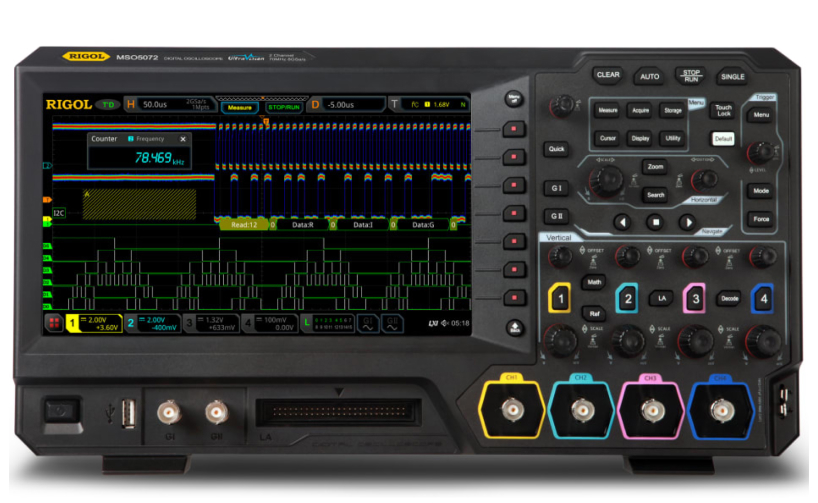

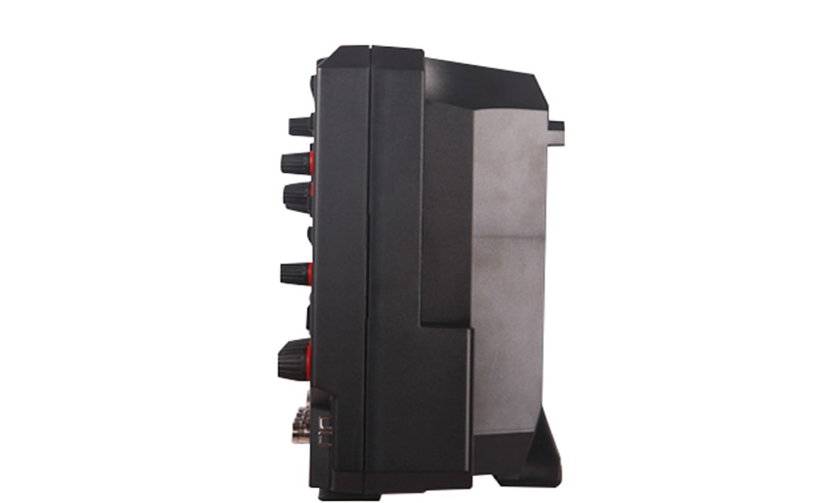

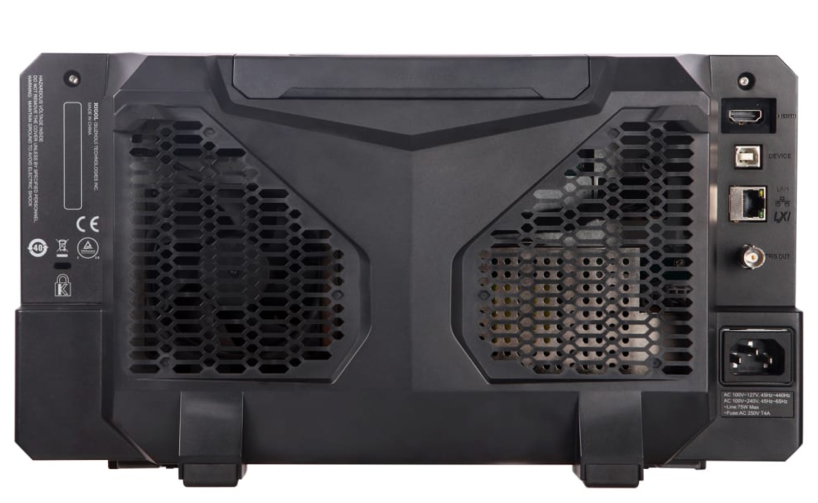

MSO5000 Series

MSO5000 series digital oscilloscope is a high performance and economical digital oscilloscope based on the technology of RIGOL ultravision II generation. The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data.

Bandwidth   : 70 MHz ~ 350 MHz
Analog Channels   : 4
Real-time Sample Rate   : 8 GSa/s
Max. Memory Depth   : 200 Mpts
Waveform Capture Rate   : 500,000 kwfms/s
Digital Channels   : 16

Start from Rp 21.678.000

Datasheet

Features

Bode Plot: Switching Power Supply Loop Analysis

The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data. This can help engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.

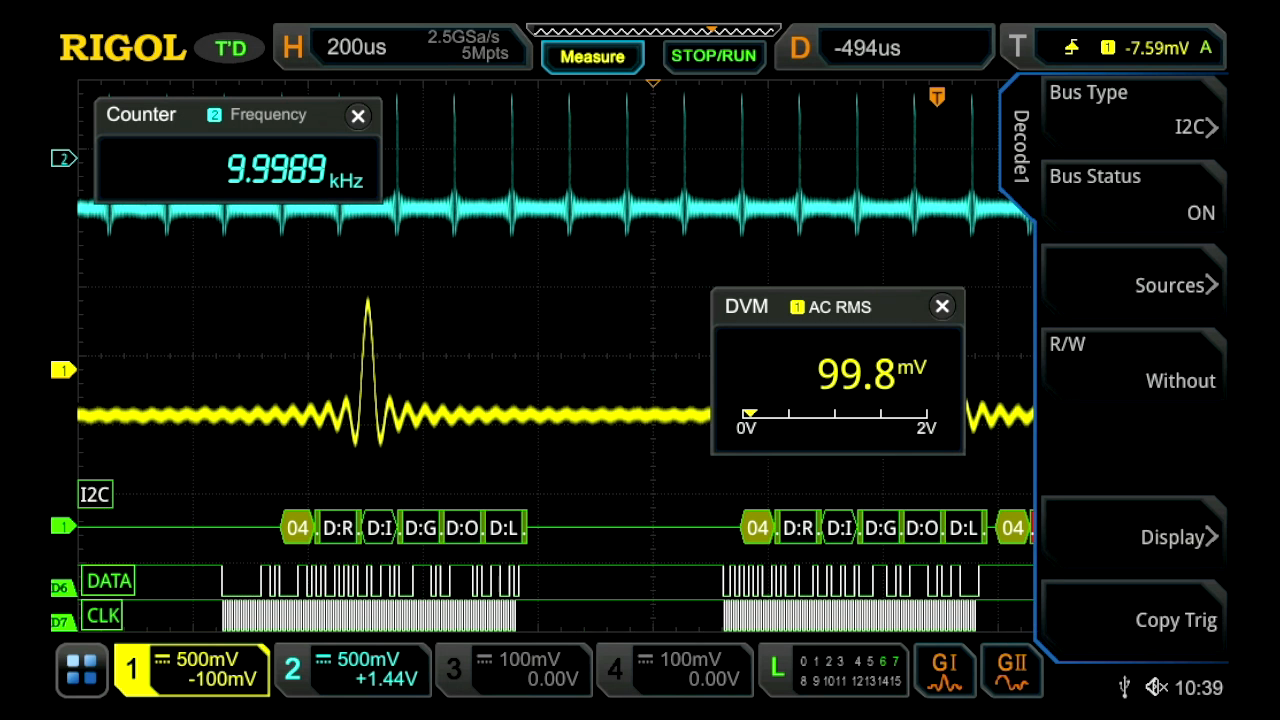

7 in 1 Product Design

It integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.

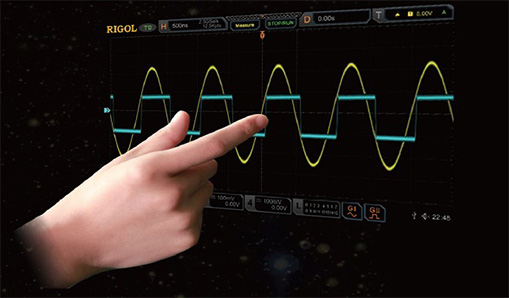

9 "multi Touch Capacitive Screen

9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience.

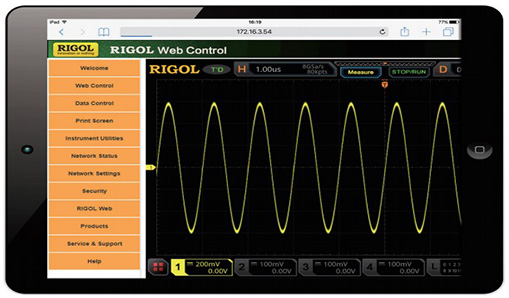

Convenient Web Control Remote Control

The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.

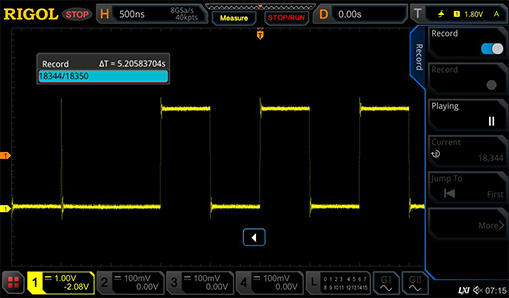

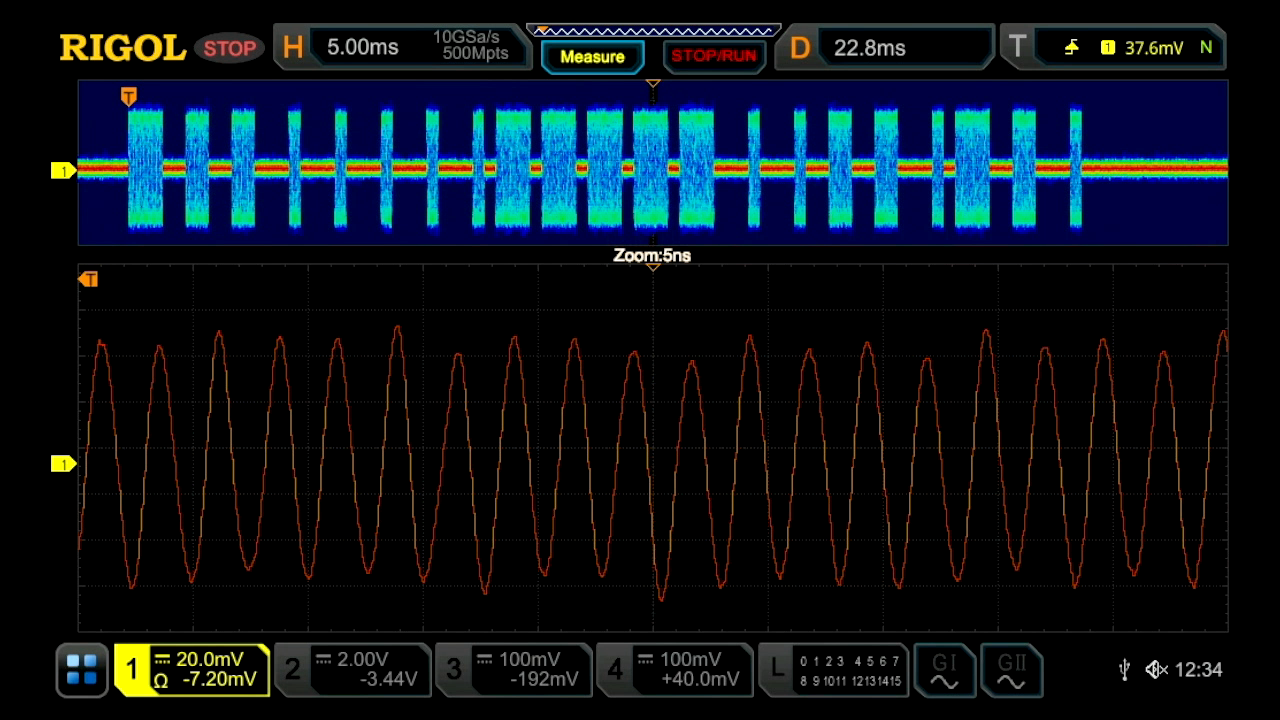

Support Up to 450000 Frames of Hardware Waveform Recording Analysis

The hardware waveform recording function adopts the segmented storage technology, which can selectively capture and store the user's concerned signal by setting the trigger conditions, and mark the time on the signal, which not only ensures the efficiency of acquisition, but also further expands the total time of waveform observation.

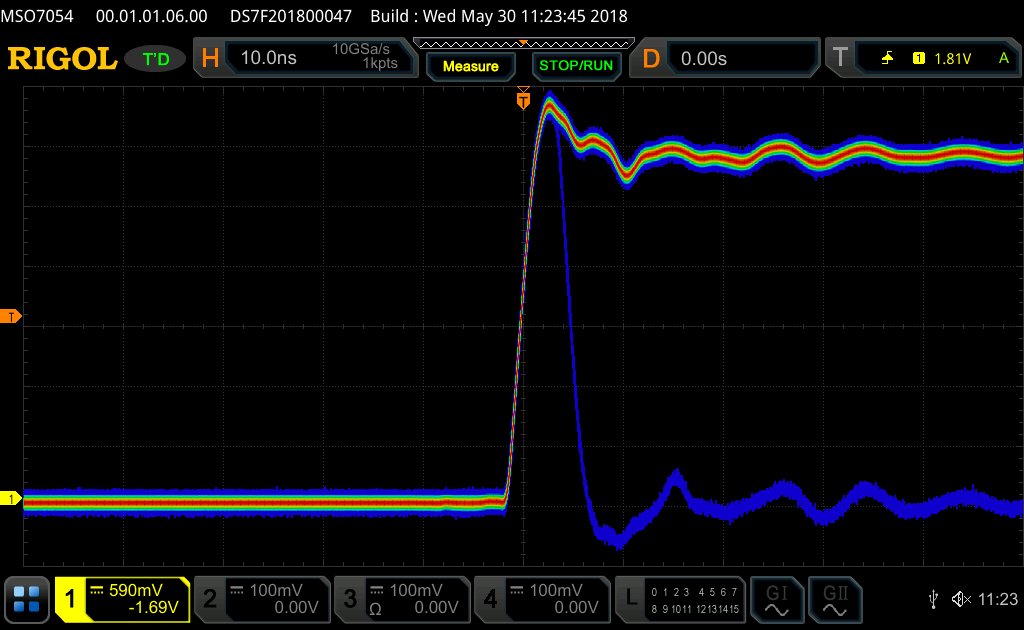

Waveform Capture Rate Up to 500000 Times Per Second

With a waveform capture rate of up to 500000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers

Super High Sampling Bandwidth Ratio

The mso5000 series provides a real-time sampling rate of up to 8 GSa / s at 350 MHz bandwidth, with a sampling bandwidth ratio of about 23 times, which makes it a leader in the oscilloscope products of the same level, and has an ultra long waveform storage depth of 200 mpts.

Full Memory Hardware Measurement

At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edges

Model

Model	Bandwidth	Analog Channels	Real-Time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels	Built-In Source	Price
MSO5354	350 MHz	4	8 GSa/s	200 Mpts (option)	500,000 wfms/s	16 (Need to configure logic probe)	2CH	Get a Quote
MSO5204	200 MHz	4	8 GSa/s	200 Mpts (option)	500,000 wfms/s	16 (Need to configure logic probe)	2CH	Rp69.975.000
MSO5104	100 MHz	4	8 GSa/s	200 Mpts (option)	500,000 wfms/s	16 (Need to configure logic probe)	2CH	Rp29.768.000
MSO5102	100 MHz	2	8 GSa/s	200 Mpts (option)	500,000 wfms/s	16 (Need to configure logic probe)	2CH	Rp28.582.000
MSO5074	70 MHz	4	8 GSa/s	200 Mpts (option)	500,000 wfms/s	16 (Need to configure logic probe)	2CH	Rp21.678.000
MSO5072	70 MHz	2	8 GSa/s	200 Mpts (option)	500,000 wfms/s	16 (Need to configure logic probe)	2CH	Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Bandwidth Upgrade

Model	Description
MSO5000-BW2T3	Bandwidth upgrade from 200MHz to 350MHz for MSO5000
MSO5000-BW1T3	Bandwidth upgrade from 100MHz to 350MHz for MSO5000
MSO5000-BW1T2	Bandwidth upgrade from 100MHz to 200MHz for MSO5000
MSO5000-BW0T3	Bandwidth upgrade from 70MHz to 350MHz for MSO5000
MSO5000-BW0T2	Bandwidth upgrade from 70MHz to 200MHz for MSO5000
MSO5000-BW0T1	Bandwidth upgrade from 70MHz to 100MHz for MSO5000

Channel Upgrade

Model	Description
MSO5000-4CH	2Ch to 4Ch Upgrade

Functional Options

Model	Description
MSO5000-PWR	Integrated Power Analysis
MSO5000-FLEX	FlexRay serial bus trigger and analysis (FlexRay) for MSO5000
MSO5000-EMBD	Embedded Serial Triggering and Analysis(I2C, SPI) for MSO5000
MSO5000-COMP	Computer Serial Triggering and Analysis(RS232/UART) for MSO5000
MSO5000-BND	Demo Board for oscilloscopesApplication Bundle, includes all serial protocol analysis, measurement, and app options for MSO5000
MSO5000-AWG	Dual Channel 25MHz Waveform Generator for MSO5000
MSO5000-AUTO	Automotive Serial Triggering and Analysis(CAN/LIN) for MSO5000
MSO5000-AUDIO	Audio Serial Triggering and Analysis(I2S) for MSO5000
MSO5000-AERO	MIL-STD 1553 Serial Triggering and Analysis for MSO5000
MSO5000-2RL	Record Length Upgrade to 200M

Accessories

Model	Description
UPA-DS	Power Analysis Software for MSO/DS2000, MSO/DS4000, MSO8000, MSO/DS7000, MSO5000 series oscilloscopes

User Manual

Name	Version	Release Date	Download
MSO5000 User Manual	V2.0	2020-05-01	Download
MSO5000 RackmountKit Manual	V2.0	2020-04-239	Download

Datasheet

Name	Version	Release Date	Download
MSO5000 Datasheets	V2.0	2020-05-23	Download

Programming Manual

Name	Version	Release Date	Download
MSO5000 Programming Manual	V2.0	2020-05-01	Download

Quick Guide

Name	Version	Release Date	Download
MSO5000 Quick Guide	V1.0	2019-08-29	Download

Open Source Acknowledgment

Name	Version	Release Date	Download
MSO5000 Open Source Acknowledgment	V1.0	2019-08-29	Download
