M300 - RIGOL Data Acquisition




Features

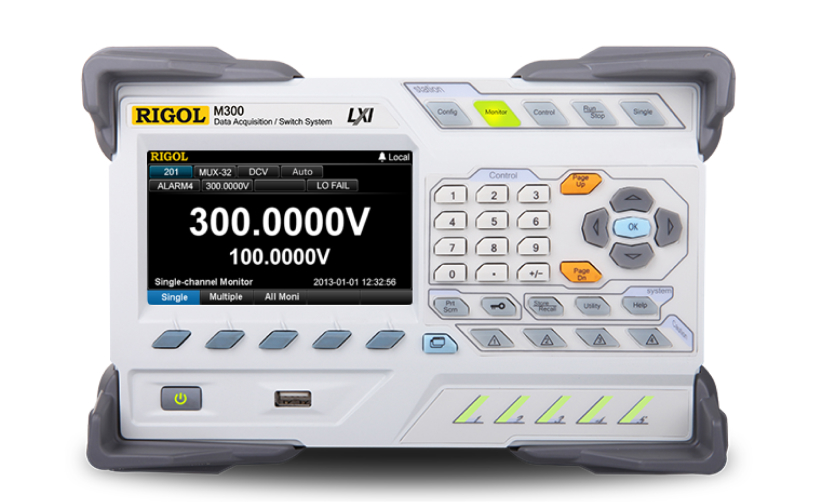

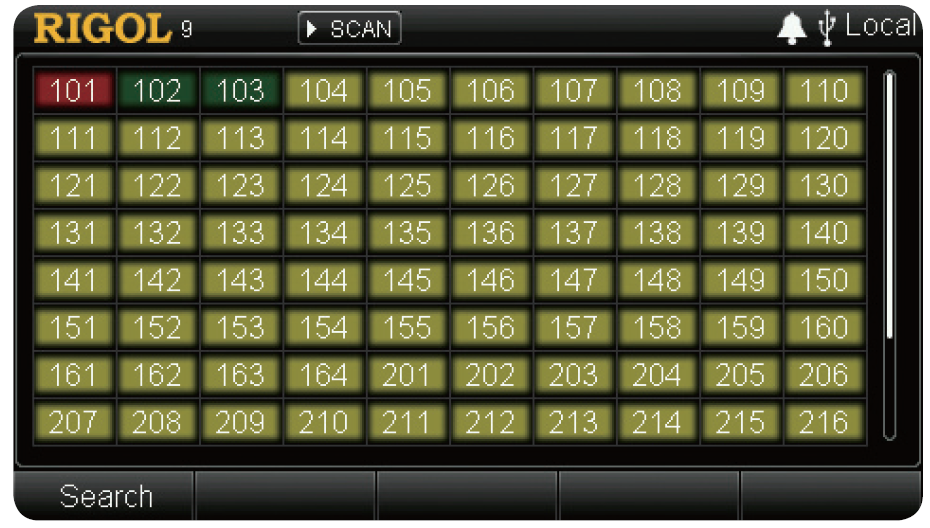

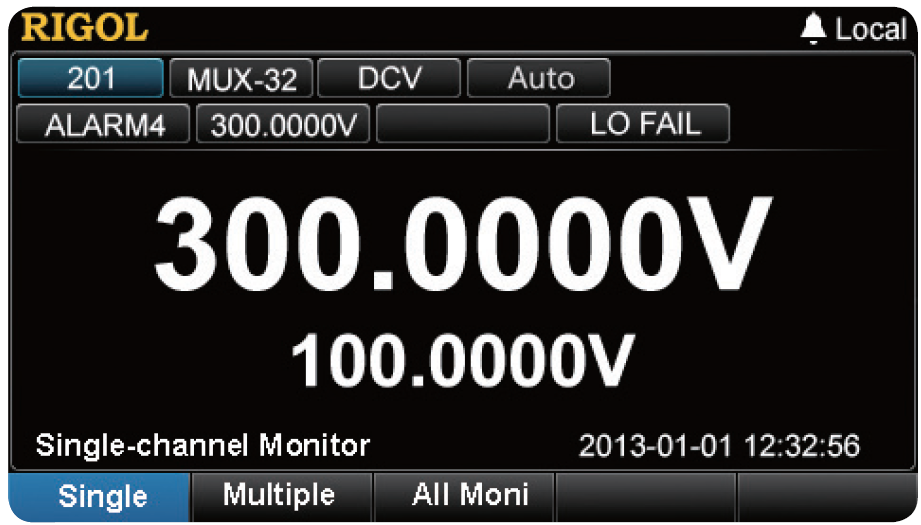

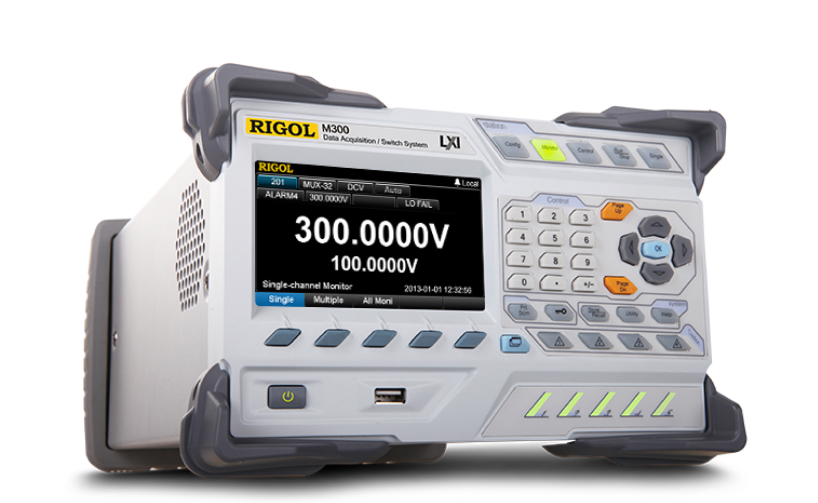

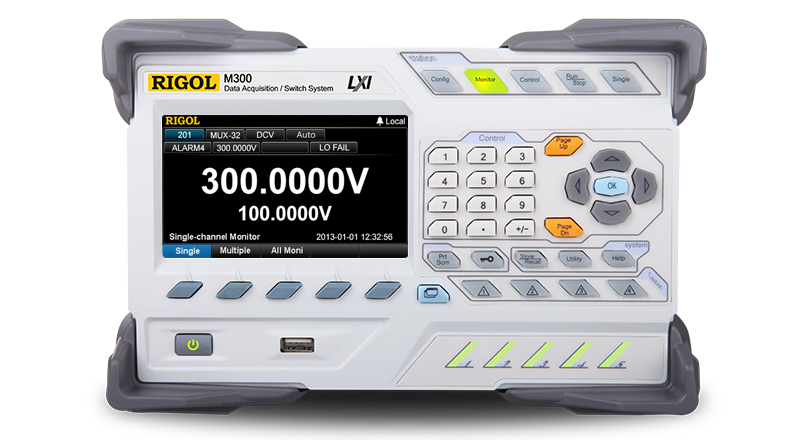

Large Screen Display & Easy to Operate

4.3-inch color LCD screen, simple and convenient function setting, no PC required, the host can independently perform the acquisition function.

6.5-bit Reading resolution

The measurement function of the data acquisition system is completed by the 6.5-bit multimeter module, which supports the measurement functions of DCV, DCI, ACV, ACI, 2wr, 4wr, cycle, frequency, temperature (thermocouple, thermistor and RTD) and any sensor.

Up to 256 Test Channels

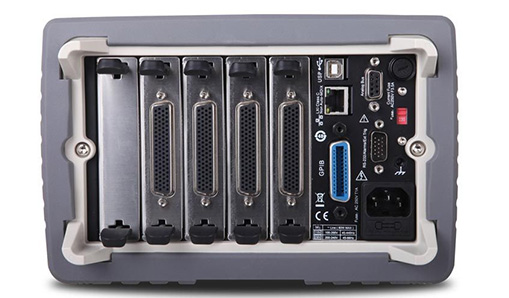

The M300 host has five module slots One slot is generally used for DMM measurement card, and the other four are used for measurement channel According to the selected module, the slot can have up to 64 measurement channels, and each host can have 256 measurement channels.

Optional 8 Module Cards

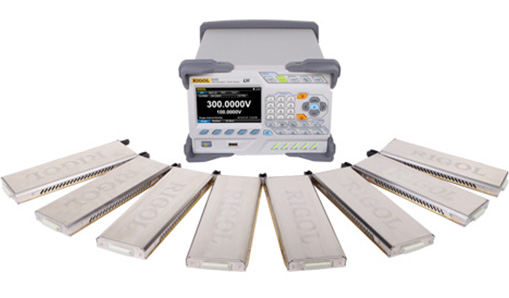

Support up to 8 kinds of module cards, including various multiplexers, actuators, switch matrix and hybrid test modules.

Provide Multiple Communication Interfaces

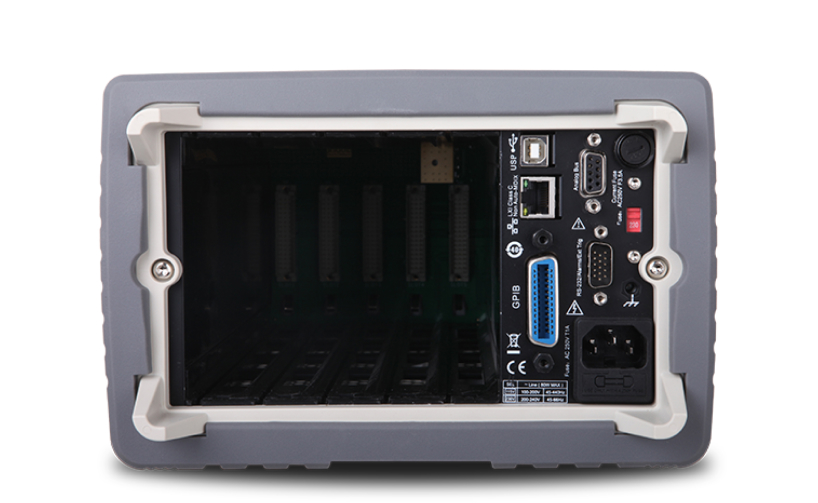

USB host / device, GPIB, LAN (lxi-c) and RS232 communication interfaces are provided as standard.

Supporting Control Analysis Software

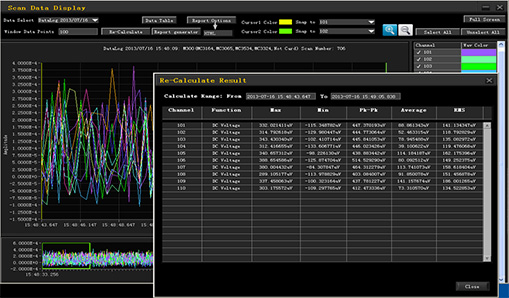

Ultraacquire can control up to five hosts to complete the configuration of complex systems Record and draw data after scanning Ethernet or USB PC every time Users can also set limits, alerts, and triggers for advanced system monitoring. The software provides rich data display mode, one click report generation function and data export function.

Model

Model Number of
Slots		 Type Built-in
Multimeter
Accuracy		 Max. Scanning
Speed		 Max. Number
of Channels
Per Unit		 Price
M300 5 8 6½ Reading resolution 60 Channels/second 256 Get a Quote
M301 5 8 6½ Reading resolution 60 Channels/second 256 Get a Quote
M302 5 8 6½ Reading resolution 60 Channels/second 256 Get a Quote
