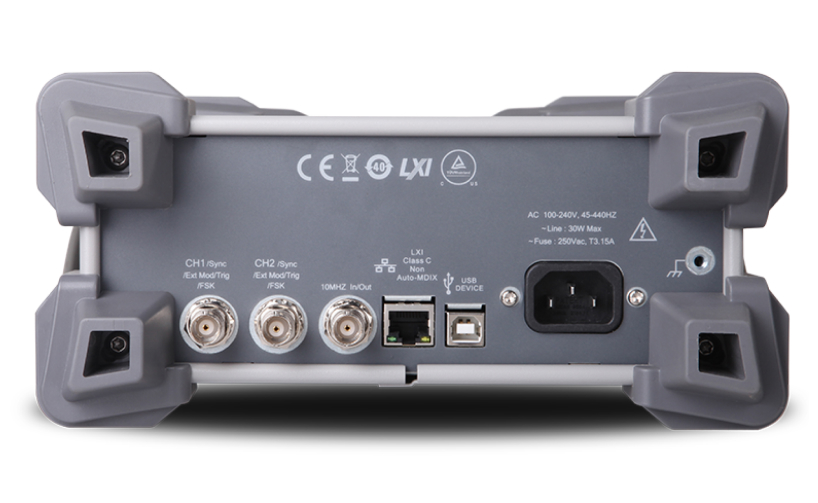

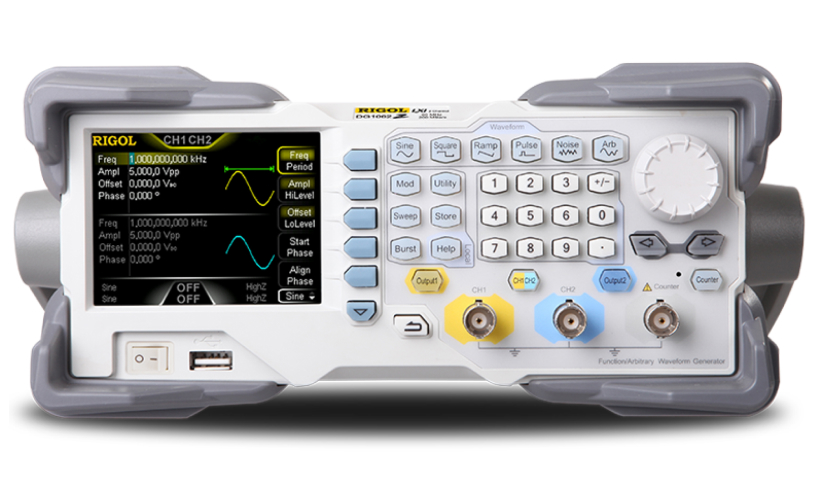

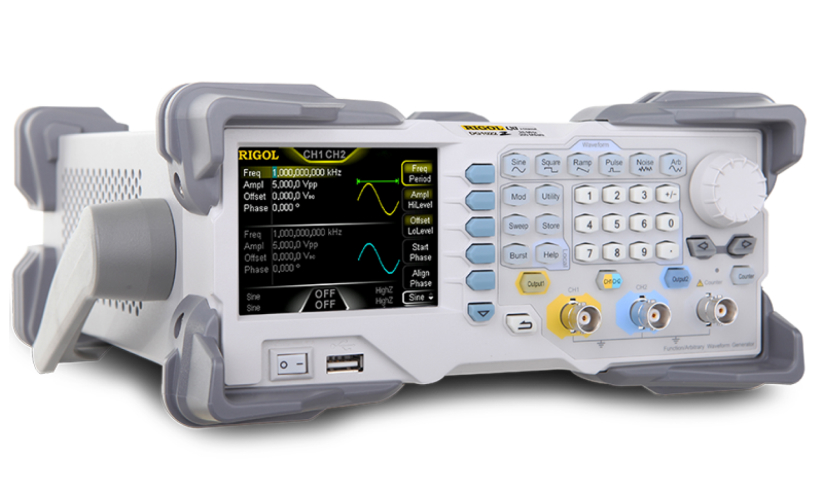

Features

SiFi Technology

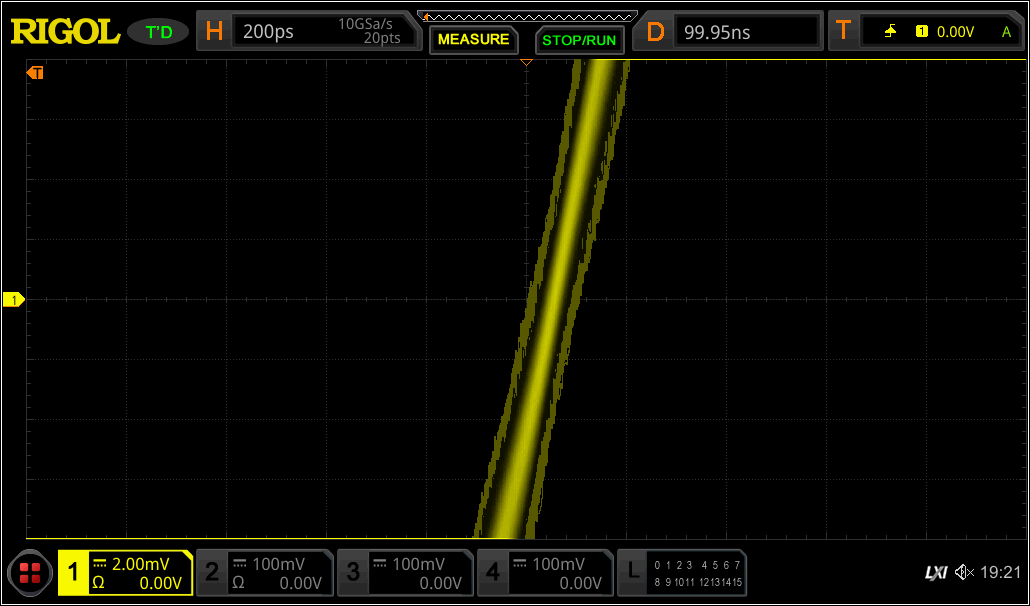

RIGOL's innovative Sifi technology can generate any waveform point by point, undistorted restore signal, accurate and a djustable sampling rate, reduce the signal jitter generated by traditional DDS signal source, and the jitter can be as low as 200ps.

Built-in 160 arbitrary waves

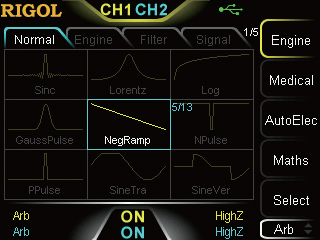

As we all know, RIGOL's waveform generator includes many popular custom waveform types, which can limit waveform creation to any real application. The dg1000z continues this trend by including more than 160 different signal shapes, all of which are accessible from the front panel selection menu.

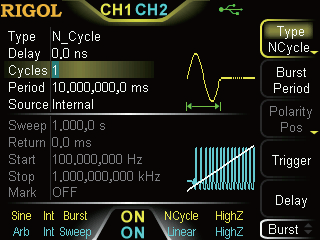

Sweep function & burst mode

It supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.

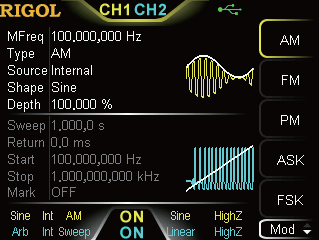

Multiple analog & digital modulation

Modulation types include am, FM, PM, ask, FSK, PSK and PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

Harmonic generator

Built in 8-th harmonic generator function, output the harmonic with specified times, amplitude and phase, which is usually used in the test of harmonic detection equipment or harmonic filter equipment.

Waveform Overlay & Channel Tracking

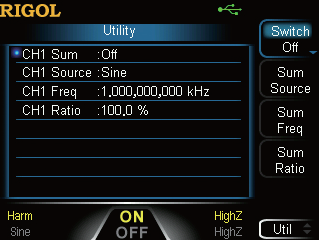

It can stack the specified frequency and percentage amplitude waveform on the basic wave for output; when the channel tracking function is turned on, all parameters of the dual channel can be updated according to the user's configuration at the same time.

Built-in 7-bit frequency meter

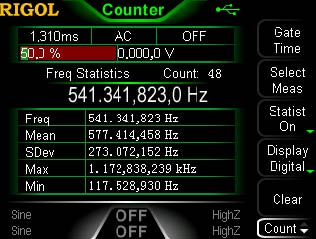

It provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.

Model

Series Max. Output
Frequency		 Sample
Rate		 Vertical
Resolution		 Channels Arbitary Wave
Length		 Price
DG1062Z 60MHz 200MSa/s 14bits 2 8Mpts(16Mpts Option) Rp27.583.500
DG1032Z 30MHz 200MSa/s 14bits 2 8Mpts(16Mpts Option) Rp15.096.000
DG1022Z 25MHz 200MSa/s 14bits 2 8Mpts(16Mpts Option) Rp15.500.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM-1-DG1000Z Rack Mounting Kit for one DG1000Z
RM-2-DG1000Z Rack Mounting Kit for two DG1000Z
BAG-G1 Instrument Carry Case for a DSA800 Spectrum Analyzer,
DG4000 generator, or DS2000 scope.
RA5040K 40 dB attenuator accessory for oscilloscopes or generators
PA1011 10W power amplifier for waveform generators
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
CB-BNC-AC-100-L BNC-AC Cable
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for
DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG1000Z User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DG1000Z Datasheets V1.0 2019-08-29 Download
