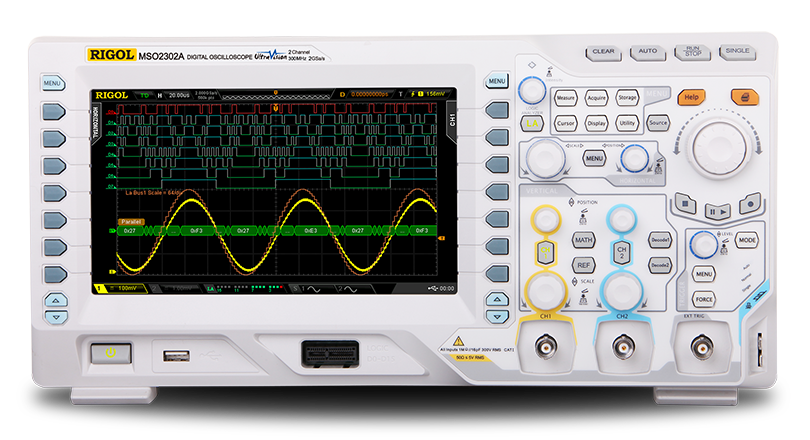

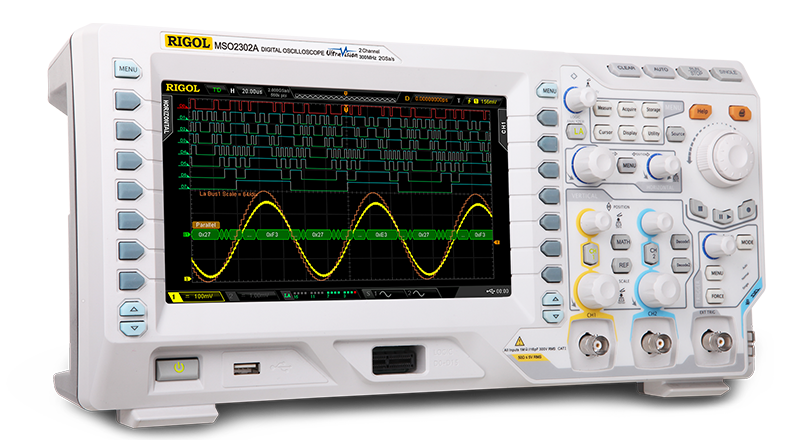

The MSO/DS2000A series of digital oscilloscopes are universal digital oscilloscopes with bandwidths from 100MHz to 300MHz and sampling rates up to 2GSa/s, combined with deep memory depth and high waveform capture rates.
Bandwith : 300MHz
Sampling Rate : 2GSa/s
Channels : 2
Memory Depth : 56Mpts
Waveform Capture Rate :52,000wfms/s
.png)
.png)
.png)
.png)
| Model | Bandwith | Analog Channels |
Real-time Sample Rate |
Max. Memory Depth |
Waveform Capture Rate |
Digital Channels |
Built-in Signal Sources |
Price |
|---|---|---|---|---|---|---|---|---|
| DS2302A | 300MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | - | - | Get a Quote |
| DS2202A | 200MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | - | - | Get a Quote |
| DS2102A | 100MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | - | - | Get a Quote |
| MSO2102A | 100MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | 16 | - | Get a Quote |
| MSO2102A-S | 100MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | 16 | 2CH | Get a Quote |
| MSO2202A | 200MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | 16 | - | Get a Quote |
| MSO2202A-S | 200MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | 16 | 2CH | Get a Quote |
| MSO2302A | 300MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | 16 | - | Get a Quote |
| MSO2302A-S | 300MHz | 2 | 2GSa/s | 56Mpts | 52,000wfms/s | 16 | 2CH | Get a Quote |
| *Harga dapat berubah sewaktu-waktu tanpa pemberitahuan | ||||||||
| Model | Description | Harga |
|---|---|---|
| MEM-DS2000 | 56Mpts Record length upgrade | Get a Quote |

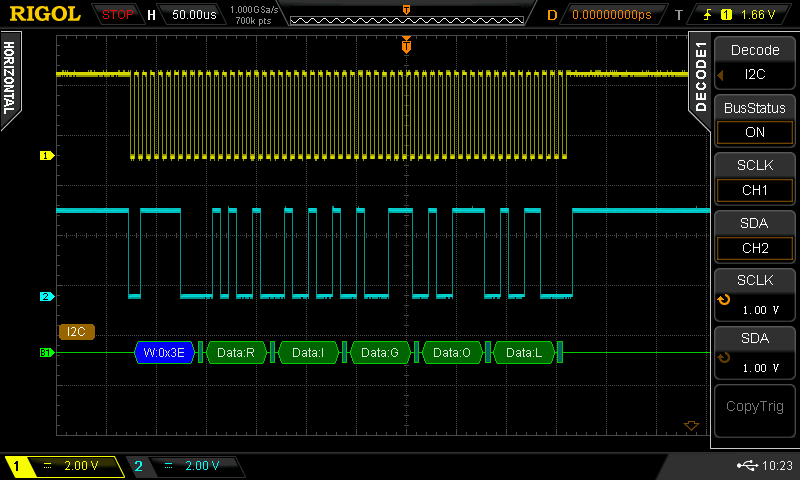

| SD-DS2000 | RS232, I2C, SPIDecoding kit | Get a Quote |
| CAN-DS2000A | CAN Decoding kit | Get a Quote |
| AT-DS2000A | Advanced trigger kit | Get a Quote |
| Model | Description | Harga |
|---|---|---|
| RM-DS2000 | Rack mount kit | Get a Quote |
| BND-MSO/DS2000A | MSO/DS2000A Option set | Get a Quote |
| CB-USBA-USBB-FF-150 | USB Data line，150cm | Get a Quote |
| CB-DB9-DB9-FF-150 | RS232 Data line,2 Female，150cm | Get a Quote |
| CB-BNC-BNC-MM-100 | BNC Coaxial line，100cm | Get a Quote |
| USB-GPIB | USB-GPIB adapter | Get a Quote |
| DK-DS6000 | Demo board | Get a Quote |
| Model | Description | Harga | Manual |
|---|---|---|---|
| RP1018H | 18kV 150MHzHigh voltage probe | Get a Quote | Download |
| RP1300H | 300MHzHigh voltage probe(2kV) | Get a Quote | Download |
| PVP2150 | 150MHz, 10:1/1:1, passive high resistance probe (single strip) | Get a Quote | Download |
| PVP2350 | 350MHz, 10:1/1:1, passive high resistance probe (single strip) | Get a Quote | Download |
| Model | Description | Harga | Manual |
|---|---|---|---|
| RP1000P | 4CHPower Adapter | Get a Quote | - |
| RP1005C | 10MHz,150A | Get a Quote | Download |
| RP1004C | 100MHz,30A | Get a Quote | Download |
| RP1003C | 50MHz,30A | Get a Quote | Download |
| RP1002C | 1MHz，70ADC | Get a Quote | Download |
| RP1001C | 300KHz，100A DC | Get a Quote | Download |
| Model | Description | Harga | Manual |
|---|---|---|---|
| PHA1150 | High voltage differential probe，DC-100MHz，1500V | Get a Quote | Download |
| PHA0150 | High voltage differential probe，DC-70MHz，1500V | Get a Quote | Download |
| RP1100D | 100MHz,6.5KV | Get a Quote | Download |
| RP1050D | 50MHz，6.5KV | Get a Quote | Download |
| RP1025D | 25MHz,1.4KV | Get a Quote | Download |
| Model | Description | Harga | Manual |
|---|---|---|---|
| RPL2316/td> | MSO4000/2000A Logic probe，16CH | Get a Quote | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO/DS2000A User Manual | V1.0 | 2021-10-26 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO/DS2000A Datasheets | V1.0 | 2021-10-26 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO/DS2000A Programming Manual | V1.0 | 2021-10-26 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO/DS2000A Quick Guide | V1.0 | 2021-10-26 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DS2000A Firmware | 00.03.06.00.00 | 2021-10-26 | Download |
