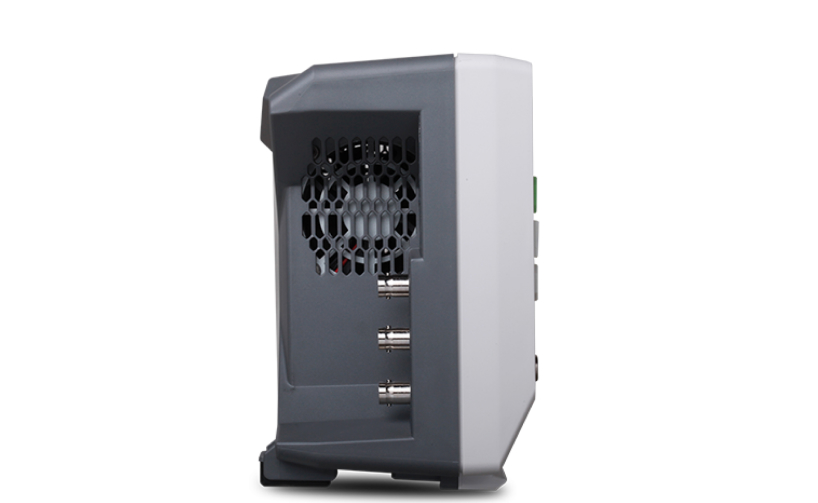

DSA700 Series - Spectrum Analyzers

Features

Down to 10Hz Minimum Resolution Bandwidth (RBW)

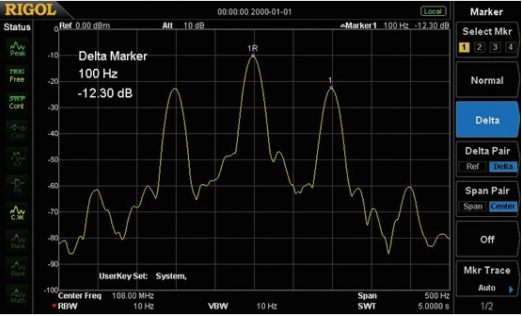

Provides high resolution to separate signals with similar frequencies enabling easier signal identification.

EMI PreCompliance Measurements (Option)

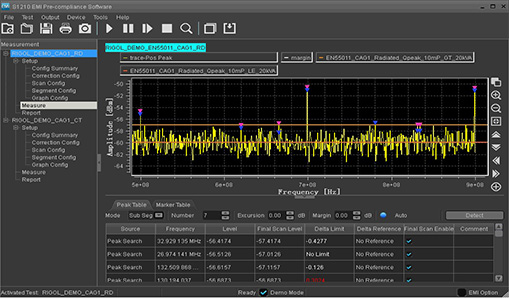

The DSA700 has an EMI filter (6 dB) and a quasi-peak detector to make EMI pre-test/diagnostics more accurate, and complete test and report generation using the host computer software S1210.

Excellent Noise Floor Reduction for Weak Signal Testing

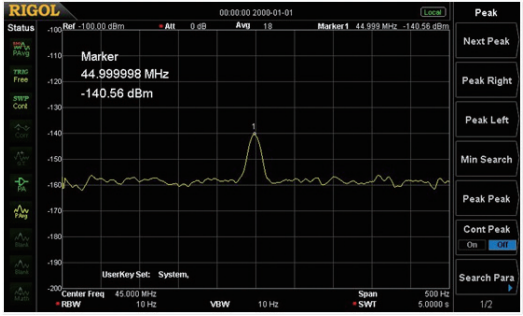

Testing of weak signals is susceptible to the noise floor of the spectrum analyzer itself. The DSA700 series displays an average noise level as low as -130dBm (normalized to 100Hz), which effectively guarantees the ability to test weak signals.

ASK/FSK Signal Capture with Fast Capture

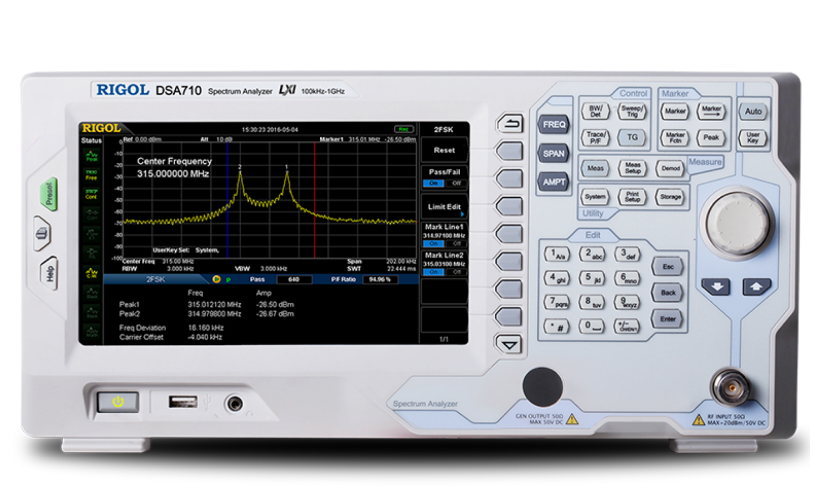

ASK/FSK modulation is usually used for car remote control keys, TPMS tire pressure modules and small wireless modules. The DSA700 can perform ASK/FSK signal capture through the SSC-DSA function extension, and has built-in 2FSK test function to directly obtain parameters such as center frequency, power and offset.

Model

Model Frequency
Range		 Description Phase
Noise		 DANL Tracking
Source		 Price
DSA710 100kHz~1GHz 10Hz~1MHz -80dBc/Hz@10kHz -130dBm N/A Rp27.306.000
DSA705 100kHz~500MHz 10Hz~1MHz -80dBc/Hz@10kHz -130dBm N/A Rp23.754.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description
SSC-DSA 2FSK Spectrum measurement and analysis
AMK-DSA800 Advanced Measurement Kit(DSA815Only)
EMI-DSA800 EMI Filter & Quasi-Peak Detector Kit(DSA815 Only)

Accessories

Model Description
VB1032 "VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included
Frequency range: 1 MHz - 3.2 GHz,
Typical Directivity: ≥ 30 dB"
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
ATT03301H 30dB High Power Attenuator, Max Power 100W
RF CATV Kit Kit Includes 50 Ω to 75 Ω Adaptor (2pcs)
RF Attenuator Kit Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)
RF CATV Kit Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs),
N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs),
SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs),
BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs),
50 Ω BNC Impedance Adapter (1pcs)
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable
RM6041 Rack Mount Kit for RSA5, RSA3 and DS7000
NFP-3 Near Field Probe, Requency Range: 30MHz to 3GHz
DSA Utility Kit DSA Accessories Package including：N-SMA Cable，BNC-BNC Cable,
N-BNC Adapter，N-SMA Adapter，75Ω-50Ω Adapter，Antenna 2
（900MHz/1.8GHz），Antenna 2
TX1000 RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier
VB1080 VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers.
The VB1080's range is from 2-8 GHz.
VB1040 800 MHz to 4 GHz VSWR Bridge for DSA1030-TG and DSA1030A-TG
OCXO-C08 High Stability Clock

Software

Model Description
S1220 ASK-FSK Demodulation Analysis Software
S1210 EMI Pre-Compliance Software
Ultra Spectrum Software for the DSA1000 and DSA1000A series spectrum analyzers to be
used within the UltraSigma package
