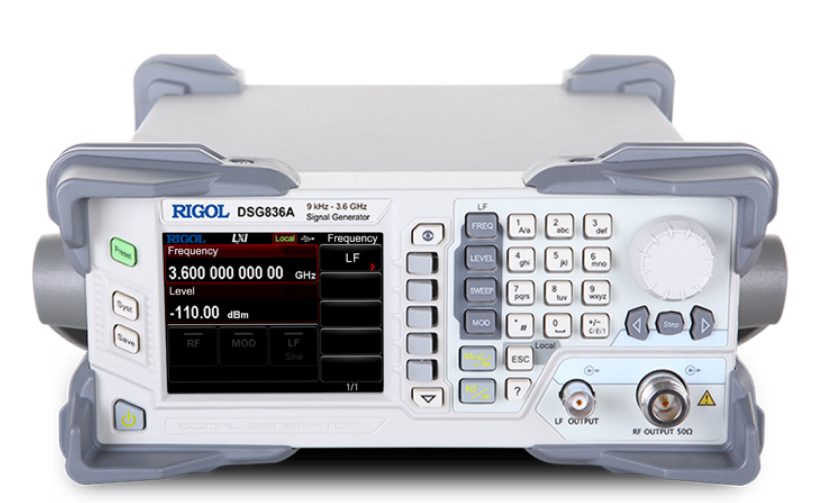

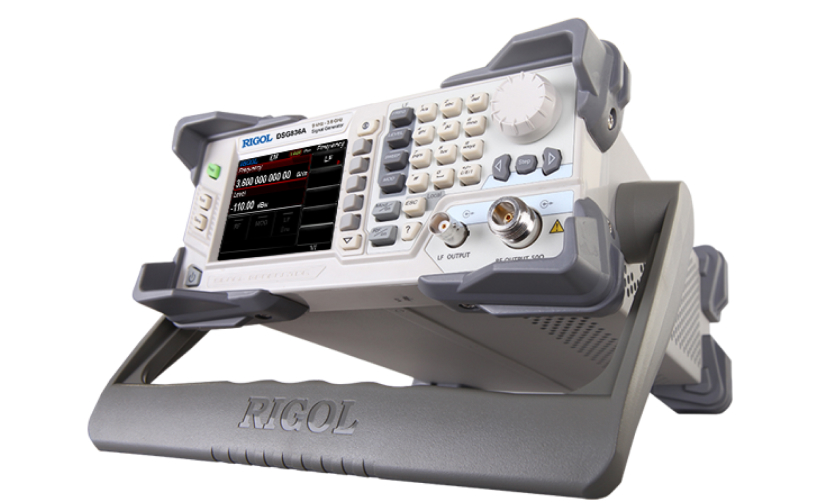

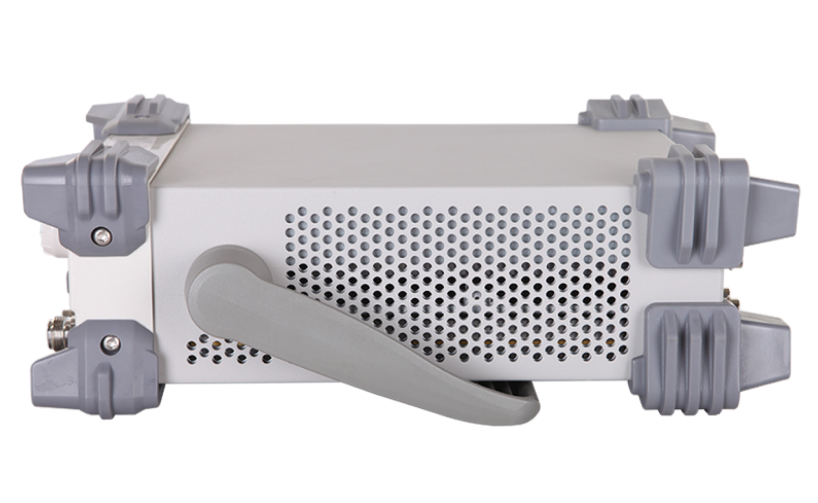

DSG800A Series - RIGOL RF Signal Generators



Features

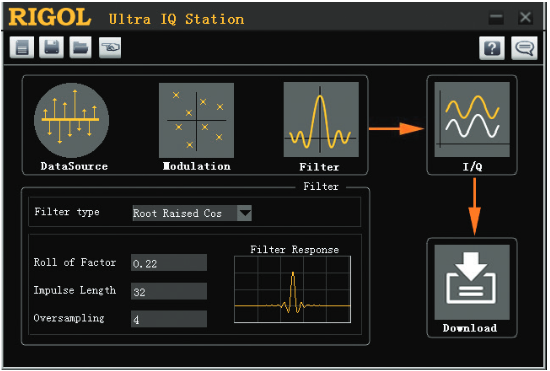

Support Multiple Modulation Methods

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources.

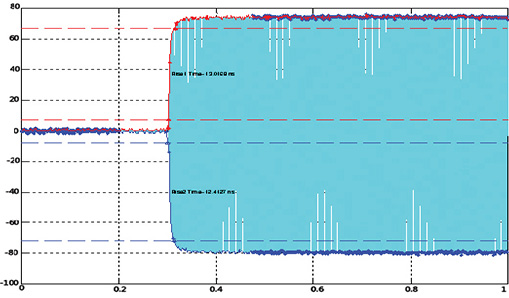

Powerful Pulse Modulation

It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator.

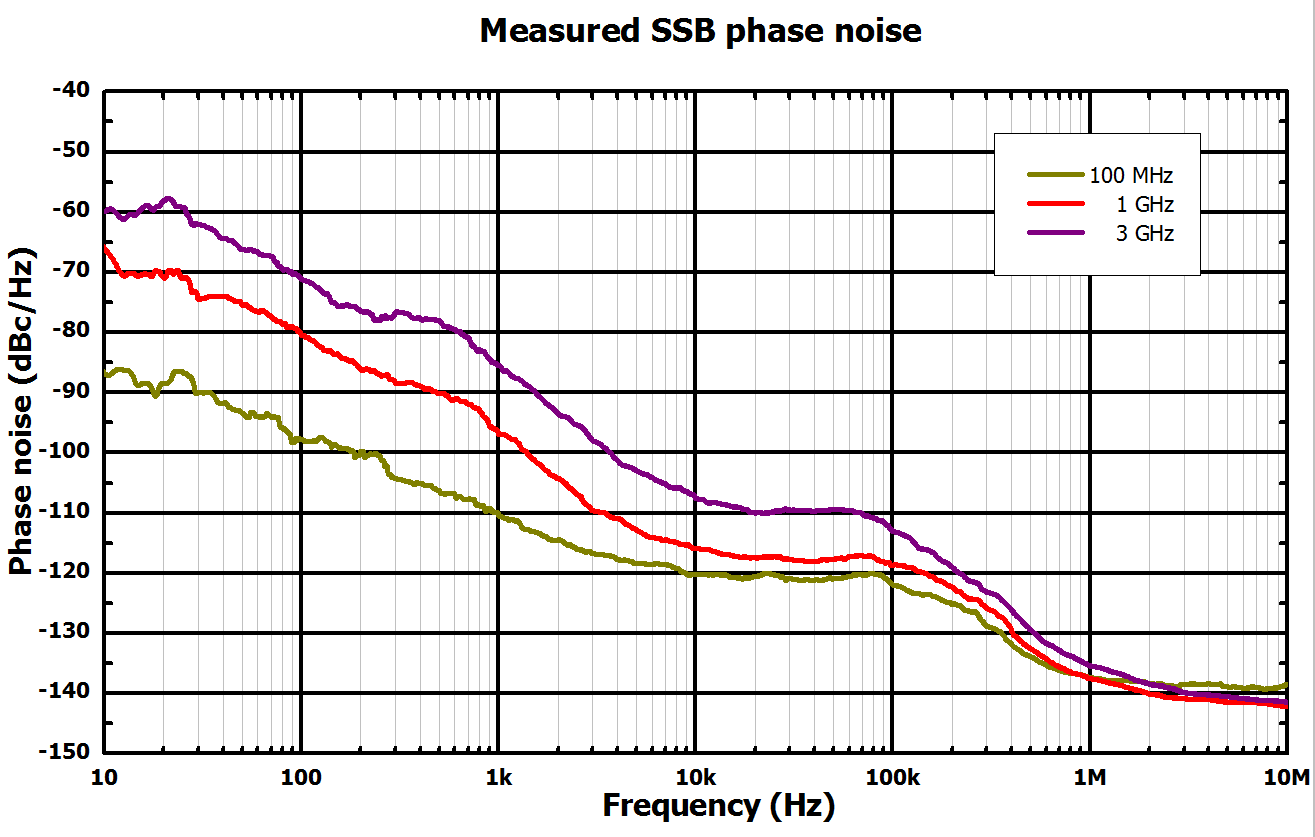

Excellent Phase Noise

High signal purity, phase noise typical value <-112dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index.

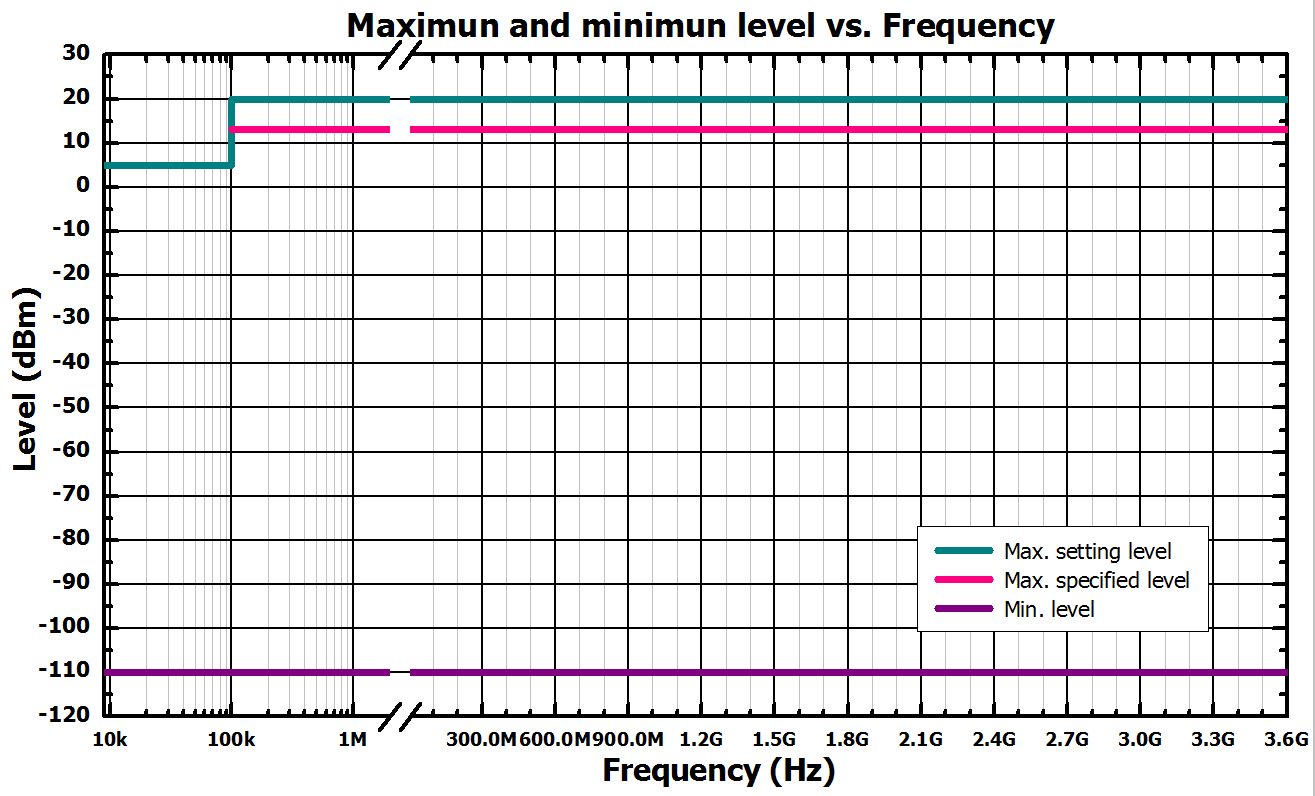

Wide Range of High Power Output

Maximum output amplitude is +13dBm (nominal value), and can be set to +20dBm to meet the nonlinearity test of the amplifier.

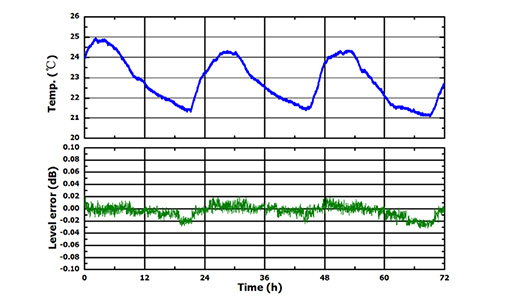

Amplitude Stability

0.02dBExcellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB.

Model

Model Frequency
Range		 Description Phase
Noise		 DANL Tracking
Source		 Price
DSG821 9kHz~2.1GHz -110dBm~+13dBm < 0.5dB <-112dBc/Hz@20kHz AM/FM/ØM/Pulse Rp49.173.000
DSG836 9kHz~3.6GHz -110dBm~+13dBm < 0.5dB <-112dBc/Hz@20kHz AM/FM/ØM/Pulse Rp75.350.000
DSG821A 9kHz~2.1GHz -110dBm~+13dBm < 0.5dB <-112dBc/Hz@20kHz AM/FM/ØM/Pulse/IQ Rp85.692.000
DSG836A 9kHz~3.6GHz -110dBm~+13dBm < 0.5dB <-112dBc/Hz@20kHz AM/FM/ØM/Pulse/IQ Rp115.060.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description
DSG800-PUM Pulse modulation option for the DSG800 Series RF signal sources
DSG800-PUG Pulse Train Generator option for the DSG800 Series RF signal sources.
Includes DSG800-PUM license automatically.

Accessories

Model Description
RM-2-DG1000Z Rack Mounting Kit for two DG1000Z
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
RM-1-DG1000Z Rack Mounting Kit for one DG1000Z
OCXO-B08 High stability timebase option for the DSG800 Series RF signal sources
CB-USBA-USBB-FF-150 USB Cable
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
ATT03301H 30dB High Power Attenuator, Max Power 100W
RF Adaptor Kit Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs),
N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs),
SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs),
BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs),
50 Ω BNC Impedance Adapter (1pcs)
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable

Datasheet

Name Version Release Date Download
DSG800A Datasheets V1.0 2019-09-30 Download

Programming Manual

Name Version Release Date Download
DSG800A Programming Manual V1.0 2019-09-30 Download
