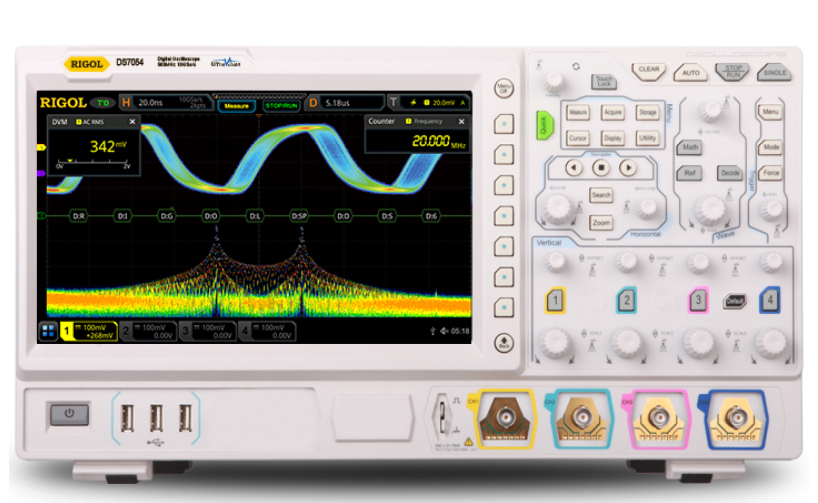

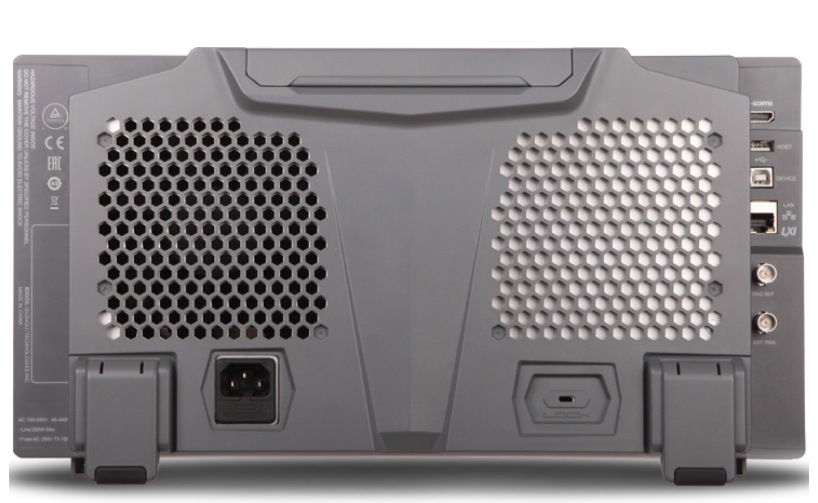

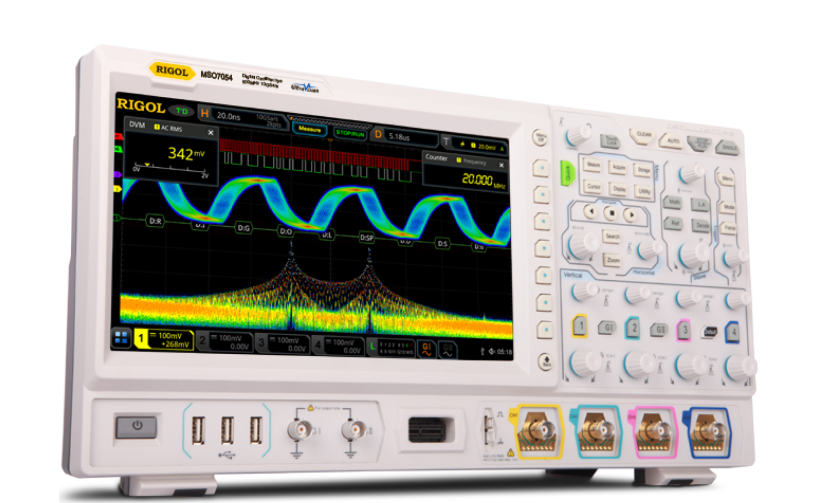

MSO/DS7000 Series - RIGOL Digital Oscilloscopes

Features

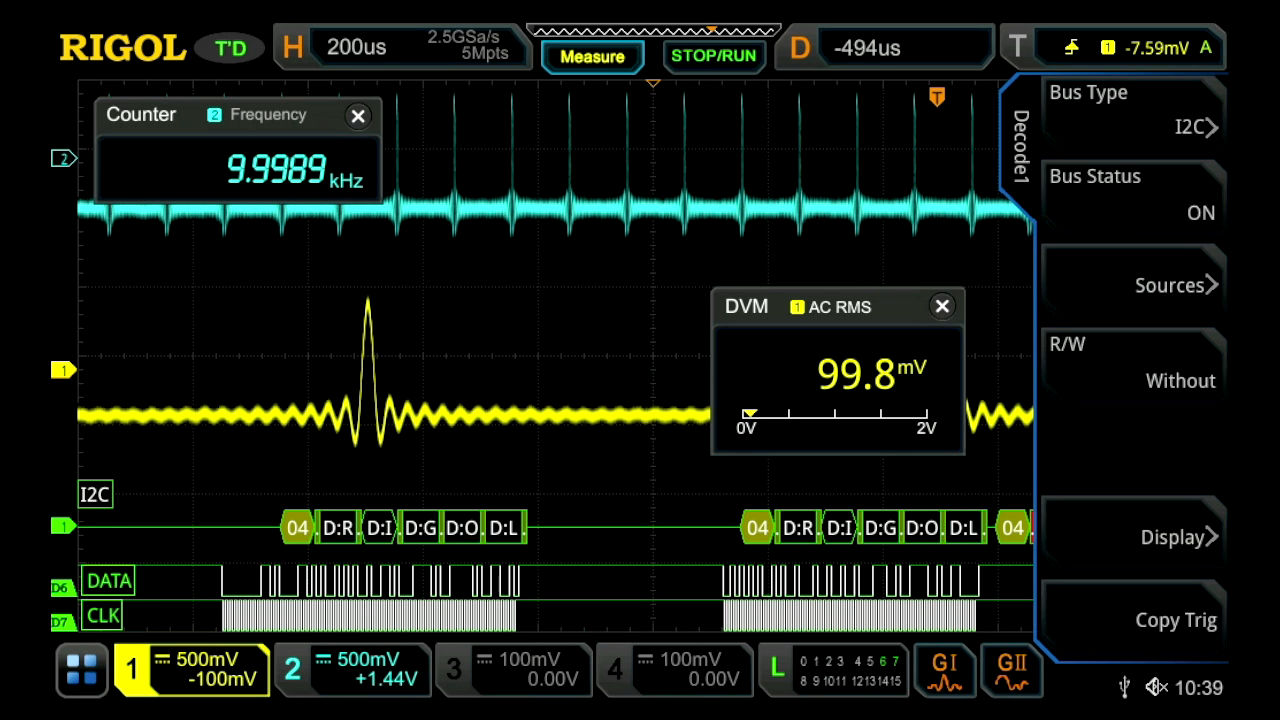

7 Instruments in 1

Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.

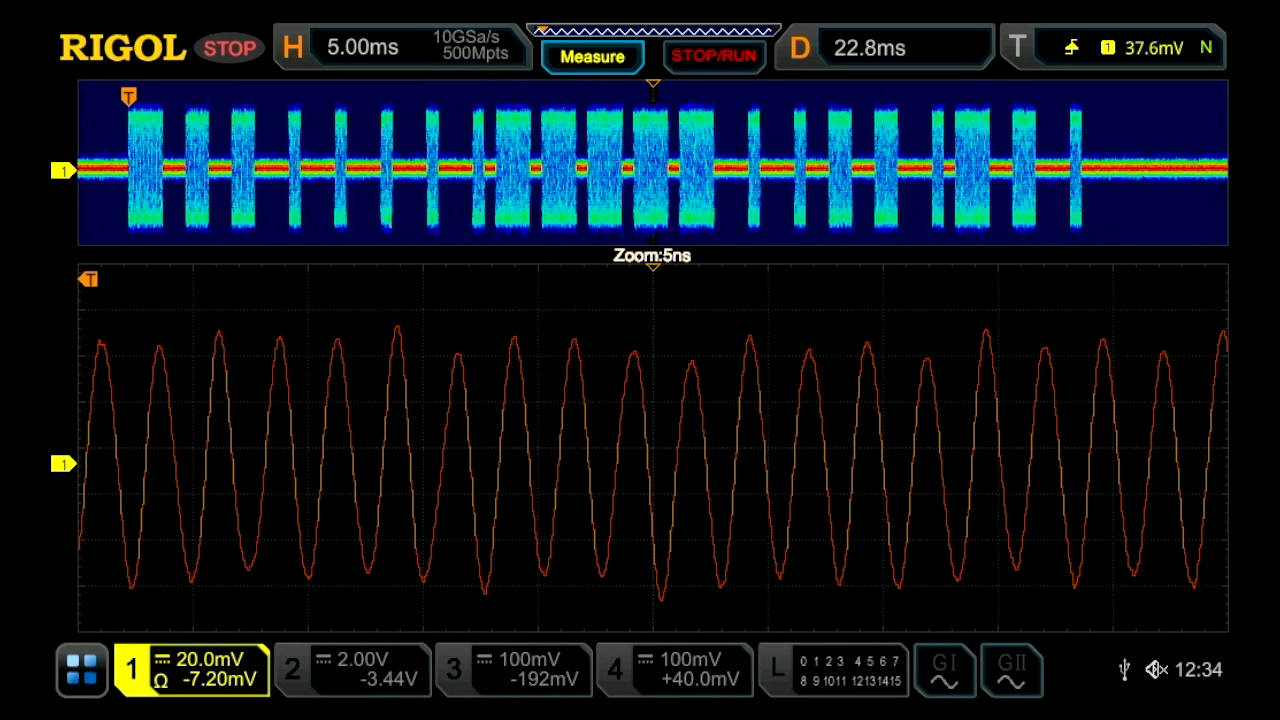

Long Record Length (100M std/500M opt)

Find elusive problems in complex digital streams with long acquisitions at high sample rates.

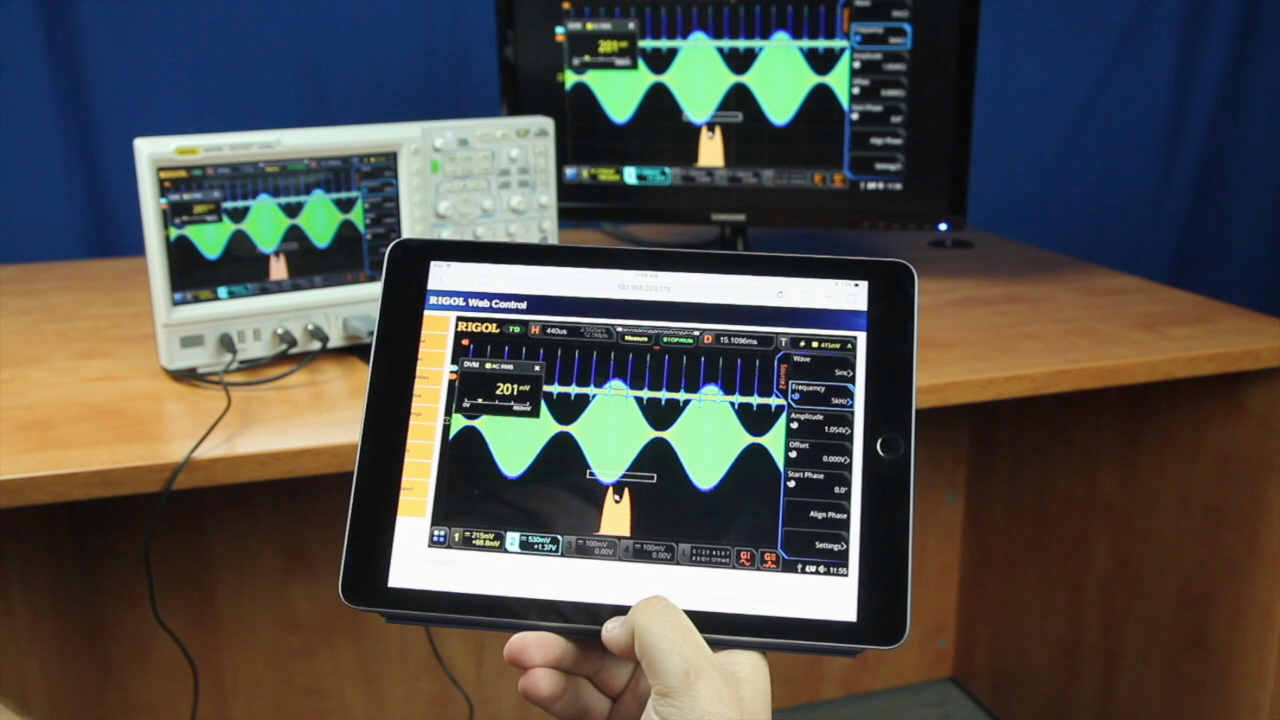

Flexible user interface combining touch, mouse, knob/button, web, and remote control

With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.

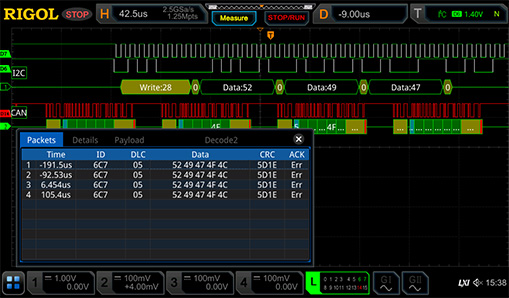

Protocol Analysis for today’s common serial communication buses

Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.

Full Memory Hardware Measurement

No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.

Over 600K wfms/s Waveform Capture rate

Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.

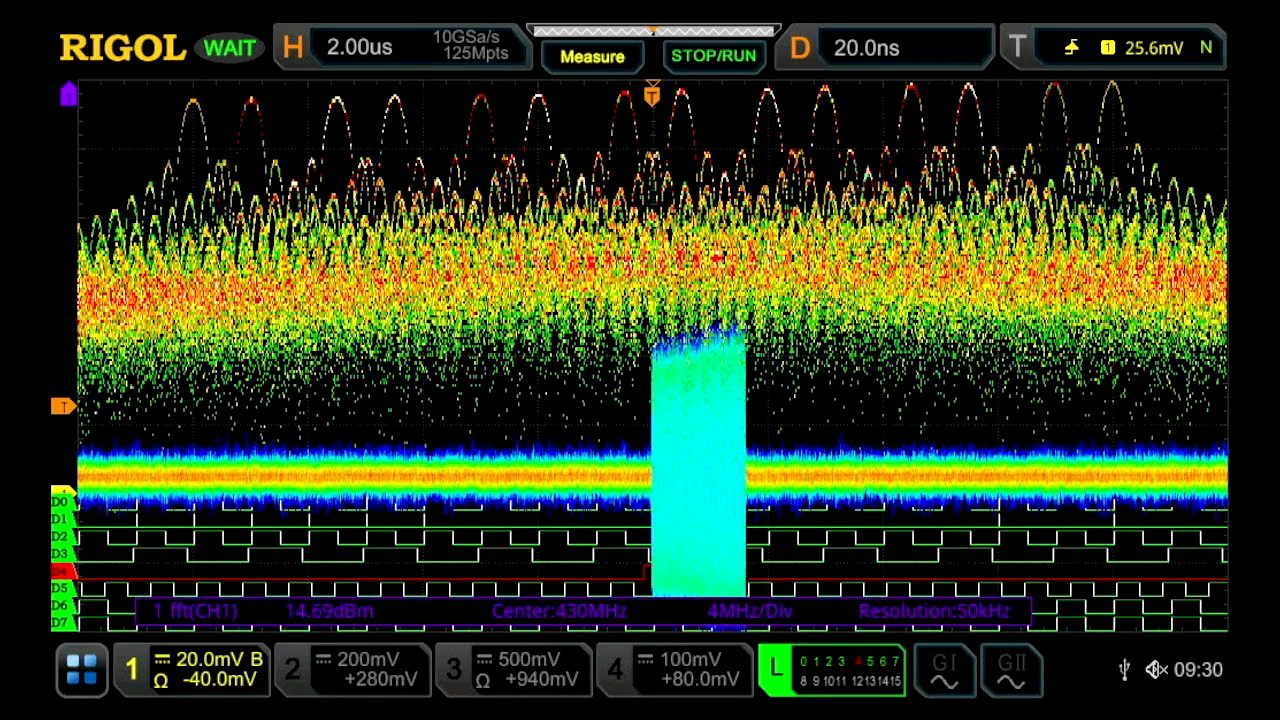

Enhanced Color FFT

The FFT capability on the 7000 utilizes up to 1 million points for fine resolution. The 7000 Series advanced user controls makes it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price
MSO7054 500 MHz 4 10 GSa/s 500Mpts(option) 600,000 wfms/s 16 2CH (option) Get a Quote
MSO7034 350 MHz 4 10 GSa/s 500Mpts(option) 600,000 wfms/s 16 2CH (option) Get a Quote
MSO7024 200 MHz 4 10 GSa/s 500Mpts(option) 600,000 wfms/s 16 2CH (option) Get a Quote
MSO7014 100 MHz 4 10 GSa/s 500Mpts(option) 600,000 wfms/s 16 2CH (option) Get a Quote
DS7054 500 MHz 4 10 GSa/s 500Mpts(option) 600,000 wfms/s - - Get a Quote
DS7034 350 MHz 4 10 GSa/s 500Mpts(option) 600,000 wfms/s - - Get a Quote
DS7024 200 MHz 4 10 GSa/s 500Mpts(option) 600,000 wfms/s - - Rp87.615.000
DS7014 100 MHz 4 10 GSa/s 500Mpts(option) 600,000 wfms/s - - Rp65.934.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Bandwidth Upgrade

Model Description
DS7000-BW3T5 Bandwidth upgrade from 350MHz to 500MHz for MSO/DS7000
DS7000-BW2T5 Bandwidth upgrade from 200MHz to 350MHz for MSO/DS7000
DS7000-BW2T3 Bandwidth upgrade from 200MHz to 350MHz for MSO/DS7000
DS7000-BW1T2 Bandwidth upgrade from 100MHz to 200MHz for MSO/DS7000
DS7000-BW1T3 Bandwidth upgrade from 100MHz to 350MHz for MSO/DS7000
DS7000-BW1T5 Bandwidth upgrade from 100MHz to 500MHz for MSO/DS7000

Functional Options

Model Description
DS7000-PWR Power Analysis Measurements for MSO/DS7000
MSO7000-AWG Dual Channel 25MHz Waveform Generator only for MSO7000
DS7000-AERO MIL-STD-1553 Protocol Trigger and Analysis for MSO/DS7000
DS7000-AUDIO I2S Protocol Trigger and Analysis for MSO/DS7000
DS7000-FLEX FlexRay Protocol Trigger and Analysis for MSO/DS7000
DS7000-AUTO CAN and LIN Protocol Trigger and Analysis for MSO/DS7000
DS7000-EMBD I2C and SPI Protocol Trigger and Analysis for MSO/DS7000
DS7000-COMP RS232/UART Protocol Trigger and Analysis for MSO/DS7000
DS7000-BND Application Bundle，includes all serial protocol analysis,
measurement, and app options for MSO/DS7000
DS7000-5RL Memory Upgrade to 500Mpts
DS7000-2RL Memory Upgrade to 200Mpts

Accessories

Model Description
CB-USBA-USBB-FF-100 USB Cable
CB-DB9-DB-FF-150USB Cable RS232 Cable, Female to Female, 150cm
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators
NFP-3 Near Field Probe, Requency Range: 30MHz to 3GHz
T2R1000 Active probe adaptor for connecting TekProbe-BNC
probes to a DS6000 or MSO/DS4000
RM6041 Rack Mounting Kit for MSO/DS7000, DS7000
DK-DS6000 Demo Board for oscilloscopes

Software

Model Description
UPA-DS Power Analysis Software for MSO/DS2000, MSO/DS4000,
DS7000, MSO/DS7000, MSO5000 series oscilloscopes

User Manual

Name Version Release Date Download
MSO7000 & DS7000 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
MSO7000 & DS7000 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
MSO7000 & DS7000 Programming Manual V1.0 2019-08-29 Download

Open Source Acknowledgment

Name Version Release Date Download
MSO&DS7000&8000 Open Source Acknowledgment V1.0 2019-08-29 Download
