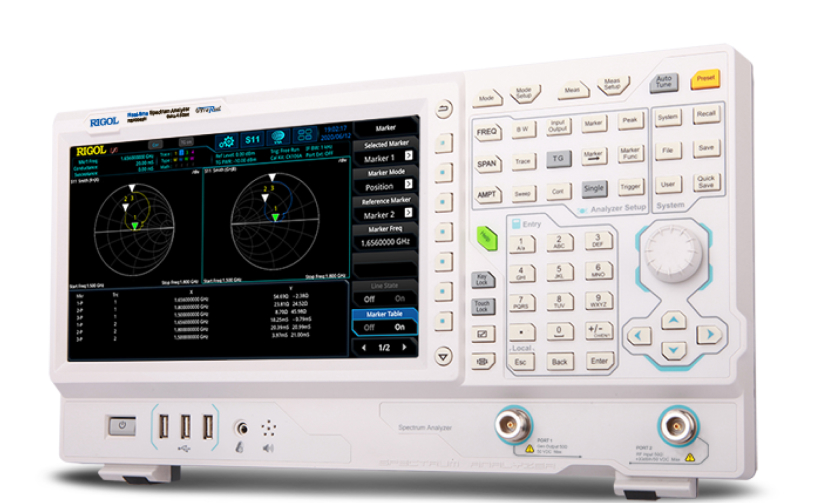

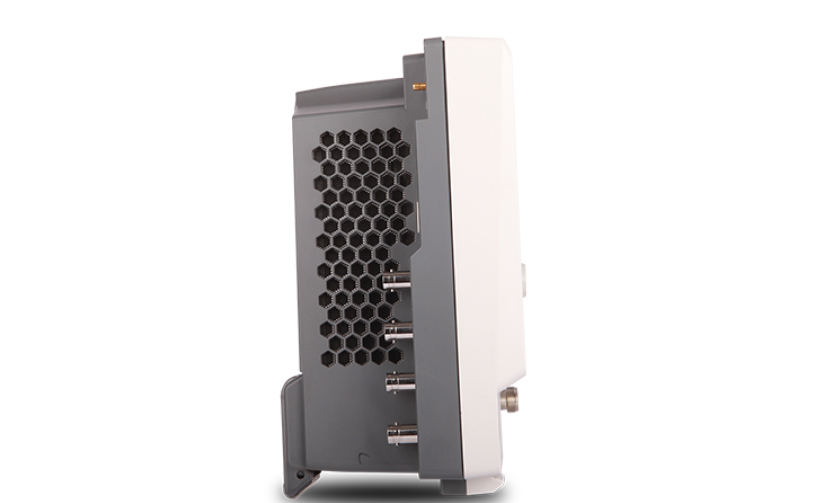

RSA3000 Series - Spectrum Analyzers

Features

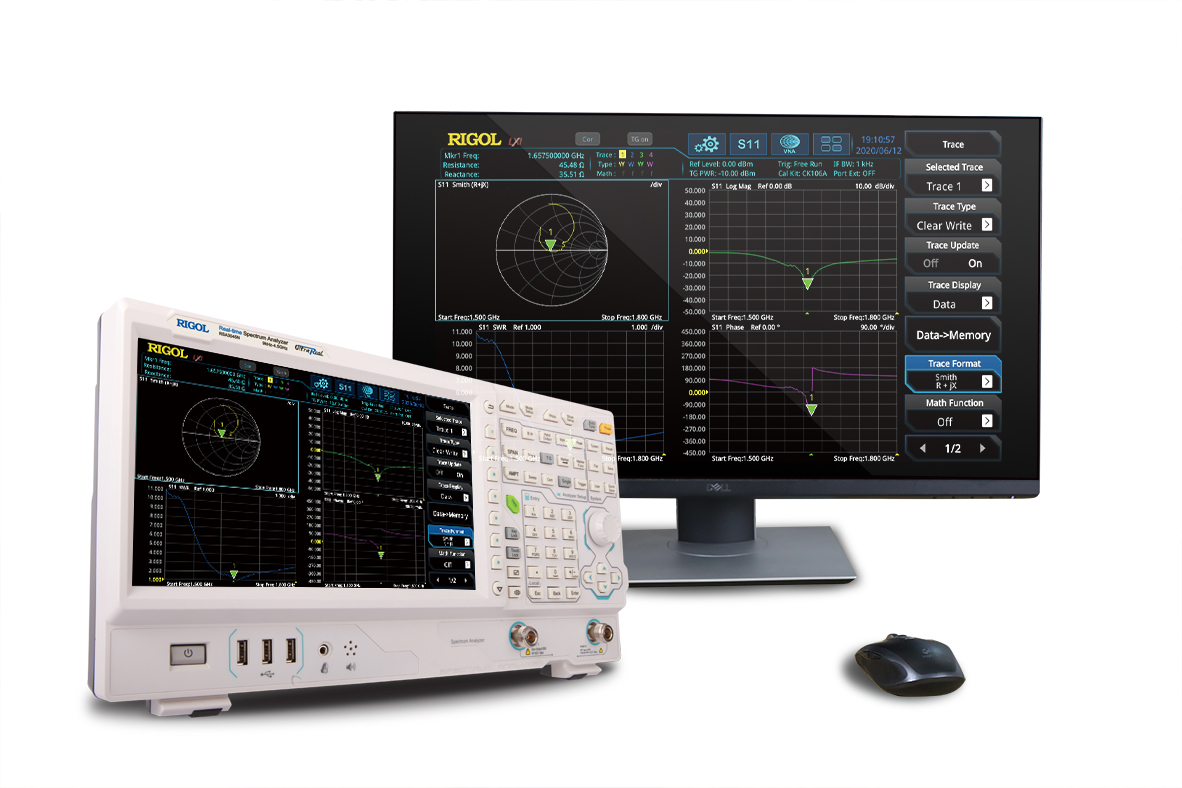

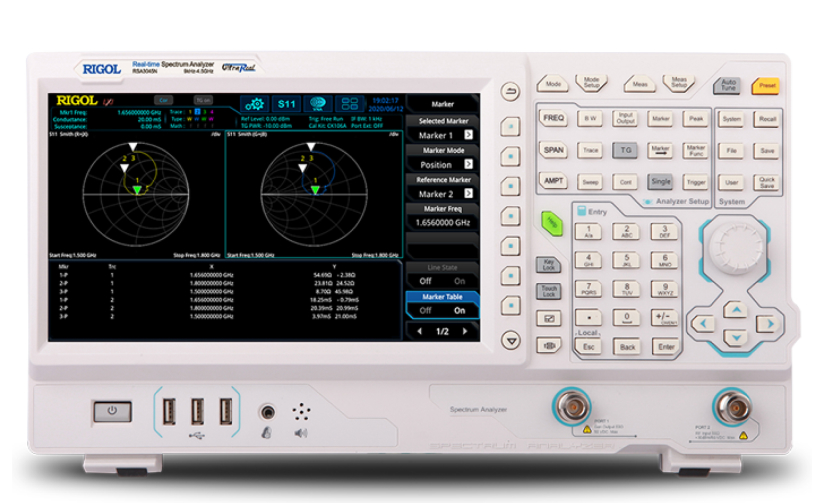

Built-in Vector Network Analysis mode

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats

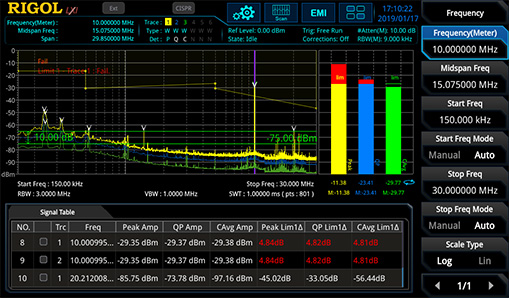

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market

Signal Triggering and Monitoring Via Fmt Mode

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range

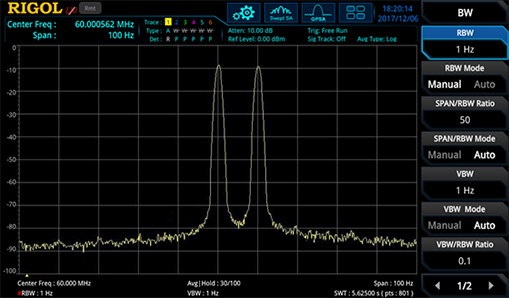

Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals

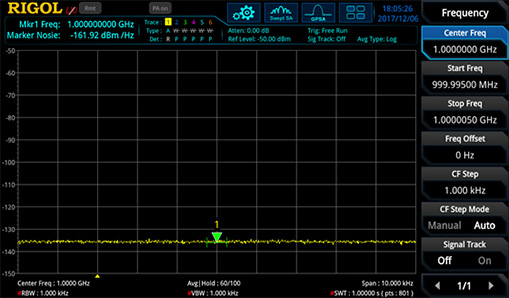

DANL As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode

Multiple interfaces to improve the connectivity of the instruments

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control

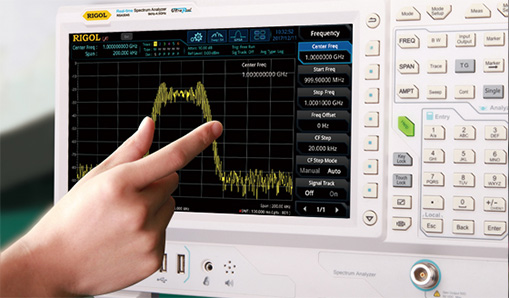

Complete Operations with a Multi-touch Screen

RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time

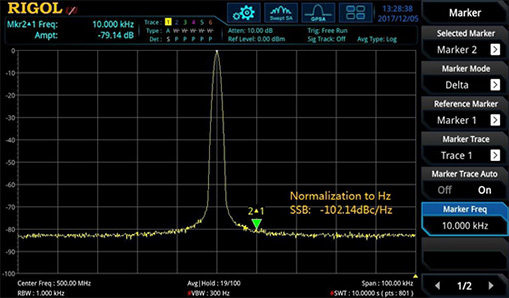

Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz

Model

Model Frequency
Range		 Description Phase
Noise		 DANL Tracking
Source		 Price
RSA3045 9kHz~4.5GHz 1Hz~10MHz -102dBc/Hz@10kHz -161dBm N/A Rp89.980.000
RSA3045-TG 9kHz~4.5GHz 1Hz~10MHz -102dBc/Hz@10kHz -161dBm Yes Rp111.650.000
RSA3045N 9kHz~4.5GHz 1Hz~3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes Rp126.005.000
RSA3030 9kHz~3GHz 1Hz~10MHz -102dBc/Hz@10kHz -161dBm N/A Rp72.050.000
RSA3030-TG 9kHz~3GHz 1Hz~10MHz -102dBc/Hz@10kHz -161dBm Yes Rp90.200.000
RSA3030N 9kHz~3GHz 1Hz~3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes Rp105.339.000
RSA3015N 9kHz~1.5GHz 1Hz~3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes Rp48.174.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Bandwidth Upgrade

Model Description
RSA3000-B25 Real-time analysis BW Upgrade to 25MHz
RSA3000-B40 Real-time analysis BW Upgrade to 40MHz

Functional Options

Model Description
RSA3000-EMI EMI Analysis Mode Option for the RSA3000
RSA3000-EMC EMI Filter and Detector for the RSA3000
RSA3000-AMK Advanced Measurement Kit for the RSA3000
RSA3000-BW1 Resolution Bandwidth Upgrade to 1Hz
RSA3000-PA Preamplifier option for the RSA3000

Accessories

Model Description
VB1032 "VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included
Frequency range: 1 MHz - 3.2 GHz,
Typical Directivity: ≥ 30 dB"
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
ATT03301H 30dB High Power Attenuator, Max Power 100W
RF CATV Kit Kit Includes 50 Ω to 75 Ω Adaptor (2pcs)
RF Attenuator Kit Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)
RF CATV Kit Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs),
N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs),
SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs),
BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs),
50 Ω BNC Impedance Adapter (1pcs)
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable
RM6041 Rack Mount Kit for RSA5, RSA3 and DS7000
NFP-3 Near Field Probe, Requency Range: 30MHz to 3GHz
DSA Utility Kit DSA Accessories Package including：N-SMA Cable，BNC-BNC Cable,
N-BNC Adapter，N-SMA Adapter，75Ω-50Ω Adapter，Antenna 2
（900MHz/1.8GHz），Antenna 2
TX1000 RF Demonstration board with built in
1 GHz Oscillator, mixer, filters, and amplifier
VB1080 VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers.
The VB1080's range is from 2-8 GHz.
VB1040 800 MHz to 4 GHz VSWR Bridge for DSA1030-TG and DSA1030A-TG
OCXO-C08 High Stability Clock

Software

Model Description
S1210 EMI Pre-Compliance Software
Ultra Spectrum Software for the DSA1000 and DSA1000A series spectrum analyzers
to be used within the UltraSigma package

User Manual

Name Version Release Date Download
RSA3000 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
RSA3000 Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
RSA3000 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
RSA3000 Quick Guide V1.0 2019-08-29 Download

Open Source Acknowledgment

Name Version Release Date Download
RSA3000&3000E&5000 Open Source Acknowledgment V1.0 2019-08-29 Download
