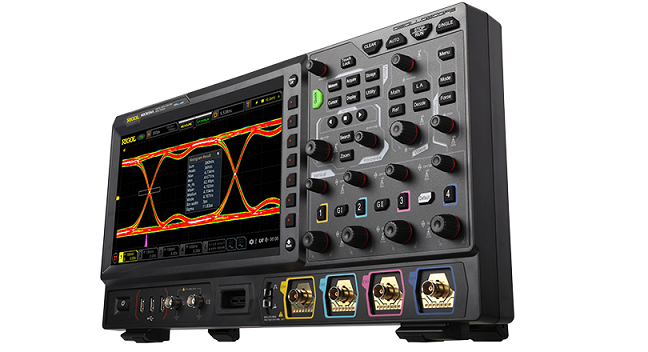

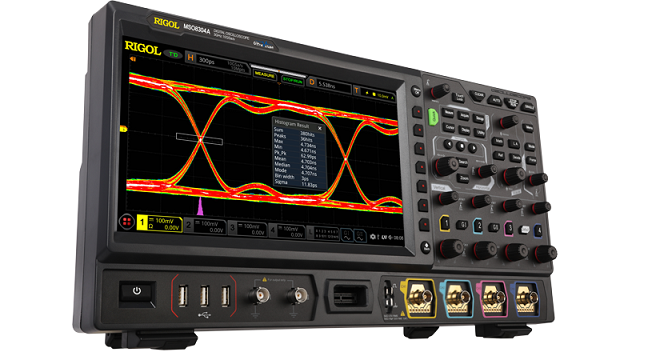

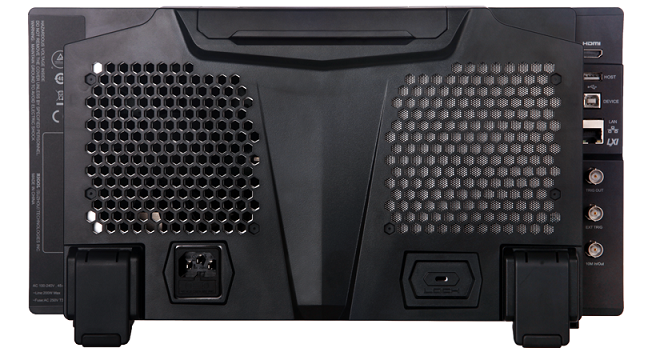

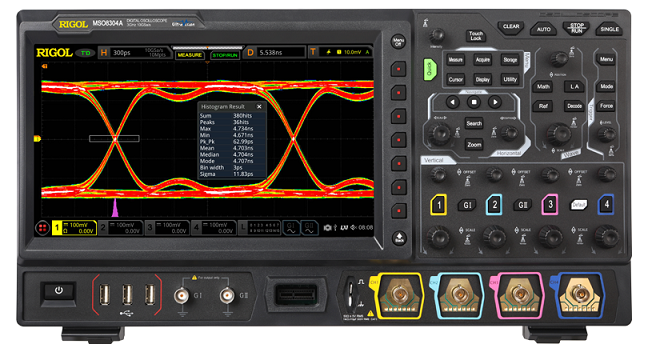

The MSO8000A series oscilloscope is categorized in between mid to high-end mixed-signal digital oscilloscope range. It was designed based on RIGOL's ASIC chip and UltraVision II technology platform.
Bandwidth : 2GHz
Analog Channels : 4
Real-time Sample Rate : 10GSa/s
Max. Memory Depth : 500 Mpts
Waveform Capture Rate : 600,000 kwfms/s
| Model | Bandwidth | Analog Channels | Real-Time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels | Price | |
|---|---|---|---|---|---|---|---|---|
| MSO8204A | 2 GHz | 4 | 10 GSa/s | 500 Mpts | 600,000 wfms/s | 16 (Probe opt.) | Get a Quote | |
| MSO8154A | 1.5 GHz | 4 | 10 GSa/s | 500 Mpts | 600,000 wfms/s | 16 (Probe opt.) | Get a Quote | |
| MSO8074A | 750 MHz | 4 | 10 GSa/s | 500 Mpts | 600,000 wfms/s | 16 (Probe opt.) | Get a Quote | |
| *Harga dapat berubah sewaktu-waktu tanpa pemberitahuan | ||||||||
| Name | Version | Release Date |
|---|---|---|
| MSO8000A Firmware | v00.03.01 | 2024-02-29 |
| Name | Version | Release Date |
|---|---|---|
| Ultra Sigma Help Document | V1.0 | 2024-02-29 |
| Ultra Sigma Patch File for MSO8000A | V1.1 | 2024-02-29 |
| Ultra Sigma (PC) Installer | V00.01.06.01 | 2024-02-29 |
| Ultra Scope Software | V00.01.02.13 | 2024-02-29 |
| Model | Description |
|---|---|
| RP1018H | 18 kV, 150 MHz High Voltage Probe |
| RP1300H | 300 MHz High Voltage Probe (2 kV) |
| RP6150A | 1.5 GHz Passive Low-Resistance Probe (500 Ω) |
| RP3500A | 500 MHz Passive High-Resistance Probe |
| Model | Description |
|---|---|
| PVA7250 | 2.5 GHz Active Differential Probe |
| RP7150S | 1.5 GHz Active Single-Ended Probe |
| RP7150 | 1.5 GHz Active Differential Probe |
| RP7080S | 800 MHz Active Single-Ended Probe |
| RP7080 | 800 MHz Active Differential Probe |
| Model | Description |
|---|---|
| RP1006C | 2 MHz, 500 A Current Probe |
| PCA1150 | 10 MHz, 150 A Current Probe |
| PCA2030 | 100 MHz, 30 A Current Probe |
| PCA1030 | 50 MHz, 30 A Current Probe |
| PCA1500 | 2 MHz, 500 A Current Probe |
| RP1000P | 4CH Power Adapter |
| RP1005C | 10 MHz, 150 A Current Probe |
| RP1004C | 100 MHz, 30 A Current Probe |
| RP1003C | 50 MHz, 30 A Current Probe |
| RP1002C | 1 MHz, 70 A DC Current Probe |
| RP1001C | 300 kHz, 100 A DC Current Probe |
| Model | Description |
|---|---|
| PHA2150 | 200 MHz, 1500 V High Voltage Differential Probe |
| PHA1150 | DC–100 MHz, 1500 V High Voltage Differential Probe |
| PHA0150 | DC–70 MHz, 1500 V High Voltage Differential Probe |
| RP1100D | 100 MHz, 3.5 kV High Voltage Differential Probe |
| RP1050D | 50 MHz, 3.5 kV High Voltage Differential Probe |
| RP1025D | 25 MHz, 700 V High Voltage Differential Probe |
| Model | Description |
|---|---|
| RPL2316 | MSO4000 / 2000A Logic Probe, 16CH |
| Model | Description |
|---|---|
| MSO8000A-BW15T20 | MSO8000A 1.5 GHz to 2 GHz Bandwidth Upgrade Option |
| MSO8000A-BW20T30 | 2 GHz to 3 GHz Bandwidth Upgrade Option |
| MSO8000A-BW7T15 | MSO8000A 750 MHz to 1.5 GHz Bandwidth Upgrade Option |
| MSO8000A-BW7T20 | 750 MHz to 2 GHz Bandwidth Upgrade Option |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO8000A Datasheets | V3.0 | 2025-05-20 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO8000A Programming Manual | V1.0 | 2024-02-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO8000A Quick Guide | V1.0 | 2024-02-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO8000A Performance Verification Guide | V1.0 | 2024-02-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| MSO8&DS7000&8000 Open Source Acknowledgment | V1.0 | 2021-11-01 | Download |
