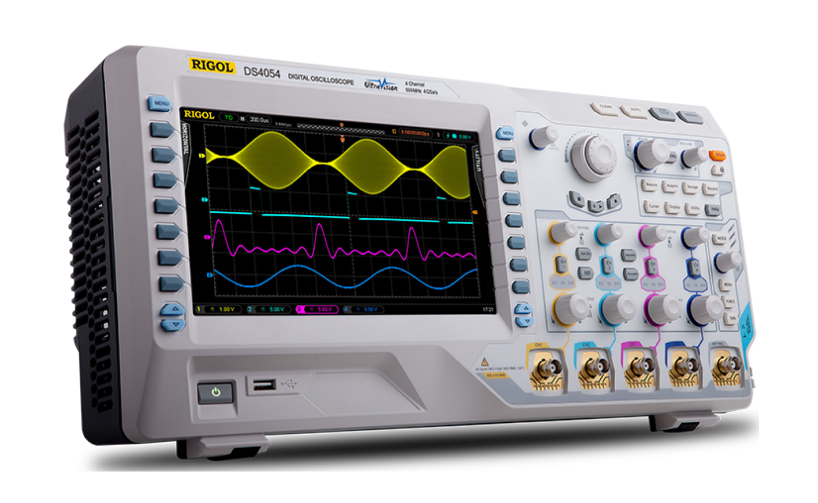

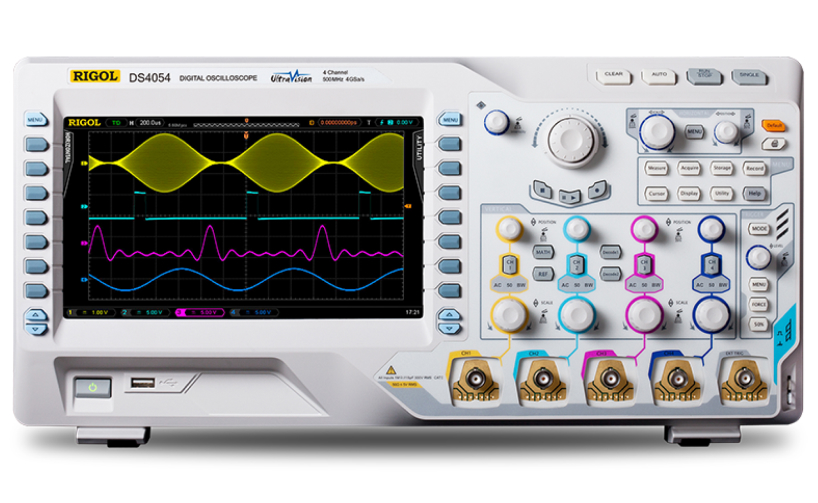

The DS4000E series of digital oscilloscopes is a high-performance, economical general-purpose digital oscilloscope with a bandwidth of 100MHz to 200MHz, a sampling rate of up to 2GSa/s, and a 4-channel memory depth of up to 14Mpts.
Bandwidth : 100 MHz ~ 200 MHz
Analog Channels : 4
Real-time Sample Rate : 2 GSa/s
Max. Memory Depth : 14 Mpts
Waveform Capture Rate : 60,000 kwfms/s
Digital Channels : N/A
Obsolete Oscilloscopes
Datasheet.jpg)
.jpg)
.jpg)
 kcl.jpg)
 kcl.jpg)
 kcl.jpg)
| Model | Bandwidth | Analog Channels |
Real-Time Sample Rate |
Max. Memory Depth |
Waveform Capture Rate |
Action |
|---|---|---|---|---|---|---|
| DS4014E | 100 MHz | 4 | 2GSa/s(Per Channel) | 14Mpts(Per Channel) | 60,000 wfms/s | Rp39.985.000 |
| DS4024E | 200 MHz | 4 | 2GSa/s(Per Channel) | 14Mpts(Per Channel)140 Mpts | 60,000 wfms/s | Rp46.065.000 |
| *Harga dapat berubah sewaktu-waktu tanpa pemberitahuan | ||||||
| Model | Description |
|---|---|
| SD-RS232-DS4000 | RS232 BUS Serial Decode Option for the DS4000 Oscilloscope |
| SD-I2C/SPI-DS4000 | RS232 BUS Serial Decode Option for the DS4000 Oscilloscope |
| SD-FlexRay-DS4000 | FLEXRAY BUS Serial Decode Option for the DS/MSO4000 Oscilloscope |
| SD-AUTO-DS4000 | Automotive Serial (CAN/LIN) Triggering and Analysis for MSO/DS4000 |
| BND-MSO/DS4000 | Application Bundle，includes all serial protocol analysis, measurement, and app options for MSO/DS4000 |
| Model | Description |
|---|---|
| RM-DS4000 | Rack Mounting Kit for MSO/DS4000 |
| FPCS-DS4000 | Front Panel Cover for MSO/DS4000 |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DS4000E Datasheets | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DS4000E Programming Manual | V1.0 | 2019-08-29 | Download |
| Name | Version | Release Date | Download |
|---|---|---|---|
| DS4000E Quick Guide | V1.0 | 2019-08-29 | Download |
