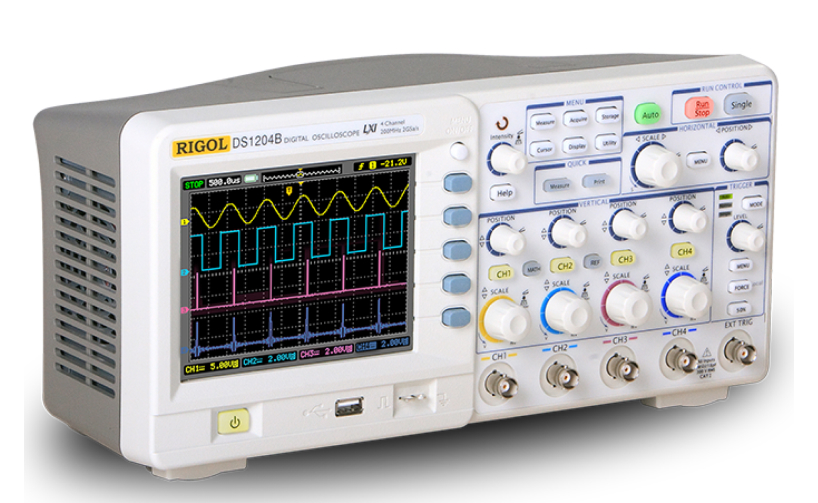

DS1000B Series - RIGOL Digital Oscilloscopes

Features

4 Independent Analog Channels

The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals..DS1000B series provides 4 analog input channels, which can be controlled vertically independently, and users can observe multiple signals at the same time. Each channel button and the corresponding channel mark and waveform in the display screen will be distinguished by a specific color.

2Gsa / s High-Speed Real-Time Sampling

2GSa/s real-time sampling rate, 50gsa / s equivalent sampling rate.

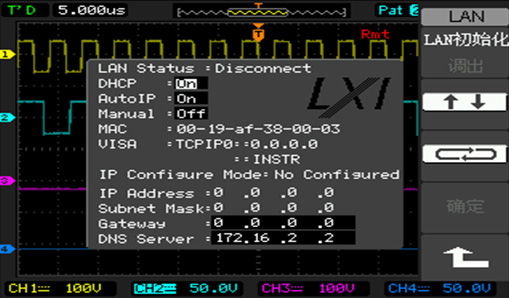

Conform To LXI Alliance Class C Instrument Standard

DS1000B conforms to the C-class instrument standard of LXI alliance, and can quickly, economically and efficiently create and reconfigure the test system, and easily realize system integration

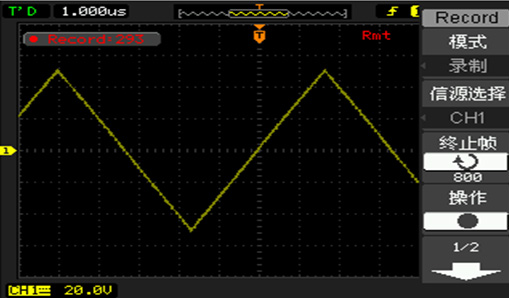

Waveform Recording and Playback Function

The waveform recording function of DS1000B series can not only record the input waveforms of 4 channels, but also record the waveforms that pass or fail the pass / fail detection. Up to 1000 frames can be recorded, played back and saved.

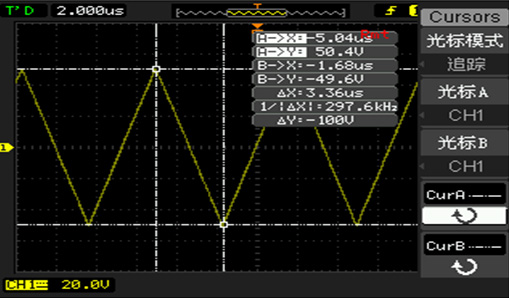

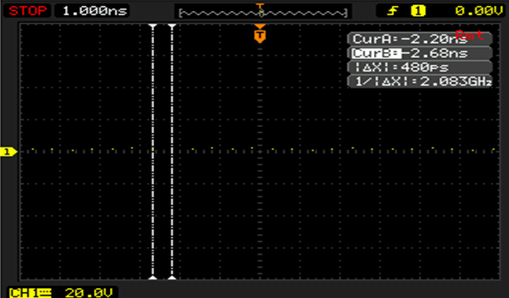

Dynamic Cursor Tracking

Cursor mode allows the user to measure by moving the cursor. There are three methods of cursor measurement: automatic measurement, manual measurement and tracking measurement.

Rich Trigger Functions

DS1000B series has rich triggering functions: edge, pulse width, video, code type and alternating triggering. The unique adjustable trigger sensitivity function can effectively filter out the noise superimposed on the trigger signal and prevent false triggering.

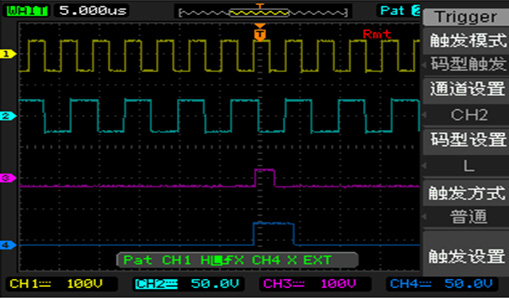

High Performance Code Type Trigger Function

Standard with high-performance code type trigger function, stable trigger MSO digital signal. Among them, the code type trigger can capture special digital information according to the logical relationship between the four channels.

Pass / Fail Test

Pass / fail detection function is convenient for the production line to quickly detect product quality.

Model

Model Bandwidth Analog
Channels		 Real-Time
Sample Rate		 Max. Memory
Depth		 Action
DS1204B 200 MHz 4 2 GSa/s 16 kpts Get a Quote
DS1104B 100 MHz 4 2 GSa/s 16 kpts Rp26.950.000
DS1074B 70 MHz 4 2 GSa/s 16 kpts Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM-DS1000B Rack Mounting Kit for DS1000B
BAG-DS1000 Instrument Carry Case for a DS1000 Series Oscilloscope
CB-DB9-DB-FF-150 RS232 Cable, Female to Female, 150cm
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
CB-USBA-USBB-FF-100 50 Ohm impedance adapter for oscilloscopes or generatorsUSB Cable
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
