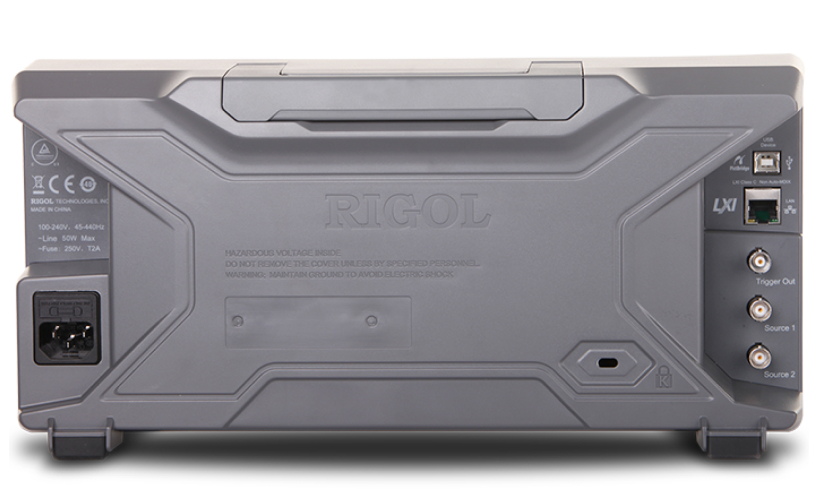

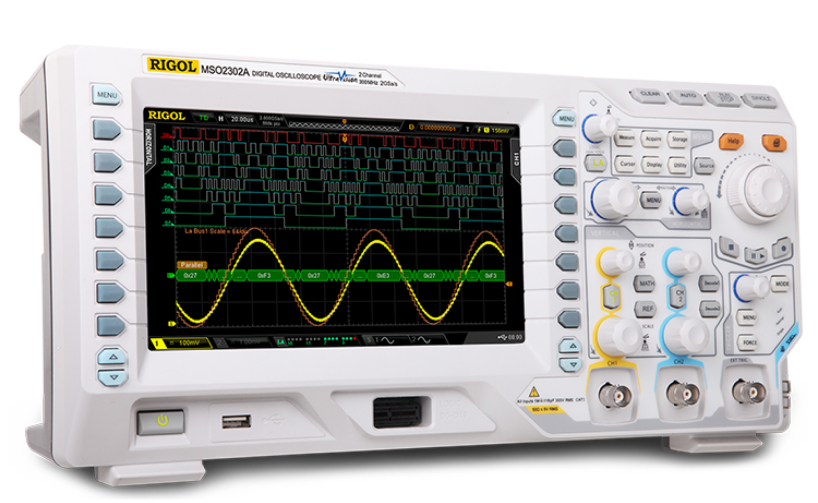

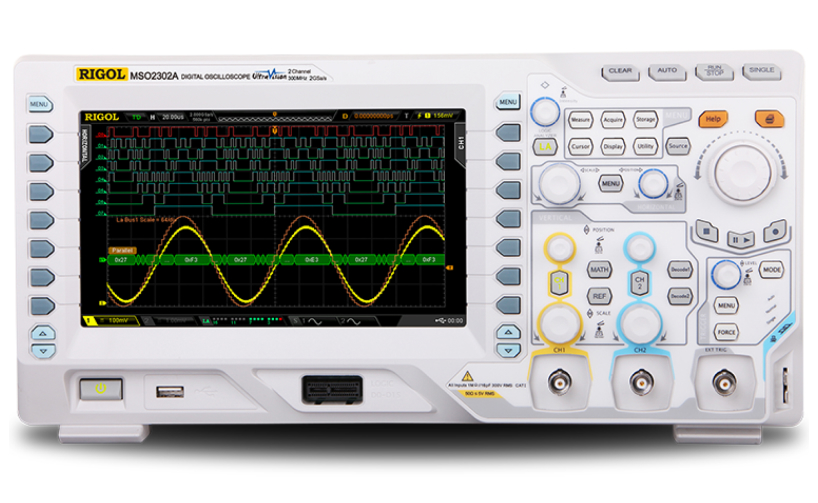

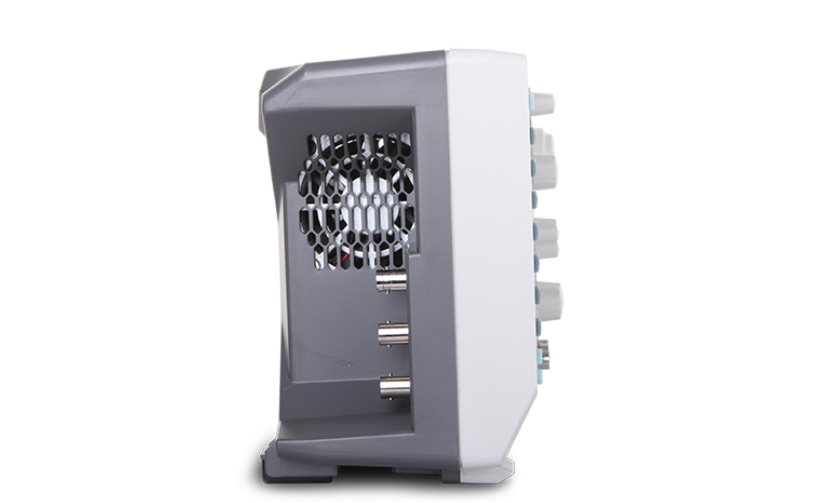

Features

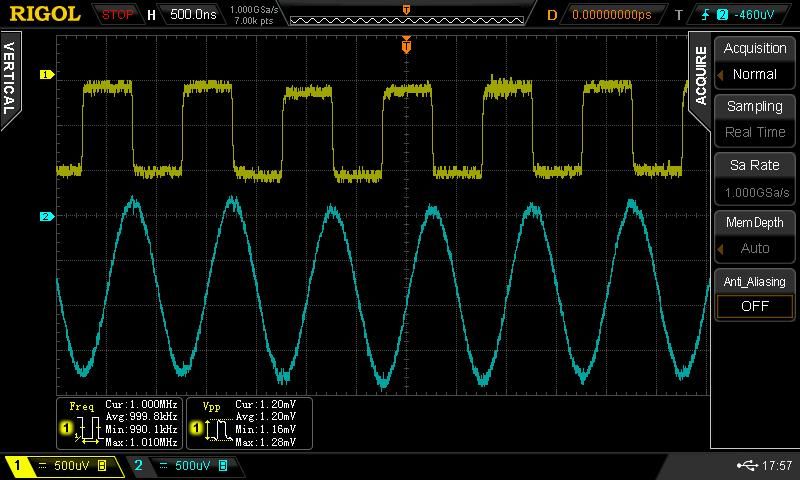

Low Noise floor with wide vertical range (500uV/div ~ 10V/div)

With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can effect your design.

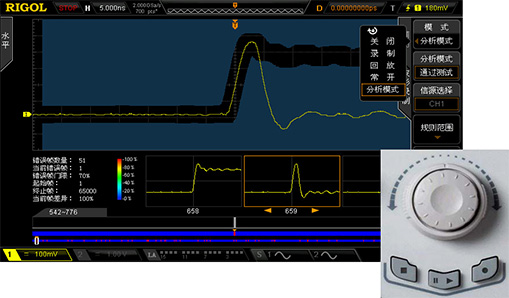

Waveform Record and Playback

Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.

Waveform Record and Playback16 Digital Channels (MSO Models)

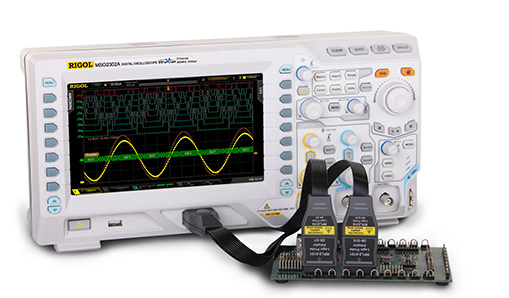

The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.

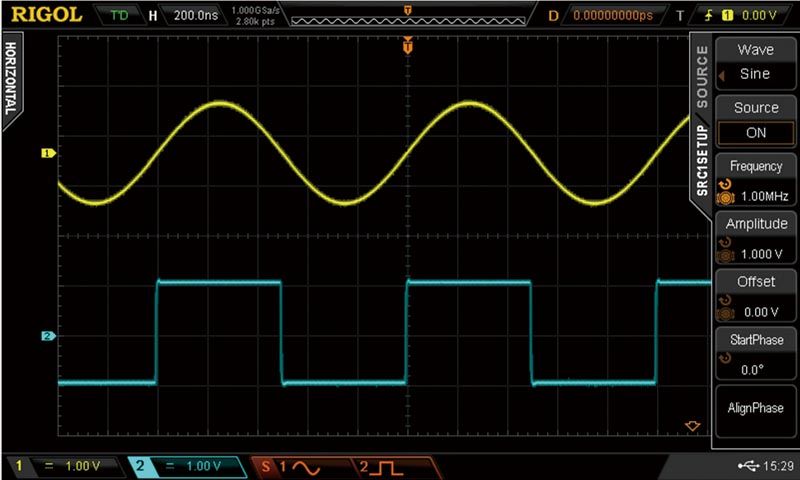

Integrated 2 Channel full function 25MHz generator

Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications.

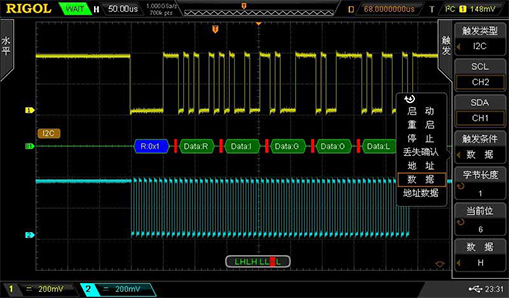

Serial bus triggering and decoding

Supports I2C, SPI, RS232/UART, CAN, LIN, FlexRay bus triggering and decoding as standard or optional offers.

Model

Model Bandwidth Analog
Channels		 Real-Time
Sample Rate		 Max. Memory
Depth		 Waveform
Capture Rate		 Digital
Channels		 Built-In
Source		 Price
DS2302A 300 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s - - Rp14.929.000
DS2202A 200 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s - - Rp12.487.500
DS2102A 100 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s - - Rp11.877.000
DS2072A 70 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s - - Rp6.490.000
MSO2102A 100 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s 16 - Rp18.703.500
MSO2102A-S 100 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s 16 2CH Rp23.809.000
MSO2202A 200 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s 16 - Rp19.869.000
MSO2202A-S 200 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s 16 2CH Rp26.085.000
MSO2302A 300 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s 16 - Rp24.198.000
MSO2302A-S 300 MHz 2 2 GSa/s 56 Mpts 52,000 wfms/s 16 2CH Rp28.527.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Functional Options

Model Description
SD-DS2000 Serial data decode option for DS2000 series oscilloscopes.
Includes RS-232, I2C, and SPI decoding
CAN-DS2000 CAN triggering & Decoding option for the DS2000A Series
Oscilloscopes
AT-DS2000 Advanced triggering options for DS2000 series oscilloscopes.
Includes USB triggering and others

Accessories

Model Description
RM-DS2000 Rack Mounting Kit for MSO/DS2000A
BND-MSO/DS2000A Application Bundle，includes all serial protocol analysis,
measurement, and app options for MSO/DS2000A
CB-USBA-USBB-FF-100 USB Cable
CB-DB9-DB-FF-150 RS232 Cable, Female to Female, 150cm
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and
control it via GPIB. This does not connect to a PC directly
DK-DS6000 Demo Board for oscilloscopes

User Manual

Name Version Release Date Download
MSO/DS2000A User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
MSO/DS2000A Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
MSO/DS2000A Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
MSO/DS2000A Quick Guide V1.0 2019-08-29 Download
