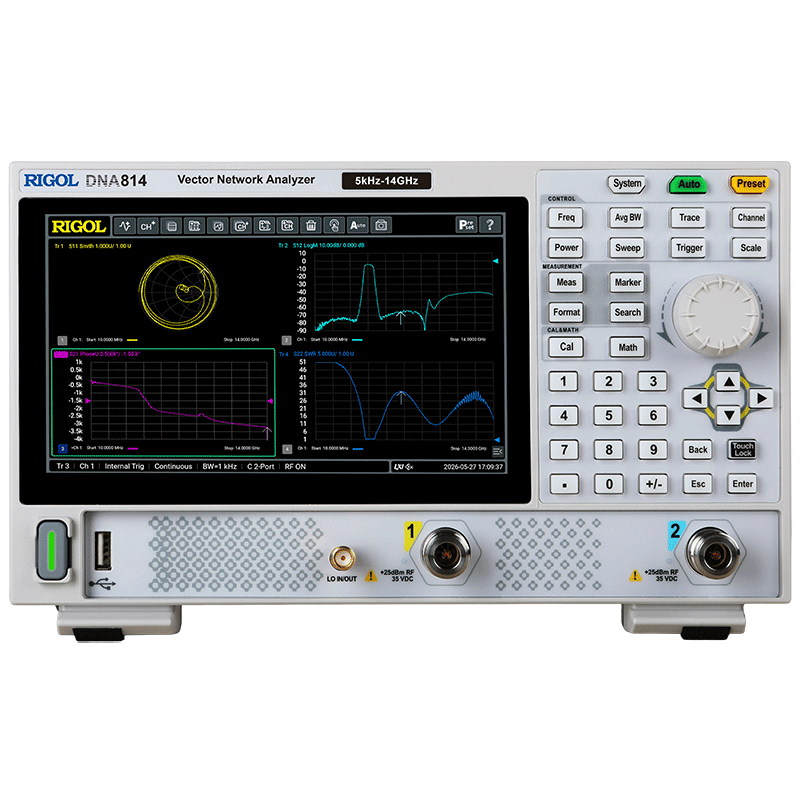

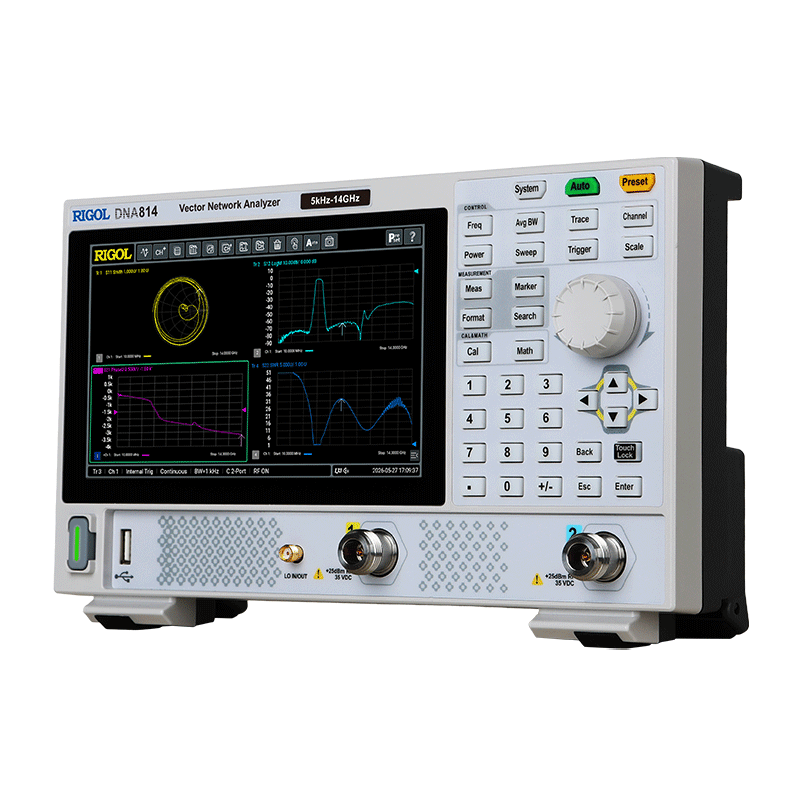

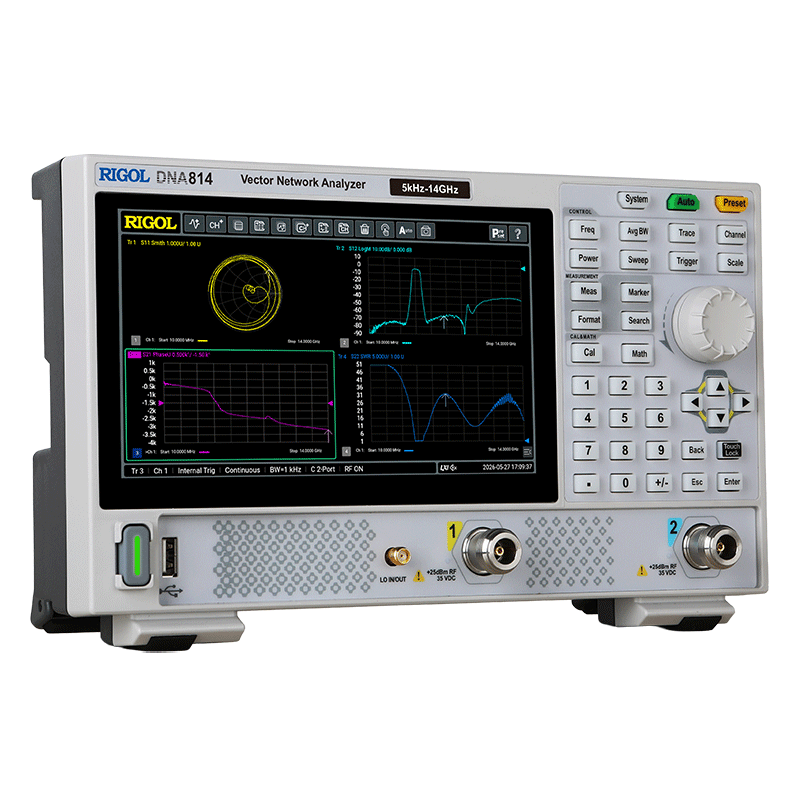

DNA800

The DNA800 Series is an ultra-portable entry-level vector network analyzer featuring a true two-port architecture and frequency coverage from 5 kHz to 14 GHz. In a compact form factor, it delivers comprehensive S-parameter and impedance measurements. With a typical 115 dB dynamic range, 1 Hz to 10 MHz IF bandwidth, and 0.005 dB rms trace noise, it is well suited for testing passive components, filters, and matching networks. A 7-inch multi-touch display, HDMI output, and full SCPI remote control with compatibility for mainstream command sets simplify automated testing in both laboratory and production environments.
