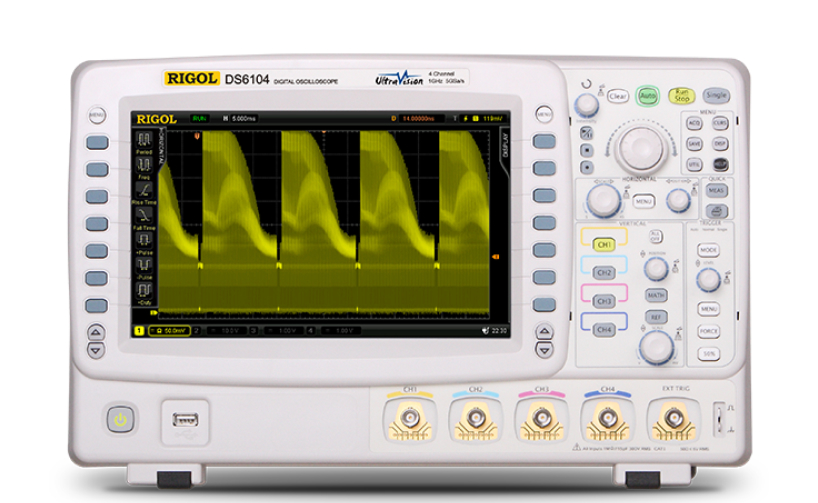

DS6000 Series

The 6000 Series Digital Oscilloscopes have 1 GHz of Bandwidth. Detecting high speed signals and device characteristics including ESD, digital video, and differential signals (using an differential probe accessory) is now easier than ever with our most advanced digital oscilloscope platform.

Bandwidth: 1 GHz
Analog Channels: 4
Real-time Sample Rate: 5 GSa/s
Max. Memory Depth: 140 Mpts
Waveform Capture Rate: 180,000 kwfms/s
Digital Channels: N/A
Datasheet
DS6000 Series Product
DS6000 Series thumbnail 1
DS6000 Series thumbnail 2

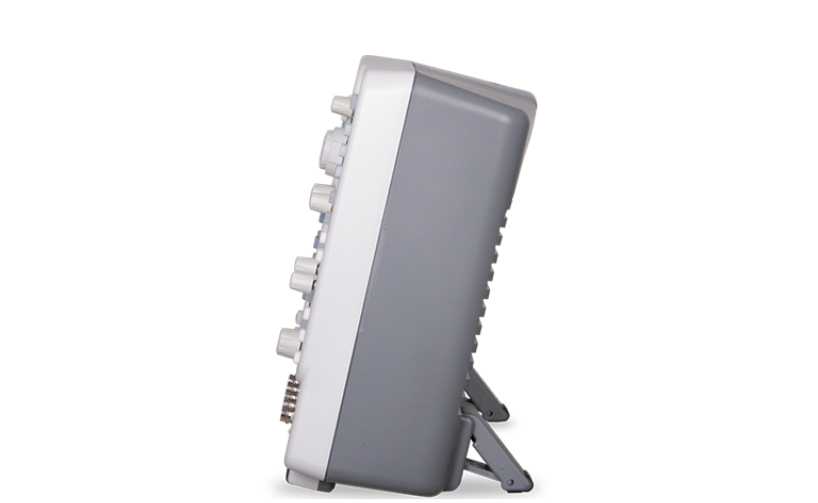

DS6000 Series thumbnail 3

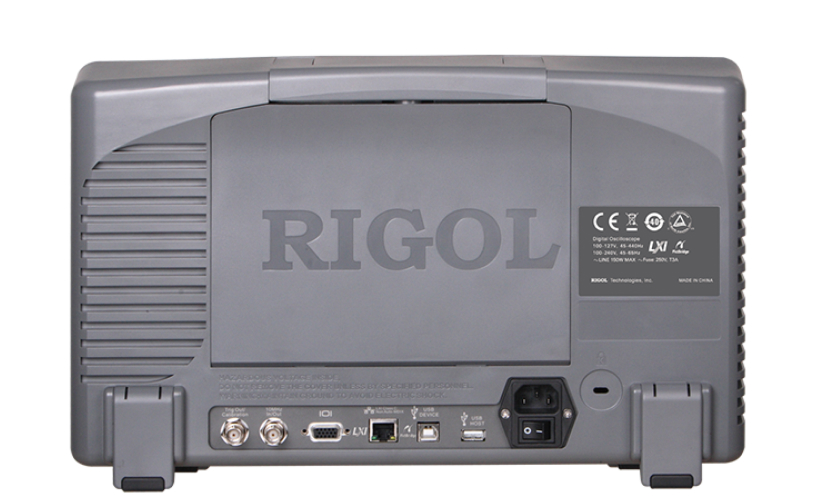

DS6000 Series thumbnail 4

Features

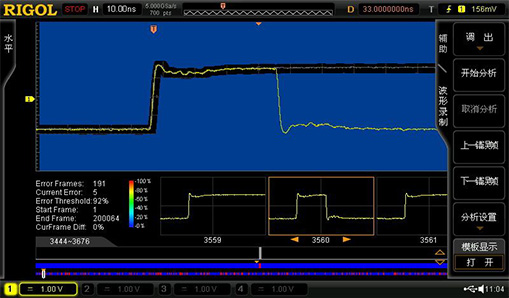

Waveform Record and Playback

Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.

Waveform Record and Playback – DS6000 Series

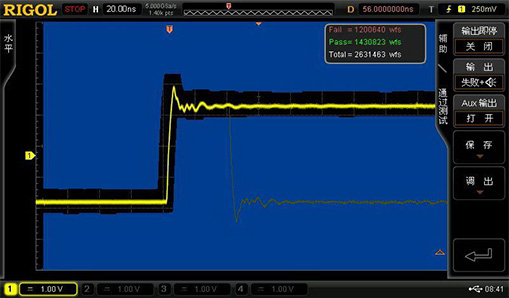

Waveform Template Test Function

Standard template test function, with Pass/Fail statistics, error stop and alarm functions, convenient for production line testing and long-term monitoring applications.

Waveform Template Test Function – DS6000 Series

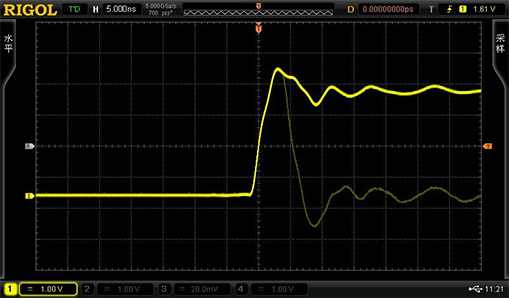

Up to 180,000 wfms/s Waveform Capture rate

Minimize scope “dead time” between trigger events and increases observations of random and sporadic events.

Up to 180,000 wfms/s Waveform Capture rate – DS6000 Series

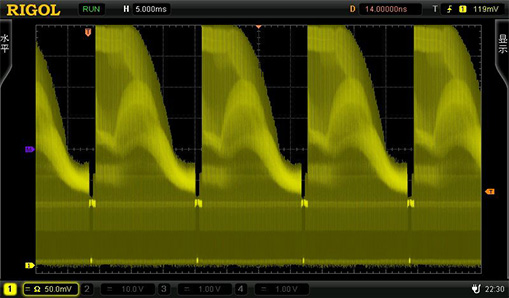

Intensity Color graded display

Observe and highlight signal anomalies even when obscured by other signals.

Intensity Color graded display – DS6000 Series

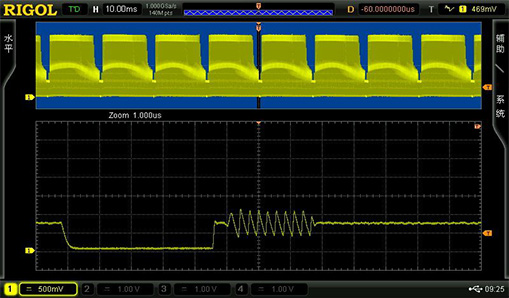

140Mpts Standard Record Length

Long acquisitions at high sample rates help debug elusive problems in complex digital streams

140Mpts Standard Record Length – DS6000 Series

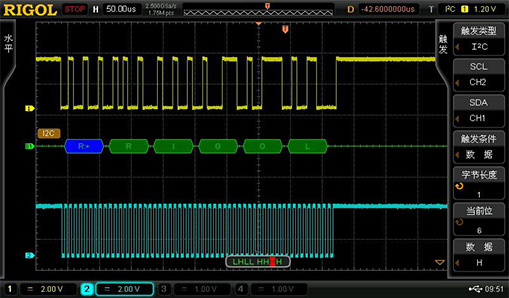

Serial bus triggering and decoding

Standard I2C, SPI, RS232/UART, CAN, USB, FlexRay trigger function, add options to support the above bus decoding (except USB).

Serial bus triggering and decoding – DS6000 Series

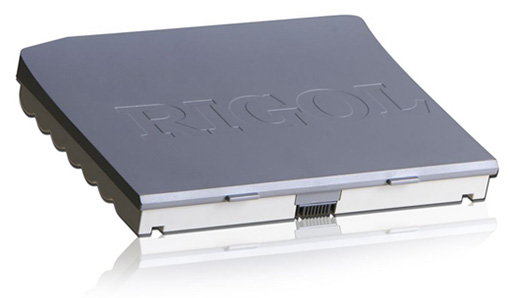

Work with battery powered

Work with battery options for off-sites without power and applications where floating test is strictly required.

Work with battery powered – DS6000 Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Price
DS6104 1 GHz 4 5 GSa/s 140 Mpts 180,000 wfms/s Get a Quote
*Prices may change without prior notice.

Accessories

Model Description
FPCS-DS6000 Front Panel Cover for DS6000
RM-DS6000 Rack Mounting Kit for DS6000
CK-DS6000 Calibration kit for DS6000
CB-USBA-USBB-FF-100 USB Cable
CB-DB9-DB-FF-150 RS232 Cable, Female to Female, 150cm
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
ARM Arm mount option for a DSA1000 Series or DSA1000A Series Spectrum Analyzer or DS6000 Series Oscilloscope
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly
BAT 11.1 V, 147 Wh Battery for DS6000
NFP-3 Near Field Probe, Frequency Range: 30MHz to 3GHz
RPA246 Power Analysis Calibration Kit
T2R1000 Active probe adaptor for connecting TekProbe-BNC probes to a DS6000 or MSO/DS4000
DK-DS6000 Demo Board for oscilloscopes

User Manual

Name Version Release Date Download
DS6000 User Manual V1.0 2021-10-26 Download

Datasheet

Name Version Release Date Download
DS6000 Datasheets V1.0 2021-10-26 Download

Quick Guide

Name Version Release Date Download
DS6000 Programming Manual V1.0 2021-10-26 Download
